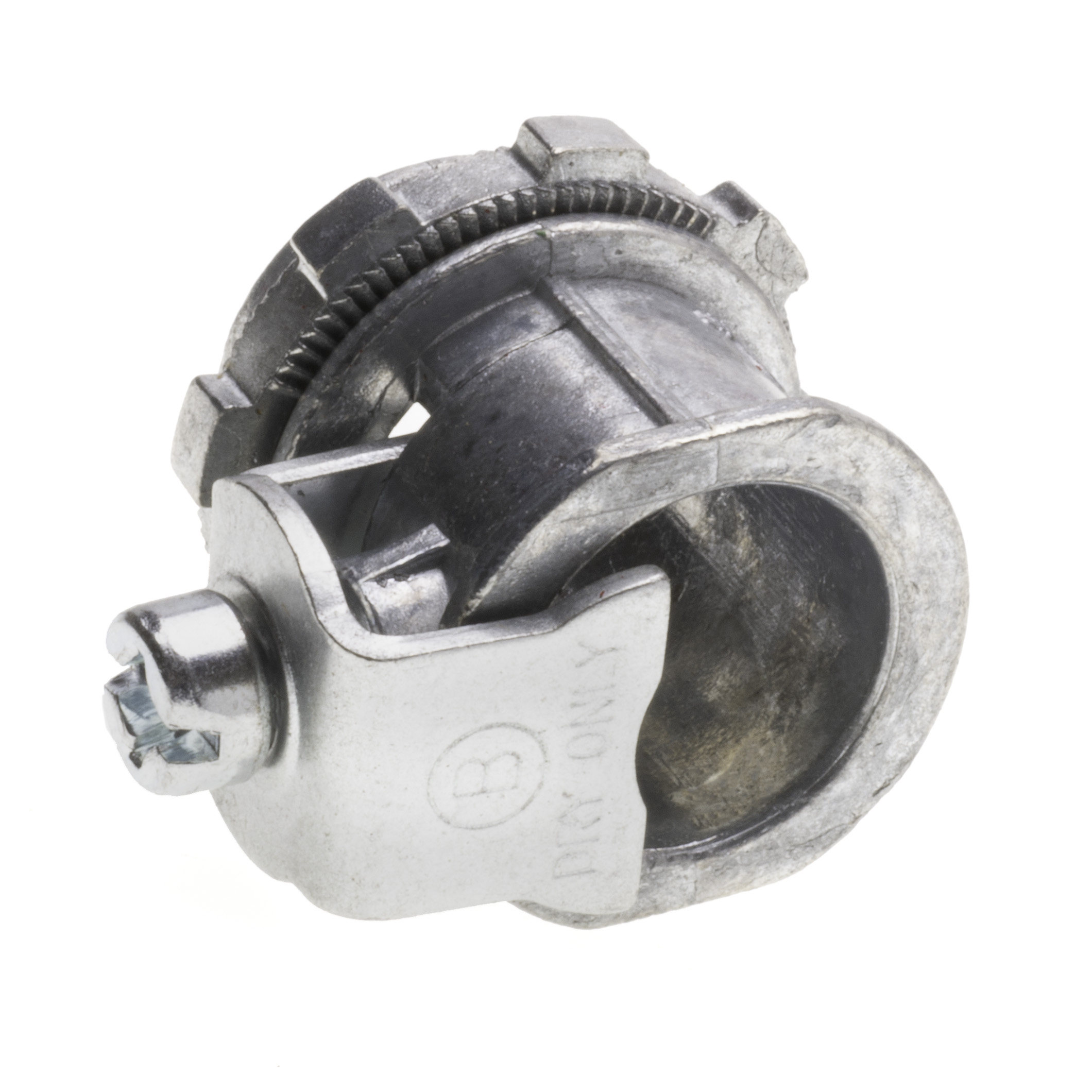

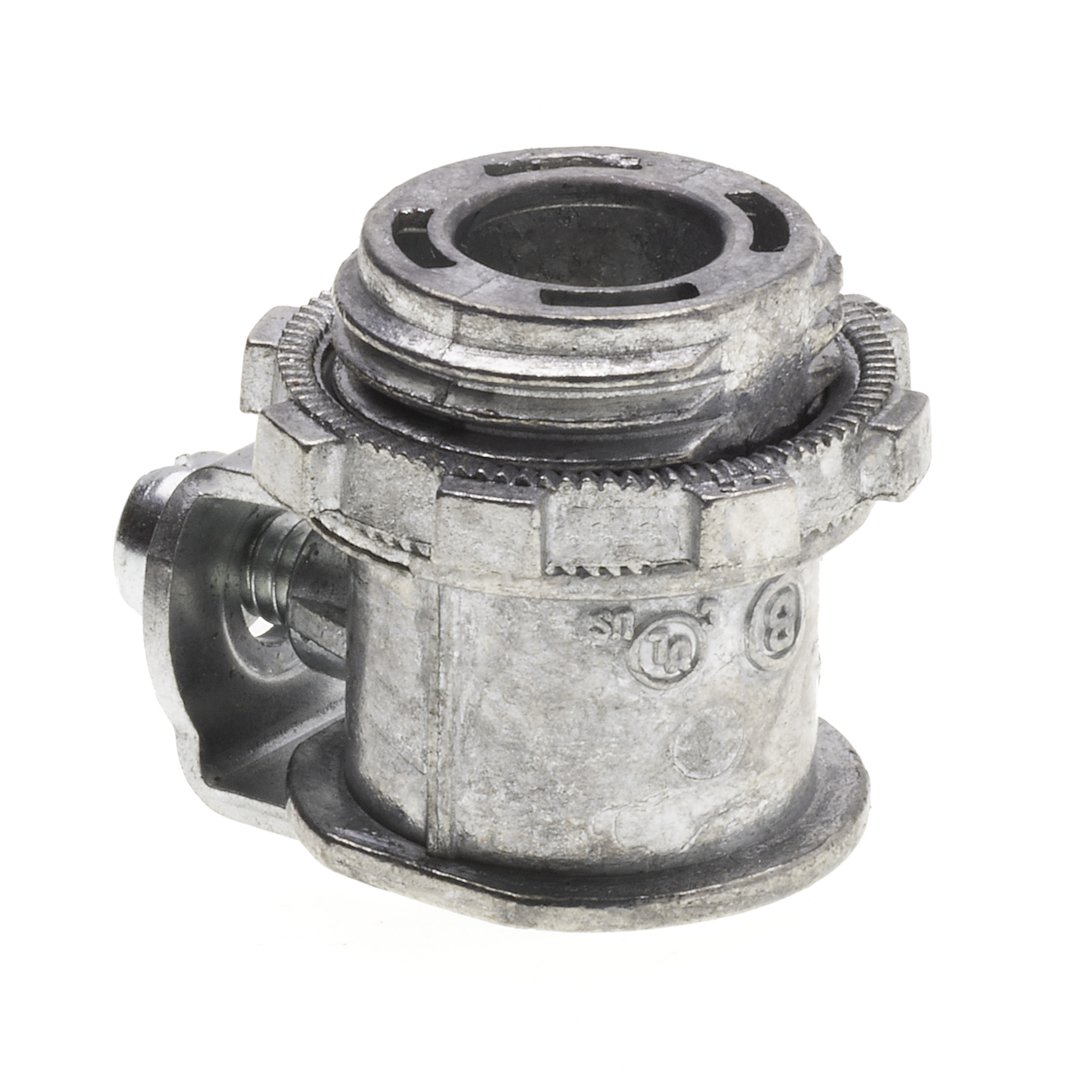

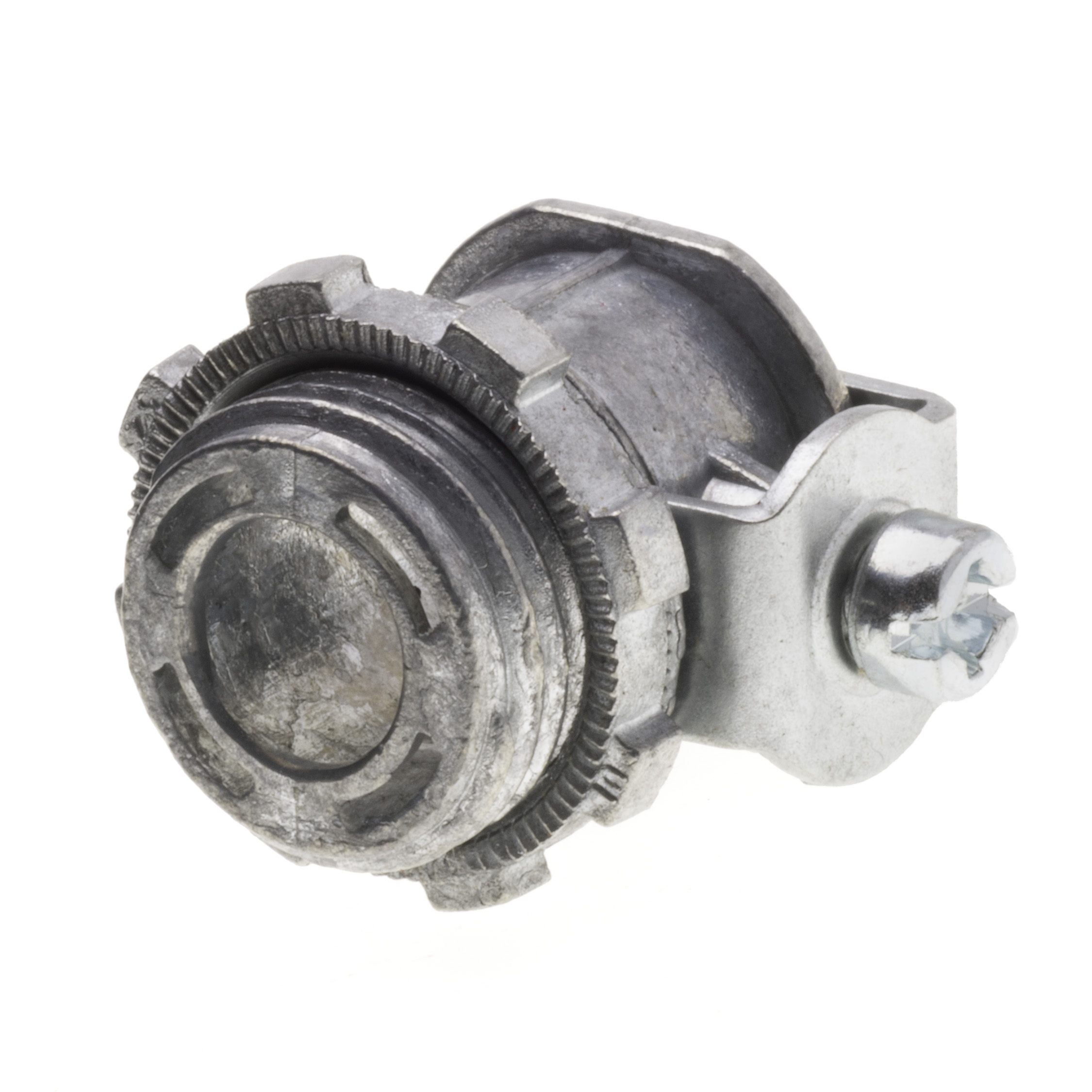

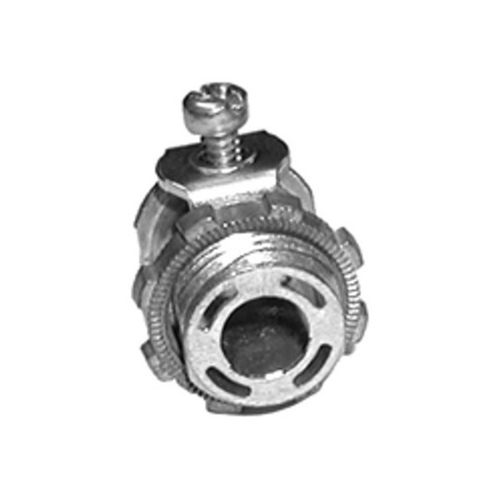

Round Opening “U” Shaped Strap Connector 3/8″, Die Cast Zinc
#570-DCR2
Use Bridgeport round opening “U” shaped strap connectors to connect armored clad / metal clad cable to an electrical box or enclosure. This connector is also suitable for HCF and HCFMCI-A cabling.
- Cable Range: Use to connect 14/2 to 10/3 (.43" to .61") AC/MC/HCF/HCFMCI-A cable to a 1/2" knockout
- Quick Installation: Insert cable into the connector and then tighten a single screw to secure in place
- Zinc Body: Die cast zinc connectors have a precise fit and finish for a trouble-free performance and excellent corrosion resistance when used in harsh environments
- Safety Compliance: Bridgeport strap connector is UL listed and RoHS compliant
Product Information
| Material | Zinc Die Cast |
|---|---|
| Finish | Ball burnished, mirror smooth. Strap: Zinc electro-plate |
| Pack Qty | 500 |
| GTIN | 00781747150578 |
| UPC | 781747150578 |
| EAN | 0781747150578 |
| UNSPSC | 39121419 |
| Origin Country | United States |
| Ul Standard | UL-514B |
| Ul File No | E20534 |
Resources
Documents
- BPT_570-DCR2_ProDraw.pdf Download
