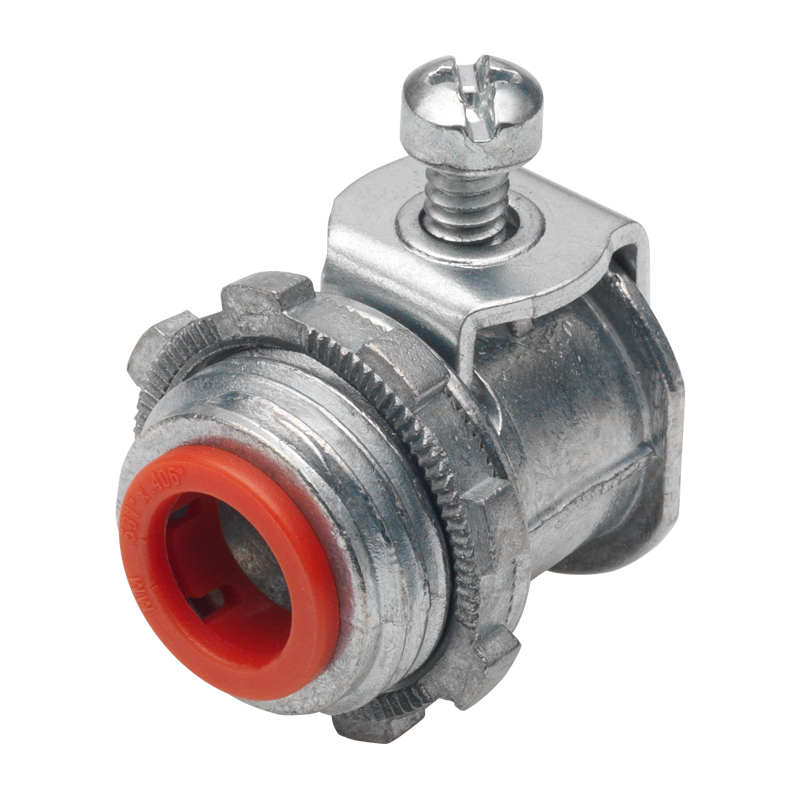

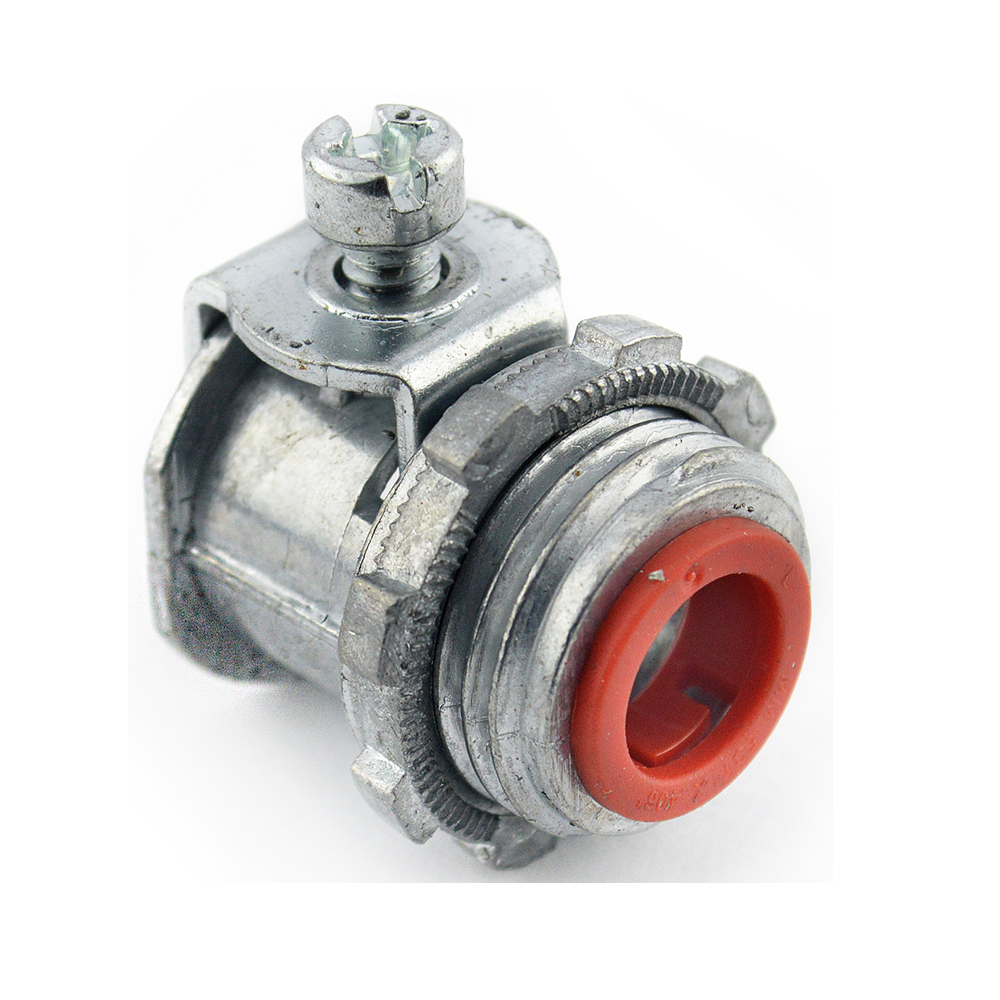

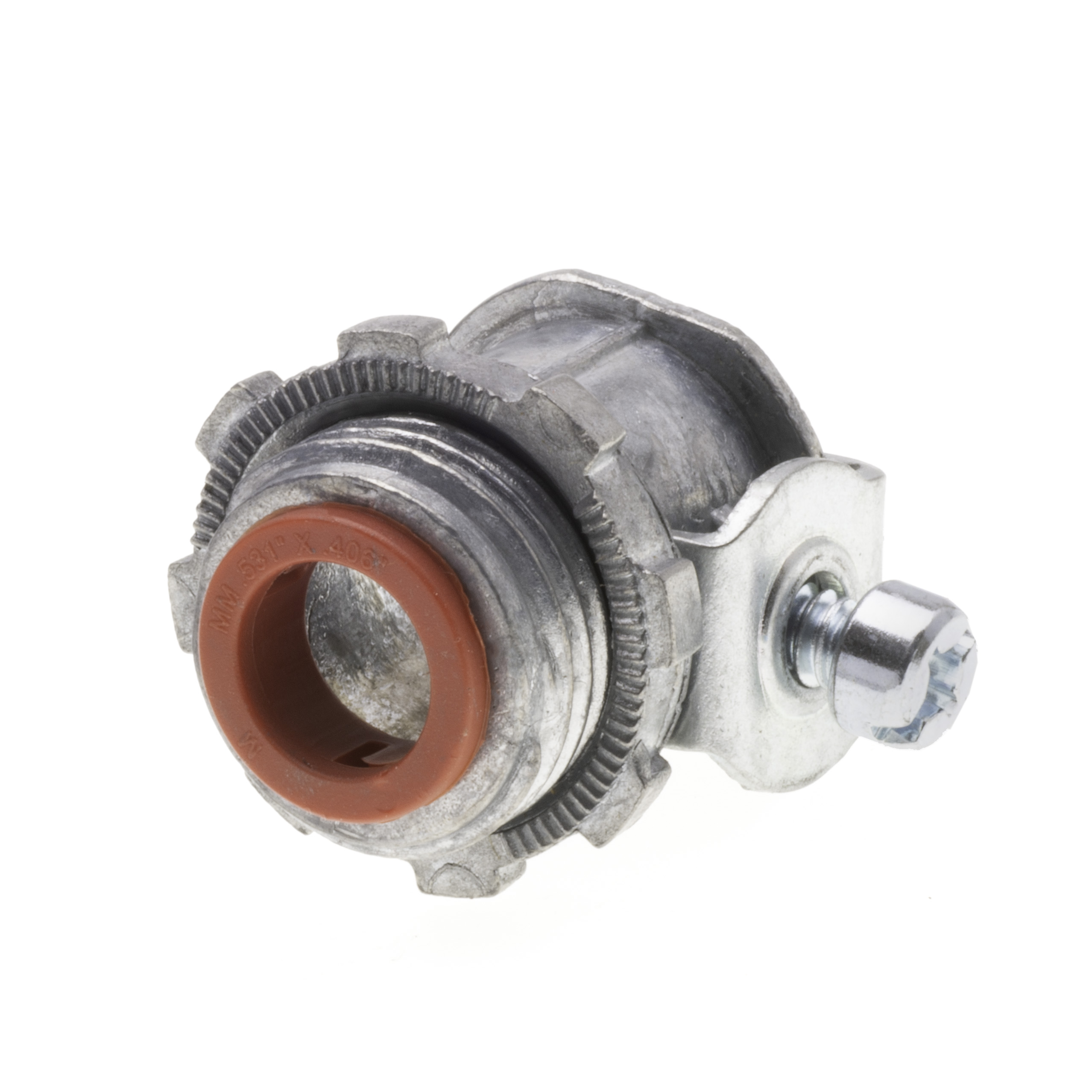

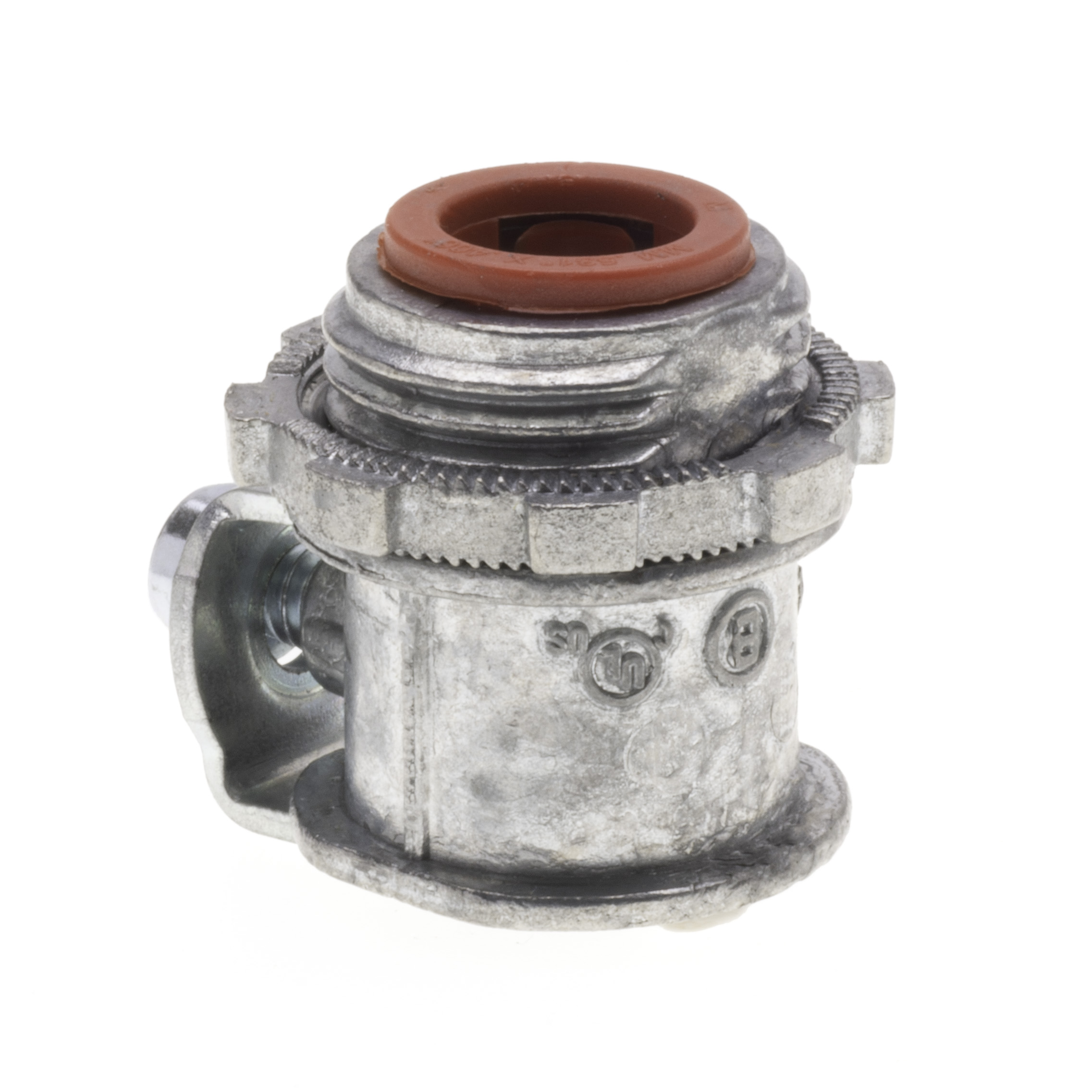

Insulated “U” Shaped Strap Connector 3/8″, Die Cast Zinc
#570-DCI2
Use Bridgeport’s insulated “U” shaped strap connector to connect AC/MC cable to an electrical box or enclosure. This connector is also suitable for use with MC-PCS cable, and is CSA listed for ACG90.
- Cable Range: Use to join 14/2 to 10/3 (.42" to .61") AC/MC cable or 14/2 to 10/3 (.42" to .61") MC-PCS cable to a 1/2" box knockout
- Insulated Throat: Insulated throat protects inner wiring up to 105°C
- Single Screw: Insert cable or conduit into connector and then tighten a single screw
- Zinc Body: Die cast zinc connectors have a precise fit and finish for a trouble-free performance and excellent corrosion resistance when used in harsh environments
- Safety Compliance: Bridgeport strap connector is UL listed and RoHS compliant
Product Information
| Material | Zinc Die Cast |
|---|---|
| Finish | Ball burnished, mirror smooth. Strap: Zinc electro-plate |
| Pack Qty | 500 |
| GTIN | 00781747165701 |
| UPC | 781747165701 |
| EAN | 0781747165701 |
| UNSPSC | 39121419 |
| Origin Country | United States |
| Ul Standard | UL-514B |
| Ul File No | E20534 |
