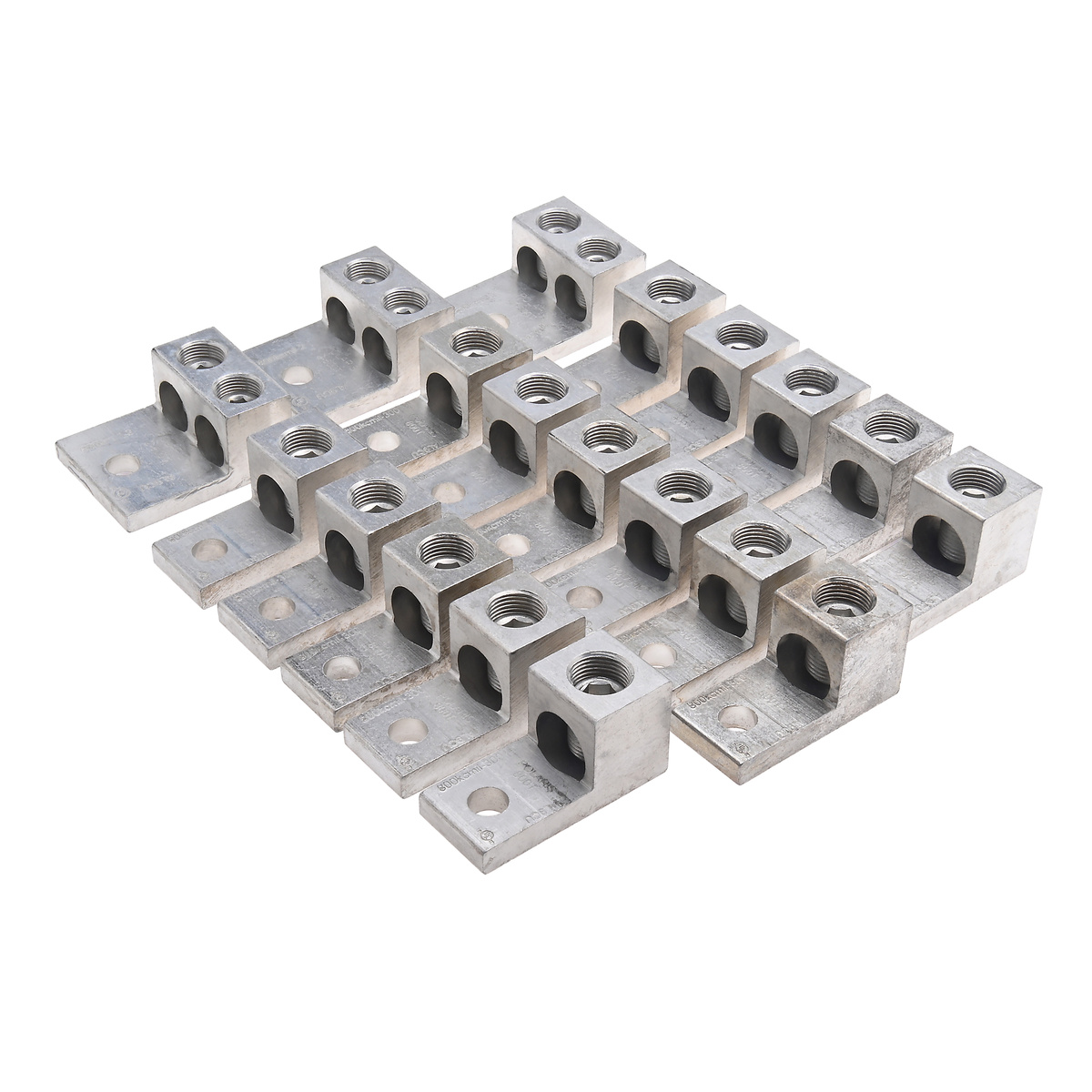

Transformer Lug Kit # 10

#L700N

Product Information

Material Copper
Finish Tin Plated
UNSPSC 39121405
Ul Standard UL486A/B
Huskie Tools EP510C
Tb Die 15505
Tb Tools TBM-15, TBM-14M
Burndy Tools Y-35, T750, PAT750
Ilsco Tools ILC-12, ILC-15
Greenlee Tools HK, EK, RK 1240 Series
Nsi Tools N1240, NSI-12, N121D, M-250, M-500, RDC1/0
Barrel Inside Diameter 0.98
Barrel Outside Diameter 1.24
Ul File No E155027
Wire Cable Class Class B, Class C
Al Conductor Max Amp 230
Cu Conductor Max Amp 290
Conductor Cu Size Range 250 MCM-6 AWG
Conductor Al Size Range 250 MCM-6 AWG
Conductor Type Copper
Tang Thickness 0.27
Tang Length 2.99
Temp Rating 90C, 9CU
Mounting Hole Pos 0.51
Hole Spacing 1.75
Hole Count 2
Conductors Count 3
Hex Wrench Size 5
Wire Range 700 MCM
Env Temp 90C, 9CU
Assortment Copper Compression Terminations
Application Terminate
Expanded Wire Range 700 MCM-350 MCM
Die Color Code Green
Mounting Bolt Size 44563
Mounting Hole Diameter 0.51
Max Torque 360
Barrel Length 2.64

Resources

Documents

  • PROINSTAL_NSI_CU_Compression_INST_DIGITAL.pdf Download
  • PRODRAW_L700N.pdf Download
