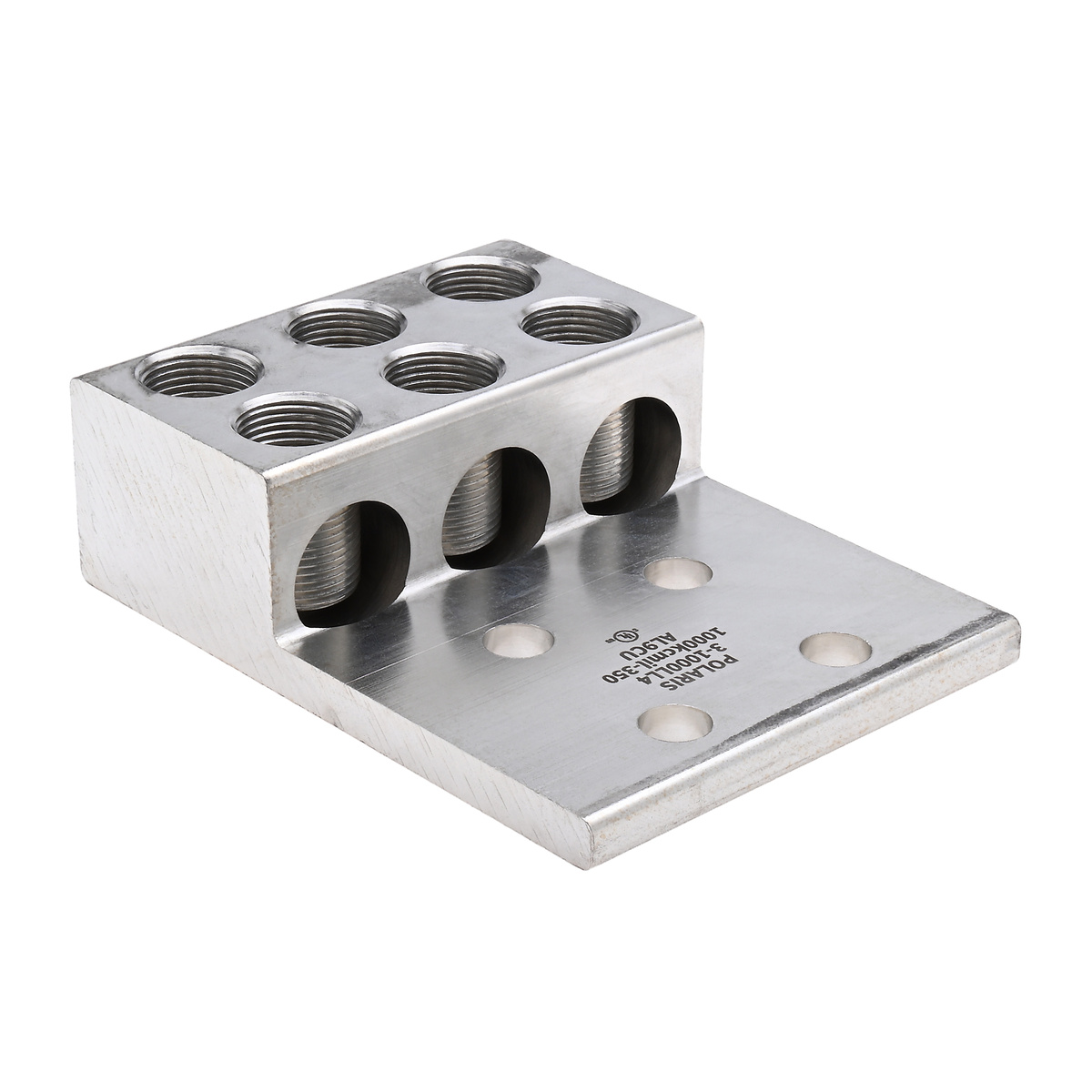

Nema Panel Lug(3)1000-500 4 Mount
#3-1000LL4
Nema Panel Lug Al/Cu 3 1000-500 4 Mt
- Large size set-screw connectors with multiple mounting, NEMA spaced holes for a secure, turn-prevent connection
- Made of 6061T-6 aluminum alloy
- Tin plated for low contact resistance
- For use with copper or aluminum conductors
- All hole spacing is NEMA standard of 1.758 inch
Product Information
| Voltage Rating | 600 V |
|---|---|
| Material | 6061T-6 Aluminum Alloy |
| Finish | Tin Plated |
| Pack Qty | 2 |
| GTIN | 662381001757 |
| UPC | 662381001757 |
| EAN | 662381001757 |
| UNSPSC | 39121466 |
| Origin Country | US |
| Certifications | cULus, UL Listed |
| Ul Standard | UL 486A-486B |
| Ul File No | E155027 |
| Conductor Type | Copper, Aluminum |
| Conductors Count | 3 |
| Hex Wrench Size | 9/16 |
| Wire Range | 1000 MCM – 500 MCM |
| Assortment | Aluminum Mechanical Terminations |
| Application | Terminate |
Resources
Documents
- NSI_3-LL4-SERIES_MCH_ProDraw_DIGITAL.PDF Download
