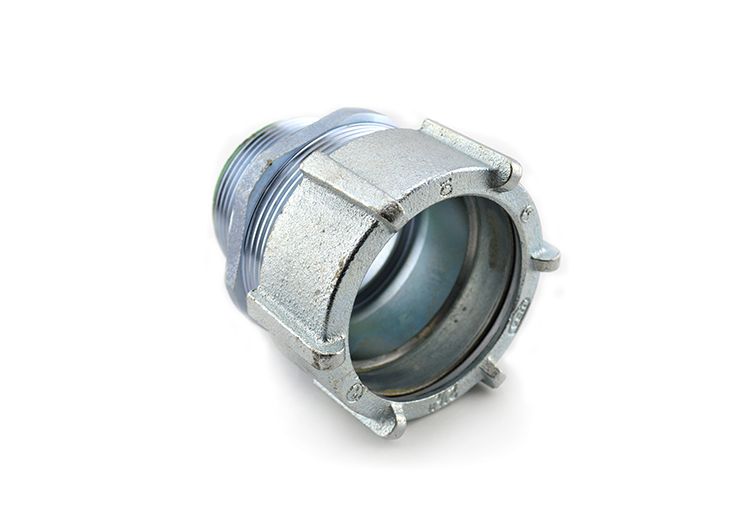

Insulated EMT Compression Connector 3″, Steel, Made in the US
#257-USI
Use Bridgeport insulated EMT compression connectors to connect electrical metallic tubing to an electrical box or enclosure. Compression type fittings are quick to install and create a concrete-tight seal at the point of connection. Made in the USA.
- Insulated Connector: An insulated throat offers superior protection against cable abrasion and is rated up to 105℃
- Fast Connections: EMT compression connectors offer quick and reliable connections between EMT and a box knockout – just insert the EMT, tighten the ring and you’re done
- Flexible Sizing: Insulated steel compression type EMT connectors are available in trade sizes 1/2" to 4", offering greater flexibility for all of your EMT installation needs
- Strong and Durable: Steel EMT connectors feature a strong steel body with zinc plating for both durability and excellent corrosion resistance in harsh environments
- Concrete-Tight: Compression type EMT connectors provide a concrete-tight seal between EMT and an electrical box or enclosure knockout
Product Information
| Material | Steel |
|---|---|
| Finish | Zinc Electro-Plated |
| Pack Qty | 10 |
| GTIN | 00781747222572 |
| UPC | 781747222572 |
| EAN | 0781747222572 |
| UNSPSC | 39121434 |
| Origin Country | United States |
| Ul Standard | UL-514B |
| Ul File No | E24001 |
| Application | Used to secure steel EMT/Rigid to box or enclosure. Concrete tight. Insulated Throat -105 Degree C |
Resources
Documents
- BPT_257-USI_ProDraw.pdf Download
