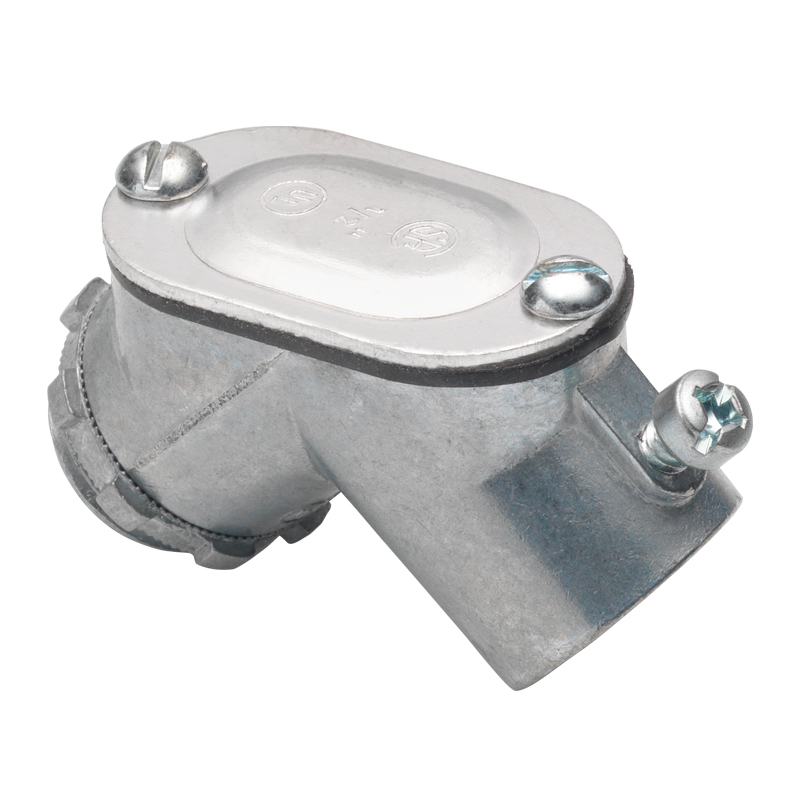

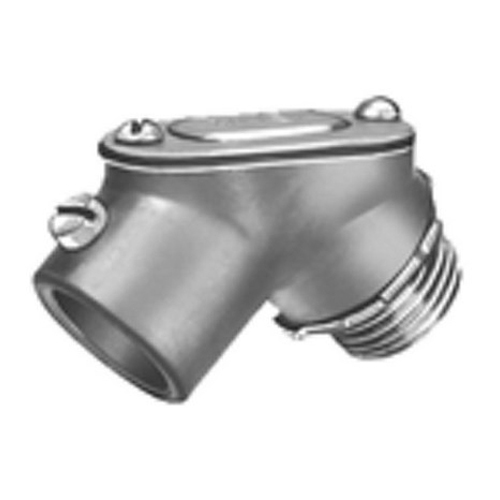

EMT Pull Elbow Connector 1/2″, Zinc, With Removable Cover
#51-DC2
Bridgeport 1/2″ EMT Pull Elbows ensure a high-quality connection between a section of EMT and the electrical junction box or enclosure. The pull elbow comes with a removable cover that facilitates wire pulling and any system changes.
- Removable Aluminum Cover: Bridgeport pull elbows feature a removable aluminum cover to facilitate wire pulling and ensure easy access for maintenance or future system changes
- Zinc Die Cast Body: The zinc die cast body is naturally resistant to corrosion for long-term use in any environment
- Zinc-Plated Steel Set Screws: The set screws ensure that the EMT conduit can be securely fastened once in place
Product Information
| Material | Zinc Die Cast |
|---|---|
| Finish | Ball burnished, mirror smooth, Cover: Zinc electro-plate |
| Pack Qty | 100 |
| GTIN | 00781747150516 |
| UPC | 781747150516 |
| EAN | 0781747150516 |
| UNSPSC | 39131717 |
| Certifications | PROP65 https://www.p65warnings.ca.gov/ |
| Ul Standard | UL-514B |
| Ul File No | E9391 |
| Application | Used to connect EMT to box or enclosure. Removable steel cover and neoprene gasket to facilitate wire pulling. |
Resources
Documents
- BPT_51-DC2_ProDraw.pdf Download
