AL/CU CMP Lug 2 AWG 3/8 Bolt Size
Compression Terminations
#AL2-38

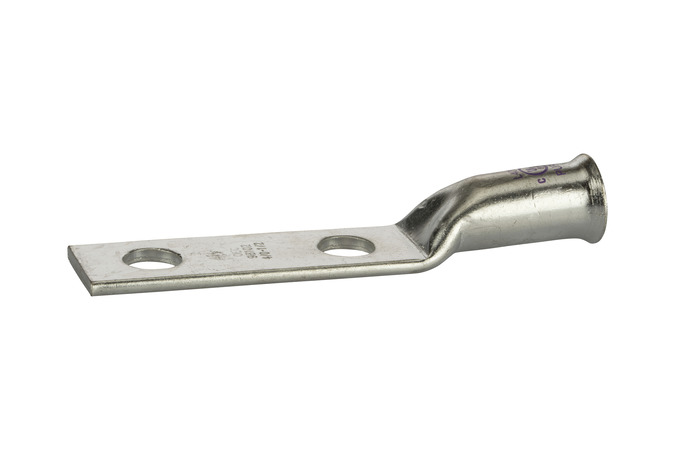

CMP Lug Al/Cu 2 AWG 3/8 Bolt Size
| Voltage Rating |
35kV
|
| Material |
Aluminum
|
| Finish |
Tin Plated
|
| GTIN |
662381030252
|
| UPC |
662381030252
|
| EAN |
662381030252
|
| UNSPSC |
39121449
|
| Origin Country |
IN
|
| Ul Standard |
UL486A/B
|
| Huskie Tools |
EP510C
|
| Tb Die |
15508
|
| Tb Tools |
TBM-15, TBM-14M, 13100A
|
| Burndy Tools |
Y-35, T750, PAT750
|
| Ilsco Tools |
ILC-12, ILC-12H, ILC-15
|
| Greenlee Tools |
EK, RK HK1240 Series
|
| Nsi Tools |
N1240, N12ID
|
| Barrel Inside Diameter |
0.31
|
| Barrel Outside Diameter |
0.53
|
| Ul File No |
E155027
|
| Wire Cable Class |
Class B, Class C
|
| Al Conductor Max Amp |
230
|
| Cu Conductor Max Amp |
290
|
| Conductor Cu Size Range |
250 MCM-6 AWG
|
| Conductor Al Size Range |
250 MCM-6 AWG
|
| Conductor Type |
Copper, Aluminum
|
| Tang Thickness |
0.22
|
| Tang Length |
1.26
|
| Temp Rating |
90C, AL9CU
|
| Mounting Hole Pos |
0.38
|
| Hole Count |
1
|
| Conductors Count |
3
|
| Wire Range |
2 AWG
|
| Env Temp |
90C, AL9CU
|
| Assortment |
Aluminum Compression Terminations
|
| Application |
Terminate
|
| Expanded Wire Range |
2 AWG-6 AWG
|
| Die Color Code |
Pink
|
| Mounting Hole Diameter |
0.42
|
| Max Torque |
360
|
| Barrel Length |
1.2
|
