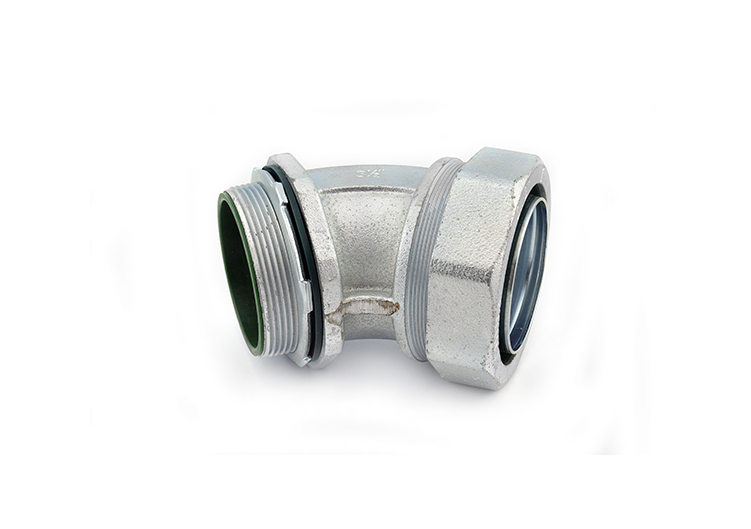

Liquid Tight Insulated 45-Degree Connector 3-1/2″, Malleable Iron

#458-SLTI

Use Bridgeport liquid tight 45-degree connectors to join metallic liquid tight conduit to an electrical box or enclosure in wet locations. This connector�s NPT threads, knockout gasket and internal sealing ring provide a liquid tight connection.

  • Insulated Connector: Insulated connectors offer additional peace of mind by protecting inner wiring from abrasion and up to a temperature of 105�C
  • Superior Strength: Malleable iron connectors are Bridgeport�s heaviest-duty solution and offer superior strength, rigidity and ability to flex without breaking
  • Keeps Water Out: Liquid tight 45-degree connectors feature NPT threads, a knockout gasket and internal sealing ring for keeping water out of your electrical systems
  • Easy Installation: To install, slide the compression nut and sealing ring over the conduit, thread the ferrule into the conduit channel and then retighten the compression nut
  • Professional Performance: Malleable iron connectors are NEMA TYPE 2, 3, 3R, 4 & 12, meet the NEC requirements for use in wet locations and are UL-Listed under File No. E9391

Product Information

Material Malleable Iron
Pack Qty 1
GTIN 00781747044587
UPC 781747044587
EAN 0781747044587
UNSPSC 39121420
Origin Country CN
Ul Standard UL-514B
Ul File No E9391

Resources

Documents

  • BPT_458-SLTI_ProDraw.pdf Download
  • NEL-Liquidtight-LQD-ProdBro_DIGITAL.pdf Download
