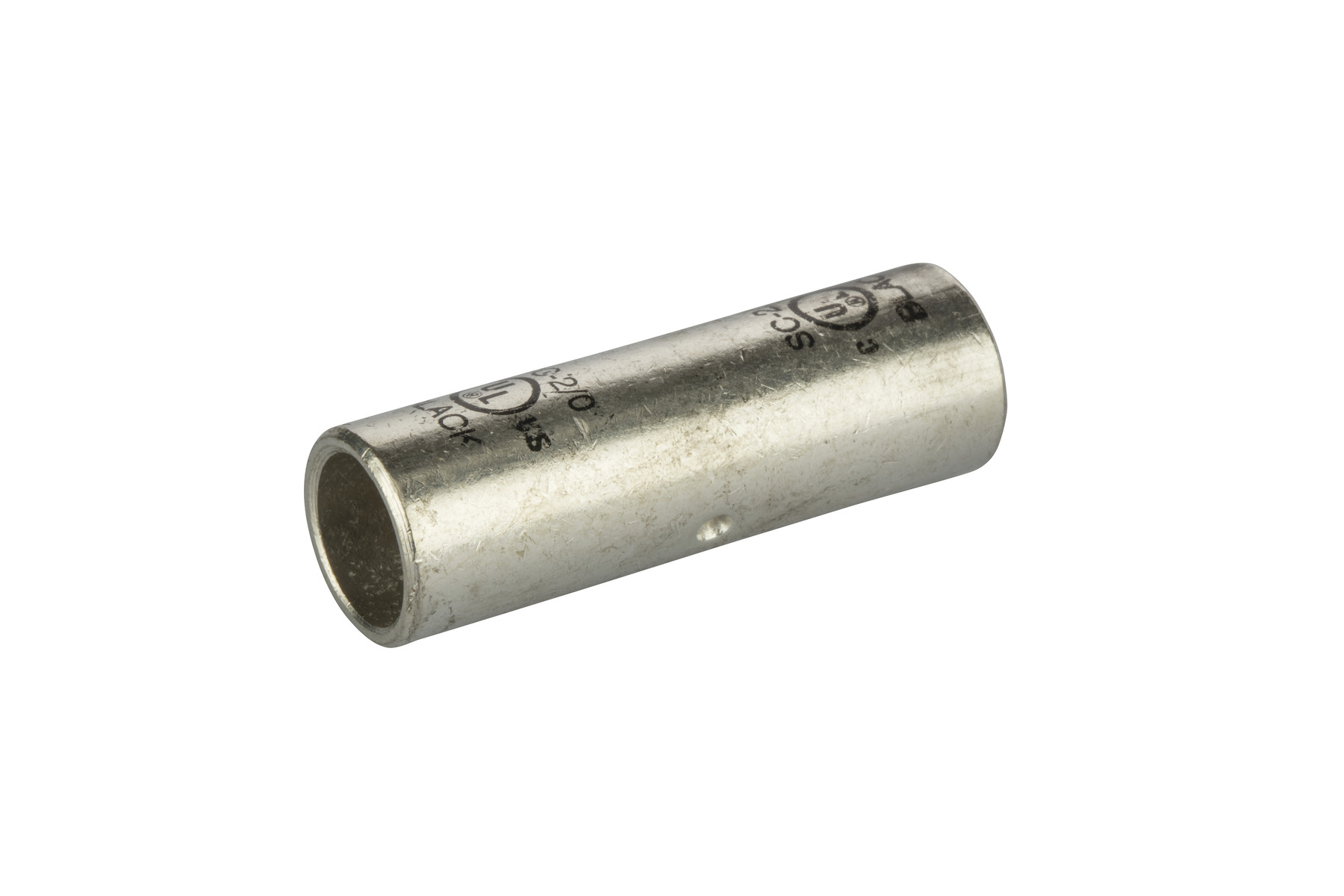

CU CMP Splice Short 2/0 AWG

#SC-2/0

CMP Splice Copper Short 2/0 AWG

  • Produced from high conductivity copper tubing
  • Serrations indicate proper crimp locations
  • Tin-plated to provide corrosion resistance
  • Marked with die index and color coded
  • Suitable for use at voltages up to 35kV provided connector is properly installed to cable manufacturer voltage stress relief instructions, 5KV is the maximum voltage in all bare splices

Product Information

Voltage Rating 600V
Material Copper
Finish Tin Plated
Pack Qty 25
GTIN 662381000000
UPC 662381000000
EAN 6.62381E+11
UNSPSC 39121449
Origin Country IN
Certifications cULus, UL Listed
Ul Standard UL 486A, UL 467
Barrel Inside Diameter 0.44
Barrel Outside Diameter 0.56
Ul File No E155027
Wire Cable Class Class B, Class C
Conductor Type Copper
Assortment Copper Compression Splices
Application Splice
Die Color Code Black
Barrel Length 1.75

Resources

Documents

  • POL_SC-20_CMP_ProDraw_DIGITAL.pdf Download
