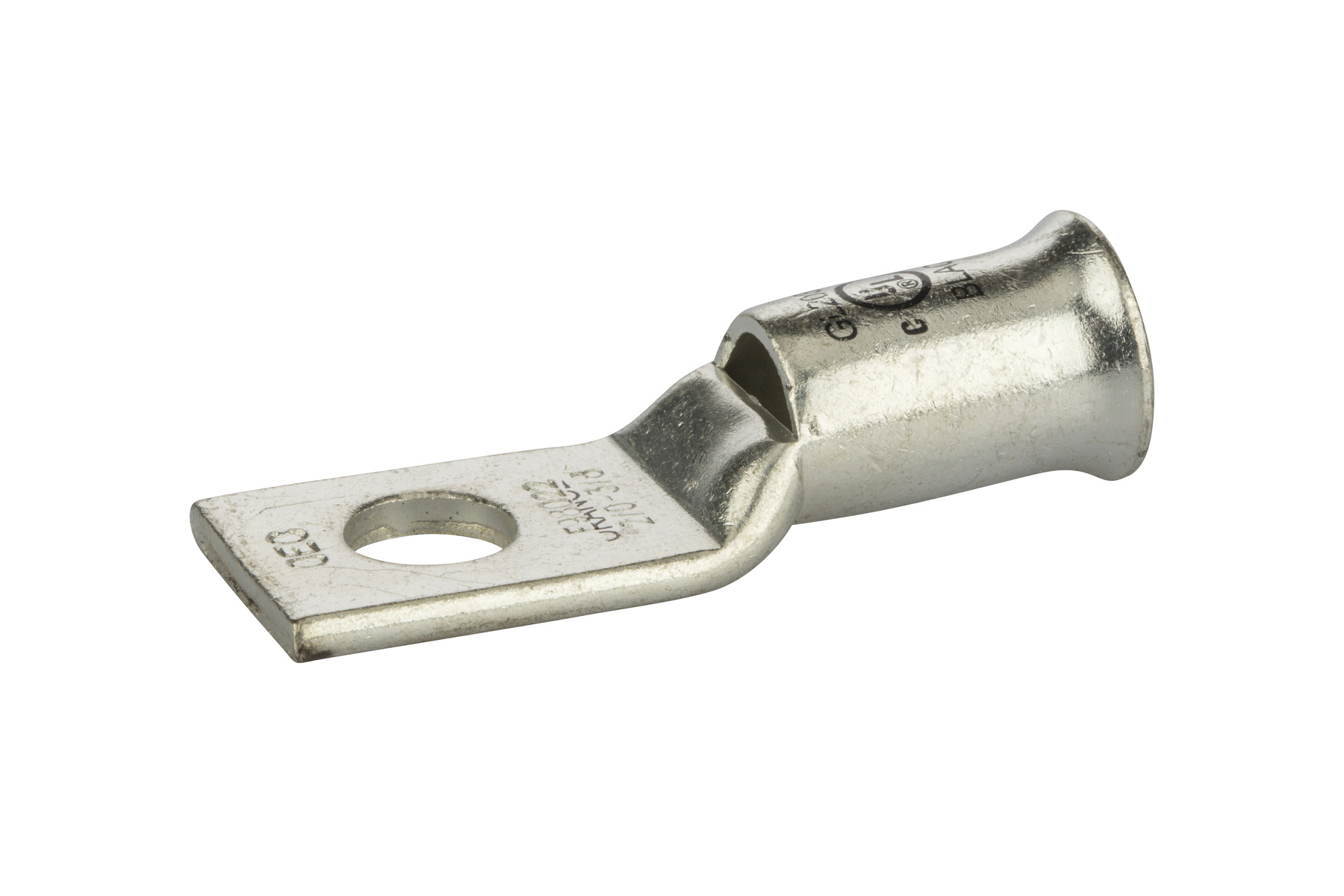

CU CMP Lug Short 2/0 AWG 3/8 Bolt-Bell


CMP Lug Cu Sht 2/0 AWG 3/8 Bolt-Bell

  • Connector end has a gentle, continuous flare to ensure ease of cable insertion of flexible and extra-flexible cables such as locomotive, welding, mining cable and more
  • The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement
  • Tin-plated for corrosion resistance
  • Wire connector rated for 35kV max
  • Class B/C compressed, concentric, and compact copper conductor only

Product Information

Voltage Rating 600V
Material Copper
Finish Tin Plated
GTIN 662381000000
UPC 662381000000
EAN 6.62381E+11
UNSPSC 39121405
Origin Country IN
Certifications cULus, UL Listed
Ul Standard UL 486A
Huskie Tools EP510C
Tb Die 15526
Tb Tools TBM-15, TBM-14M
Burndy Tools Y-35, T750, PAT750
Ilsco Tools ILC-12, ILC-15
Greenlee Tools HK, EK, RK 1240 Series
Nsi Tools N1240, NSI-12, N12ID, M-250, M-500
Barrel Inside Diameter 0.44
Barrel Outside Diameter 0.56
Ul File No E155027
Wire Cable Class Class B, Class C
Al Conductor Max Amp 230
Cu Conductor Max Amp 290
Conductor Cu Size Range 250 MCM-6 AWG
Conductor Al Size Range 250 MCM-6 AWG
Conductor Type Copper
Temp Rating 90C, 9CU
Conductors Count 3
Wire Range 2/0 AWG
Env Temp 90C, 9CU
Assortment Copper Compression Terminations
Die Color Code Black
Max Torque 360
Barrel Length 0.94



  • POL_CUCompression_CMP_ProdInstall_Digital.pdf Download
  • POL_GL2038B_CMP_ProDraw_DIGITAL.pdf Download
