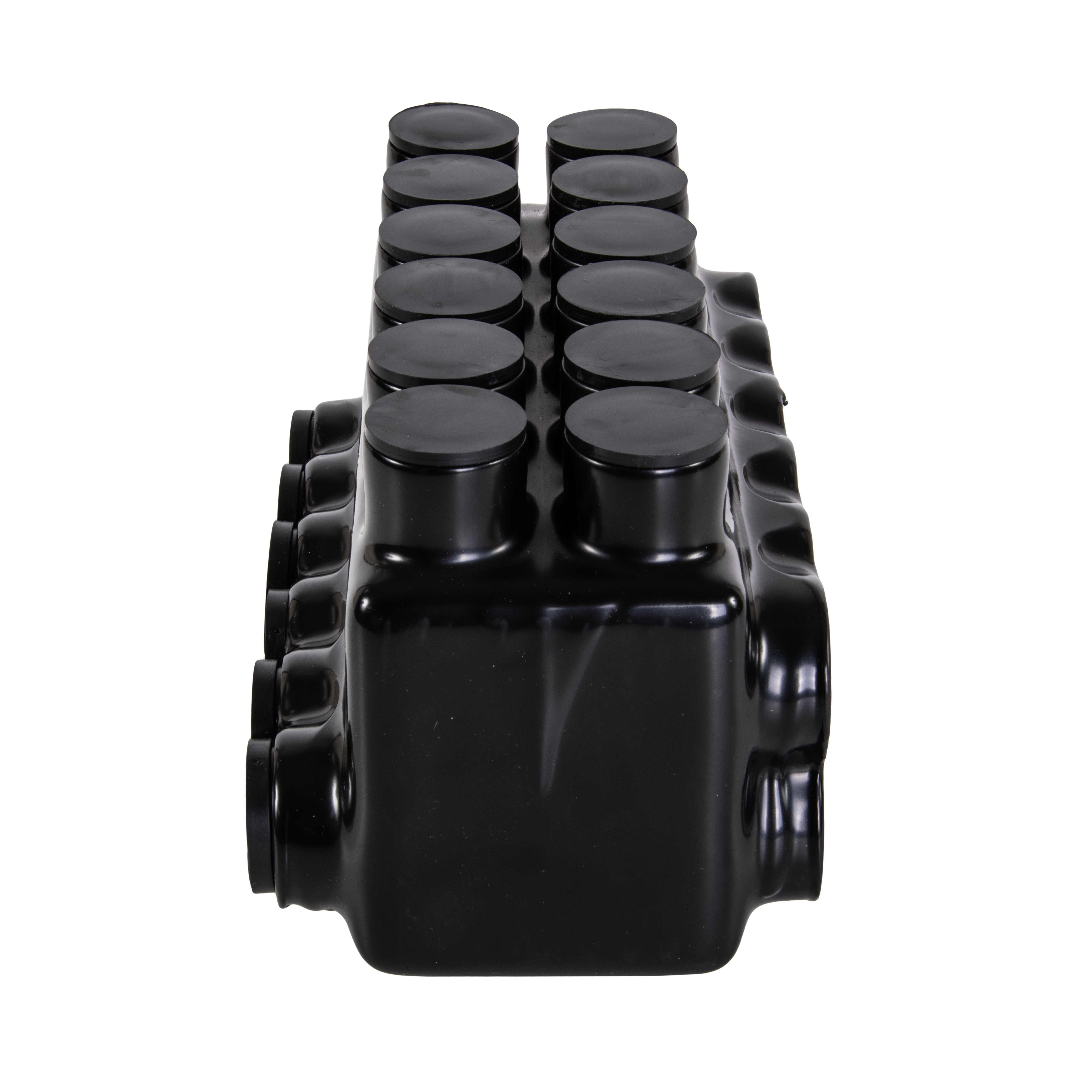

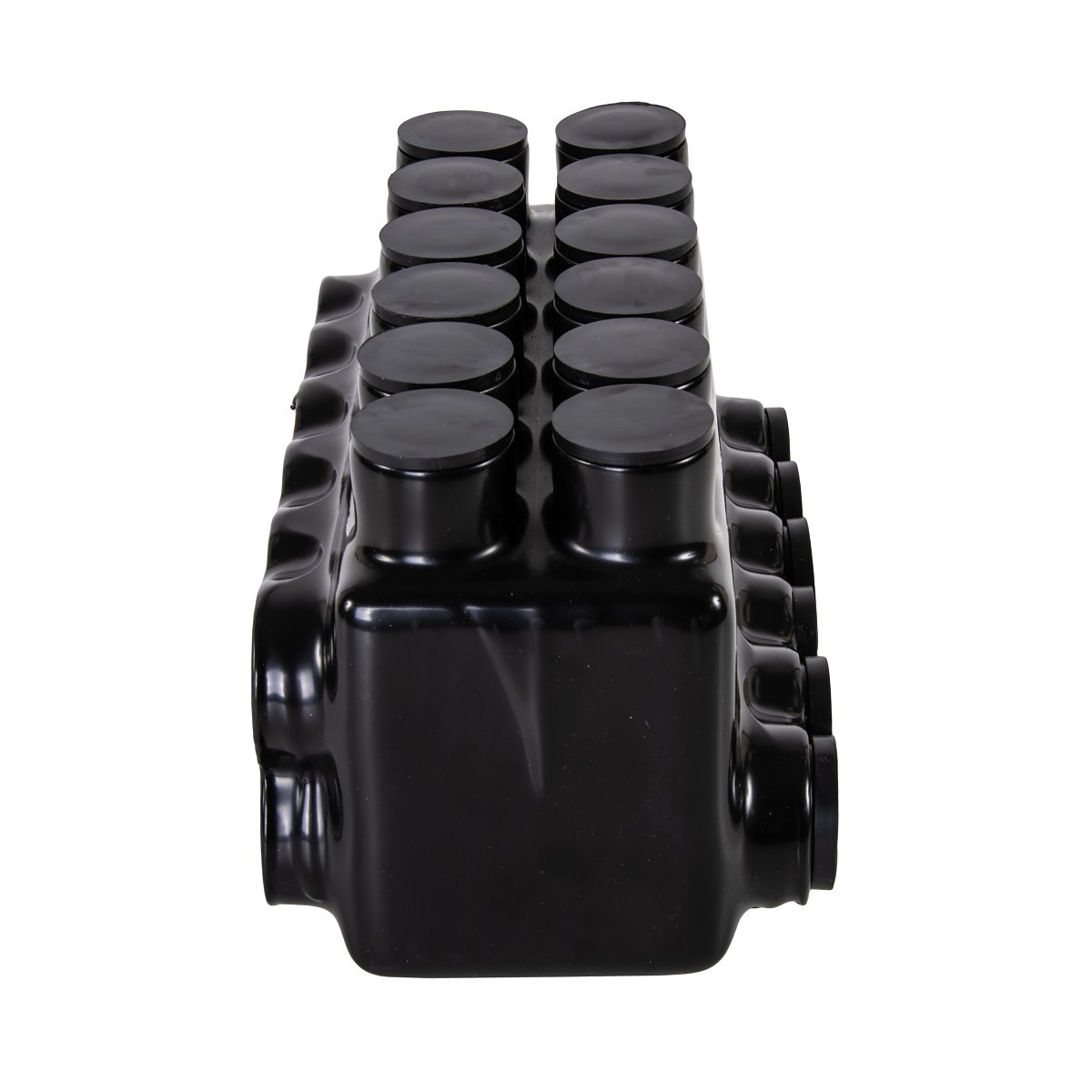

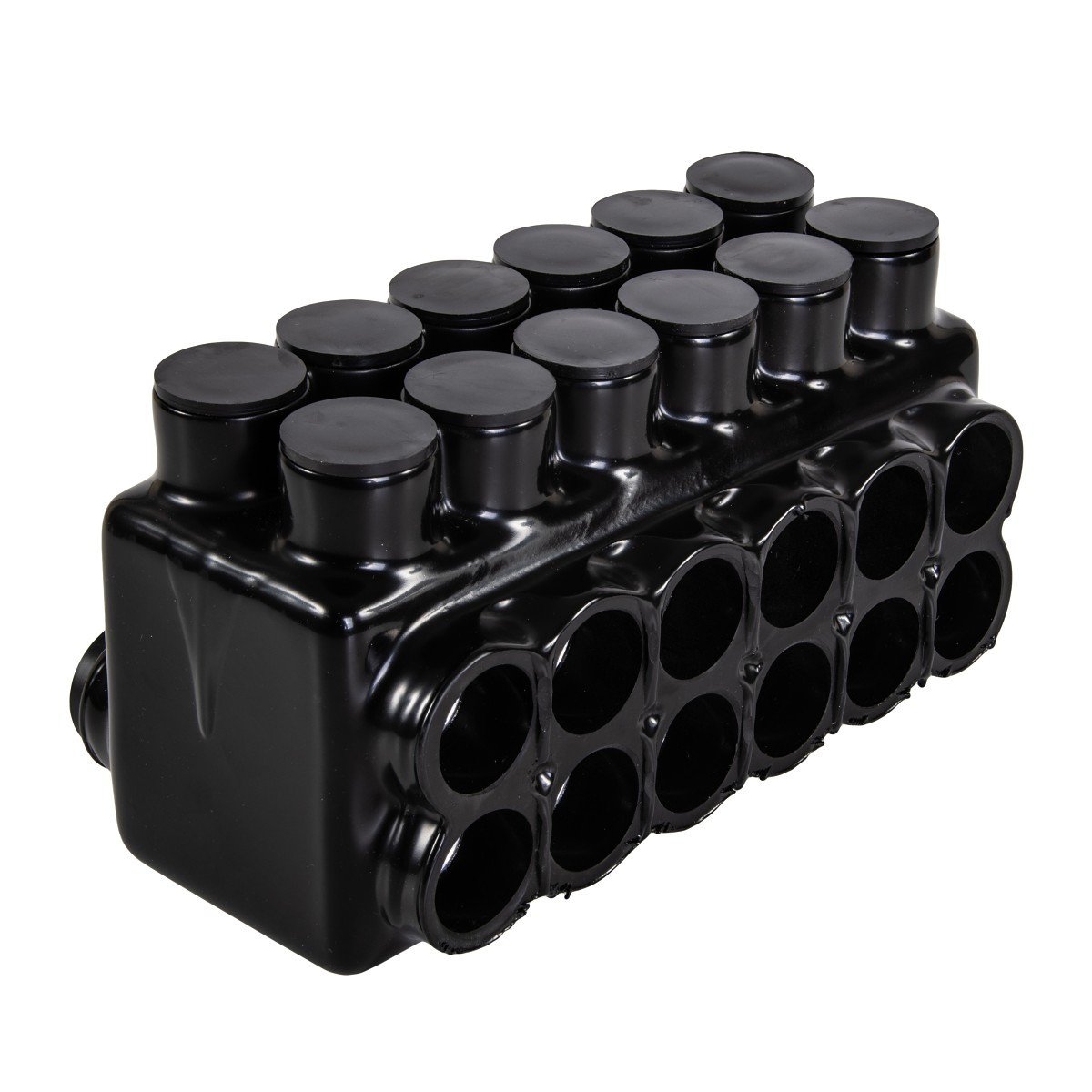

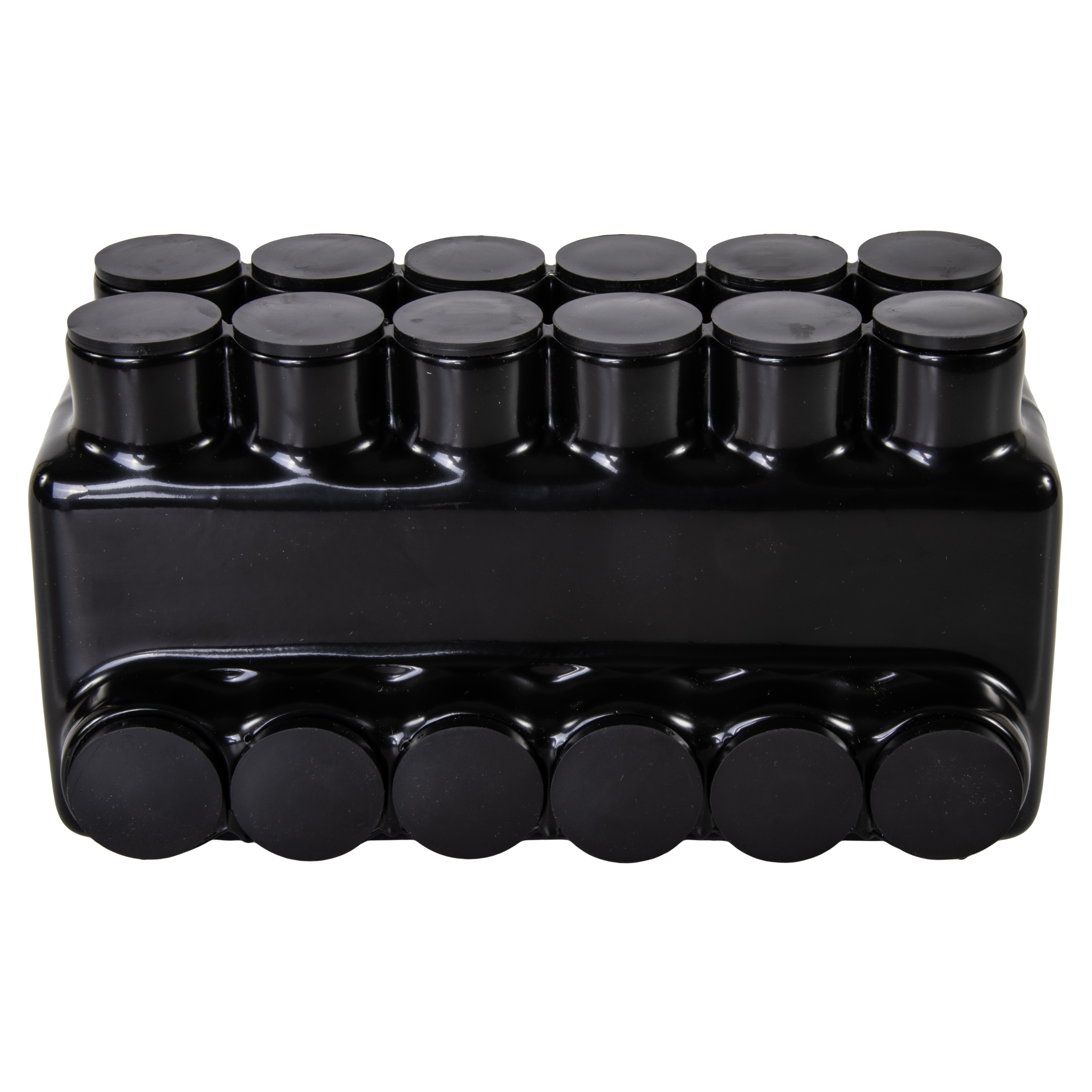

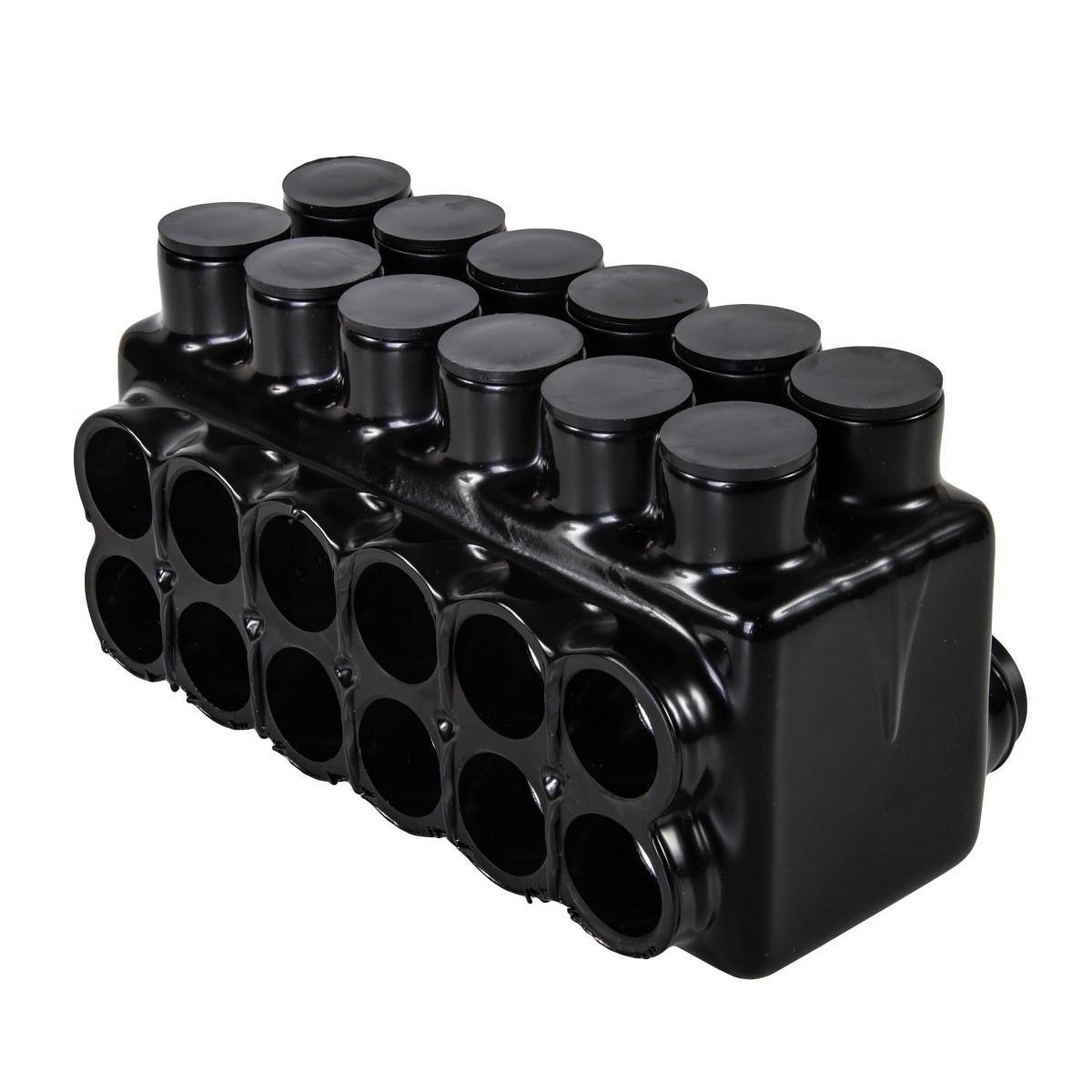

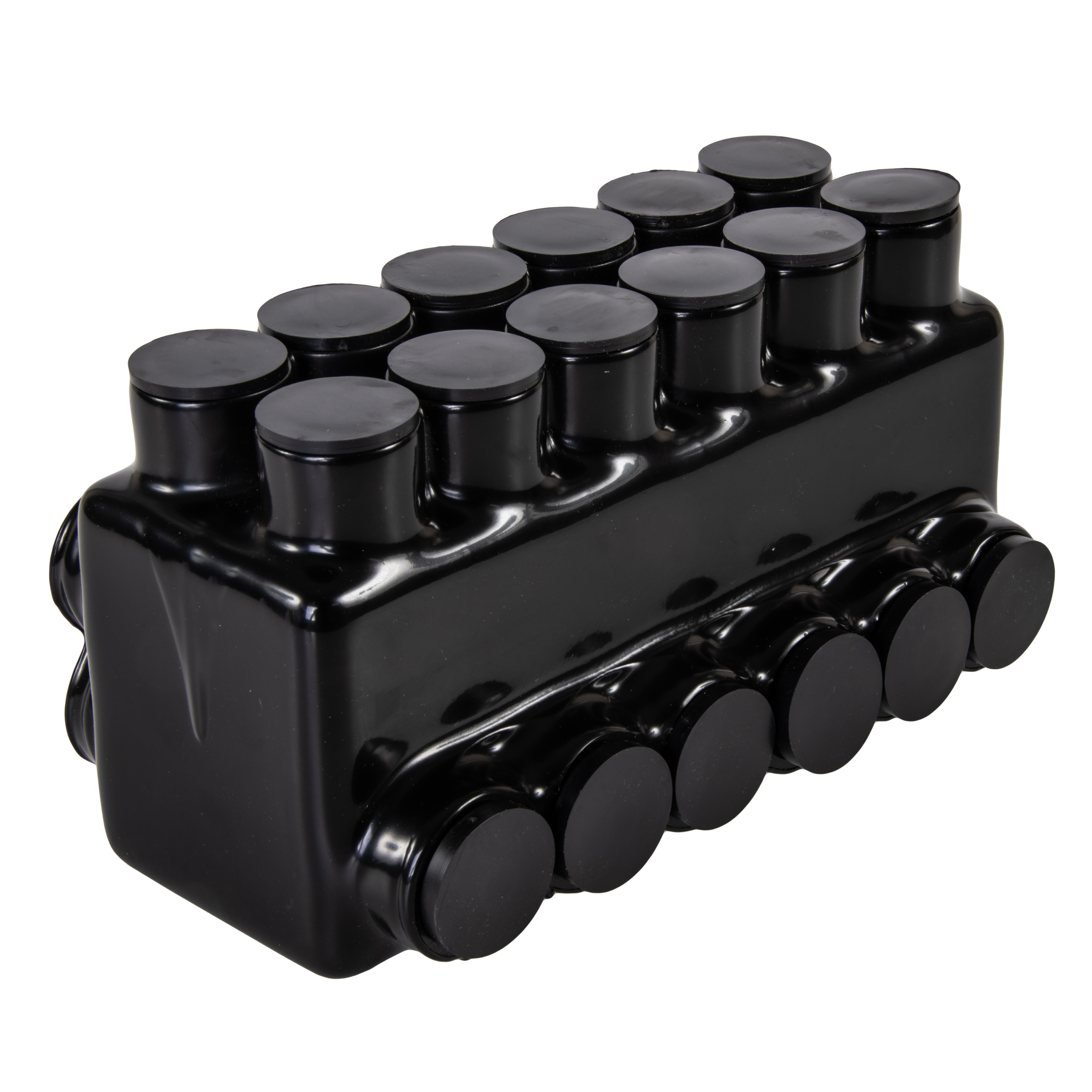

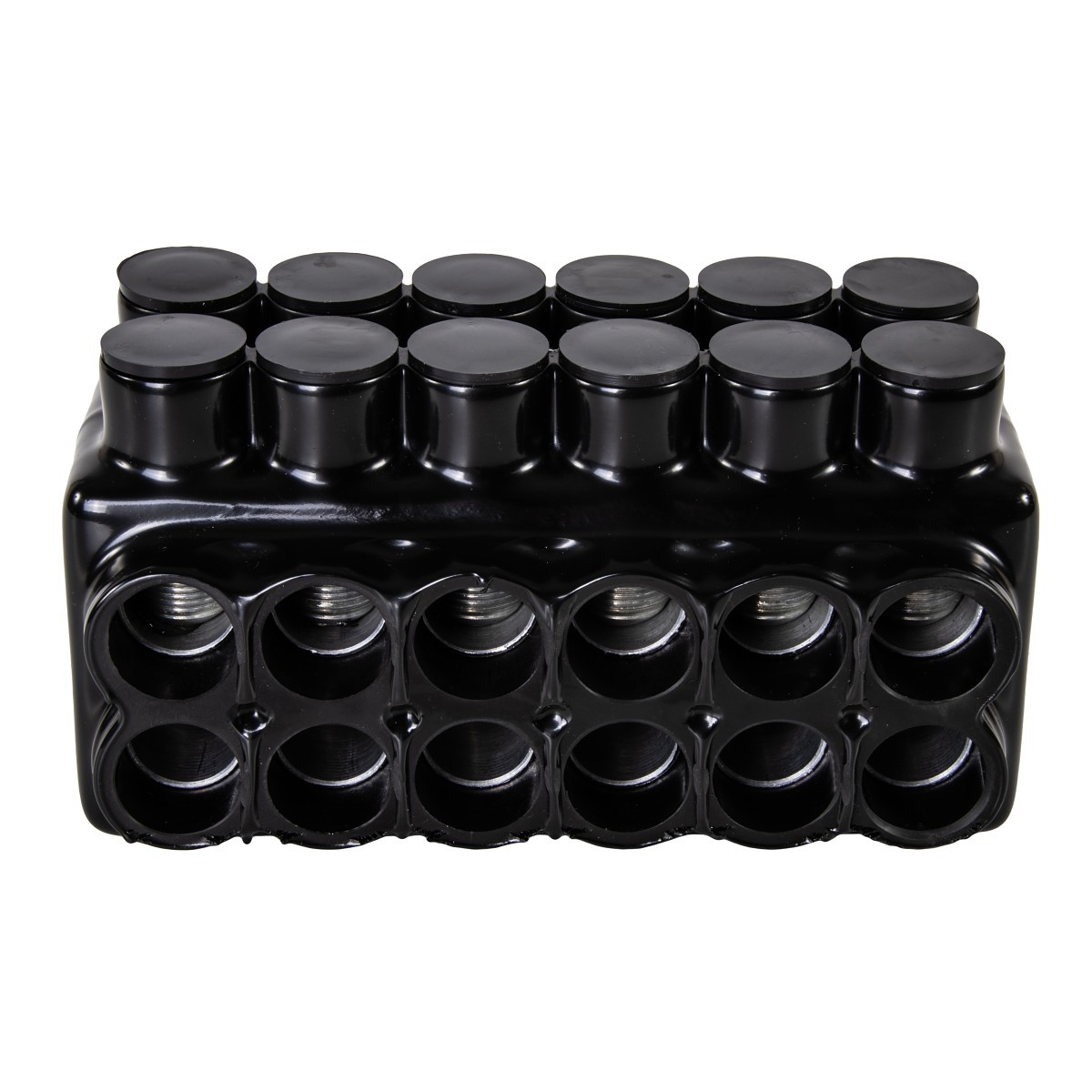

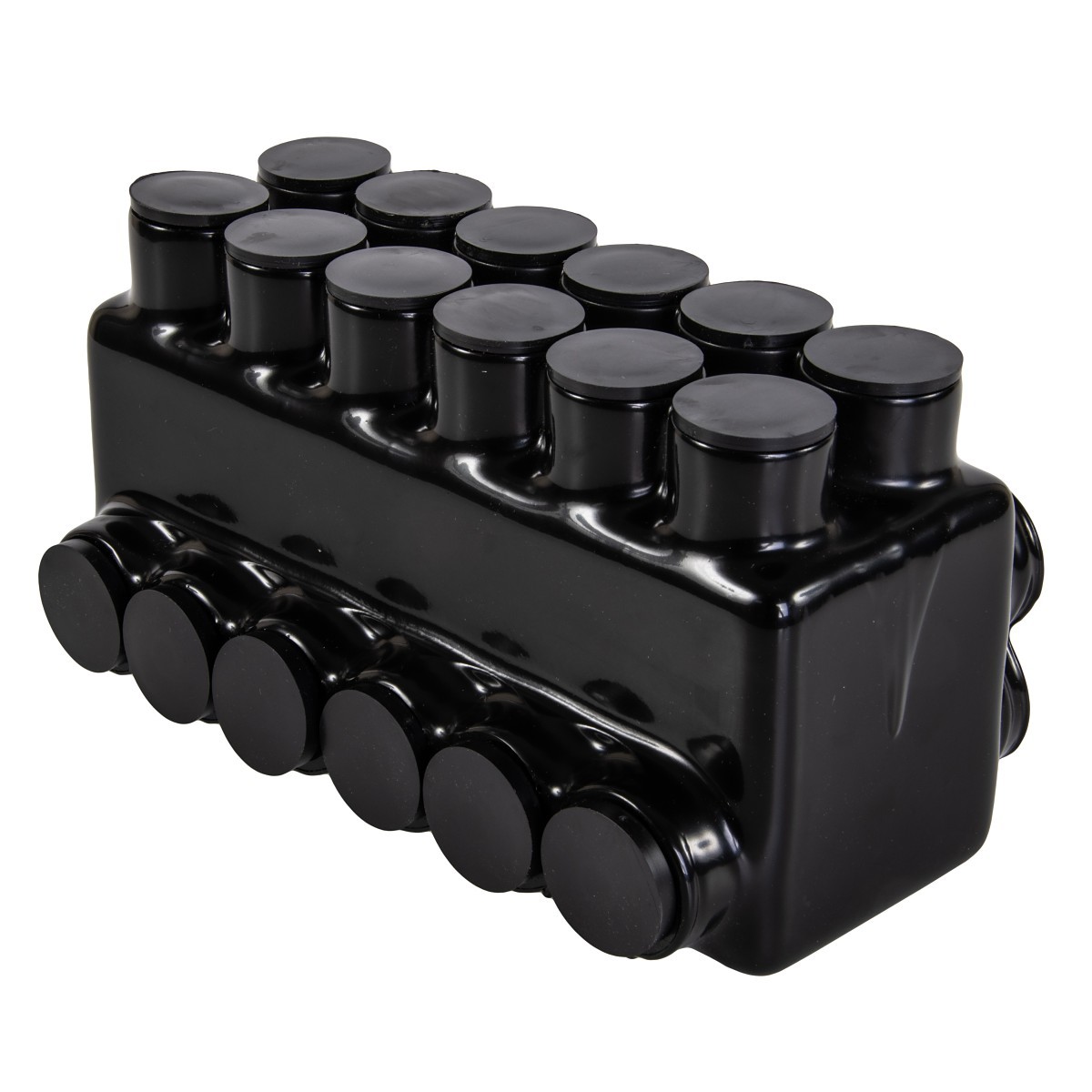

12-Port Black Stacked Pre-Insulated Connector, 500 MCM – 4 AWG

#IPLDS500-12

Polaris Black Stacked Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Dual-Sided Wire Entry: Form secure connections between 12 conductors quickly using the double-side entry ports sized for wires between 500 MCM and 4 AWG
  • Stacked Connector: Stacked wires holes on one side of the connector excel at splicing large wires in tight-fitting spaces like panels or wire ways.
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
  • Parallel Rated: This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black
Pack Qty 1
GTIN 662381951724
UPC 662381951724
EAN 662381951724
UNSPSC 39121409
Origin Country US
Certifications cULus
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C
Al Conductor Max Amp 1262 ++ See Note
Cu Conductor Max Amp 1612 ++ See Note
Conductor Cu Size Range 500 MCM-4 AWG
Conductor Al Size Range 500 MCM-4 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, 9CU
Conductors Count 12
Hex Wrench Size 5/16
Env Temp Cold Temperature rated to -45C
Assortment Black UV Coated Pre-Insulated Connectors
Application Splice, Tap
Max Torque 450

Resources

Documents

  • POL_IPLDS_MCH_ProdInstall_DIGITAL.pdf Download
  • POL_BLACK_MCH_ProdSheet_DIGITAL.pdf Download
  • POL_PARALLEL_MCH_ProdSheet_DIGITAL.pdf Download
  • POL_IPLDS500_MCH_ProDraw_DIGITAL.PDF Download
  • POL_PREINSUL_MCH_ProdBro_Digital.pdf Download
  • POL_PREINSUL_MCH_ProdXRef_DIGITAL.pdf Download
