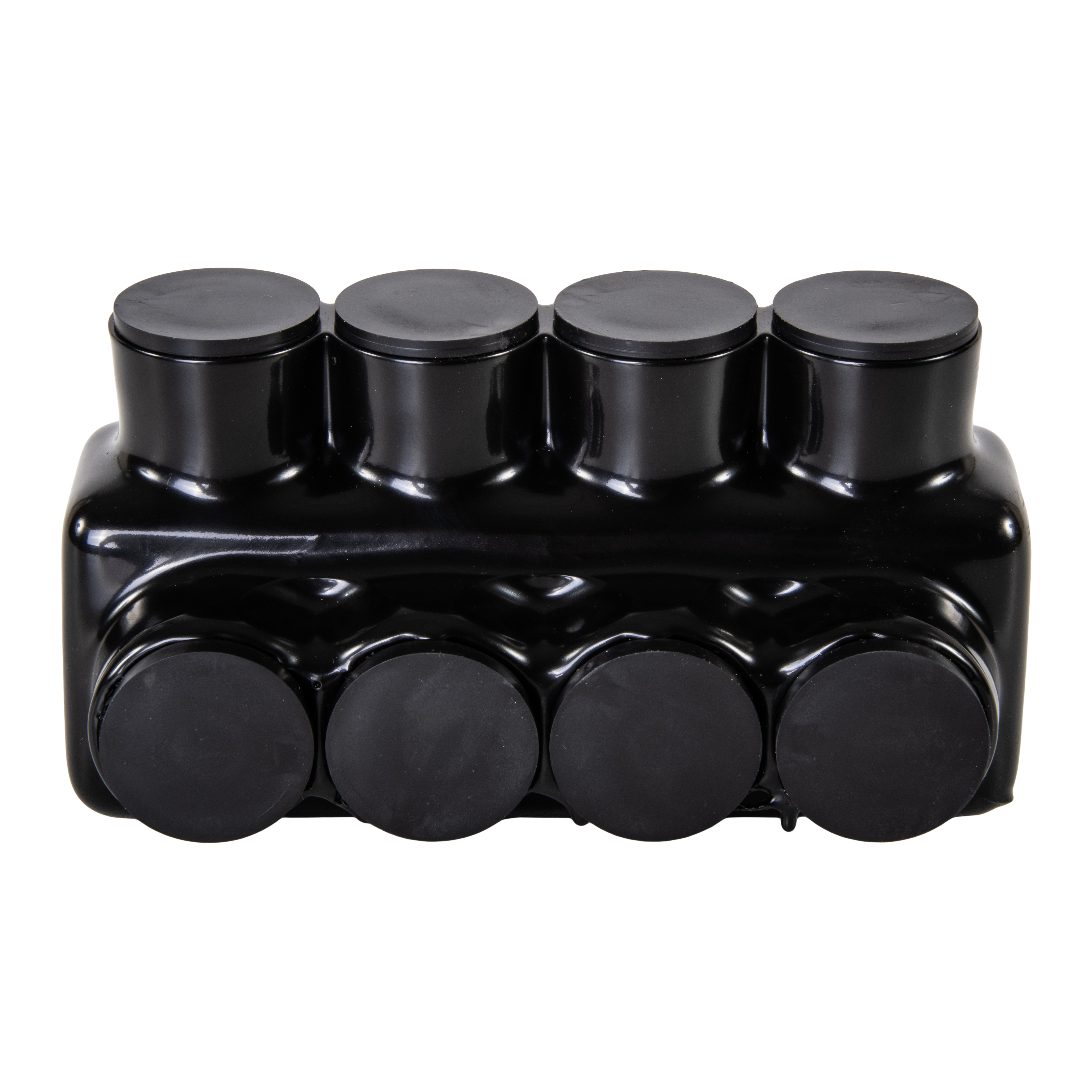

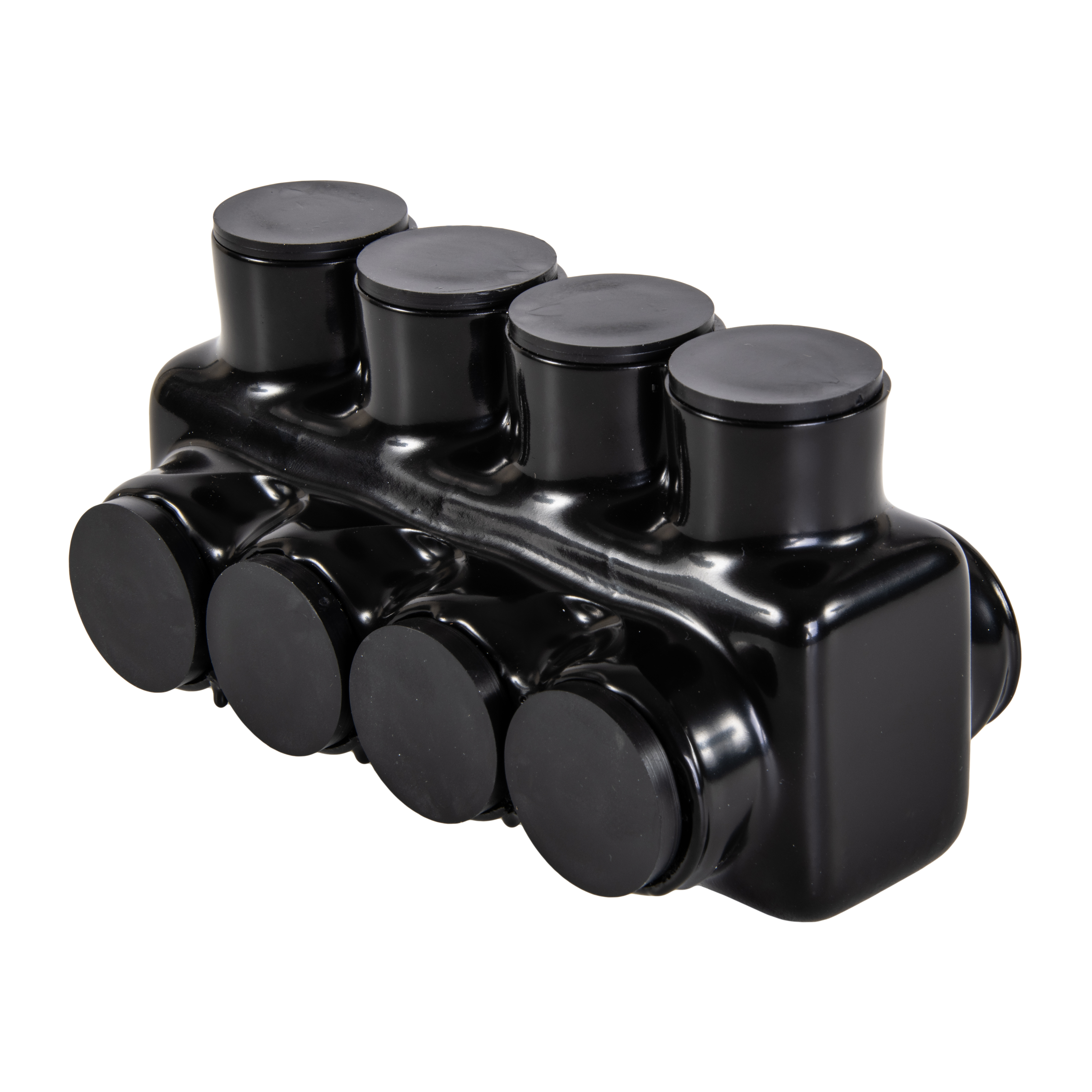

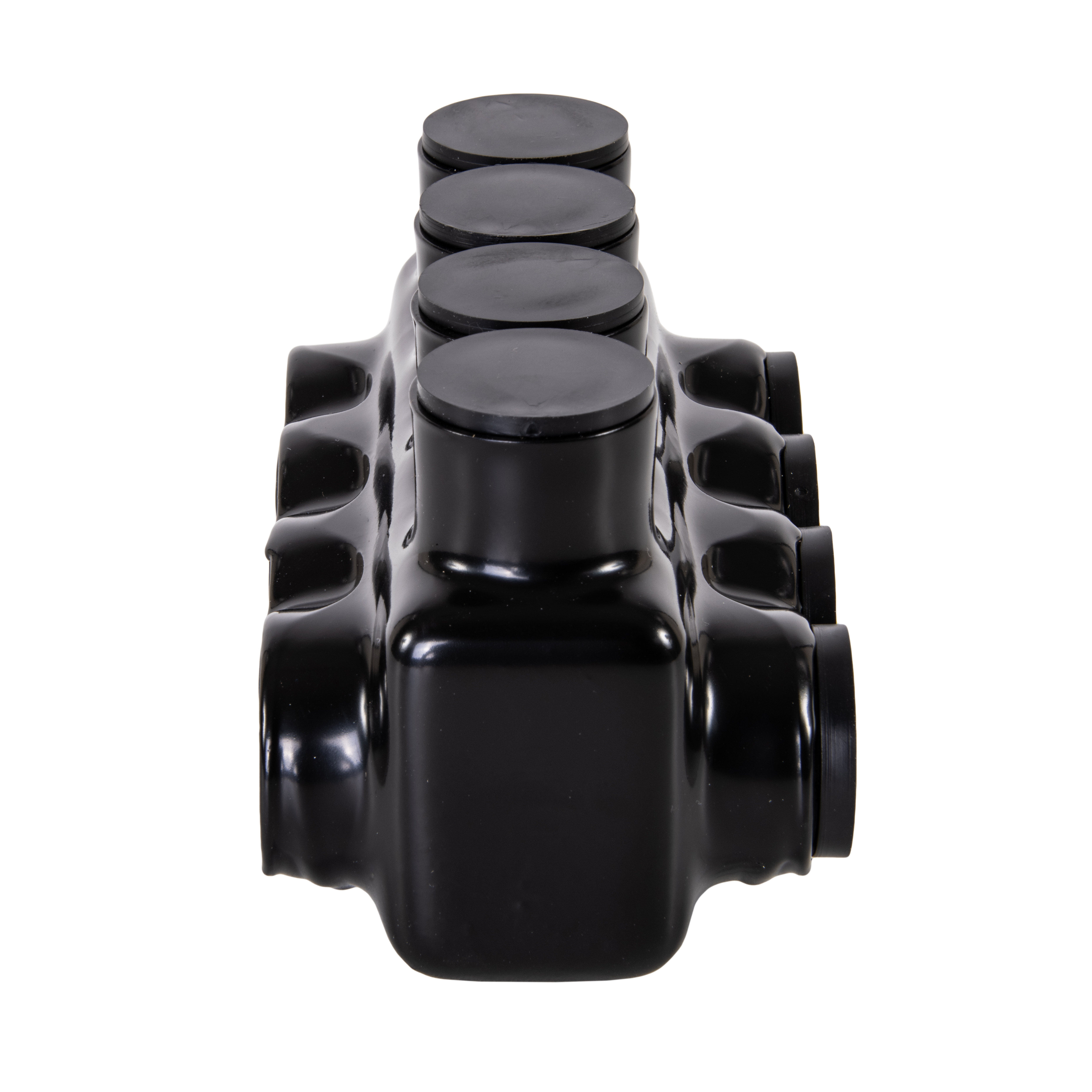

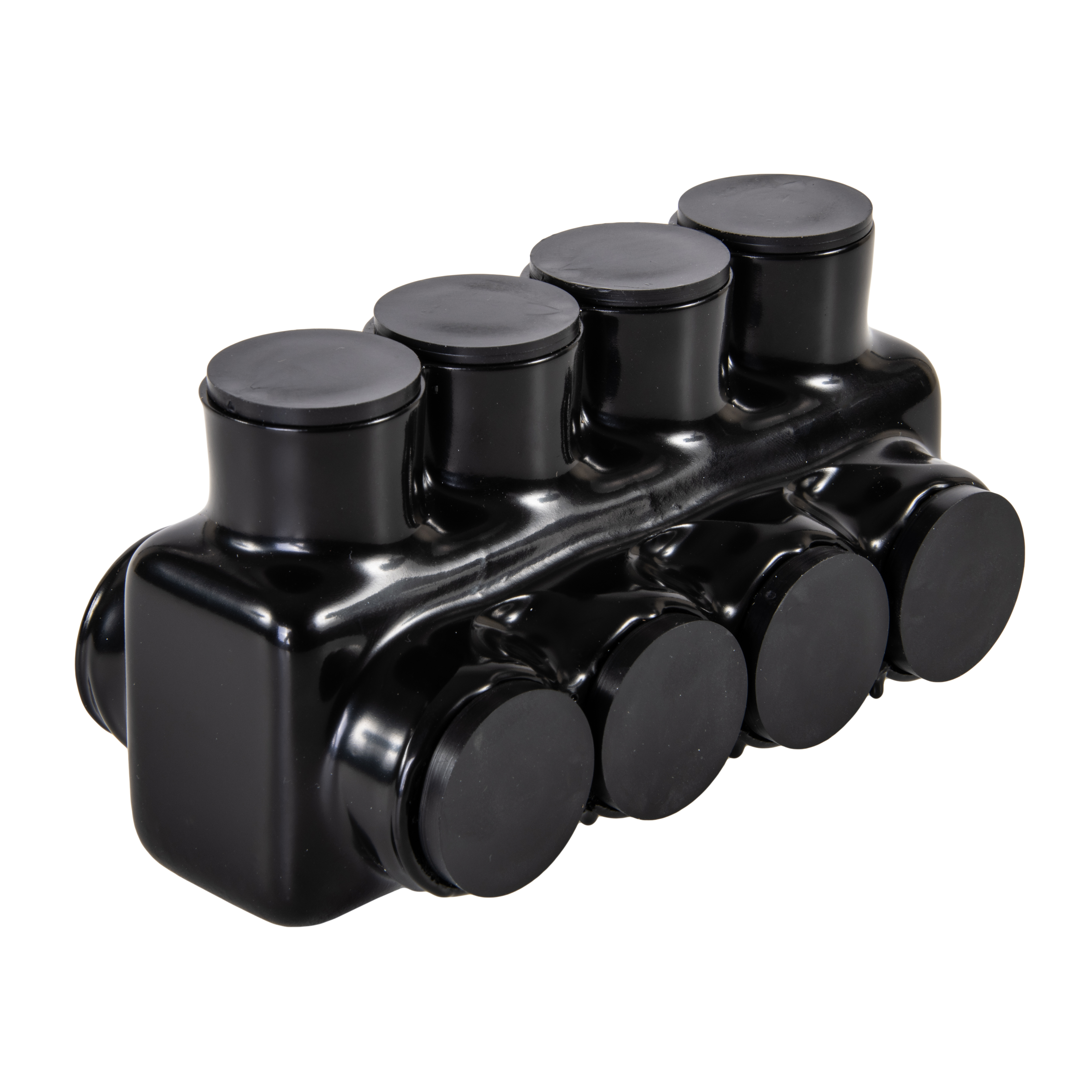

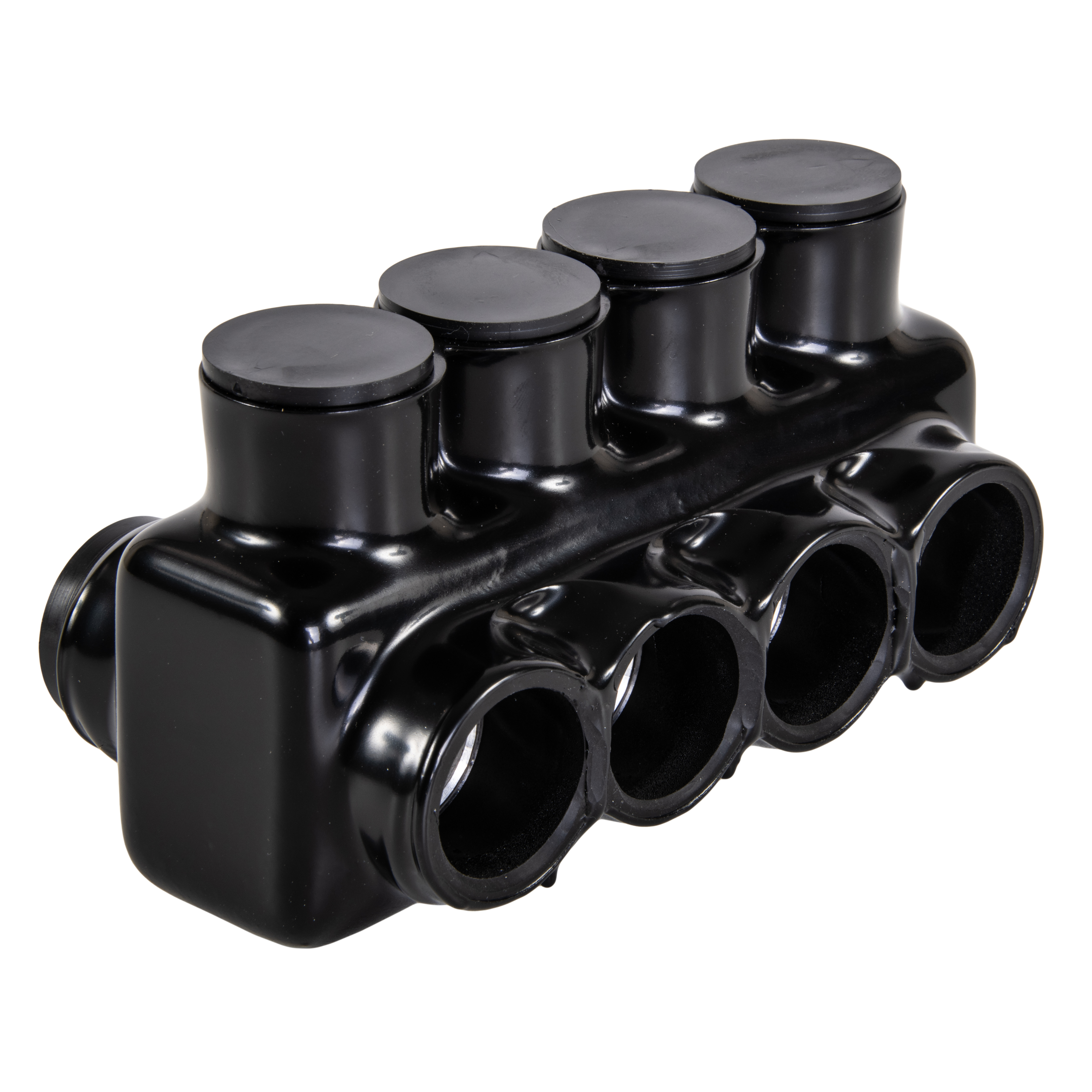

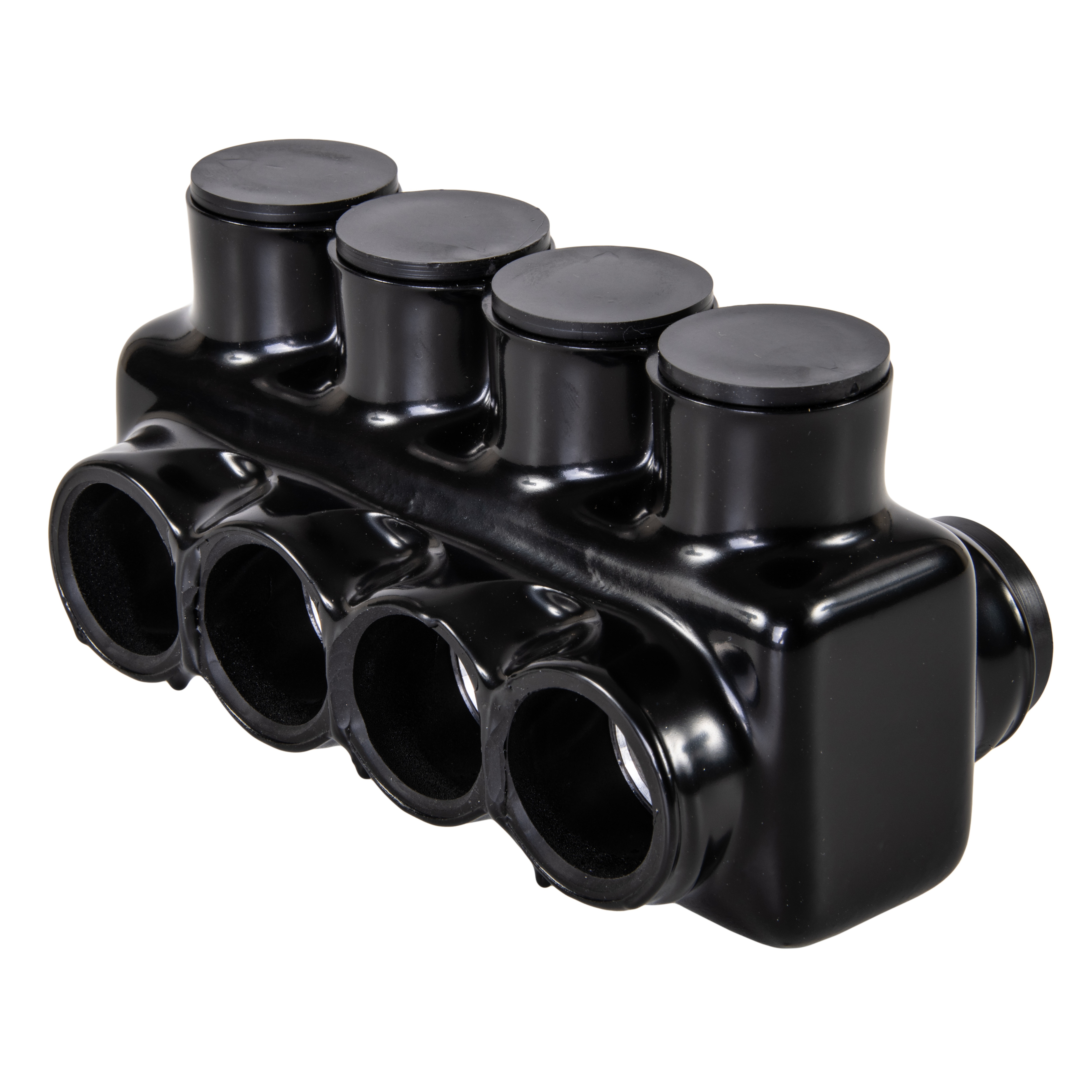

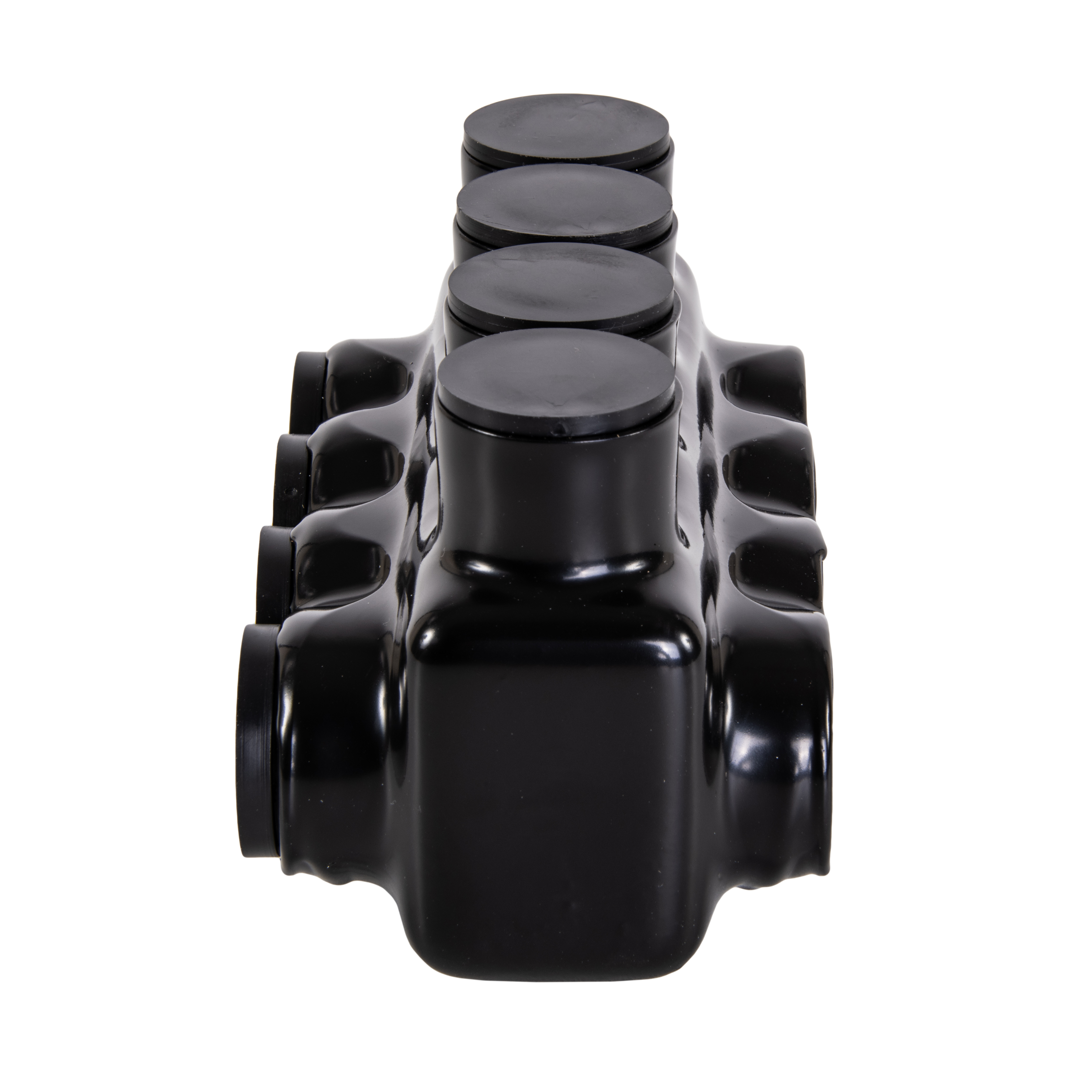

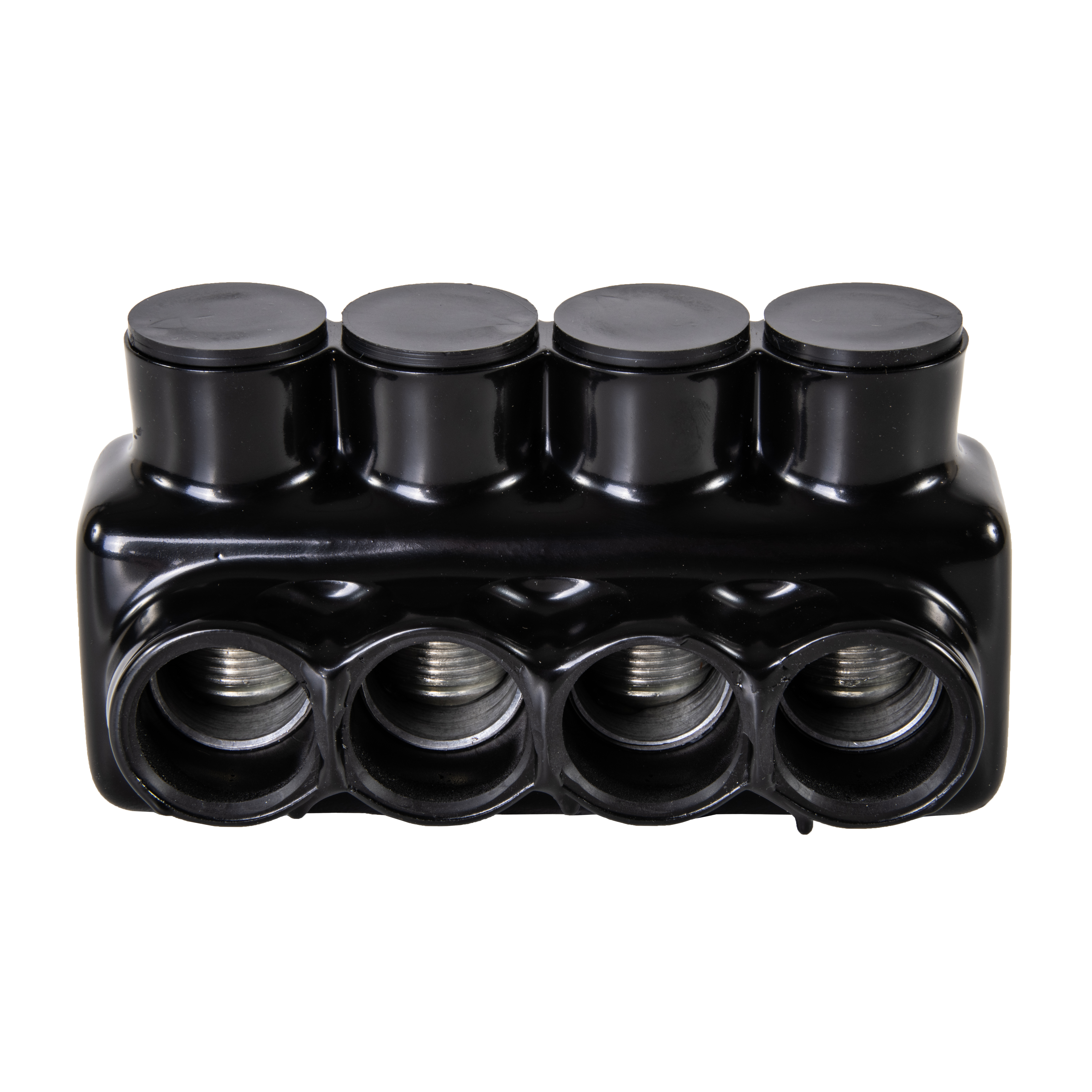

4-Port Black Multi-Tap Pre-Insulated Connector, 3/0 – 6 AWG

#IPLD3/0-4

Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Dual-Sided Wire Entry: Form secure connections between 4 conductors quickly using the double-side entry ports sized for wires between 3/0 and 6 AWG
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
  • Pre-filled Oxide Inhibitor: All 4 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Full Product Line: Polaris matches your application with multiple UL-listed parallel configurations across a range of gauges and number of ports

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black
GTIN 662381927026
UPC 662381927026
EAN 662381927026
UNSPSC 39121409
Origin Country US
Certifications cULus
Ul Standard UL 486A/B
Wire Cable Class Class B, Class C
Al Conductor Max Amp 175
Cu Conductor Max Amp 225
Conductor Cu Size Range 3/0-6 AWG
Conductor Al Size Range 3/0-6 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 4
Hex Wrench Size 1
Env Temp Cold Temperature rated to -45C
Assortment Black UV Coated Pre-Insulated Connectors
Application Splice, Tap
Max Torque 250
