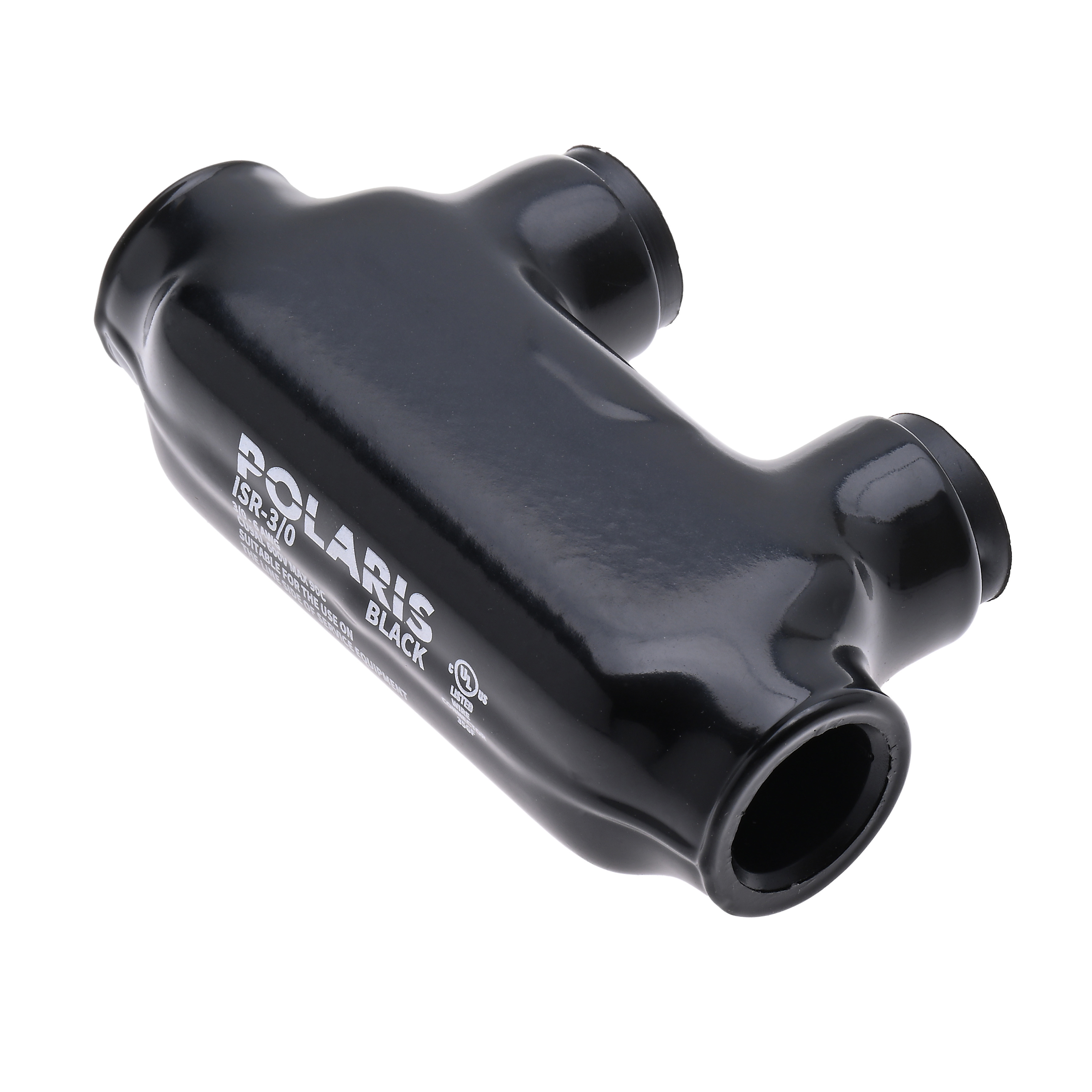

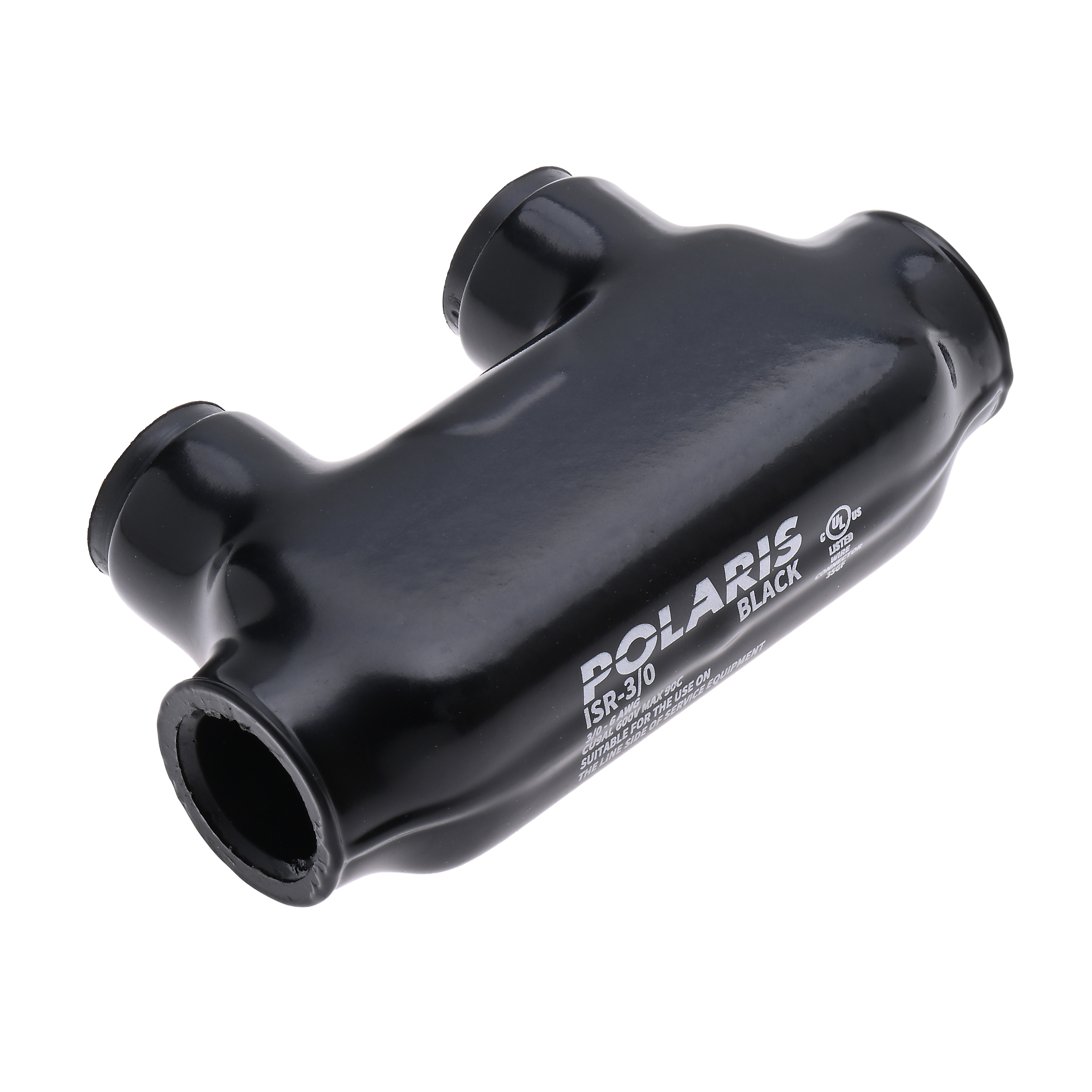

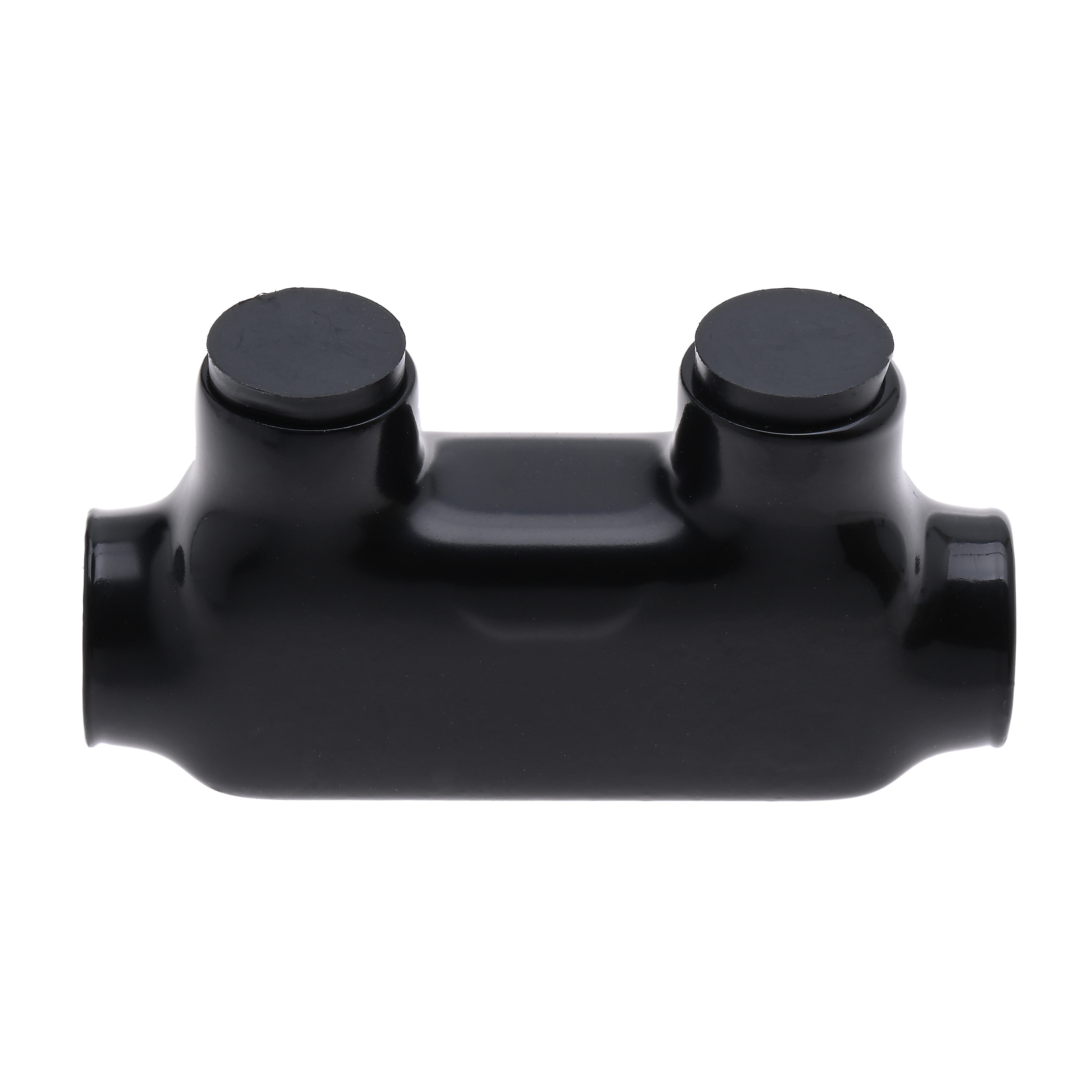

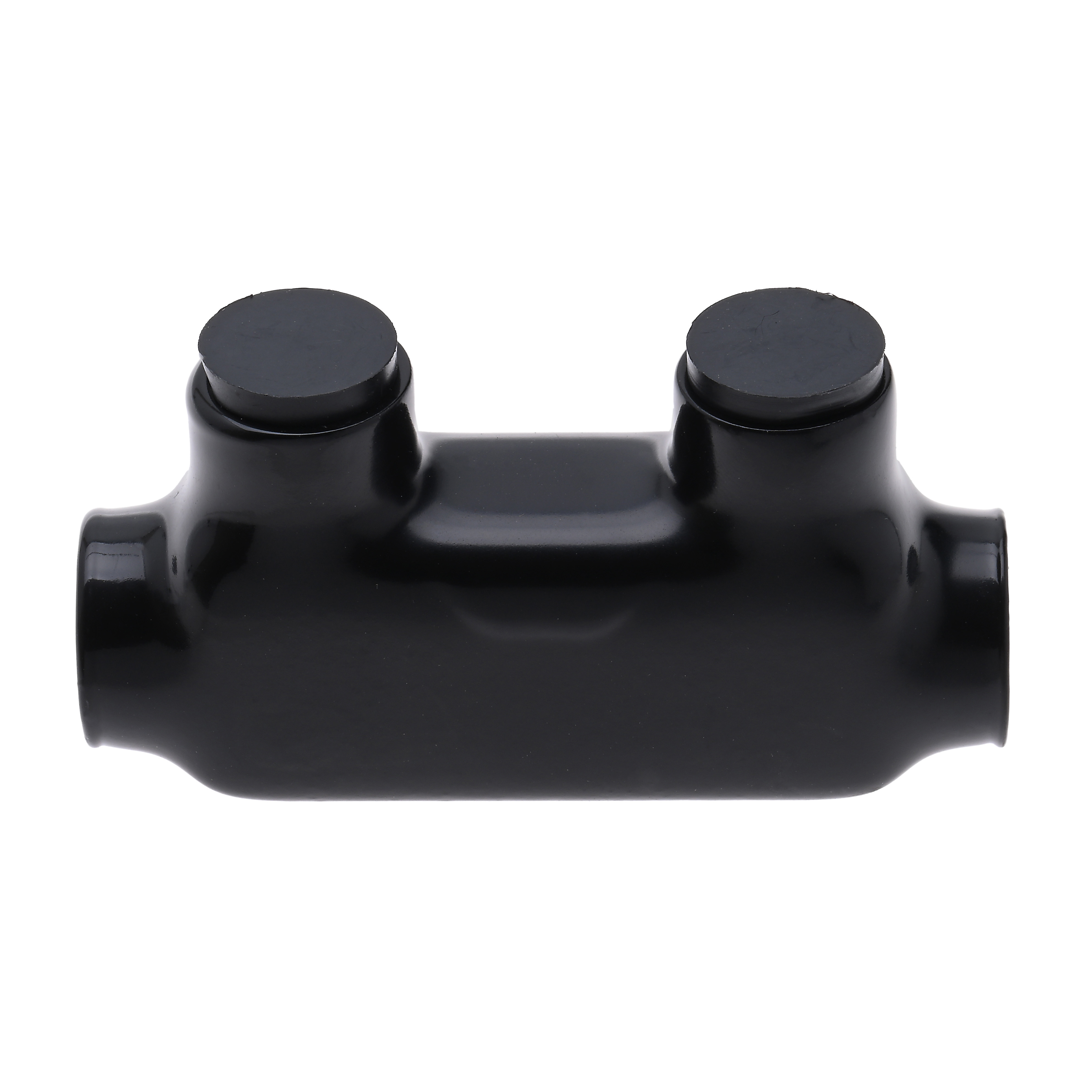

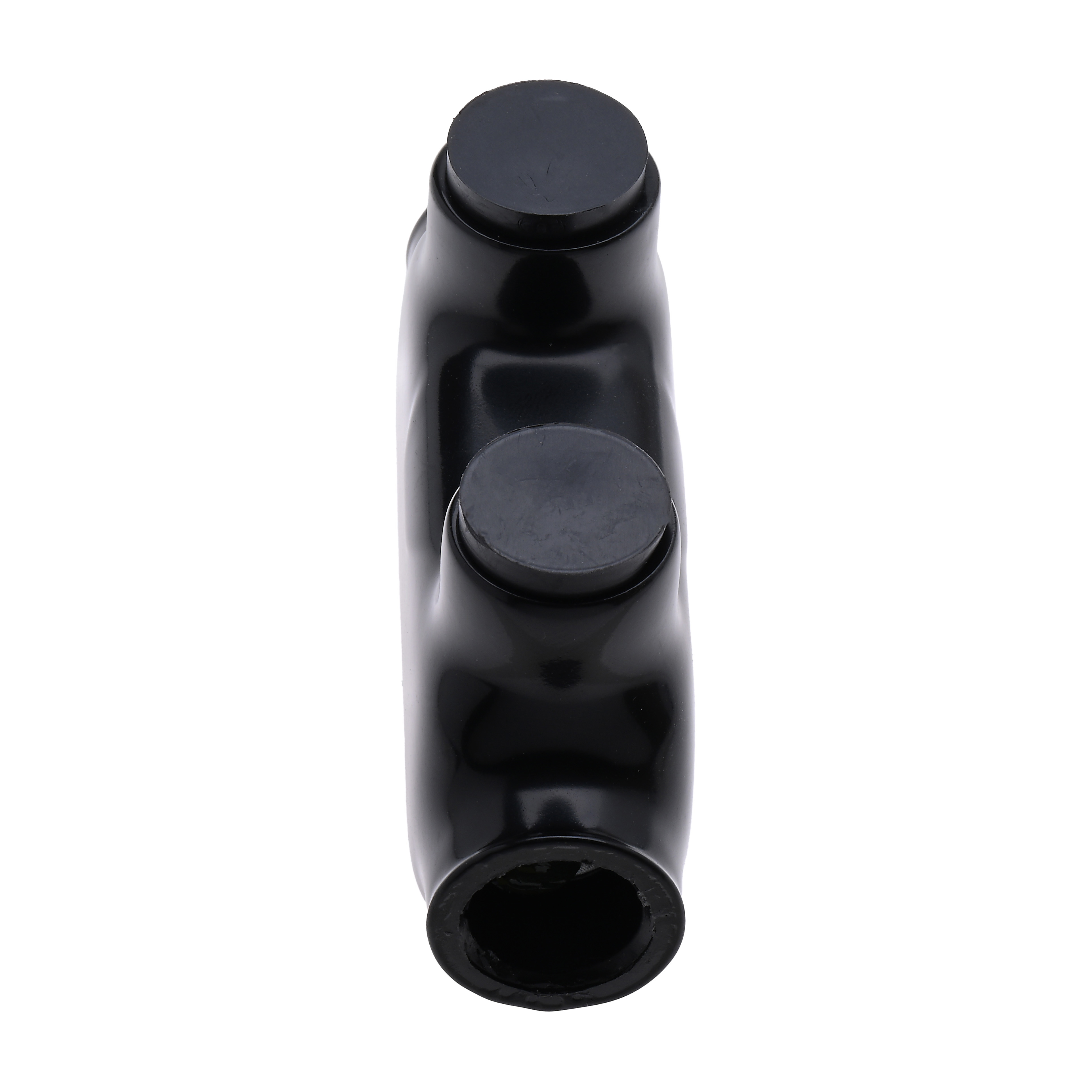

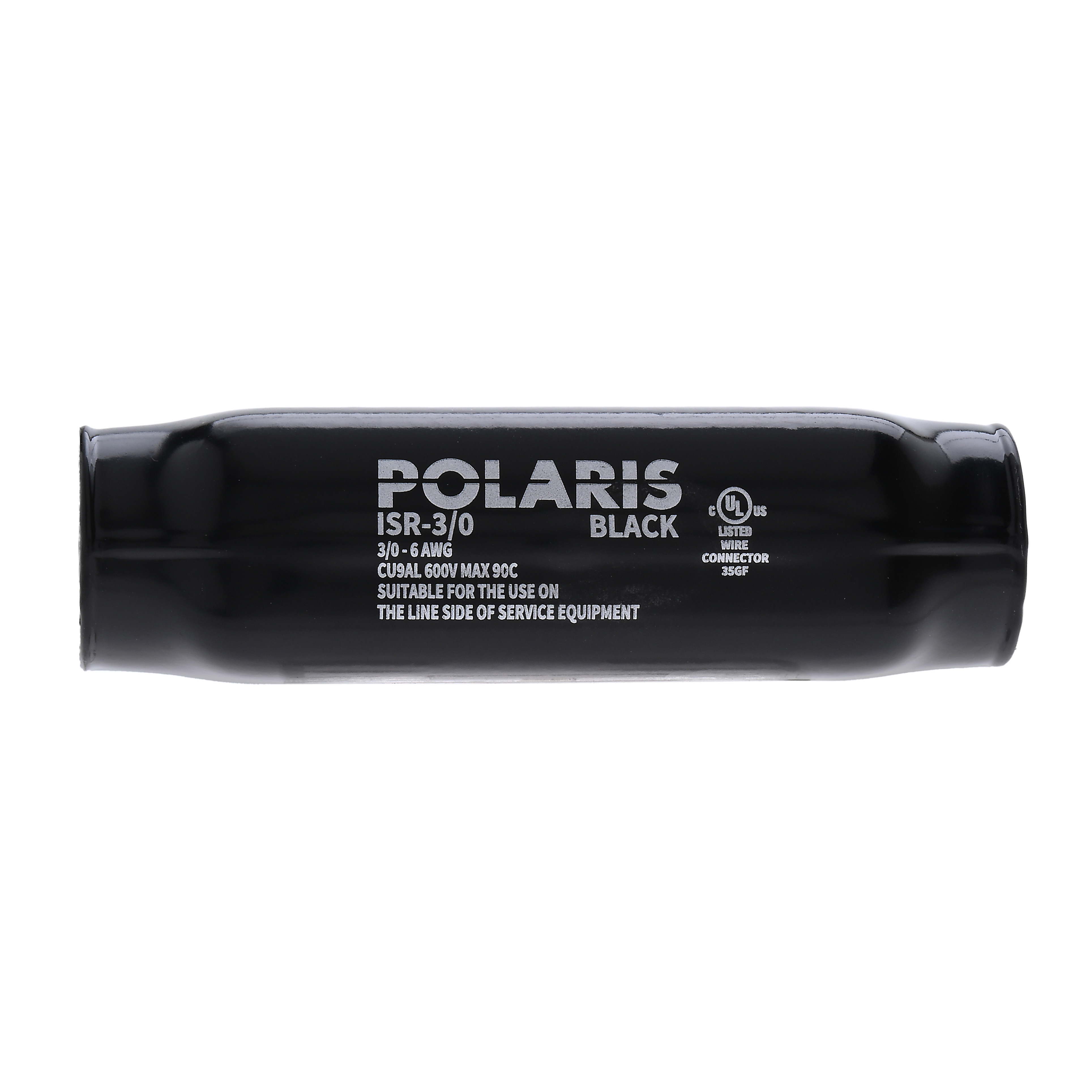

Polaris ISR-3/0 Polaris 3/0-14 Awg Insulated In-Line Splice
#ISR-3/0
Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.
- In-Line Wire Entry: Form secure connections between 2 conductors quickly using the in-line entry ports sized for wires between 3/0 AWG - 6 AWG Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
- Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
- Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
- Pre-filled Oxide Inhibitor: Both in-line ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
- Professional Performance: Save time and labor when splicing or reducing in-line wires made from copper or aluminum, in a wide range of applications
Product Information
| Max Torque Value | 80.0 |
|---|---|
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Ul Standard | UL 486A/B |
| Voltage Rating | 600 V |
| Conductor Type | Aluminum,Copper |
| Conductor Al Size Range | 3/0 AWG – 6 AWG |
| Wire Cable Class | Class B,Class C |
| Material | Aluminum |
| Color | Black |
| Finish | Plastisol |
| UNSPSC | 39121409 |
| GTIN | 662381373519 |
| Prop 65 Flag | No |
| UPC | 662381373519 |
