5-Port Black Multi-Tap Pre-Insulated Connector, 3/0-6 AWG

#IPL3/0-5

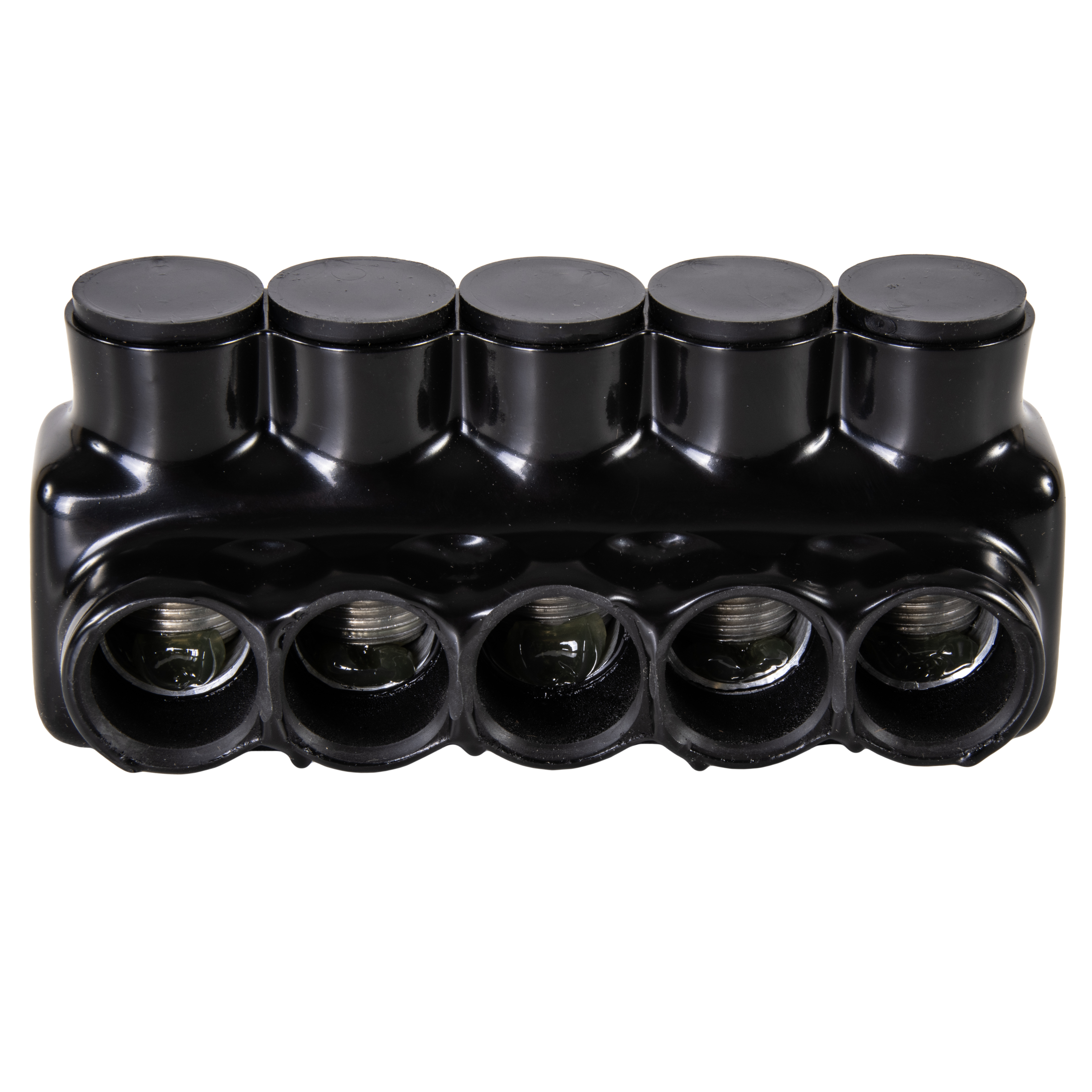

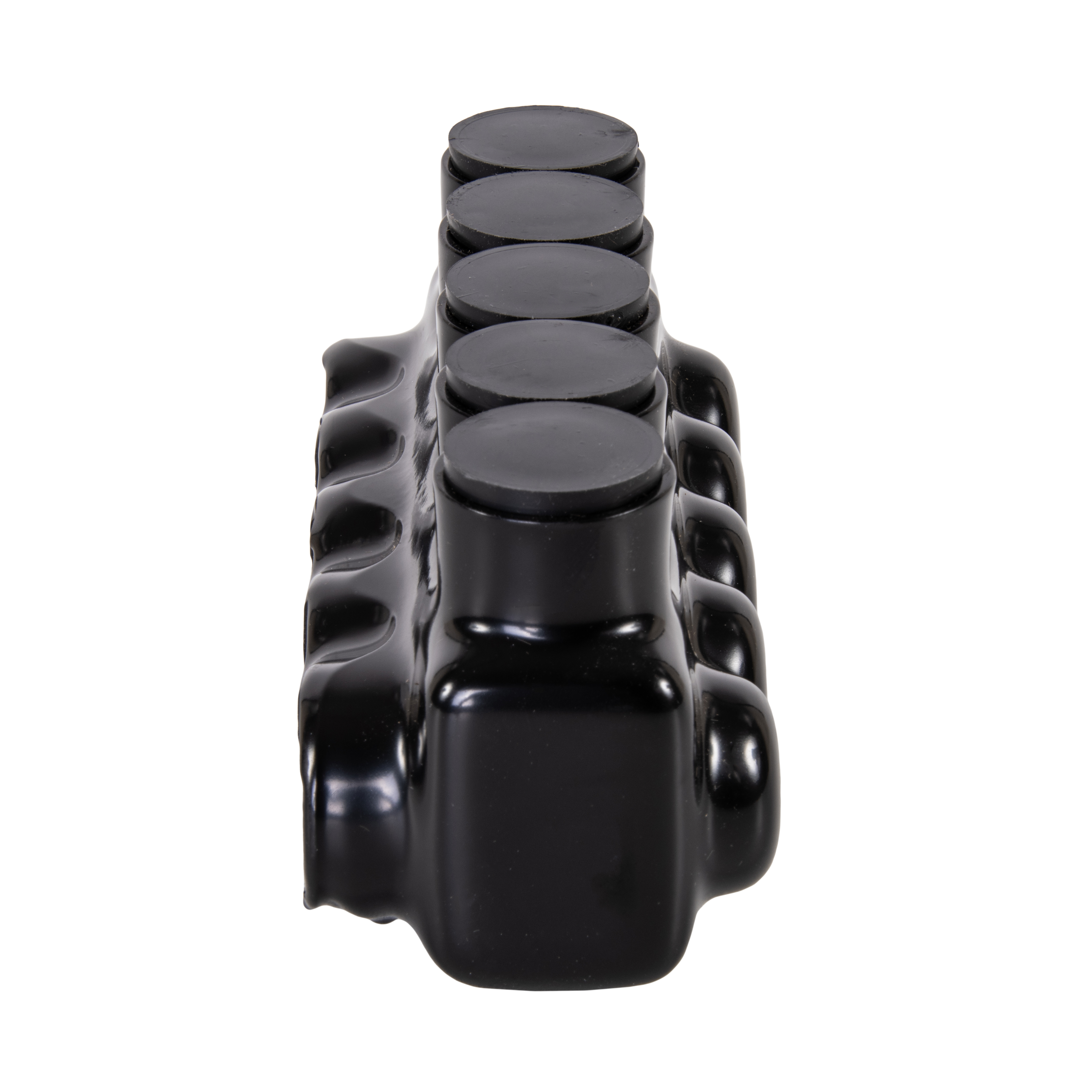

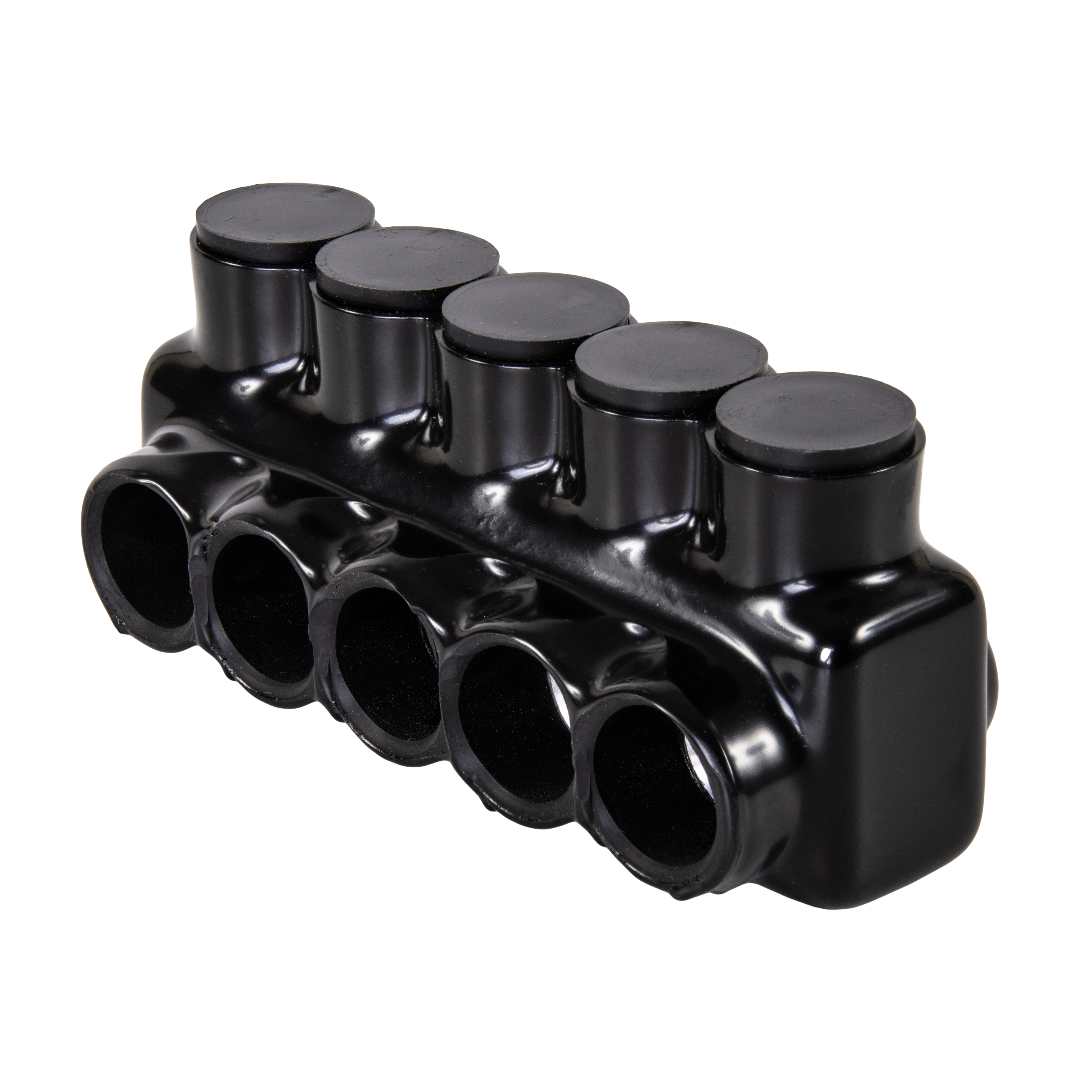

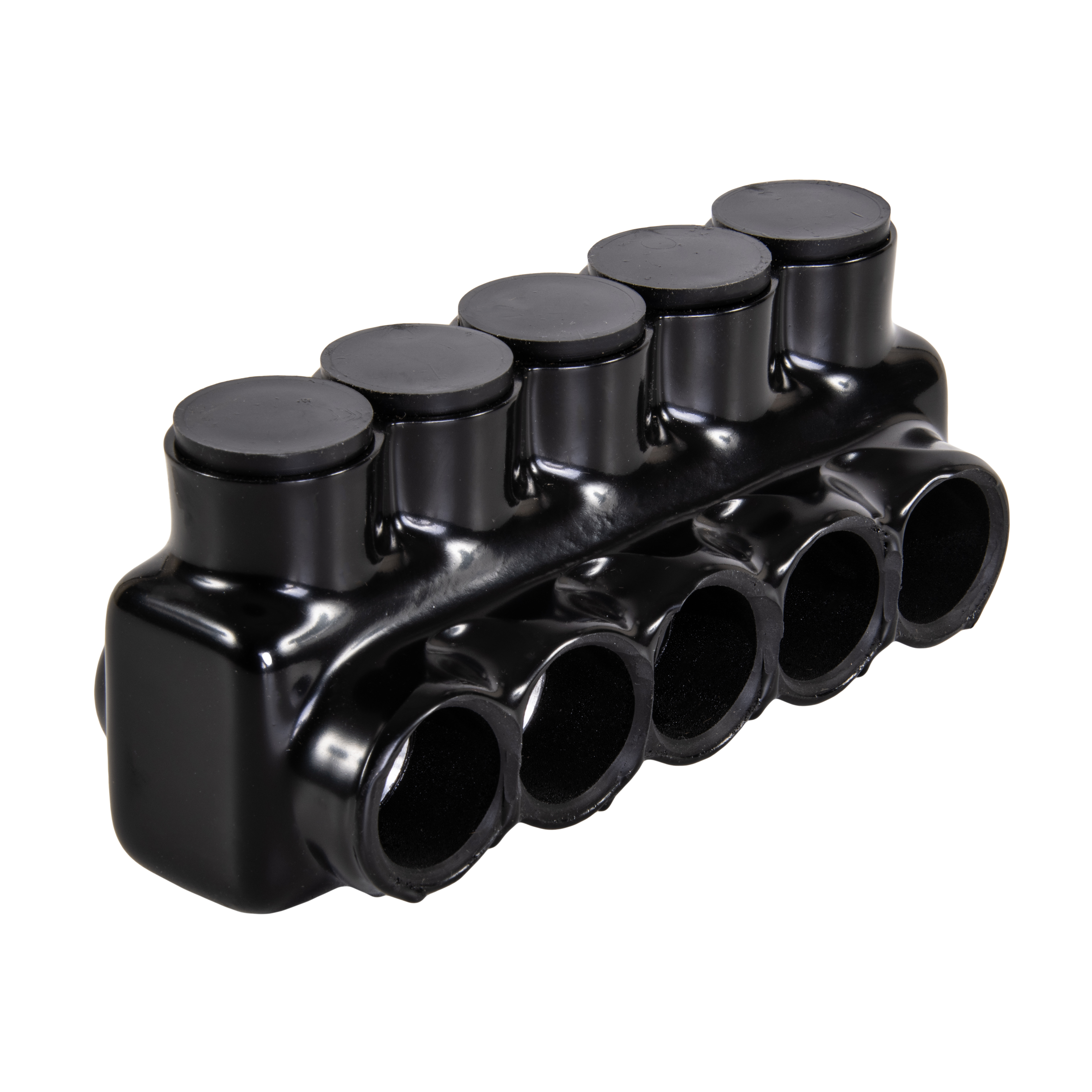

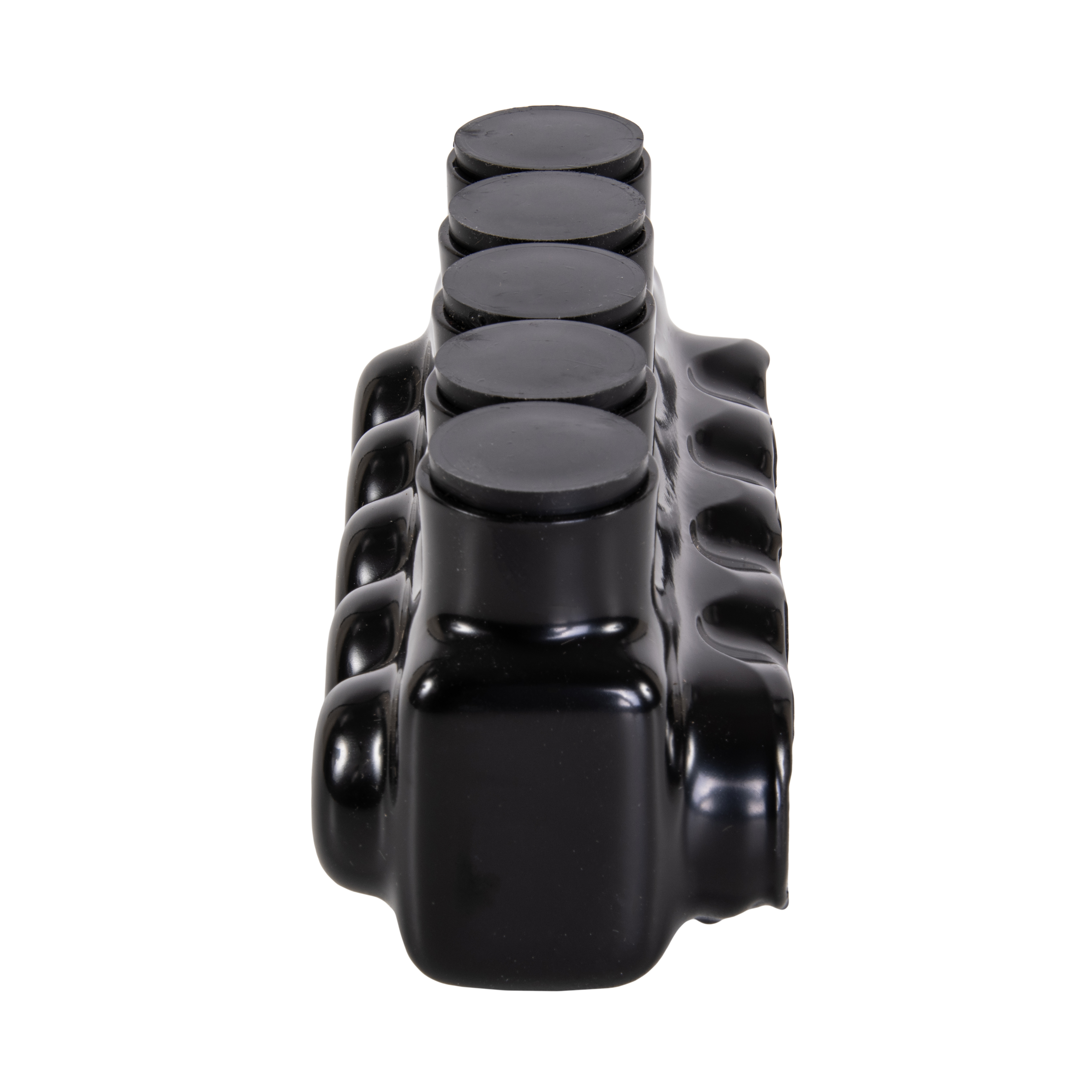

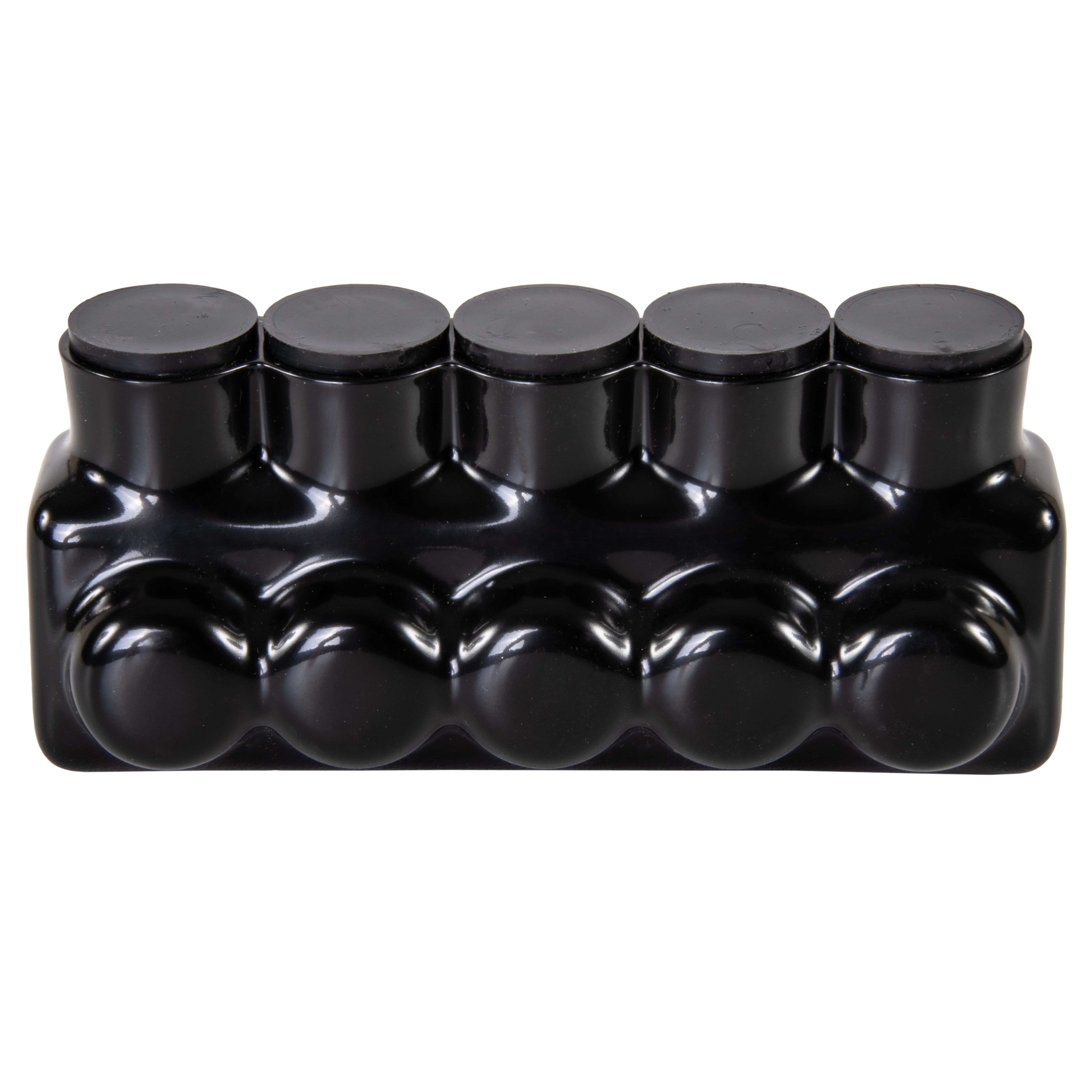

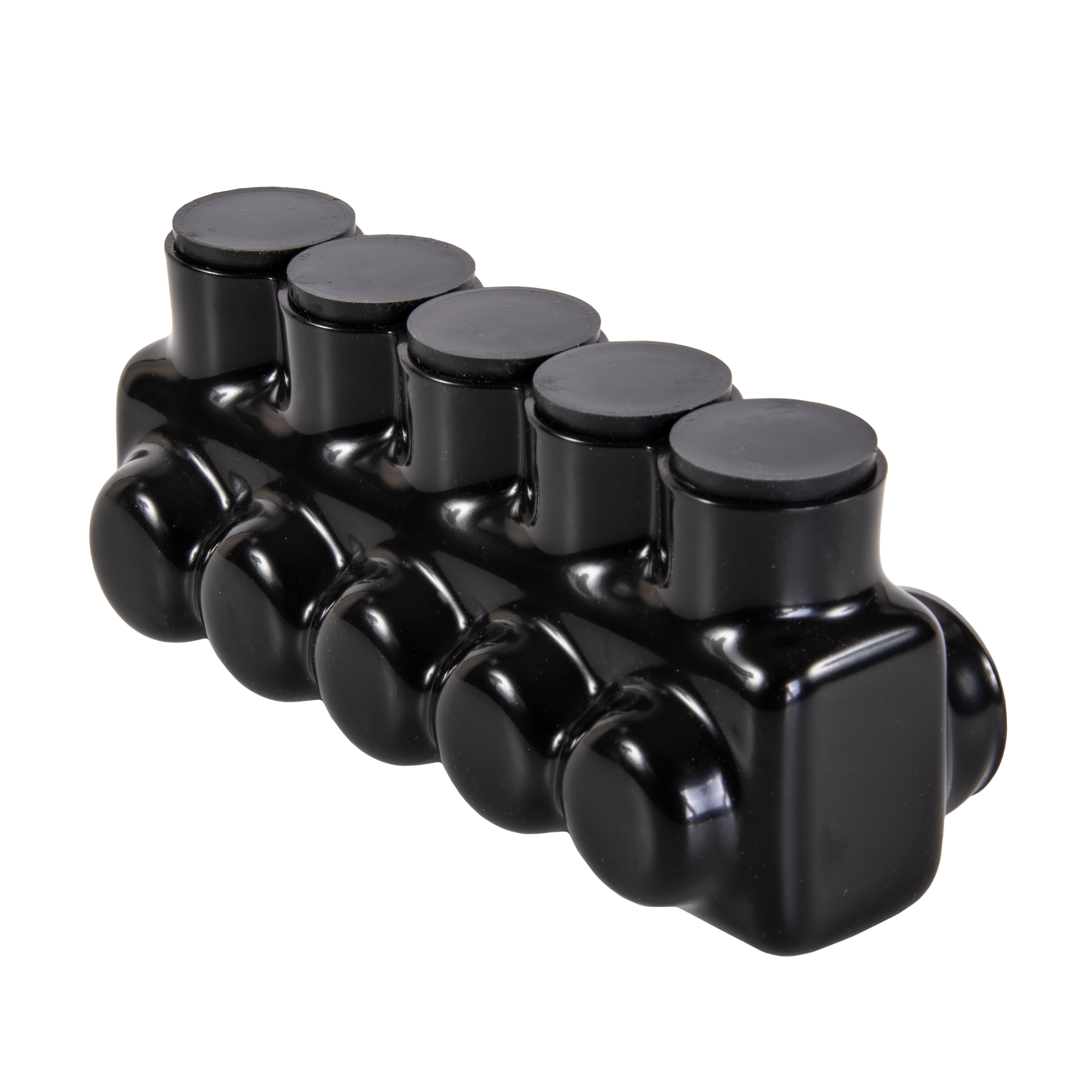

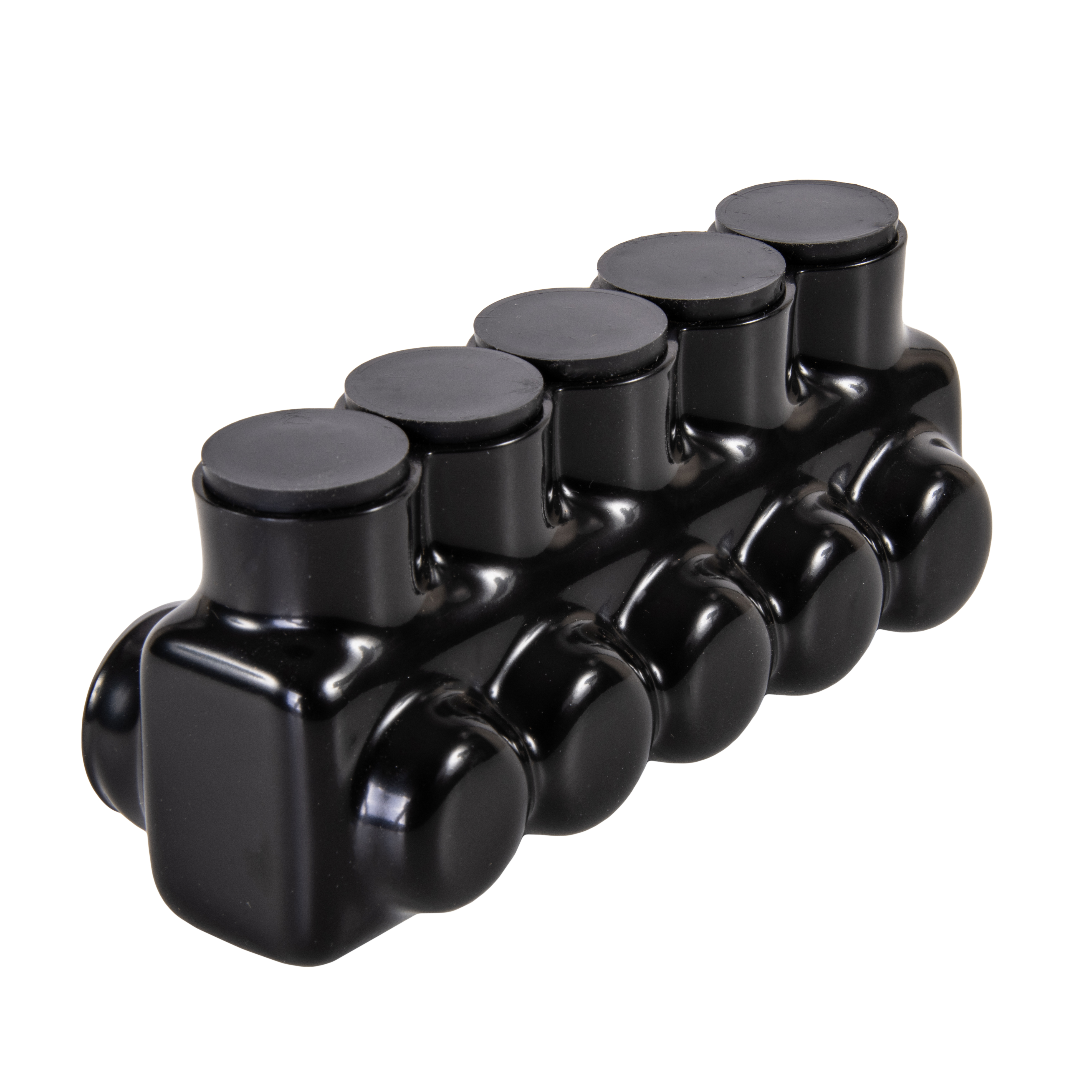

Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • One-Side Wire Entry: Form secure connections between 5 conductors quickly using the single-side entry ports sized for wires between 3/0 and 6 AWG. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
  • Pre-filled Oxide Inhibitor: All 5 single-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Professional Performance: The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black
GTIN 662381912039
UPC 662381912039
EAN 662381912039
UNSPSC 39121409
Origin Country US
Certifications cULus, 9d71e7f821454f7b84f0a15642ea01d2
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C
Al Conductor Max Amp 175
Cu Conductor Max Amp 225
Conductor Cu Size Range 3/0 AWG – 6 AWG
Conductor Al Size Range 3/0 AWG – 6 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 5
Hex Wrench Size 1/4
Env Temp Cold Temperature rated to -45C
Assortment Black UV Coated Pre-Insulated Connectors
Application Splice, Tap
Max Torque 250
