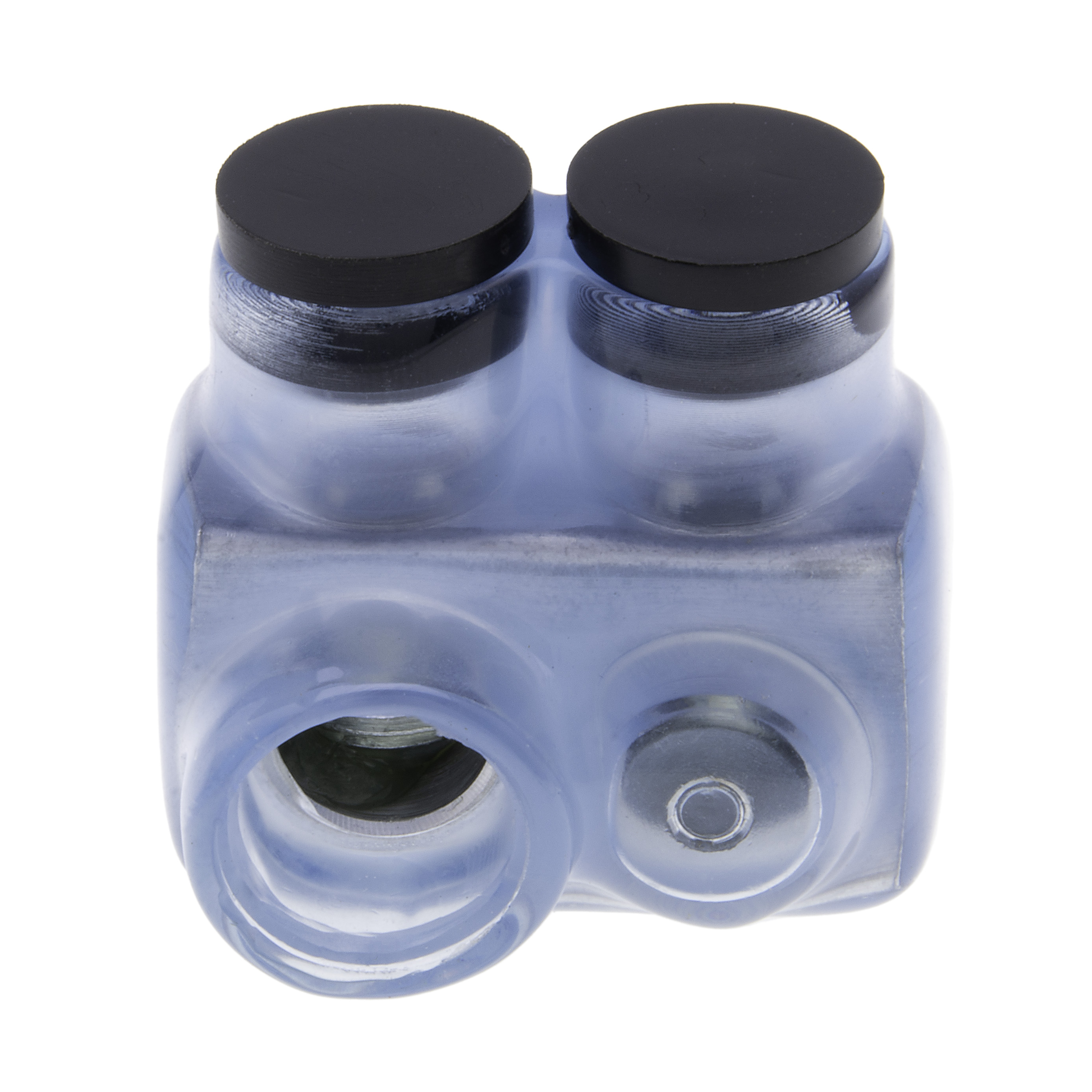

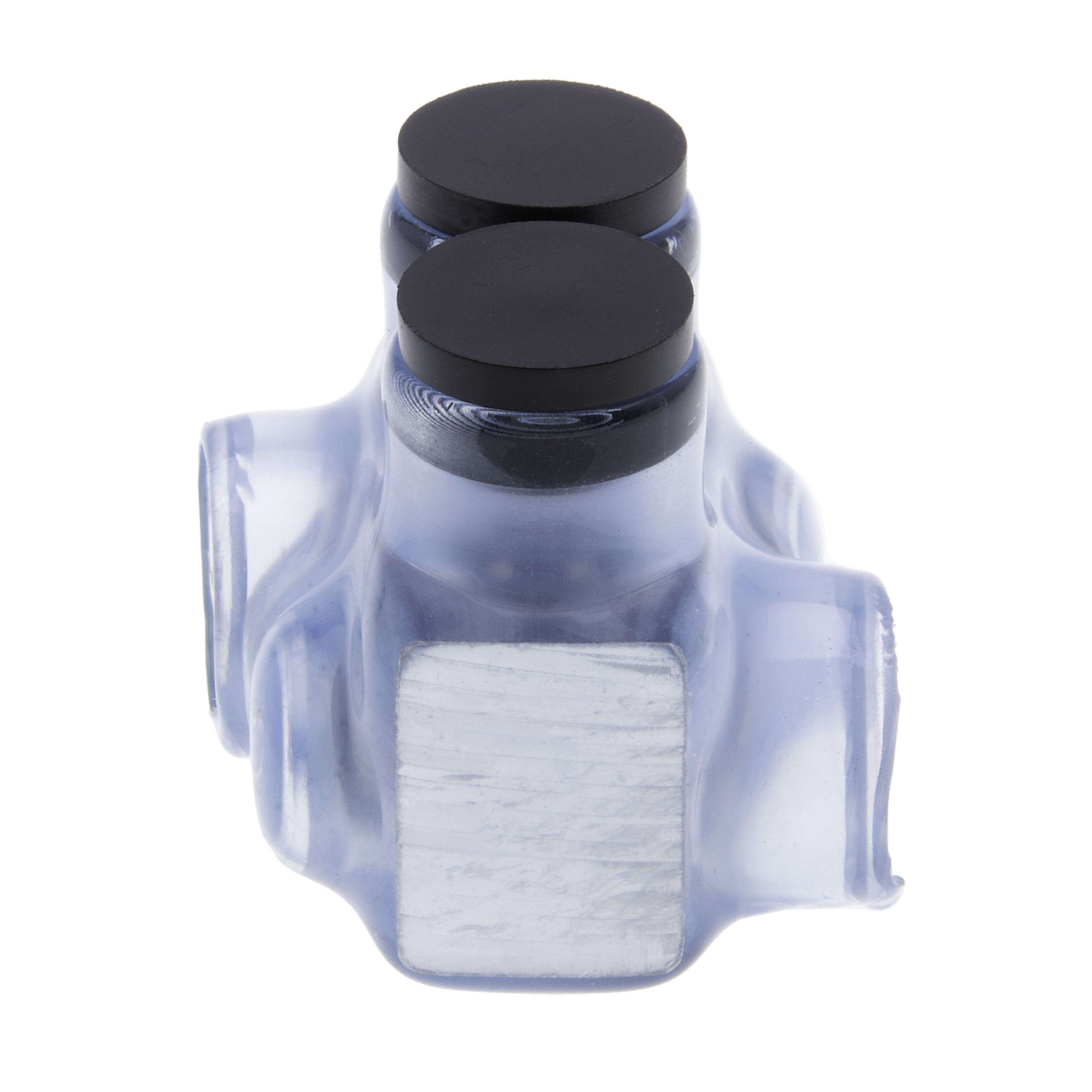

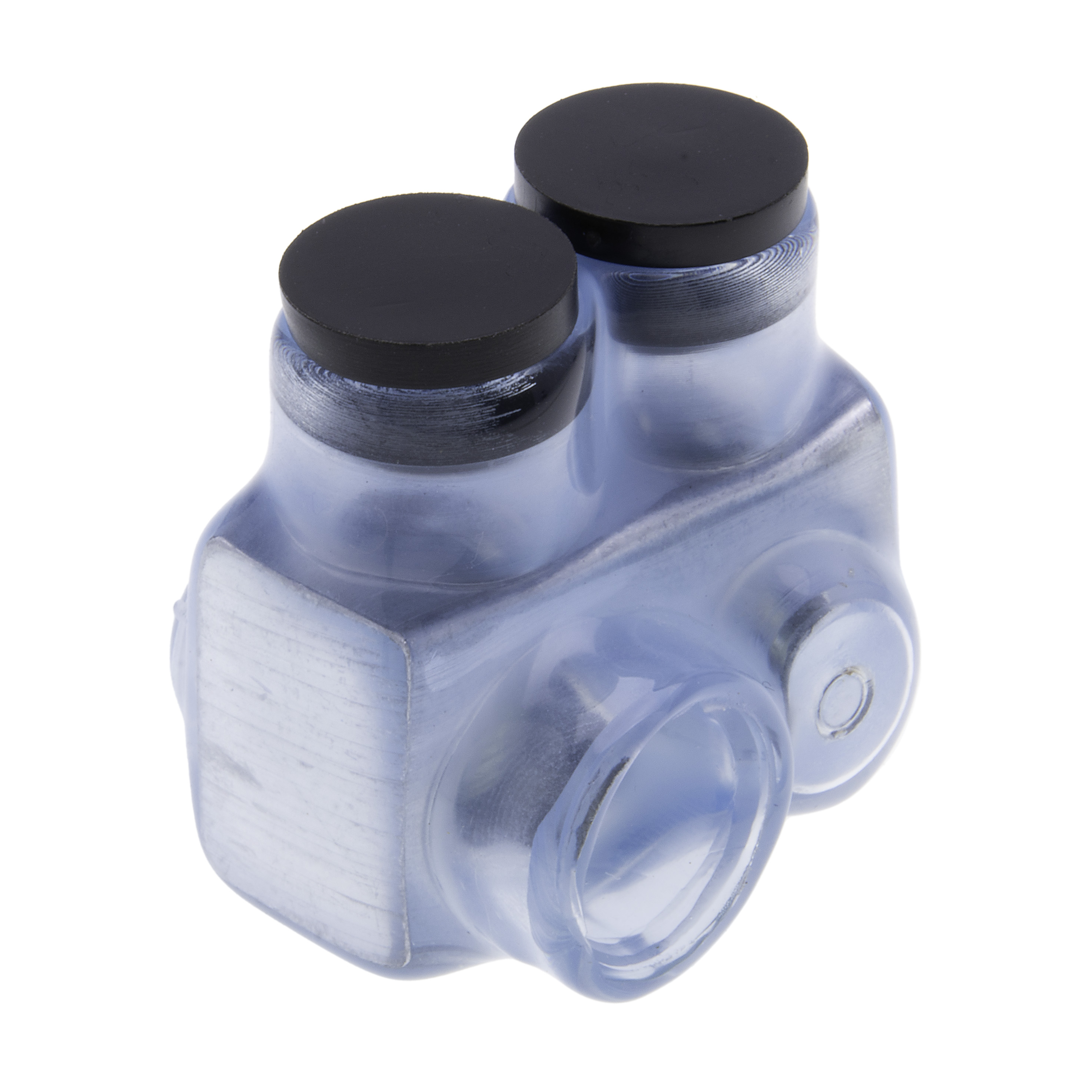

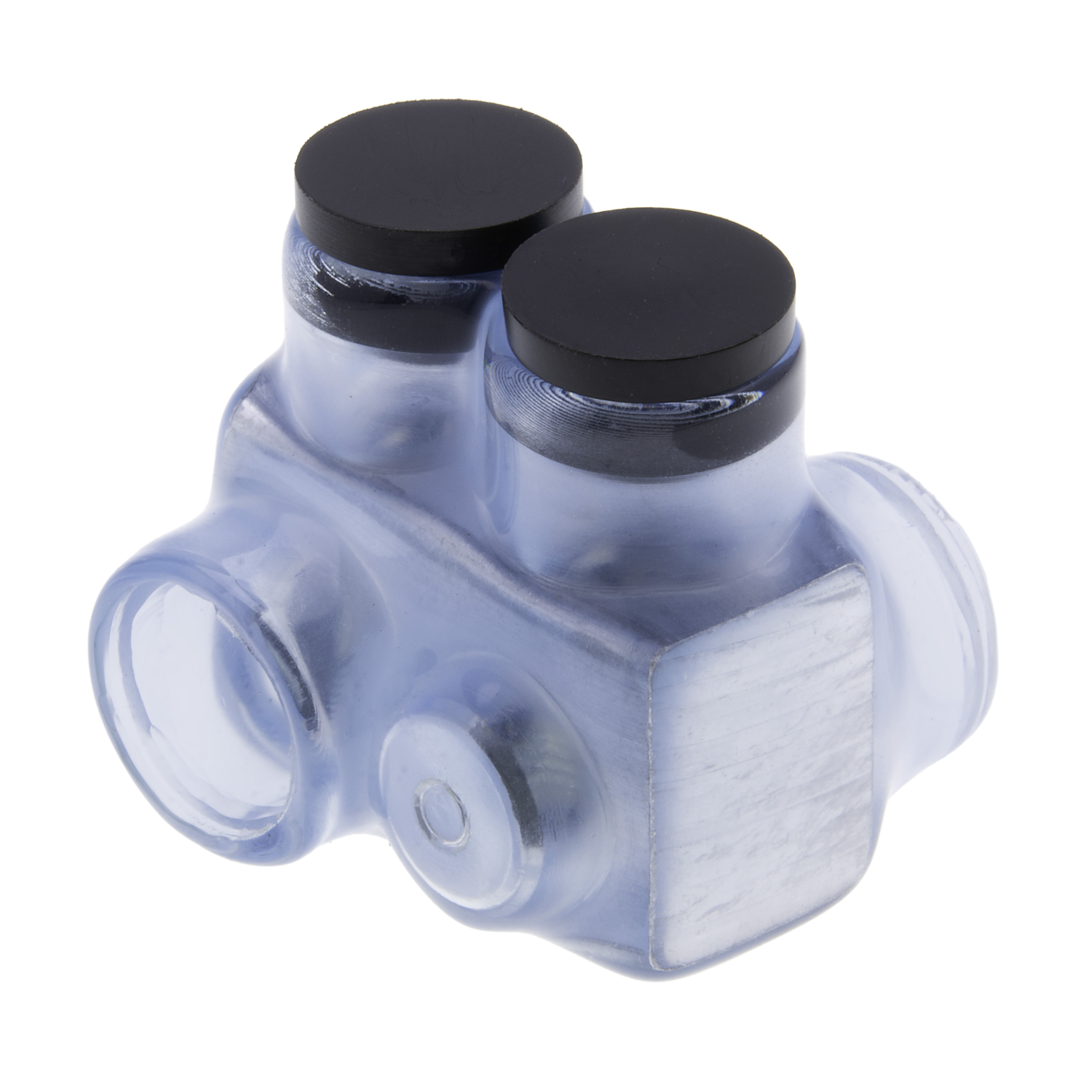

2-Port Clear Multi-Tap Pre-Insulated Connector, 3/0 – 6 AWG
#ITO-3/0C
Polaris Vision Tap Multi-Tap Connectors form secure connections between multiple conductors with a transparent rounded design and chemical-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.
- Clear Exterior: Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection
- Ergonomic Design: Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
- Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
- Pre-filled Oxide Inhibitor: Both offset entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
- Professional Performance: The durable layer of insulation on each Polaris connector is abrasion and chemical-resistant for reliable performance
Product Information
Voltage Rating | 600 V |
---|---|
Material | Aluminum |
Finish | Plastisol Insulated |
Color | Clear |
GTIN | 662381996541 |
UPC | 662381996541 |
EAN | 662381996541 |
UNSPSC | 39121409 |
Origin Country | US |
Certifications | cULus |
Ul Standard | UL 486A/B |
Ul File No | E186991 |
Wire Cable Class | Class B, Class C |
Al Conductor Max Amp | 175 |
Cu Conductor Max Amp | 225 |
Conductor Cu Size Range | 3/0 AWG – 6 AWG |
Conductor Al Size Range | 3/0 AWG – 6 AWG |
Conductor Type | Copper, Aluminum |
Temp Rating | 90C, AL9CU |
Conductors Count | 2 |
Hex Wrench Size | 1/4 |
Env Temp | Cold Temperature rated to -45C |
Assortment | Clear Coated Pre-Insulated Connectors |
Max Torque | 250 |
