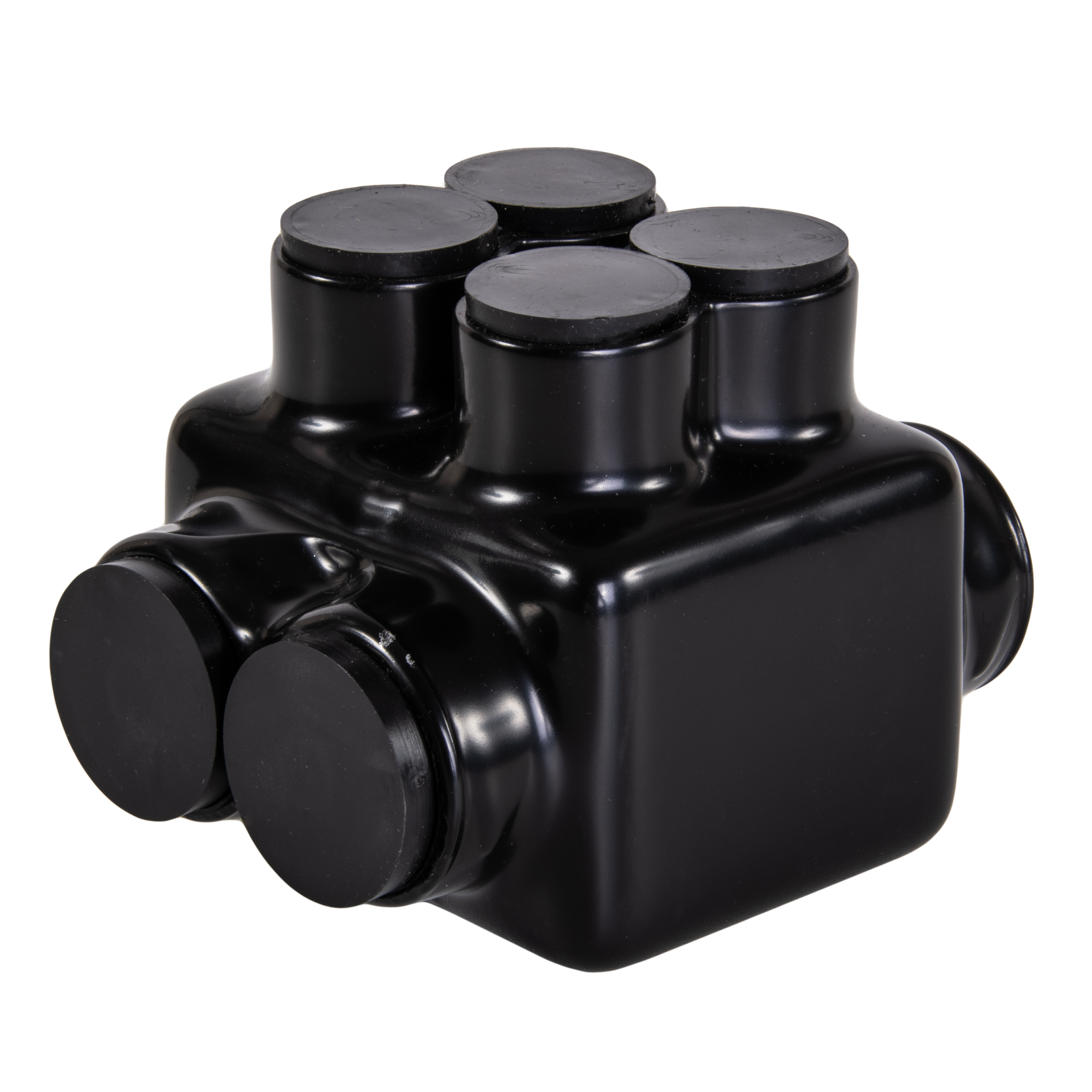

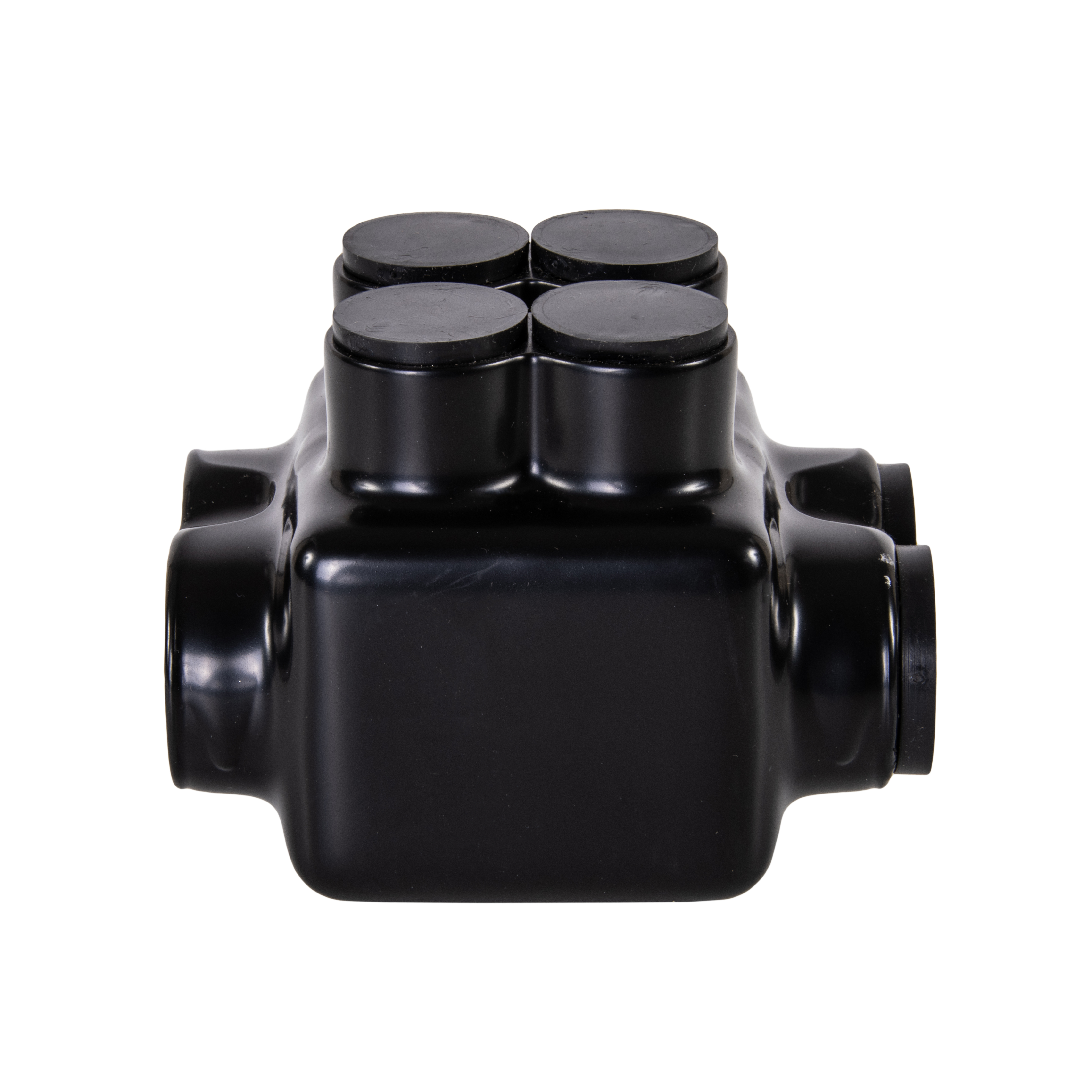

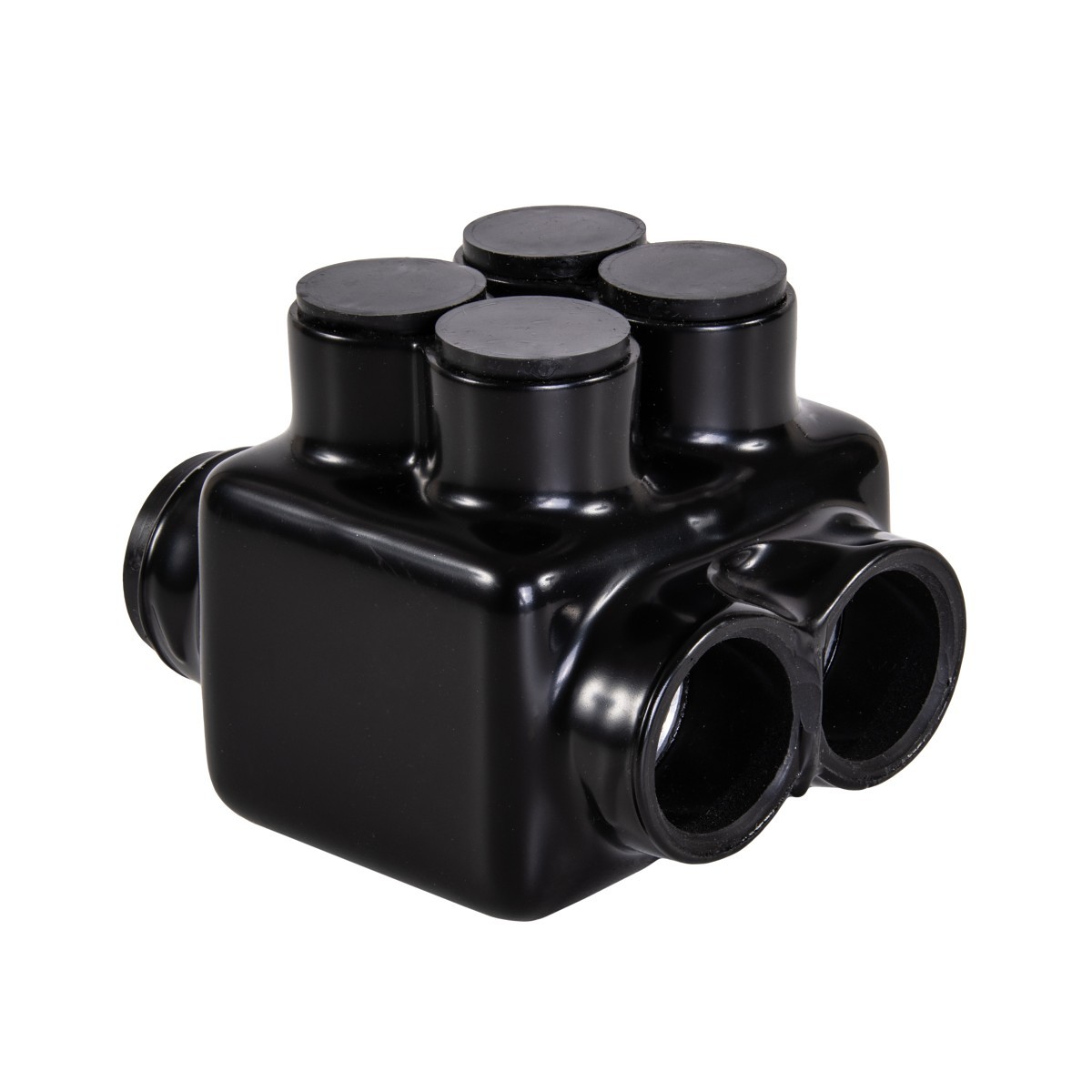

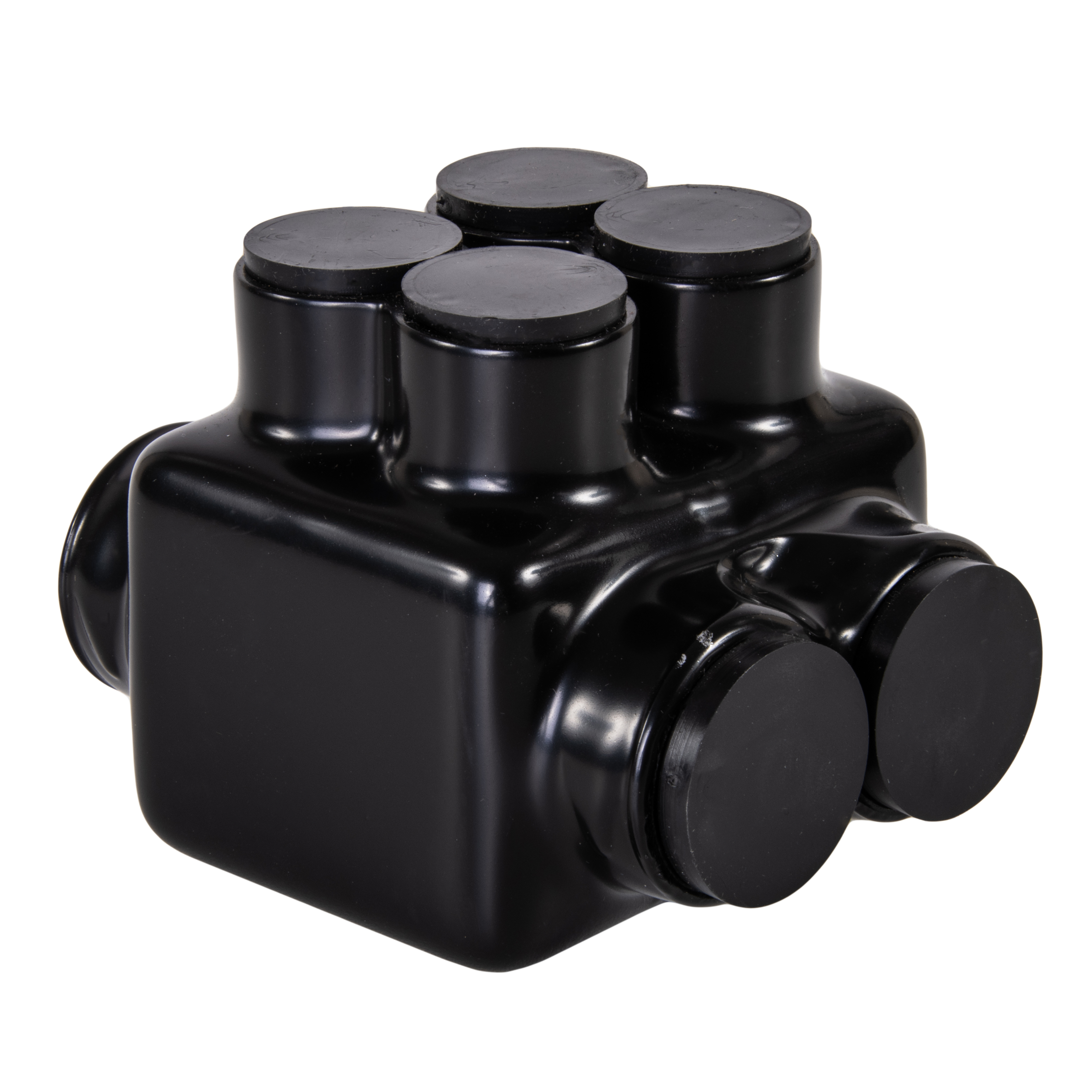

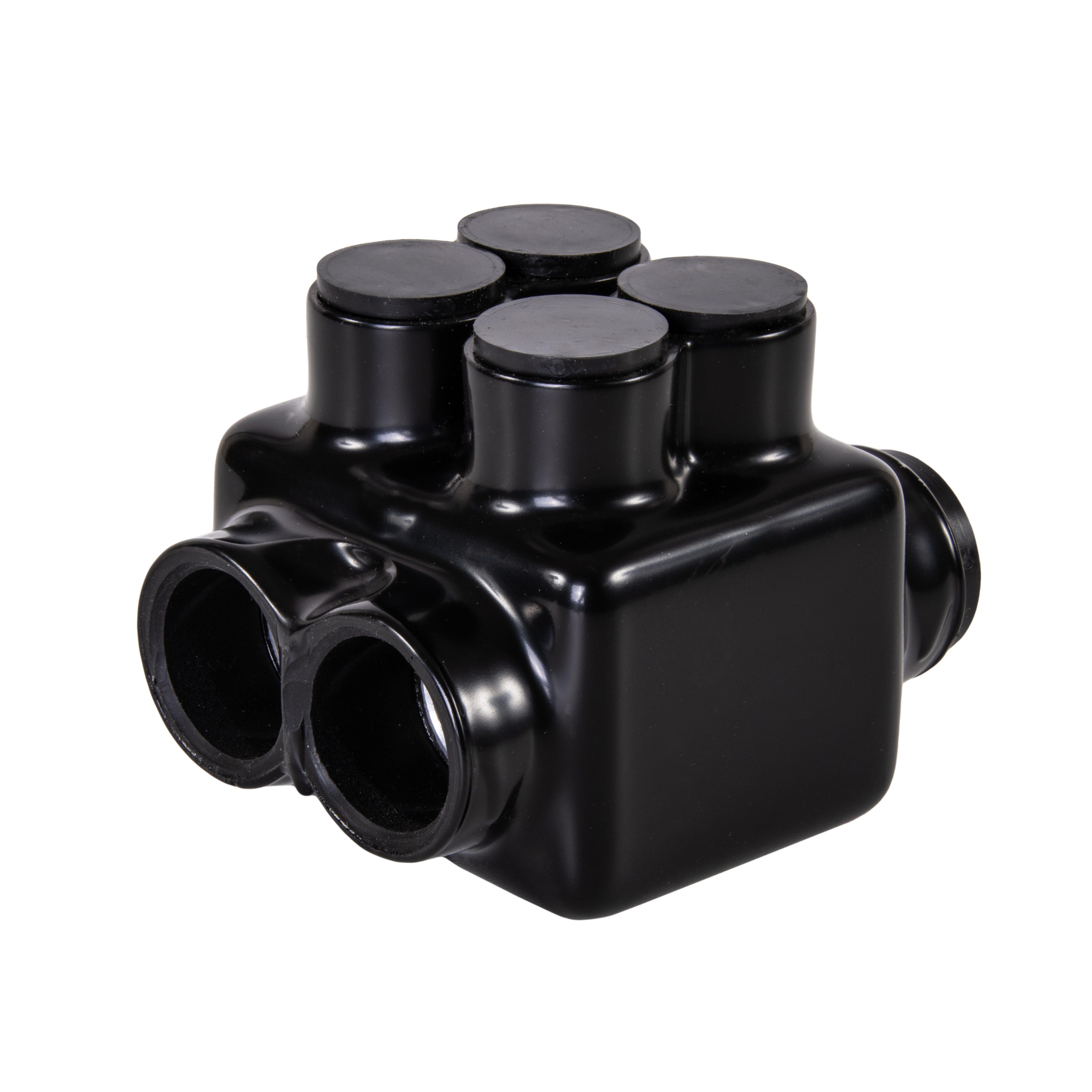

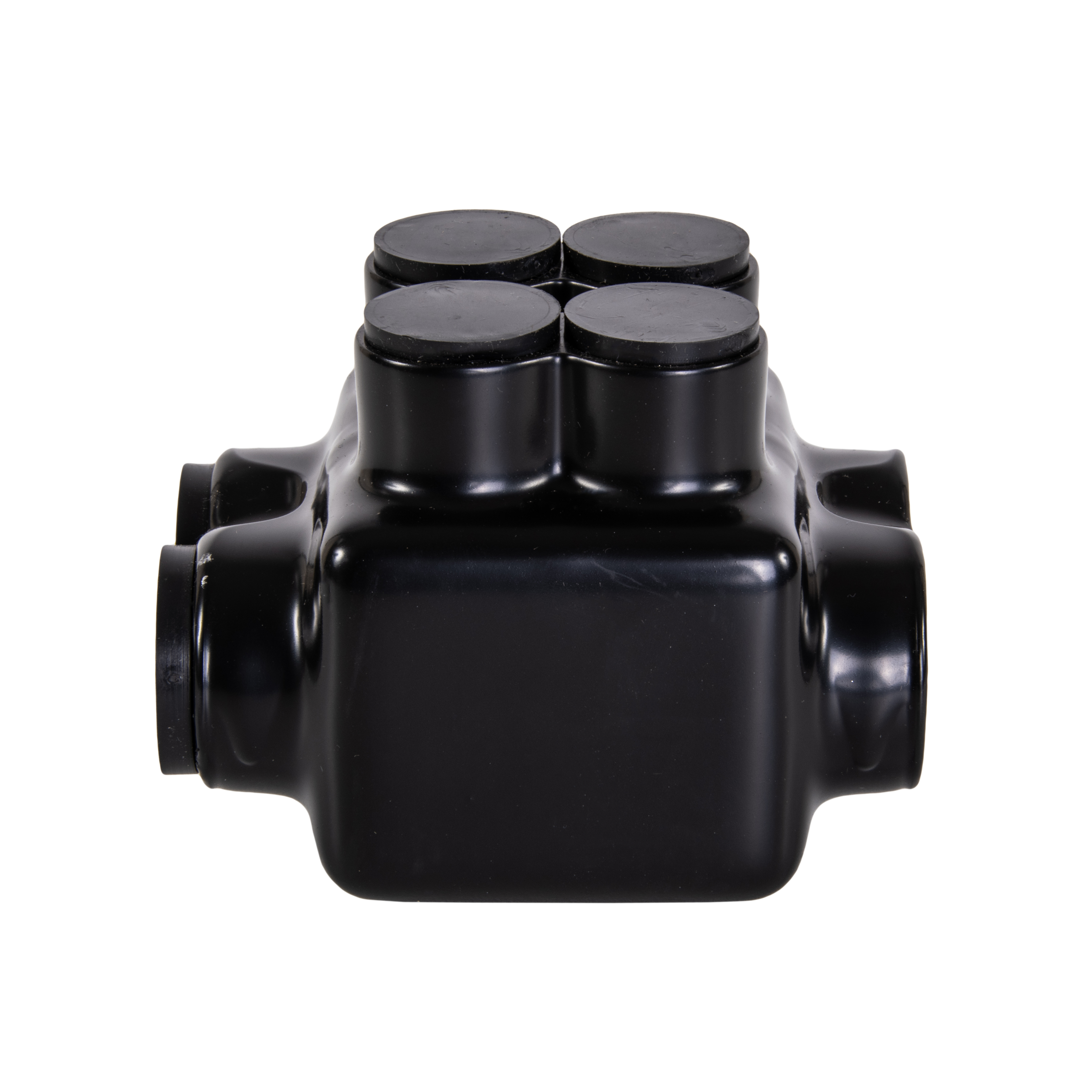

2-Port Black Heavy-Duty Pre-Insulated Connector, 750 MCM – 1/0 AWG

#ITH-750

Polaris Black Heavy-Duty Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

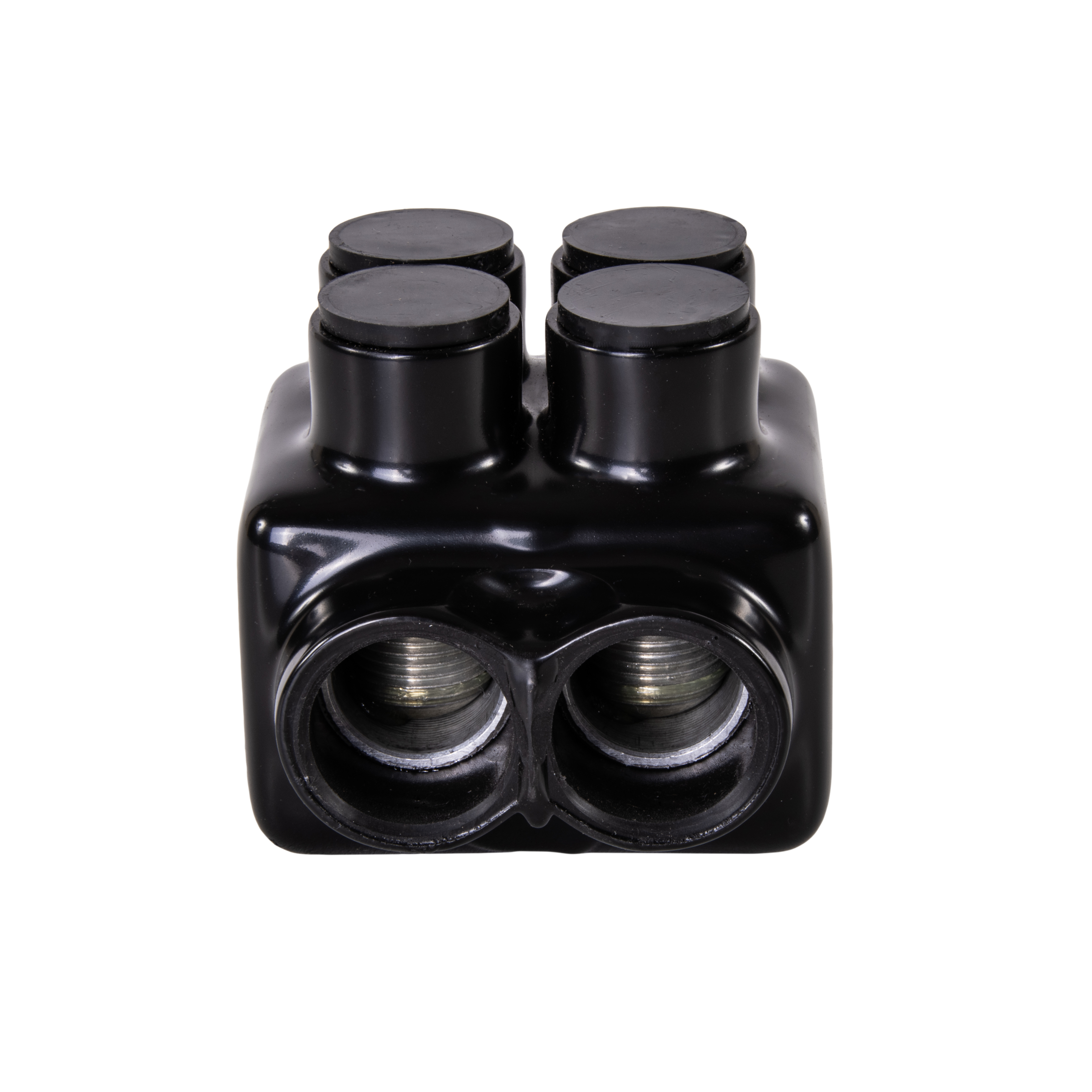

  • Dual-Sided Wire Entry: Form secure connections between 2 conductors quickly using the double-side entry ports sized for wires between 750 MCM and 1/0 AWG Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement. . Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
  • Heavy-Duty Performance: Wider and stronger connector blocks feature two pressure screws for each cable to ensure a secure connection in demanding applications
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip

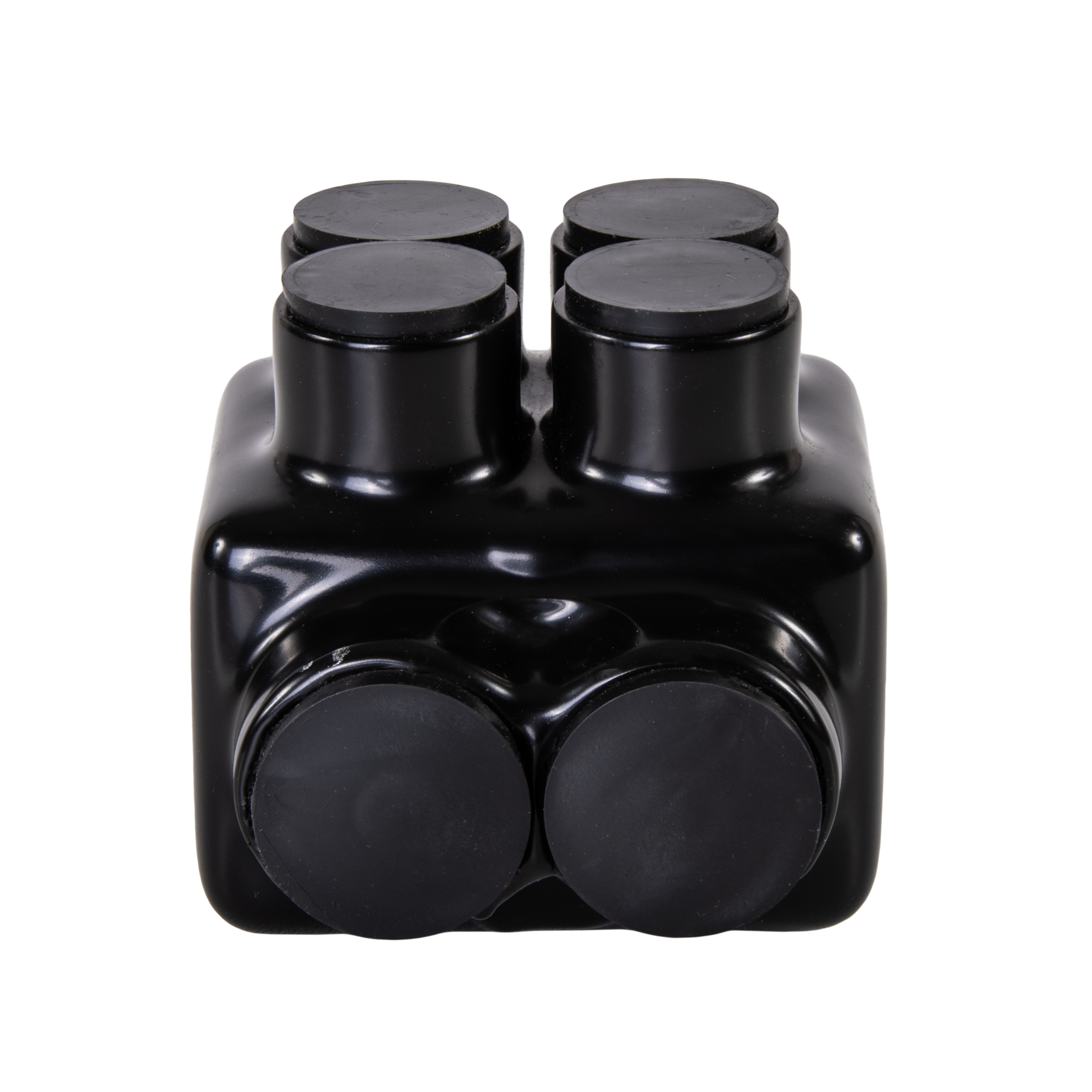

  • Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
  • Pre-filled Oxide Inhibitor: Both dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black
Pack Qty 2
GTIN 662381926401
UPC 662381926401
EAN 662381926401
UNSPSC 39121409
Origin Country US
Certifications cULus, 9d71e7f821454f7b84f0a15642ea01d2
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C
Al Conductor Max Amp 435
Cu Conductor Max Amp 535
Conductor Cu Size Range 750 MCM – 1/0 AWG
Conductor Al Size Range 750 MCM – 1/0 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 2
Hex Wrench Size 3/8
Env Temp Cold Temperature rated to -45C
Assortment Black UV Coated Pre-Insulated Connectors
Application Splice
Max Torque 550
