10-Port Black Mountable Pre-Insulated Connector, 350 MCM – 10 AWG
Insulated Mechanical Connectors
#IPLMD350-10

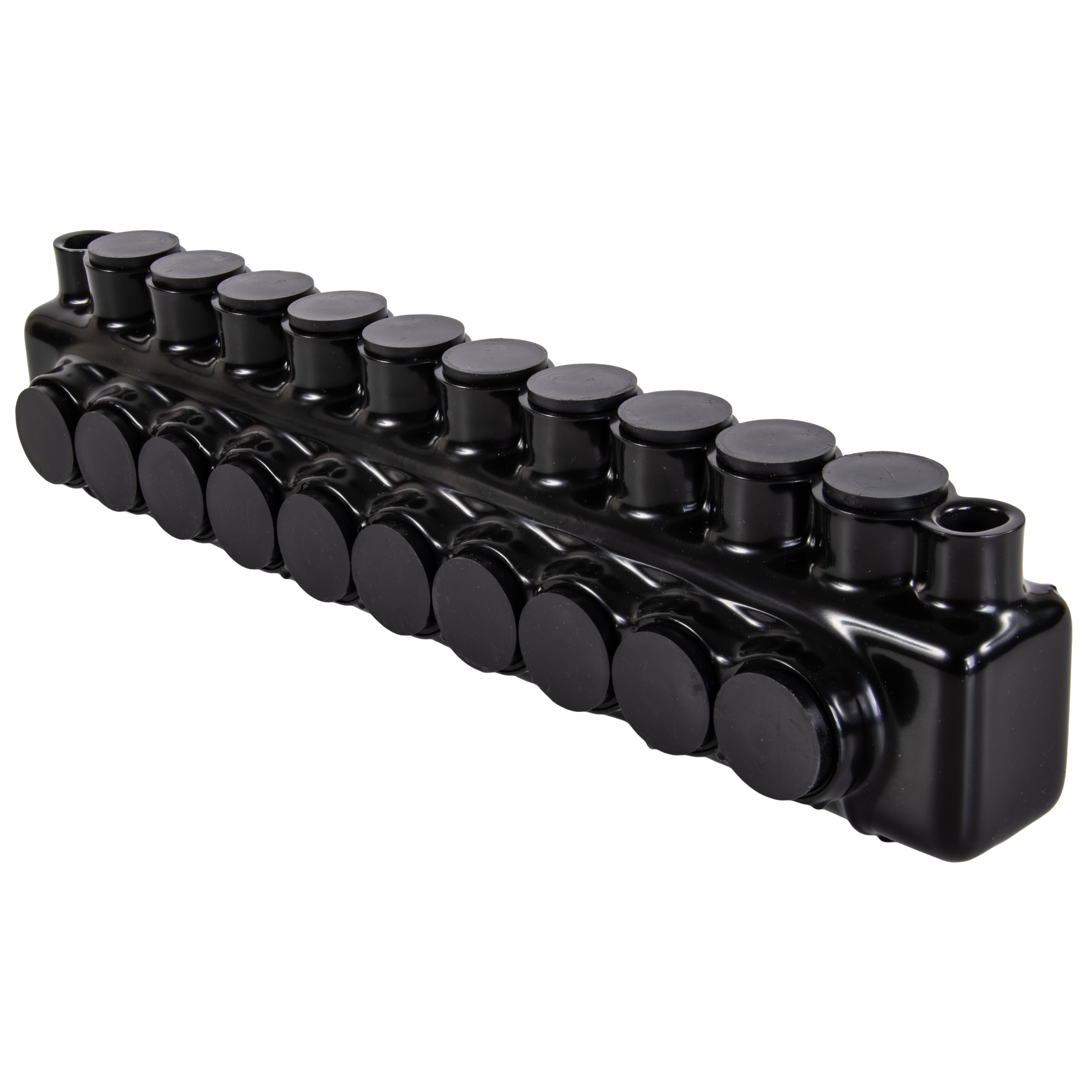

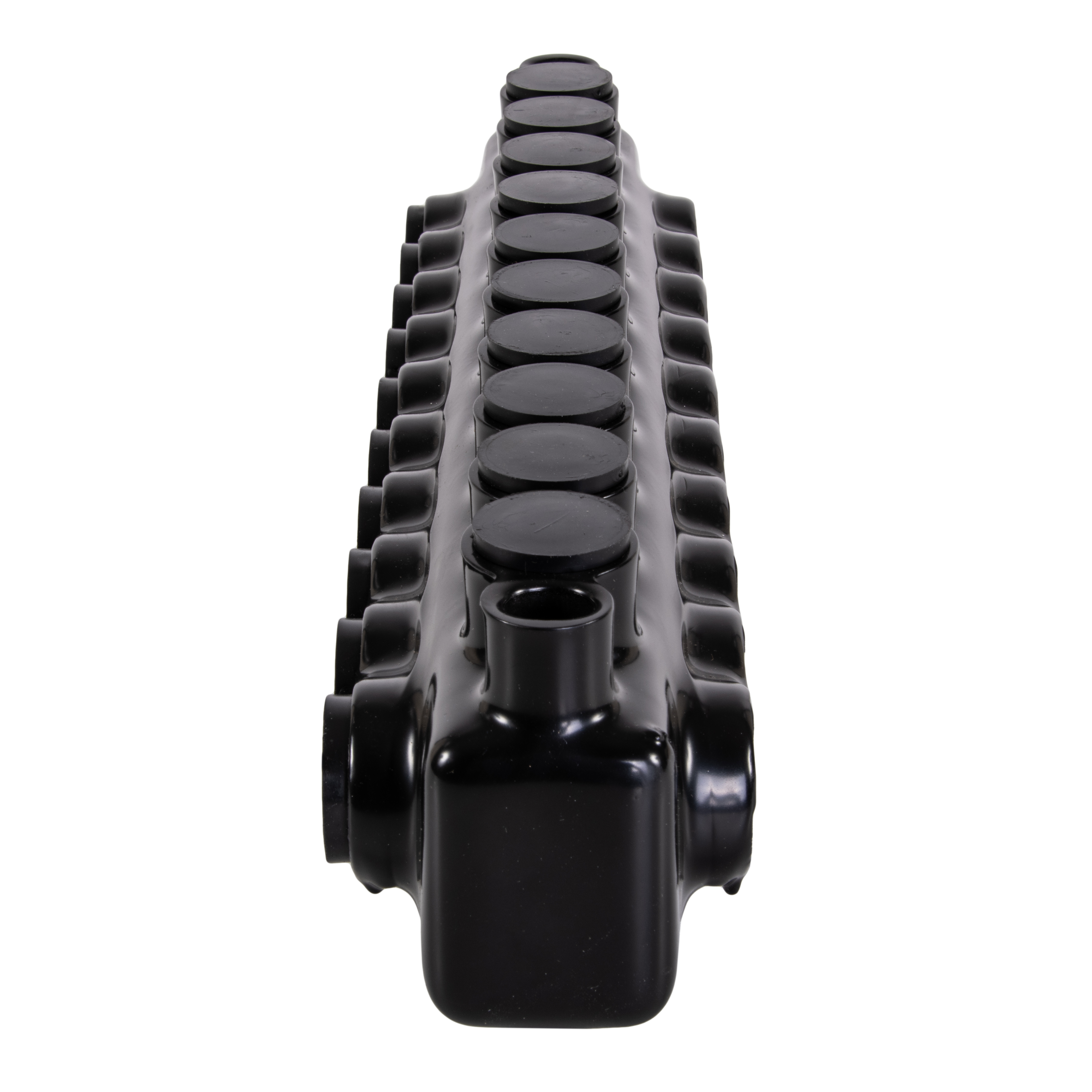

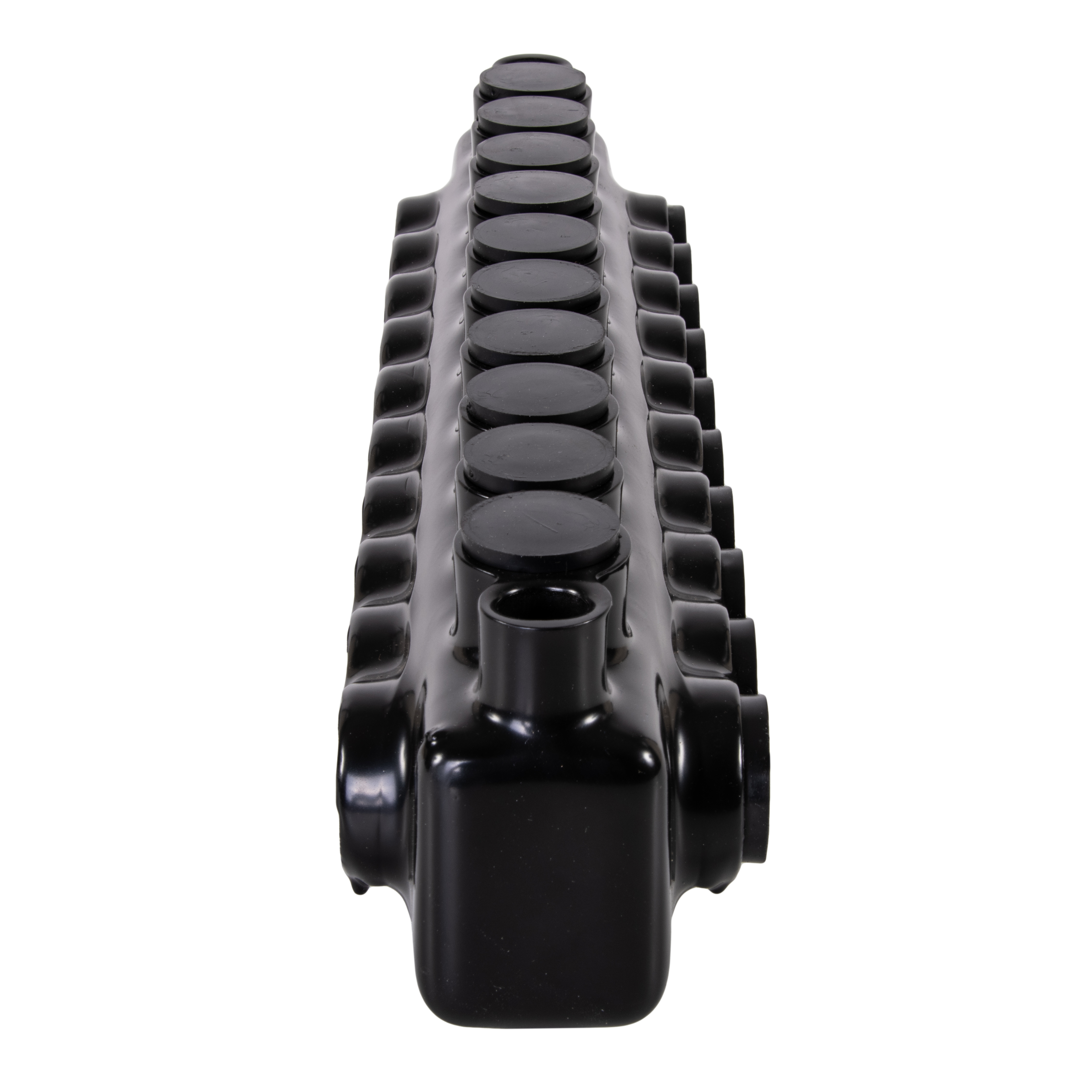

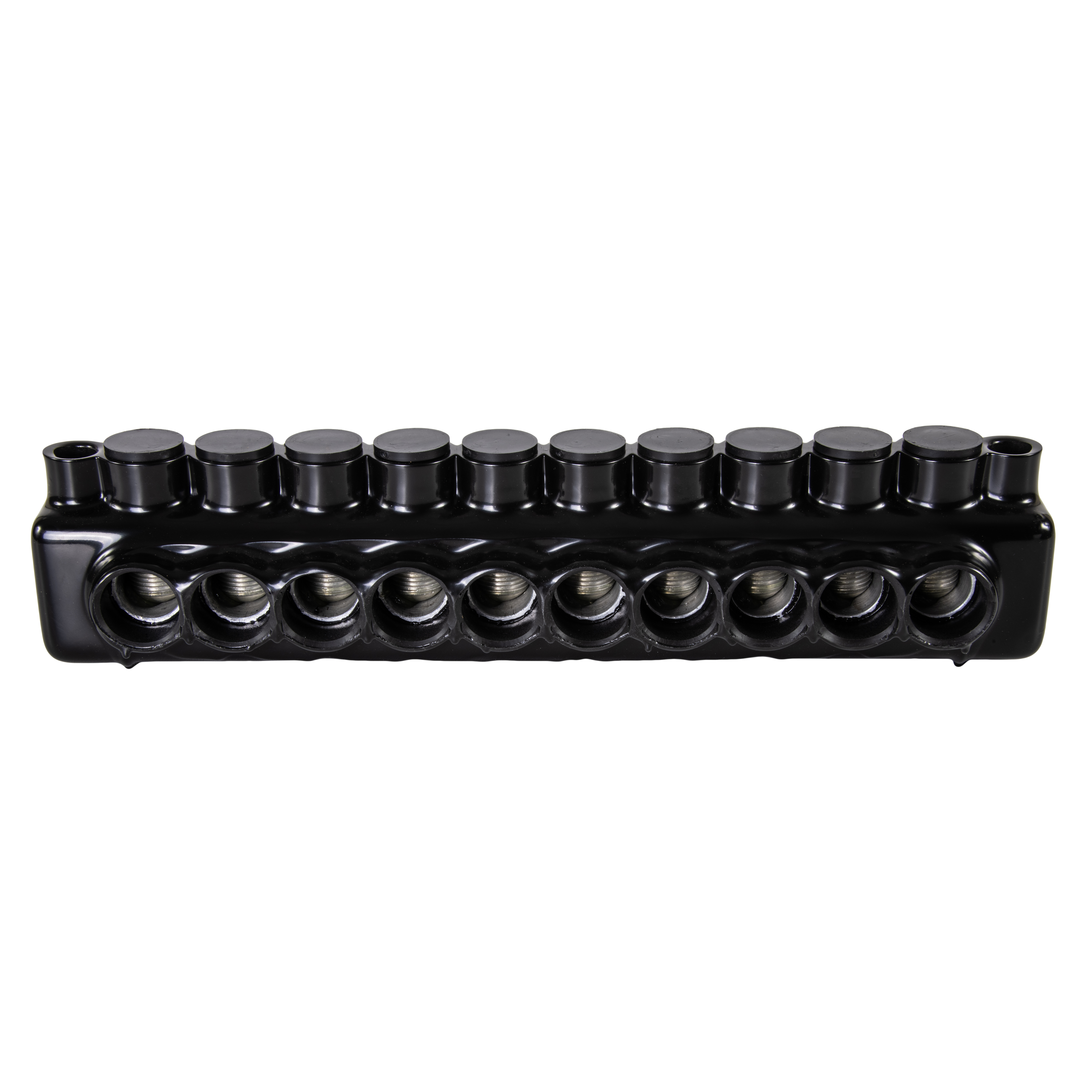

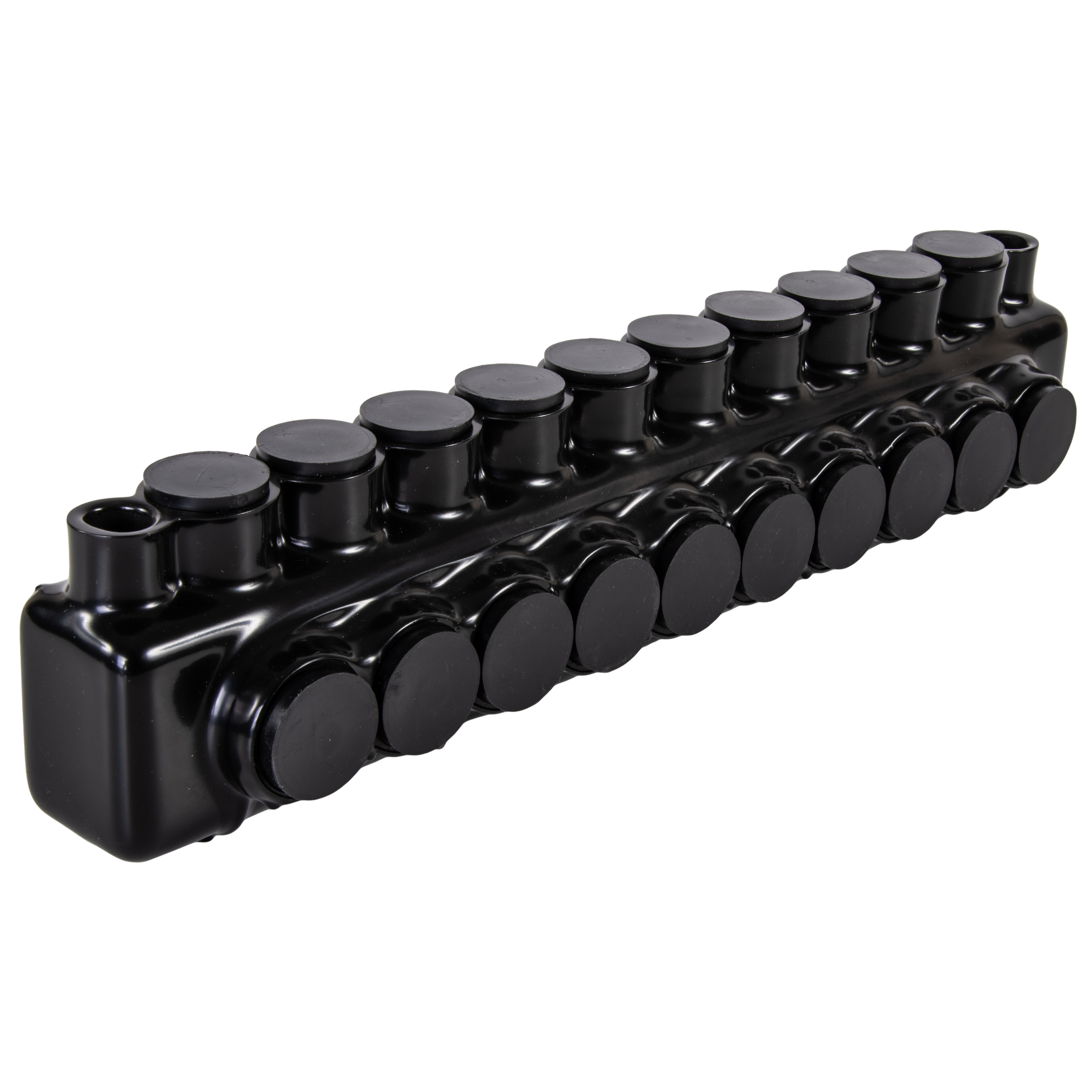

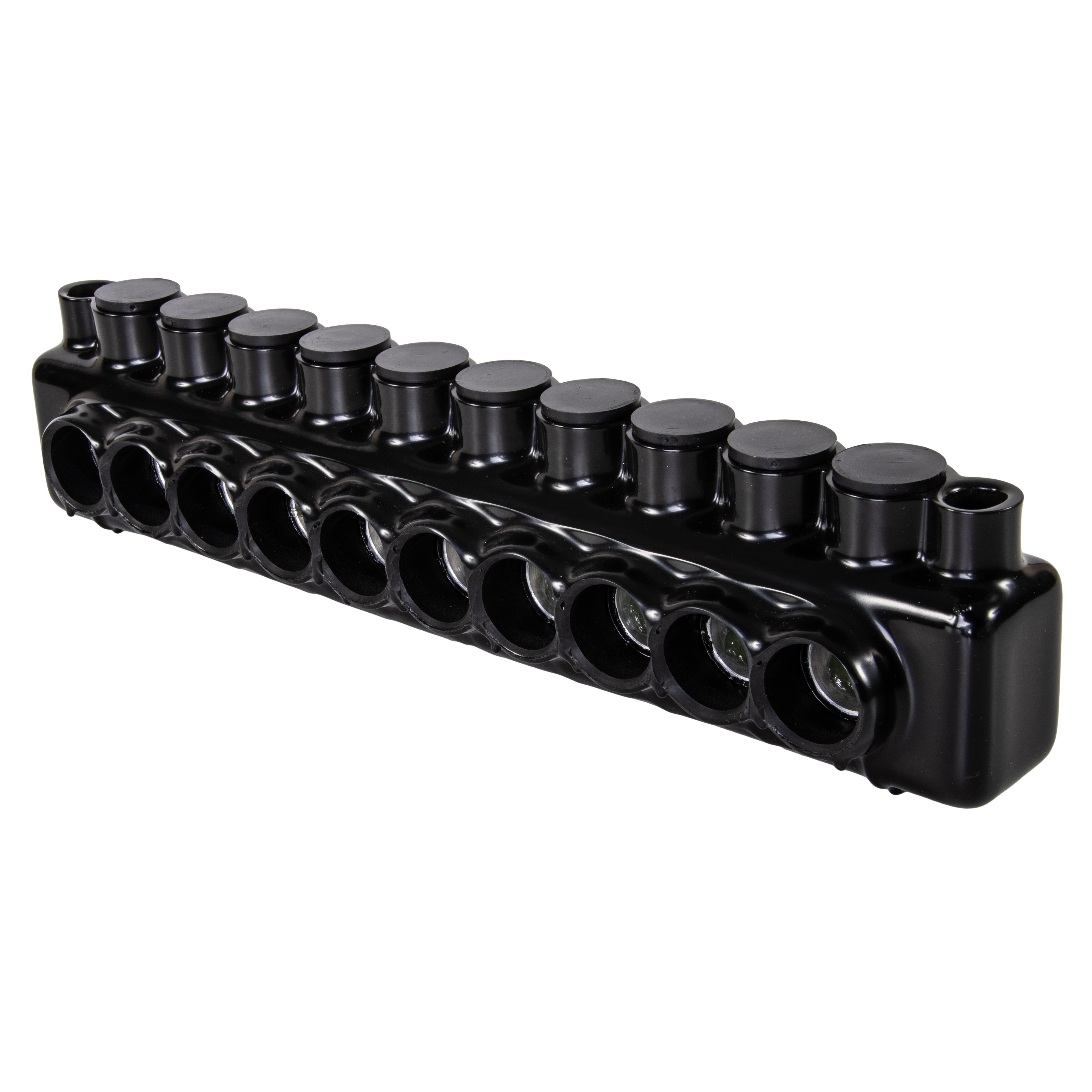

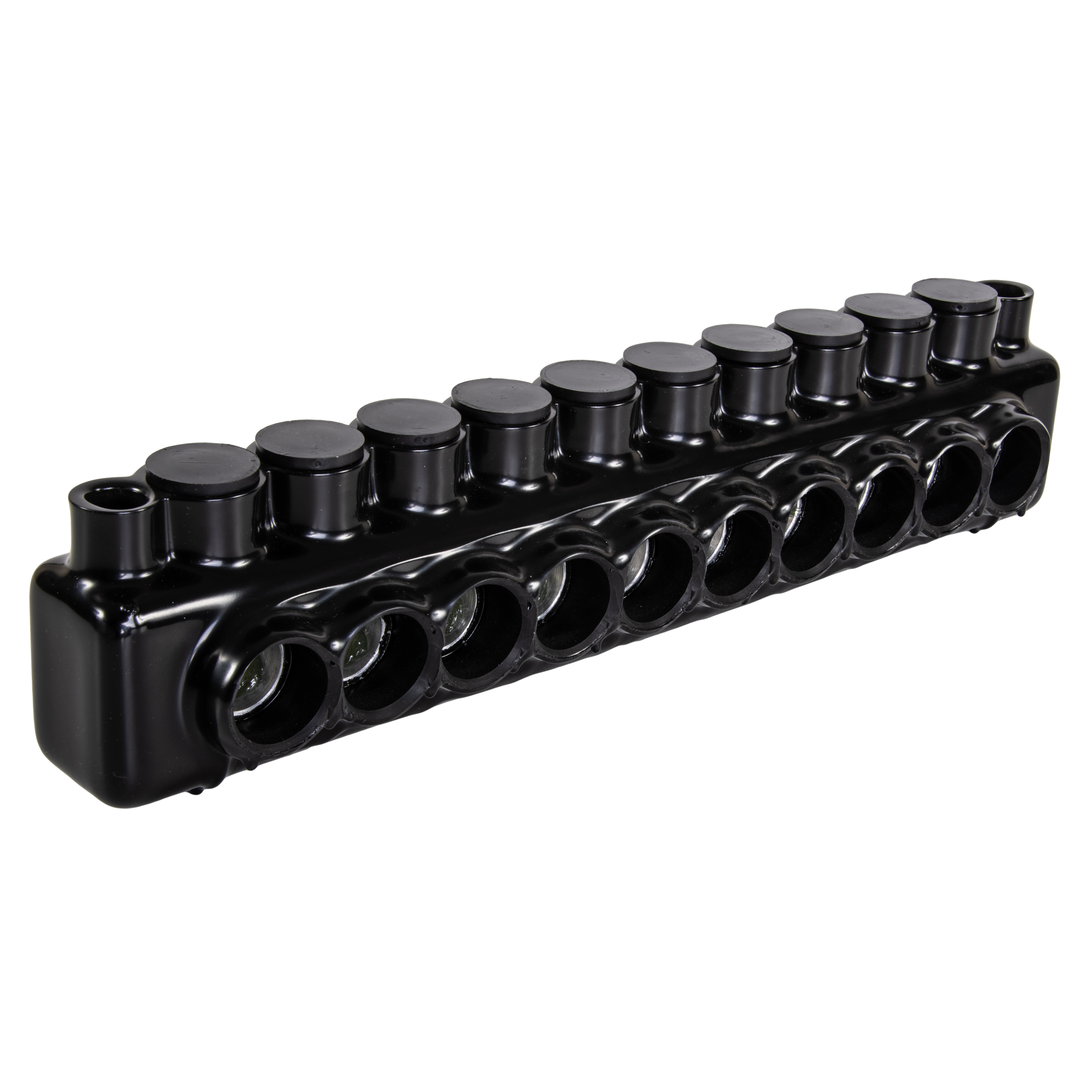

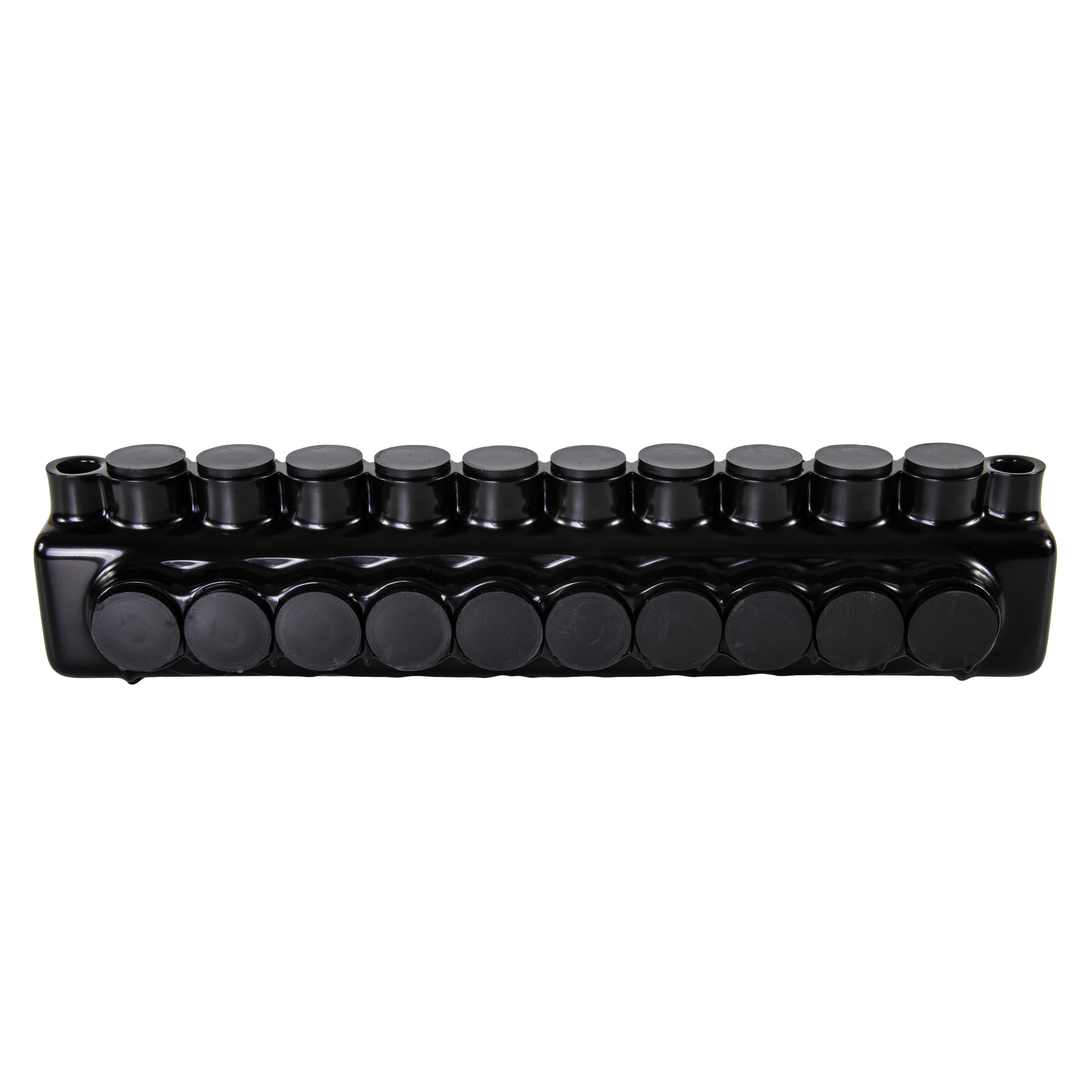

Polaris Black Multi-Tap Mountable Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.
- Dual-Side Wire Entry: Form secure connections between 10 conductors quickly using the double-side entry ports sized for wires between 350 MCM and 10 AWG. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
- Mounting Holes: Installation is simple with mounting holes on either side of the connector to attach directly to panels or troughs using 1/4" bolts
- Ergonomic Design: The plastisol insulation features rounded corners for a comfortable grip and is UV, abrasion and chemical-resistant for durable performance
- Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
- Parallel Rated: This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects
Product Information
Voltage Rating | 600 V |
---|---|
Material | Aluminum |
Finish | Plastisol Insulated |
Color | Black |
Pack Qty | 2 |
GTIN | 662381944085 |
UPC | 662381944085 |
EAN | 662381944085 |
UNSPSC | 39121409 |
Origin Country | US |
Certifications | cULus, 9d71e7f821454f7b84f0a15642ea01d2 |
Ul Standard | UL 486A/B |
Ul File No | E186991 |
Wire Cable Class | Class B, Class C |
Al Conductor Max Amp | 1028 |
Cu Conductor Max Amp | 1314 |
Conductor Cu Size Range | 350 MCM – 10 AWG |
Conductor Al Size Range | 350 MCM – 10 AWG |
Conductor Type | Copper, Aluminum |
Temp Rating | 90C, AL9CU |
Conductors Count | 10 |
Hex Wrench Size | 5/16 |
Env Temp | Cold Temperature rated to -45C |
Assortment | Black UV Coated Pre-Insulated Connectors |
Max Torque | 400 |
