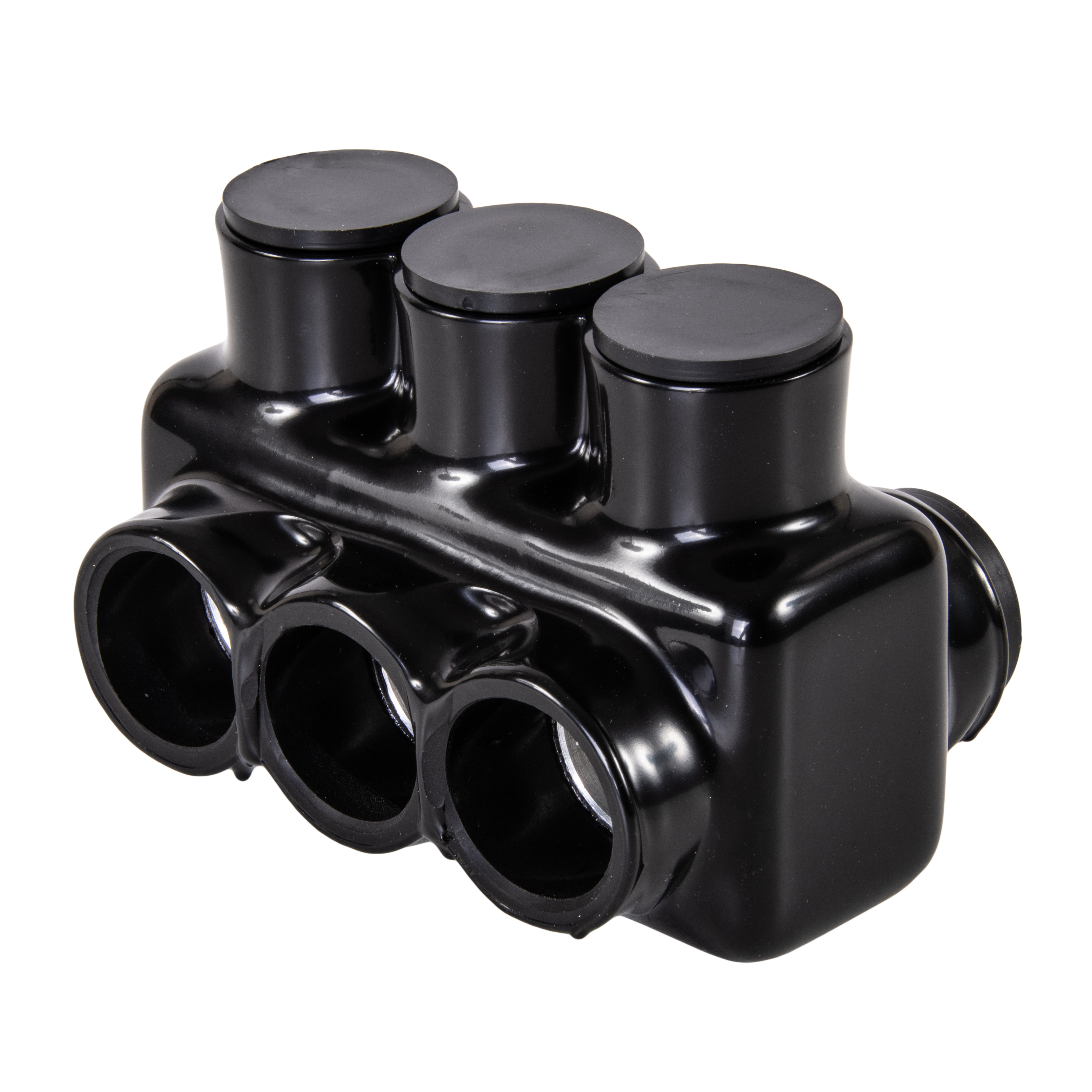

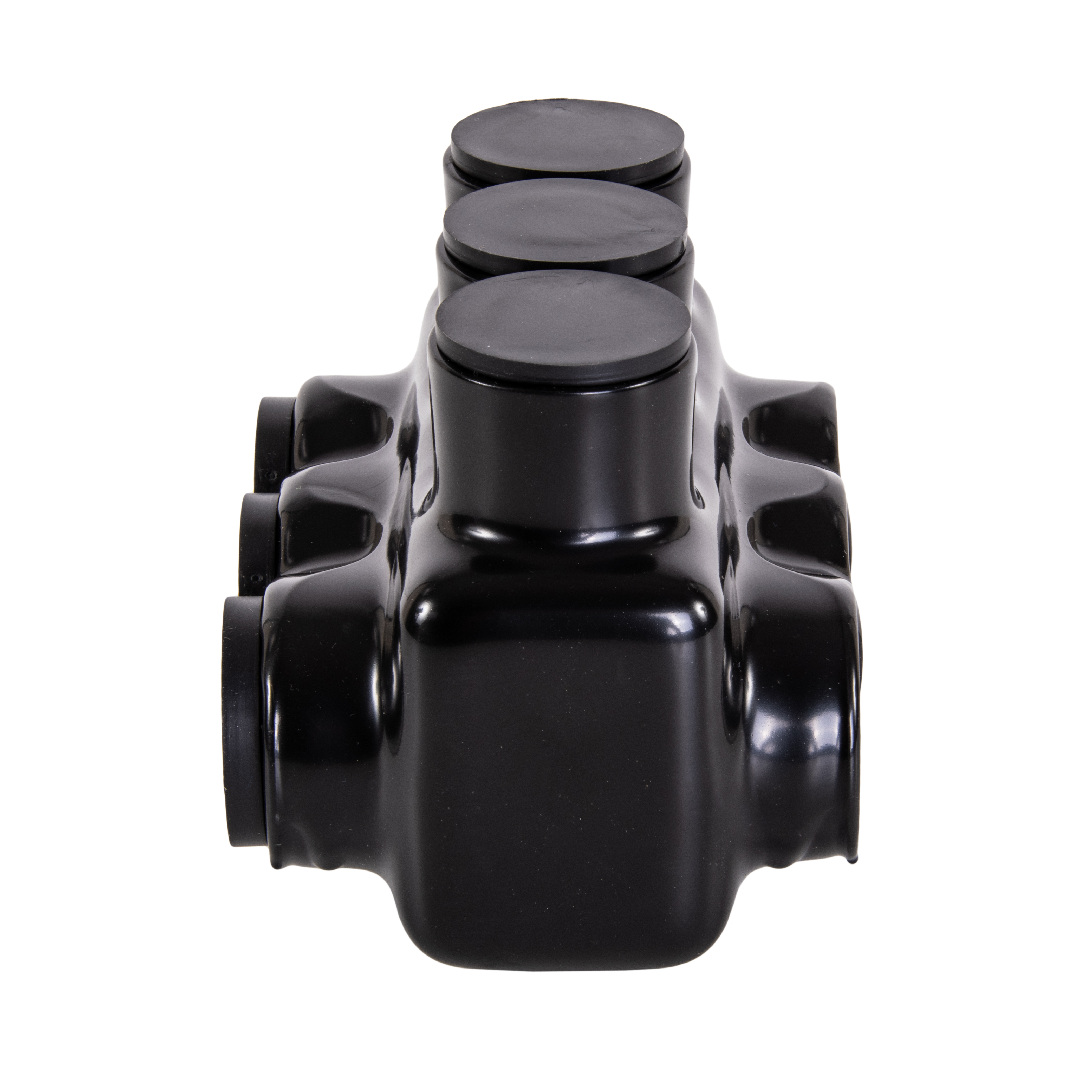

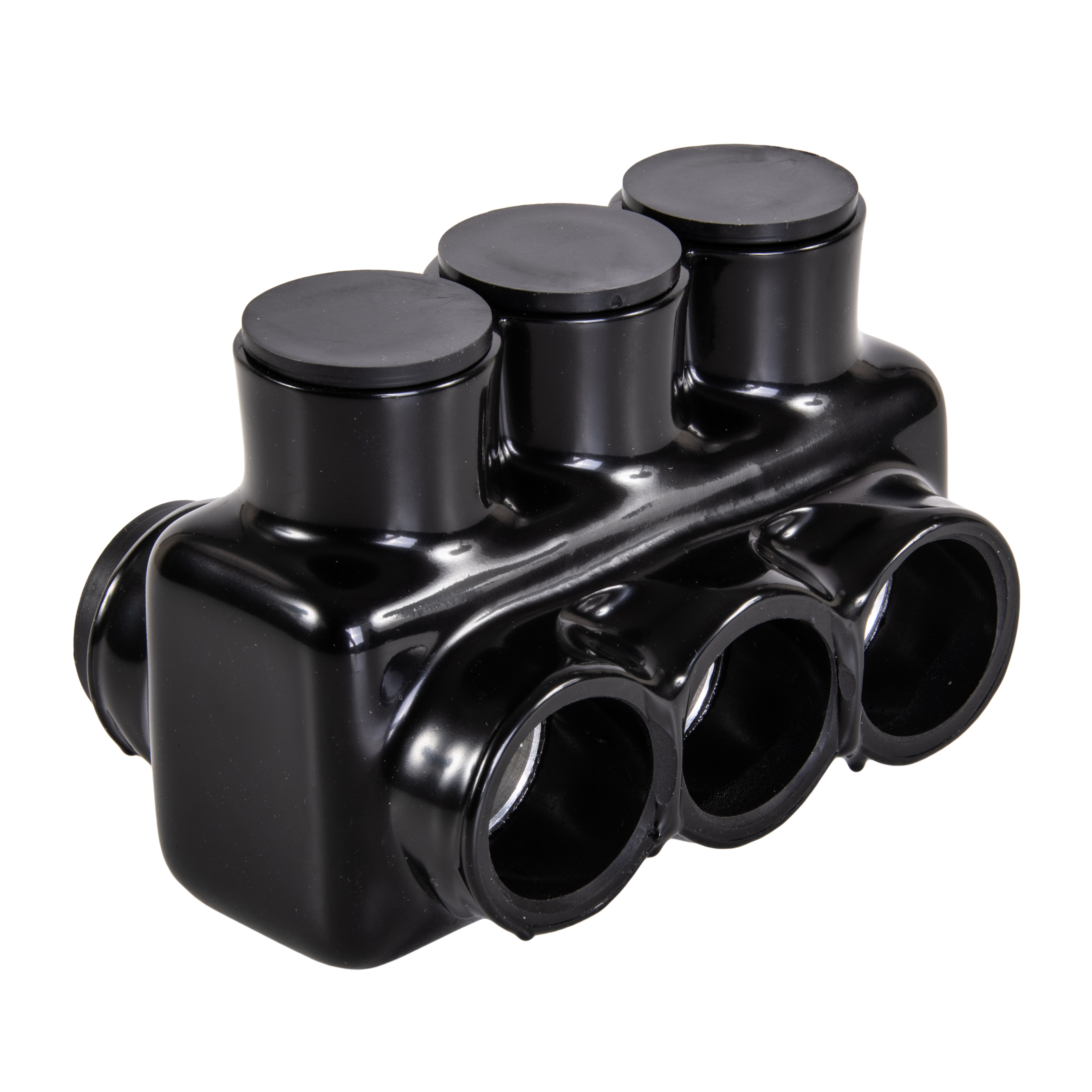

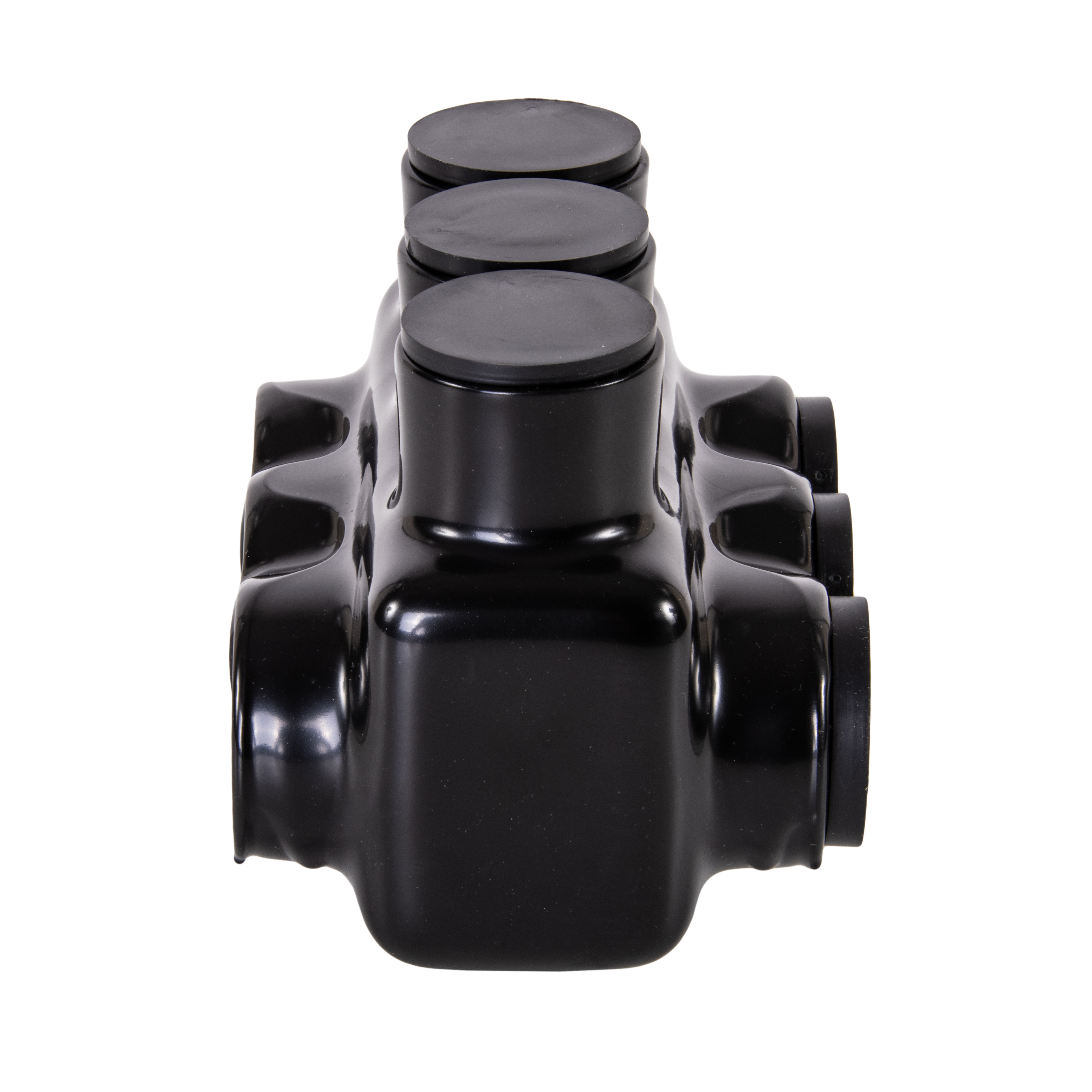

3-Port Black Multi-Tap Pre-Insulated Connector, 3/0 – 6 AWG

#IPLD3/0-3

Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

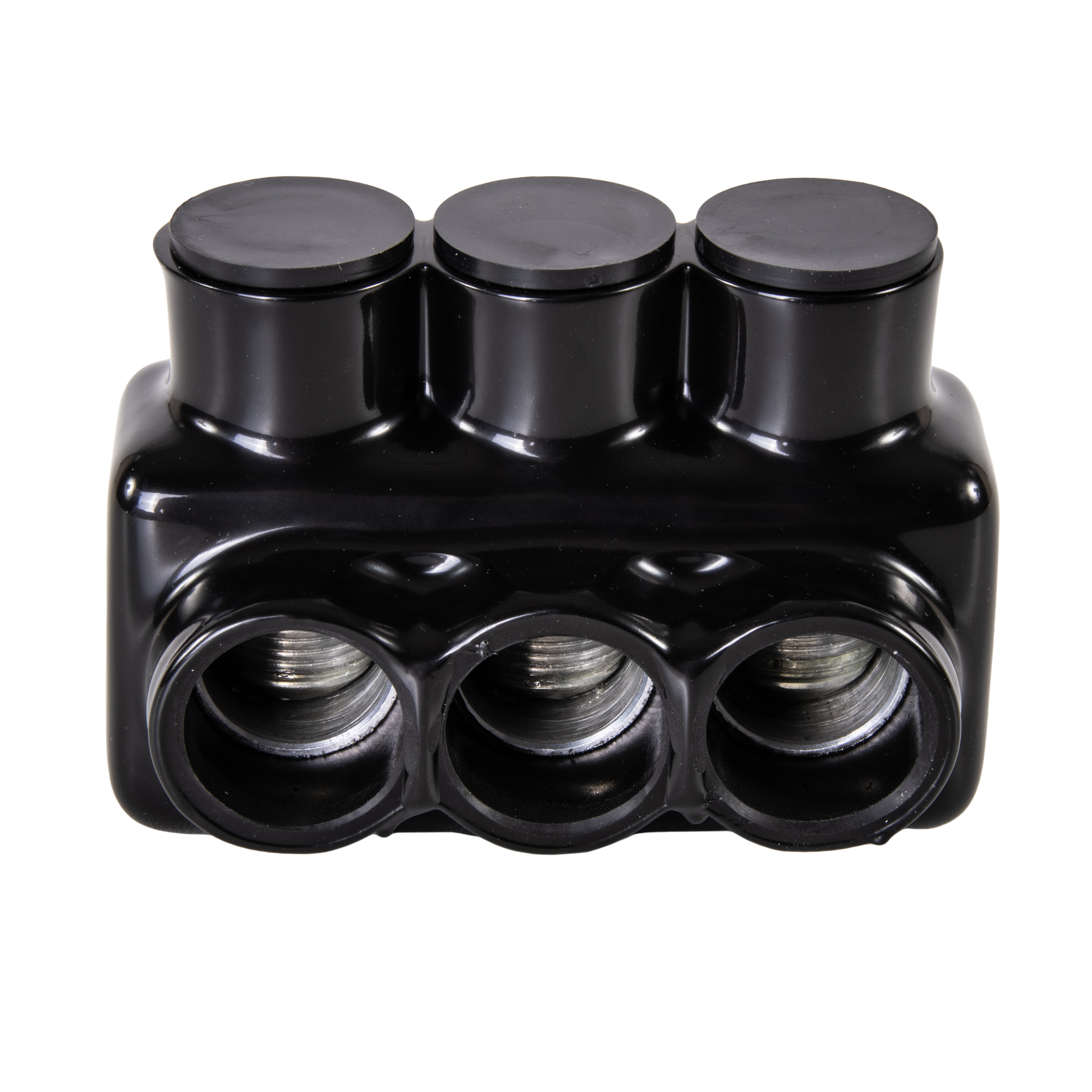

  • Dual-Sided Wire Entry: Form secure connections between 3 conductors quickly using the double-side entry ports sized for wires between 3/0 and 6 AWG. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip

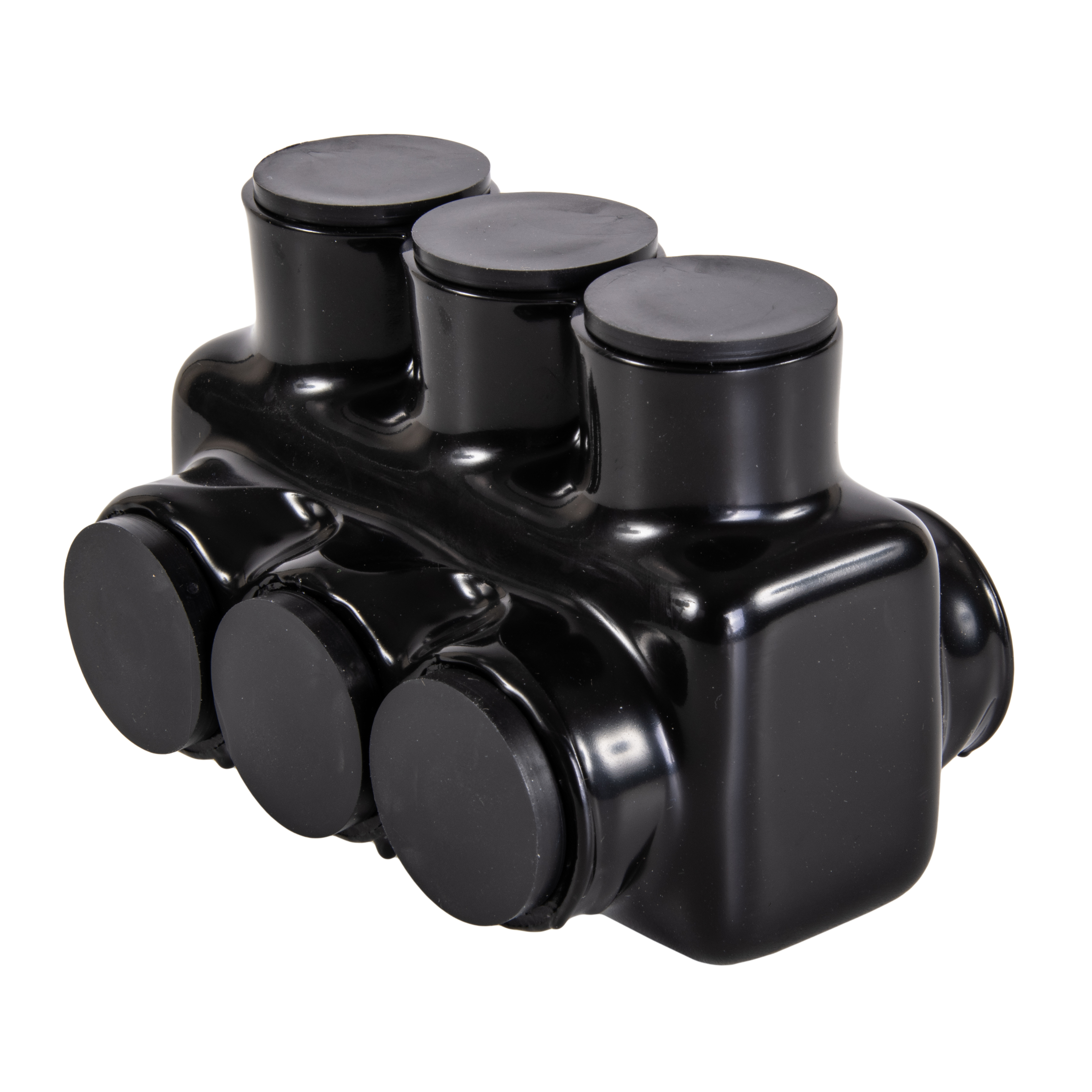

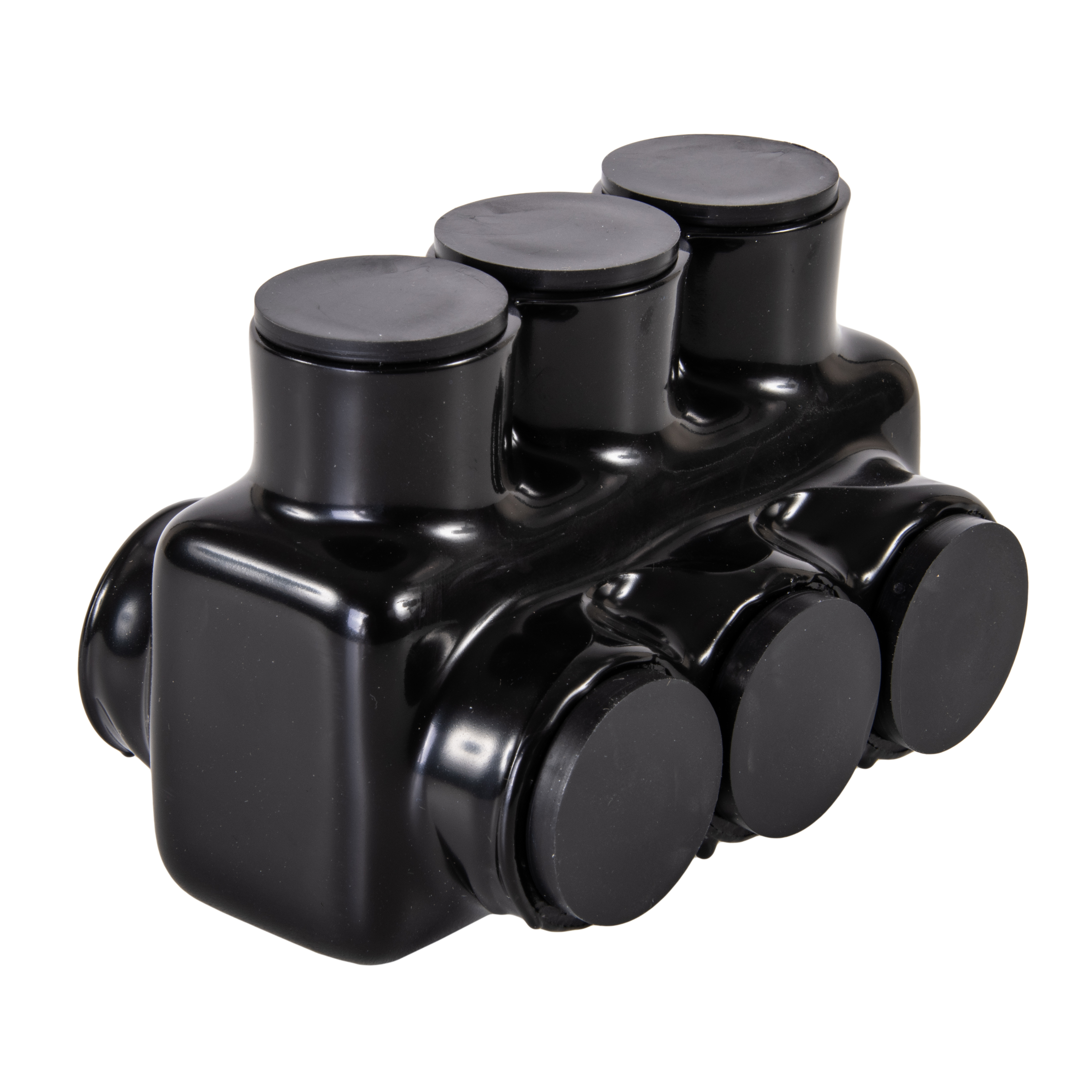

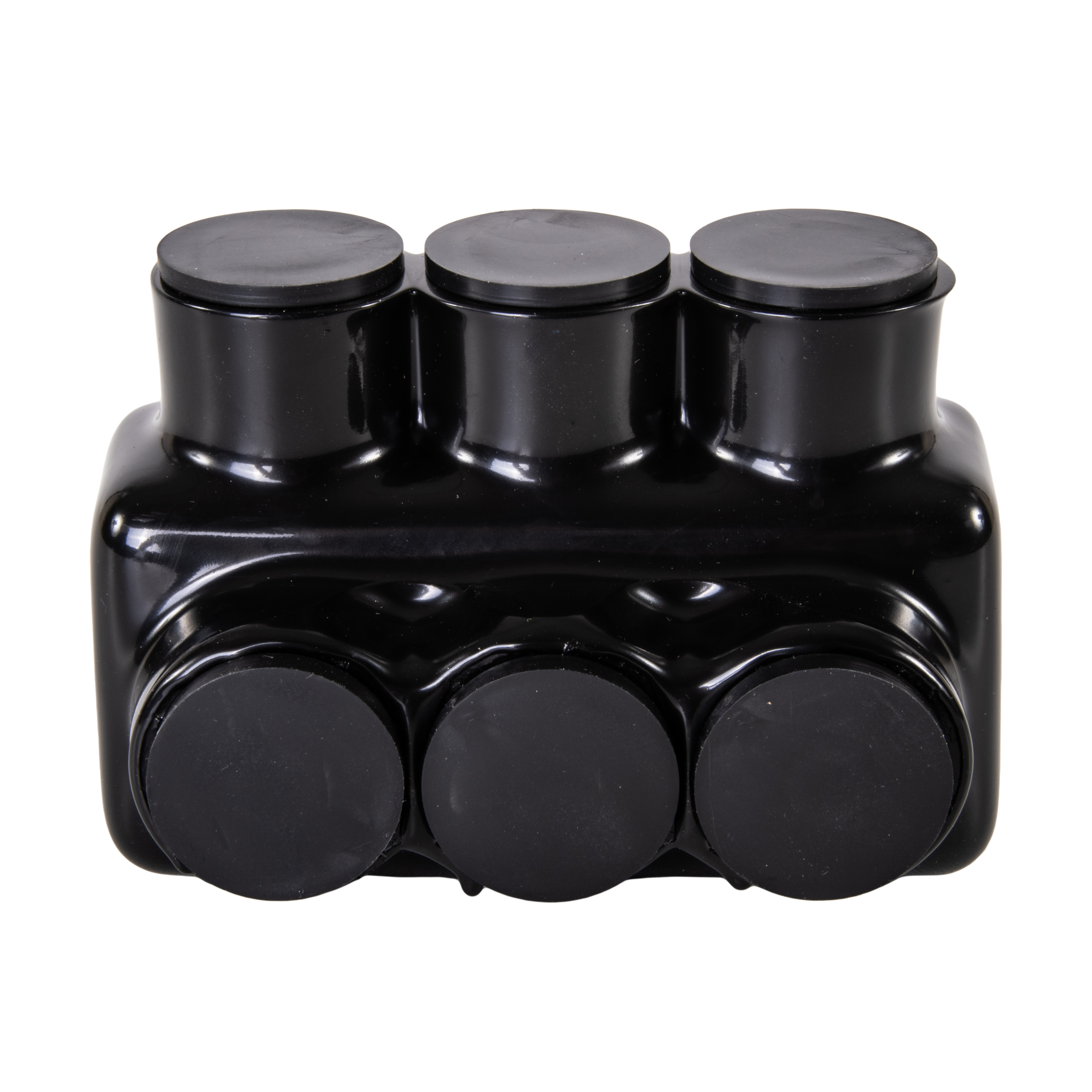

  • Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
  • Pre-filled Oxide Inhibitor: All 3 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Full Product Line: Polaris matches your application with multiple UL-listed parallel configurations across a range of gauges and number of ports

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black
GTIN 662381927019
UPC 662381927019
EAN 662381927019
UNSPSC 39121409
Origin Country US
Certifications cULus, Meets NEC 230.46 Suitable for Line Side of Service
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C
Al Conductor Max Amp 175
Cu Conductor Max Amp 225
Conductor Cu Size Range 3/0 AWG – 6 AWG
Conductor Al Size Range 3/0 AWG – 6 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 3
Hex Wrench Size 1/4
Env Temp Cold Temperature rated to -45C
Assortment Black UV Coated Pre-Insulated Connectors
Max Torque 250
