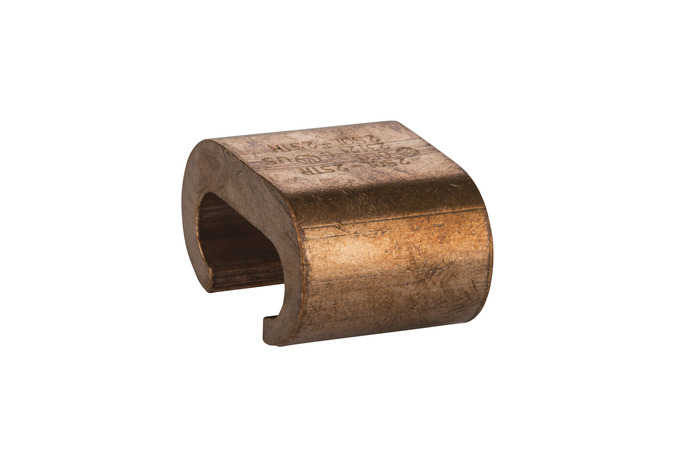

Wedge Clamp 4/0-2/0 Acsr Al
#W40-1
Wedge Clmp 4/0-2/0 Acsr Al
- For dead-ending self-supporting drop wire
- Saves conductor - drop wire may be cut to exact length
- Can be attached to bare neutral in any point in the span
- Adjustment in drop wire sag are easily made
- Grips ACSR, AAAC or aluminum conductor
Product Information
Voltage Rating | 600V |
---|---|
Material | Aluminum |
Pack Qty | 6 |
GTIN | 662381000000 |
UPC | 662381000000 |
EAN | 6.62381E+11 |
UNSPSC | 39121431 |
Origin Country | CN |
Certifications | UL Listed |
Ul Standard | UL 486A |
Conductor Al Size Range | 4/0 STR – 2/0 SOL |
Conductor Type | Aluminum, 36ee996d8cca4ee681445142cd86020b, c00b5c9a53ec47098e0bfe6809589c7f |
Assortment | Aluminum Compression Taps |
Application | Clamp |
Capacity | 1000 lb |
Resources
Documents
- POL_W Series_CMP_ProDraw_DIGITAL.pdf Download
