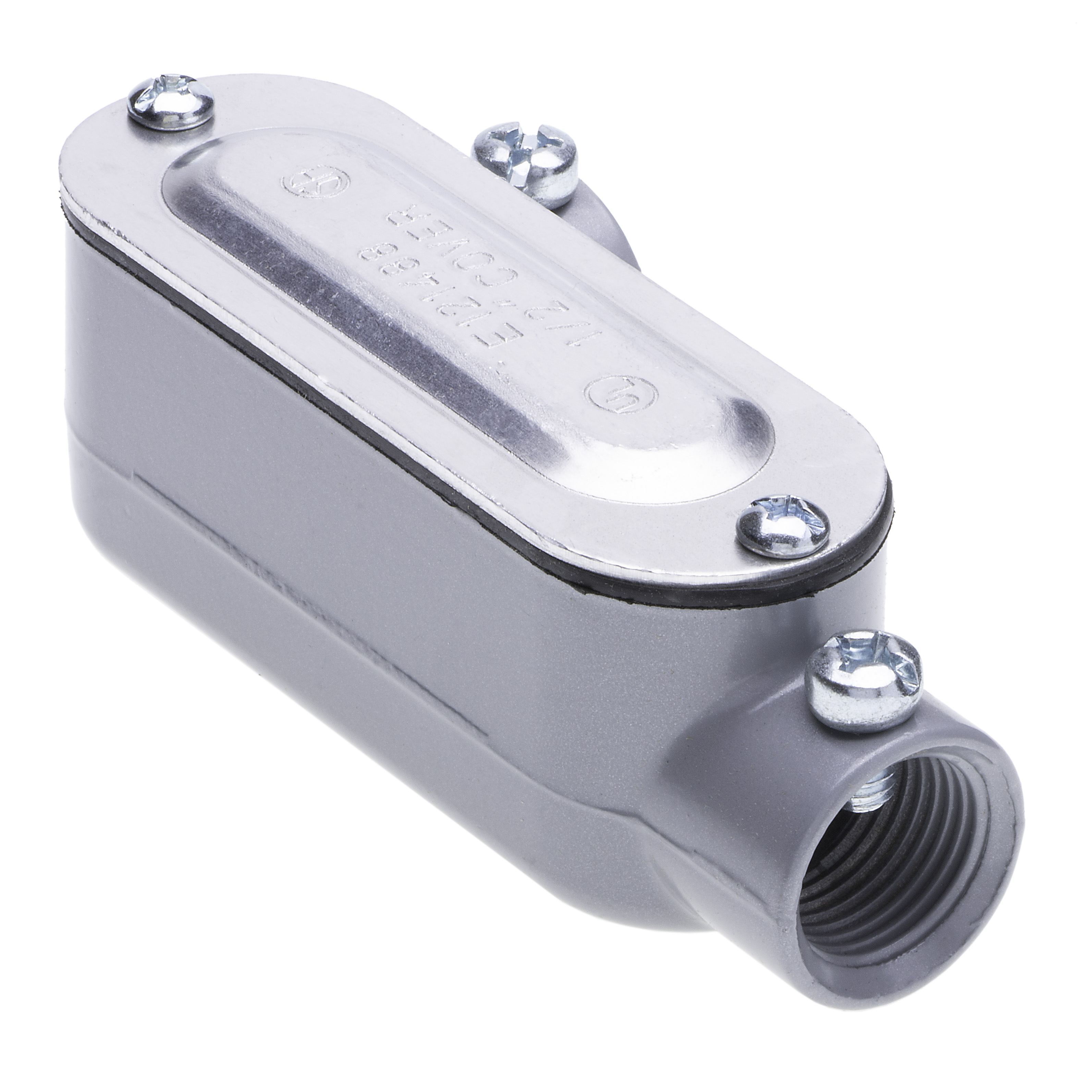

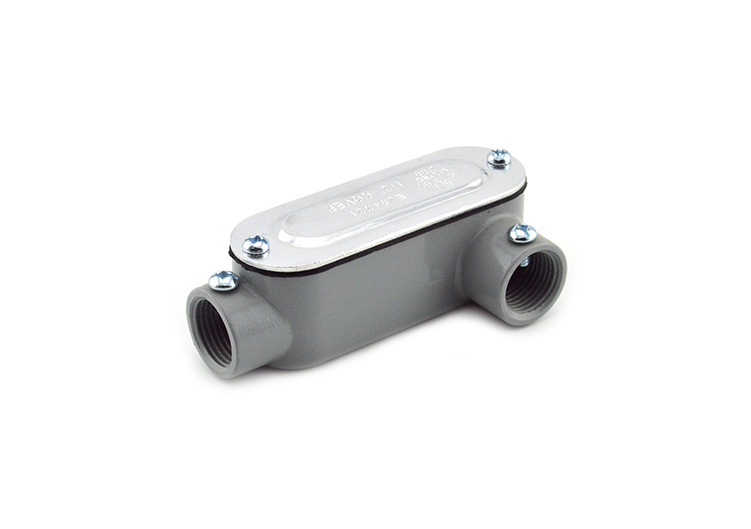

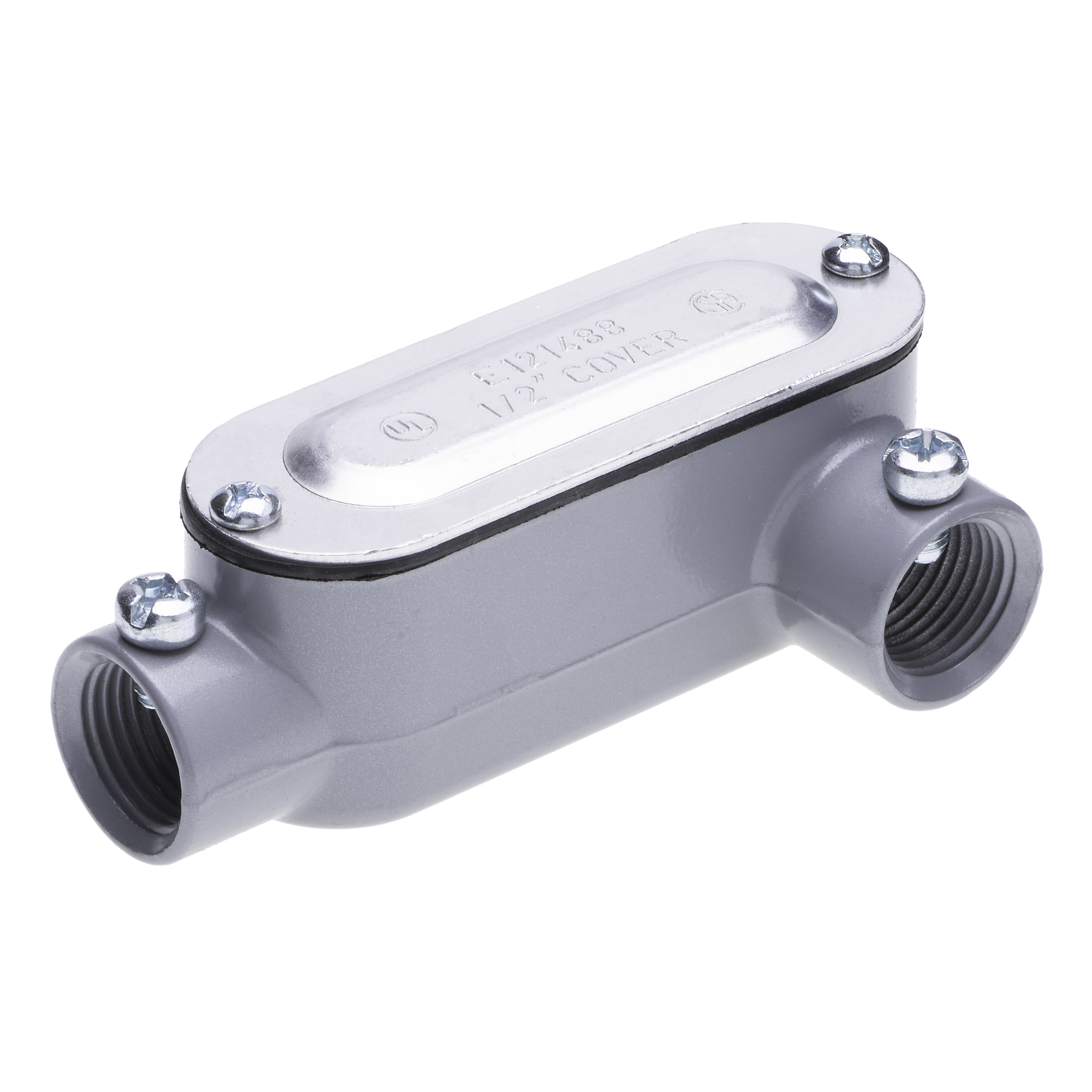

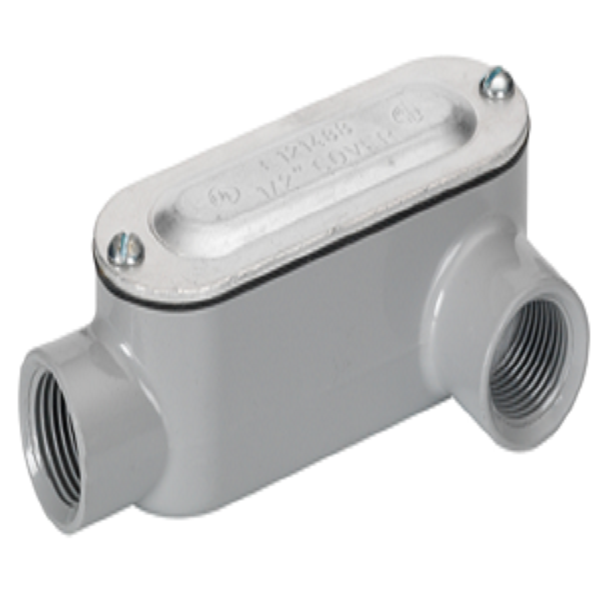

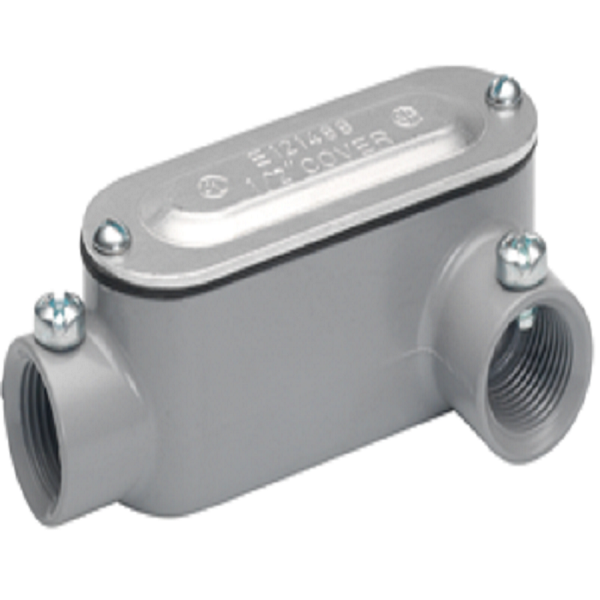

Type LL Combination Conduit Body with Cover and Gasket 1/2″

#LL-41CGC

Bridgeport type LL combination conduit bodies allow access to the interior of a conduit system for inspection, pulling and maintenance. A combined set screw and NPT threaded design allows for use with rigid conduit, IMC and EMT.

  • Greater Flexibility: The combination of set screws and NPT threads allows for rigid and intermediate metal conduit as well as electrical metallic tubing applications
  • Type LL: Type LL conduit bodies are used for a 90 degree cable pull, with the cable exiting through the left side of the body
  • Gasket and Cover: A neoprene gasket and aluminum cover protects your system from dust and water. This conduit body is also listed raintight when used with rigid conduit
  • Easy Access: Conduit bodies provide easy access to the interior of conduit systems for pulling, inspection and routine maintenance
  • Aluminum Body: Copper-free aluminum conduit bodies reduce the weight of your wiring system while also providing a reliable, cost-effective solution

Product Information

Material Aluminum
Finish Enamel paint
Color Gray
Pack Qty 60
GTIN 00781747055415
UPC 781747055415
EAN 0781747055415
UNSPSC 39131708
Origin Country IN
Certifications PROP65 https://www.p65warnings.ca.gov/
Ul Standard UL-514A
Ul File No E11077
Application Type LL Combination EMT/Rigid Conduit Body with Cover and Gasket

Resources

Documents

  • BPT_LL-41CGC_ProDraw.pdf Download
  • BPT_ALUMINUM_CTB_Prodsheet_Digital.pdf Download
