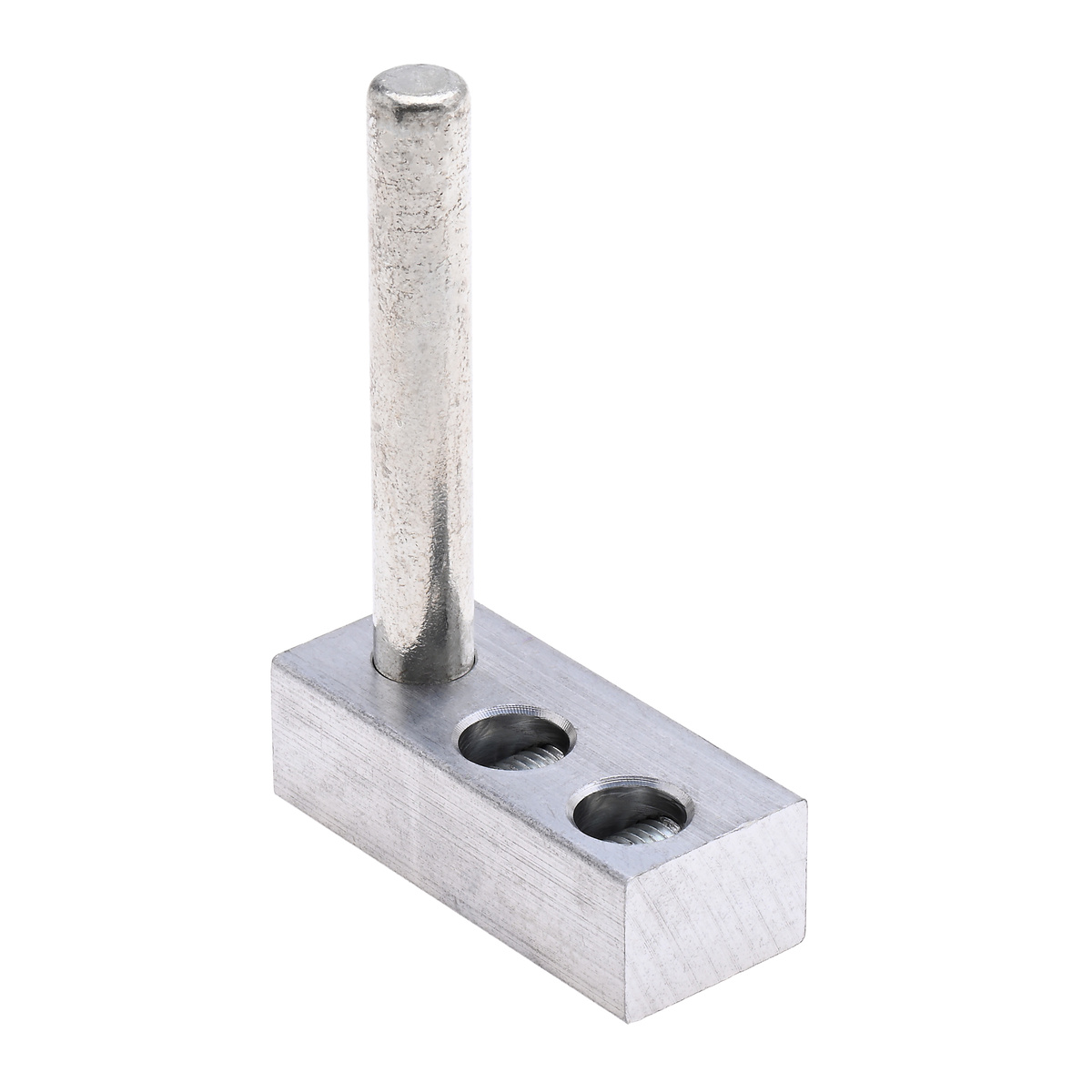

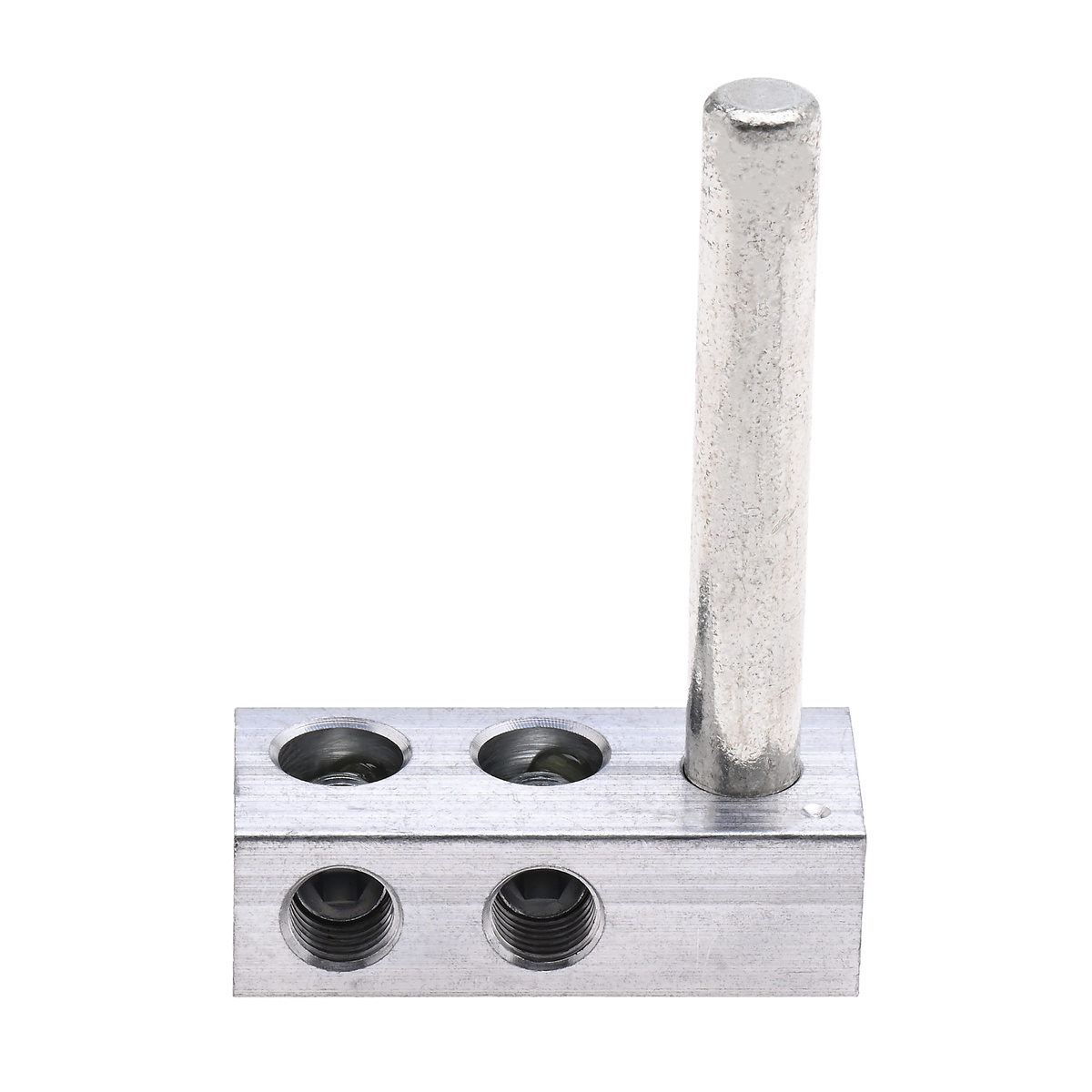

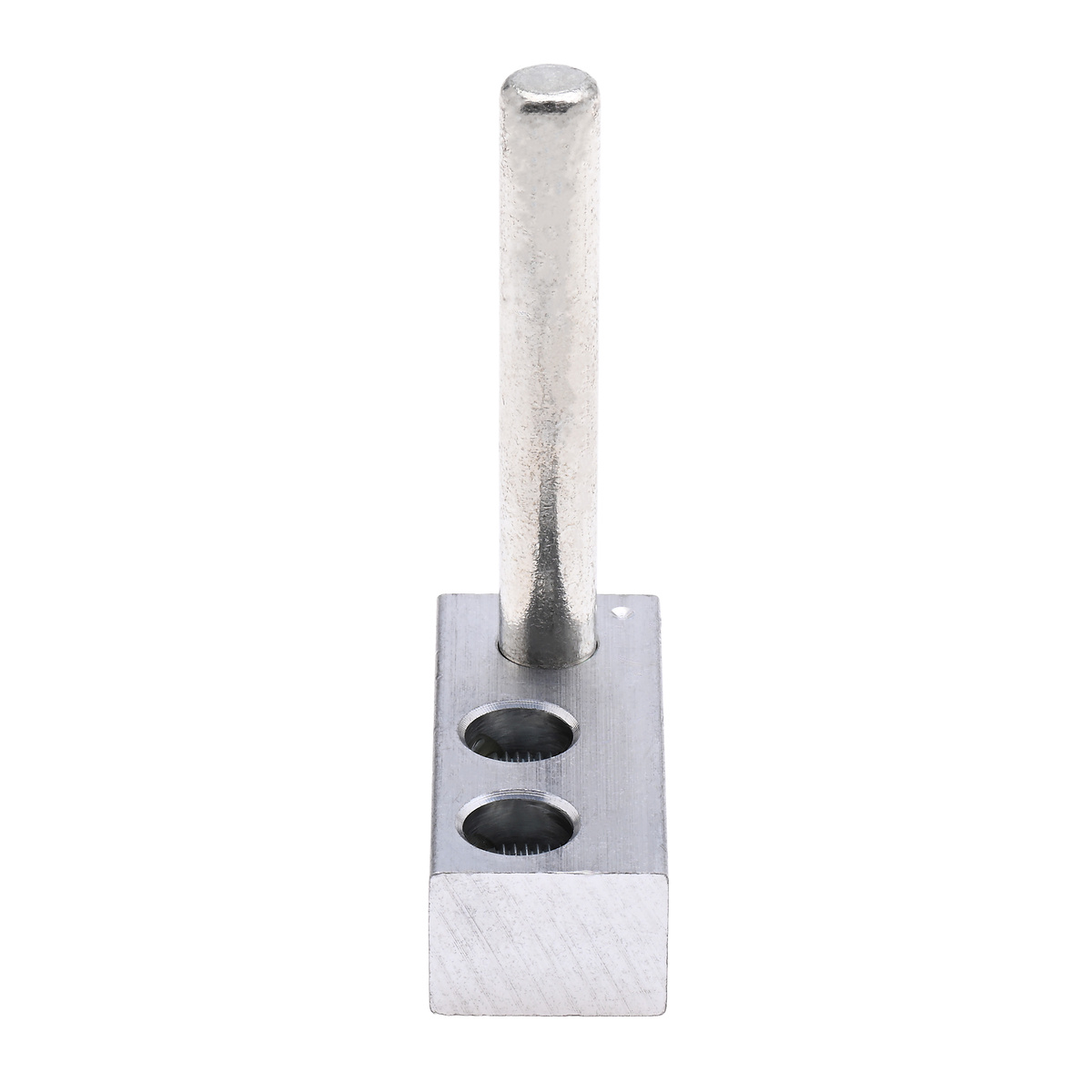

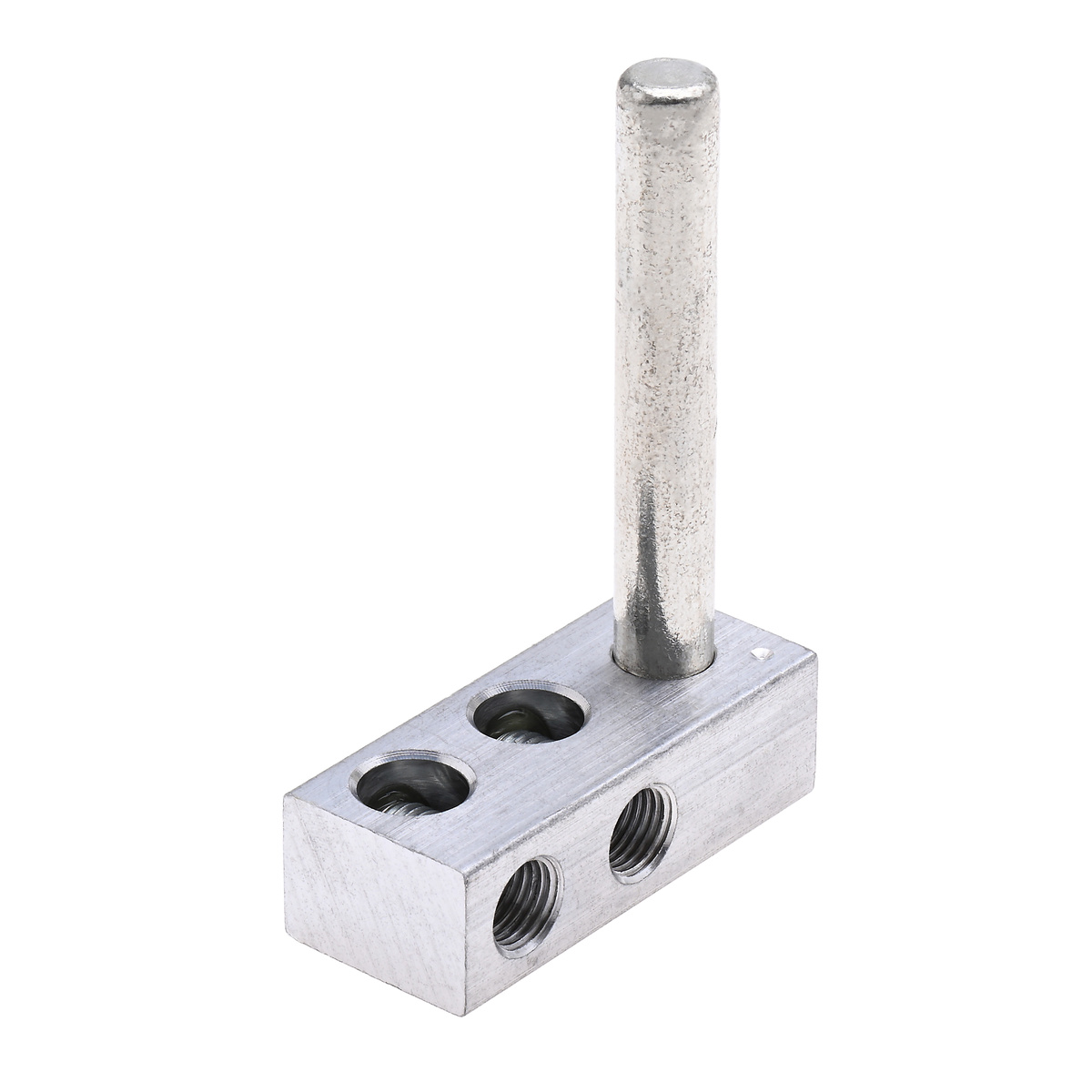

Transformer Stud Connector 1/0 2 Port
#TS1/0-2
Transformer Stud Connector 1/0 2 Port
- Versatile and reusable set-screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance
- Clear plated for low contact resistance; stud is tin plated copper which provides low contact resistance for connection to transformer
- For use with copper and aluminum conductors
- Hole configuration varies
- Professional Performance: Connector meets or exceeds ANSI C119.4 Class A, has a temperature rating of 90 °C and a maximum voltage of 600V
Product Information
| Voltage Rating | 600 V |
|---|---|
| Material | 6061T-6 Aluminum Alloy |
| Finish | Plated |
| Pack Qty | 1 |
| GTIN | 662381023544 |
| UPC | 662381023544 |
| EAN | 662381023544 |
| UNSPSC | 39121408 |
| Origin Country | US |
| Certifications | ANSI |
| Ansi | ANSI C119.4 Class A |
| Conductor Type | Copper, Aluminum |
| Conductors Count | 2 |
| Hex Wrench Size | 5/16 |
| Wire Range | 1/0 AWG – 4 AWG |
| Assortment | Aluminum Mechanical Splices & Taps |
Resources
Documents
- POL_TS_MCH_ProDraw_DIGITAL.PDF Download
