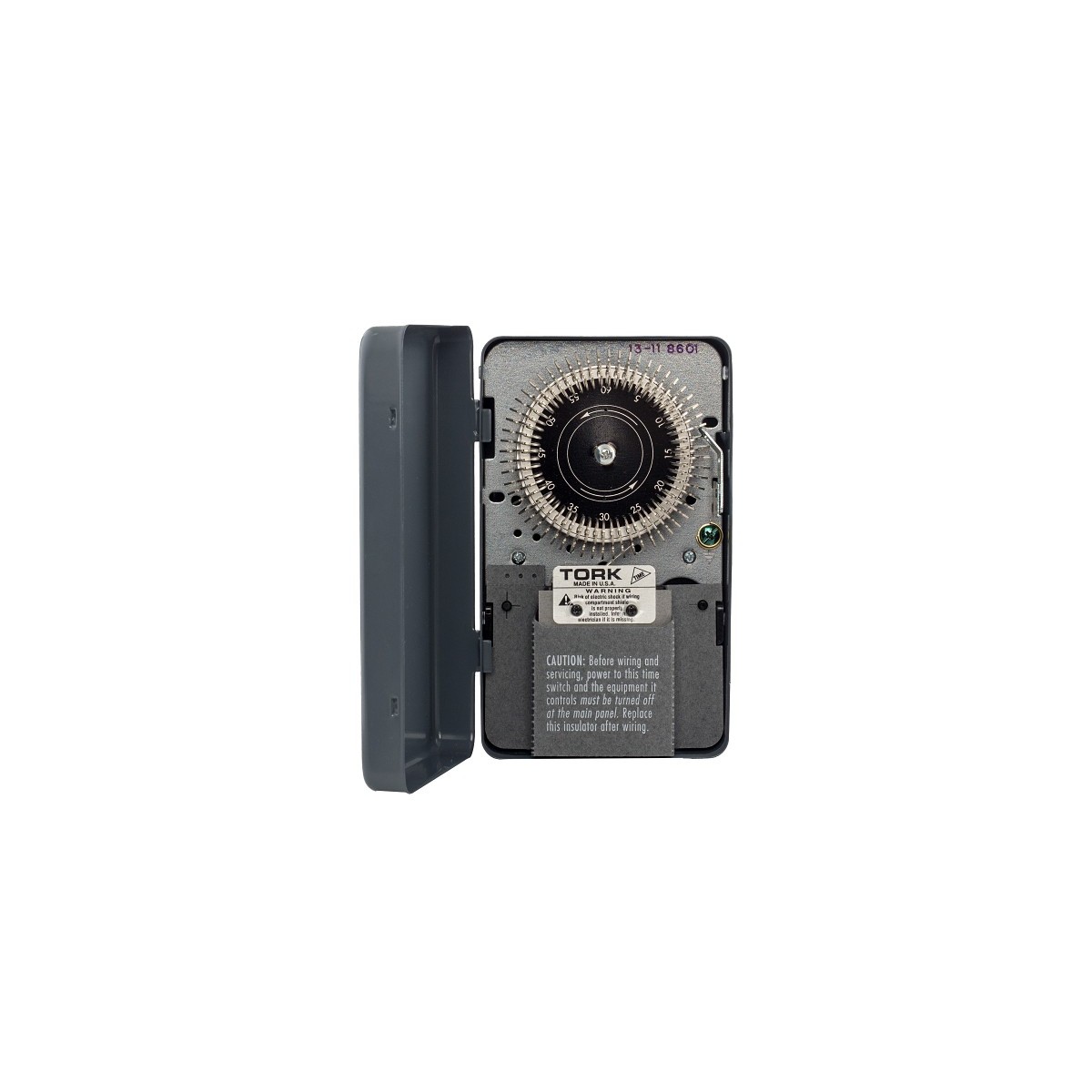

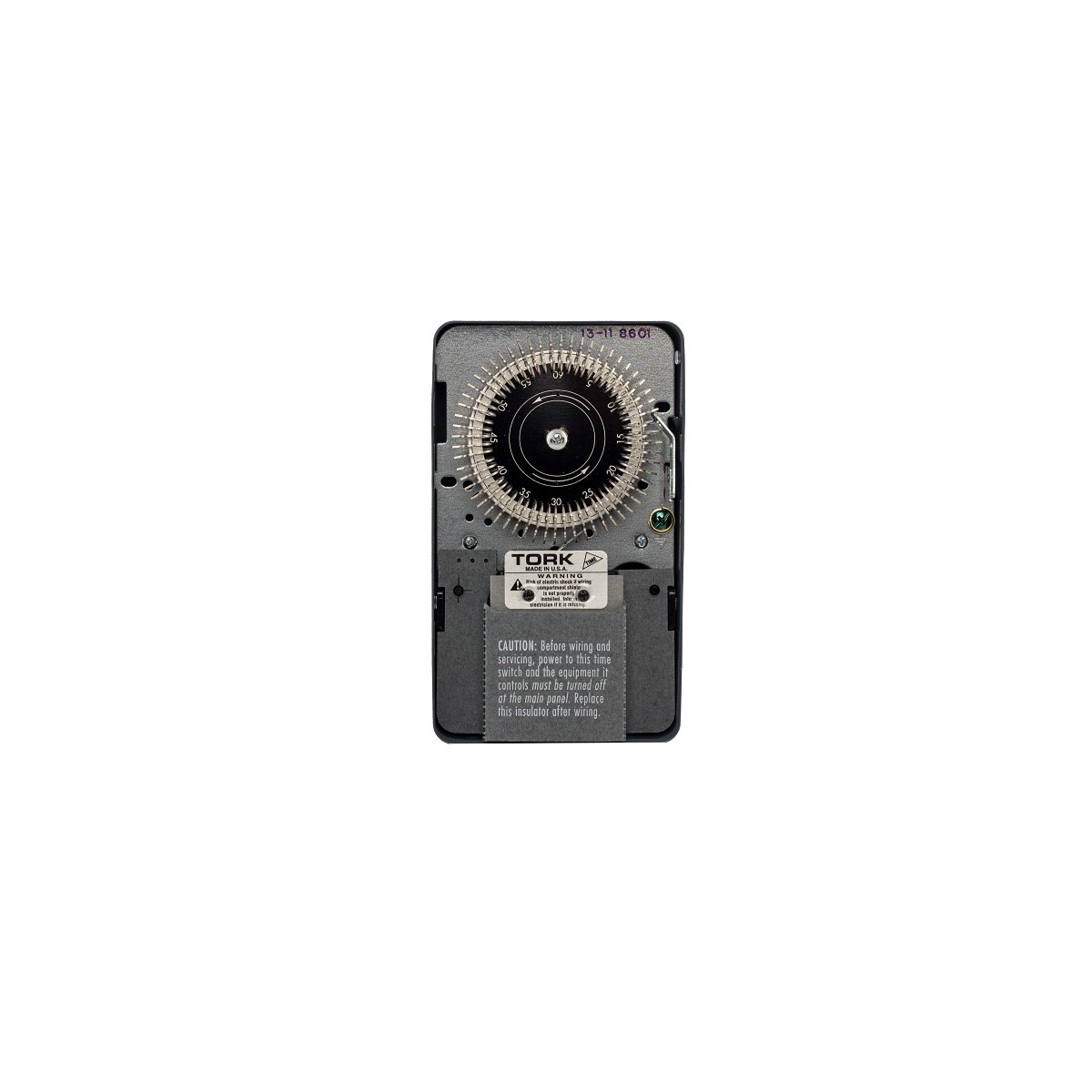

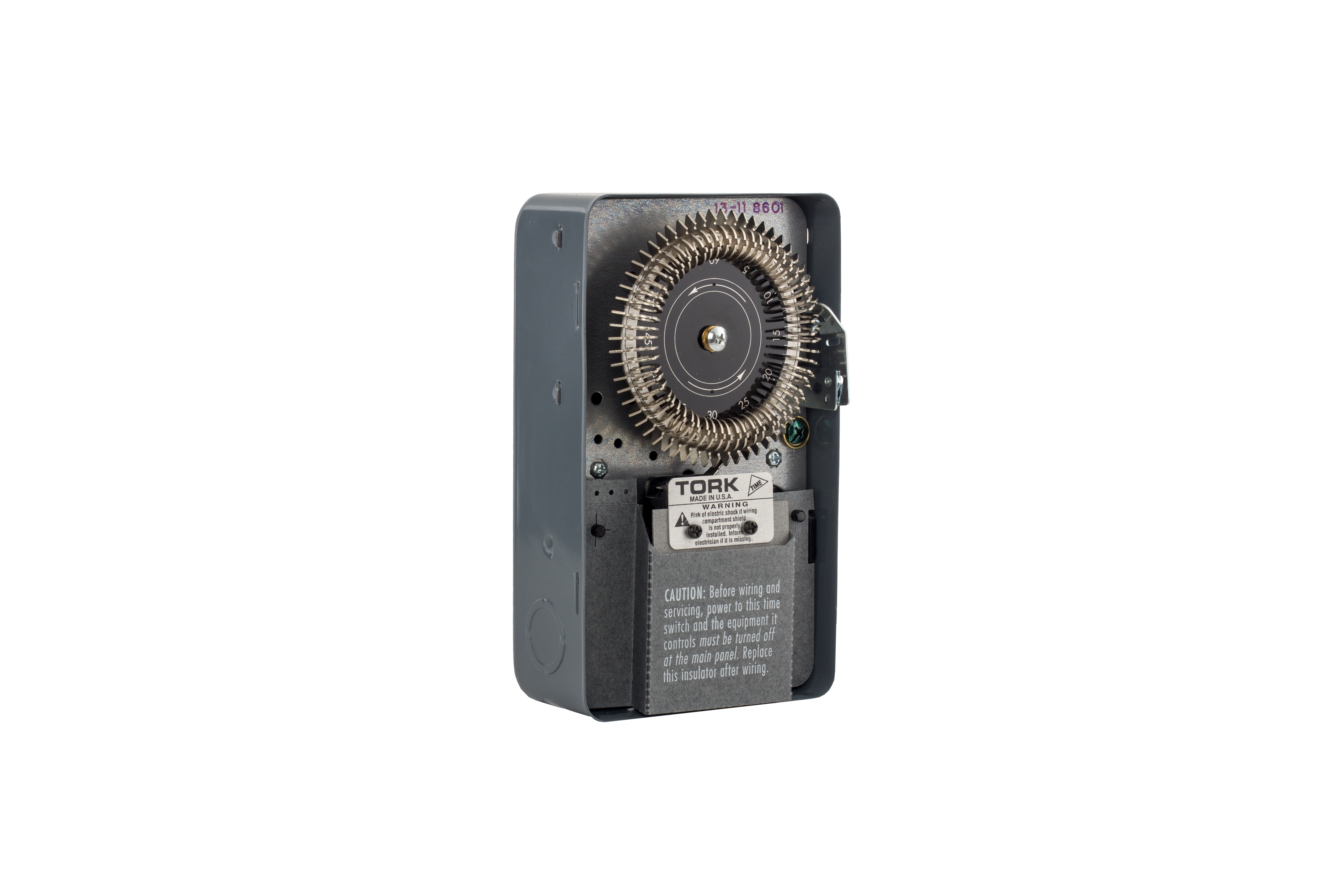

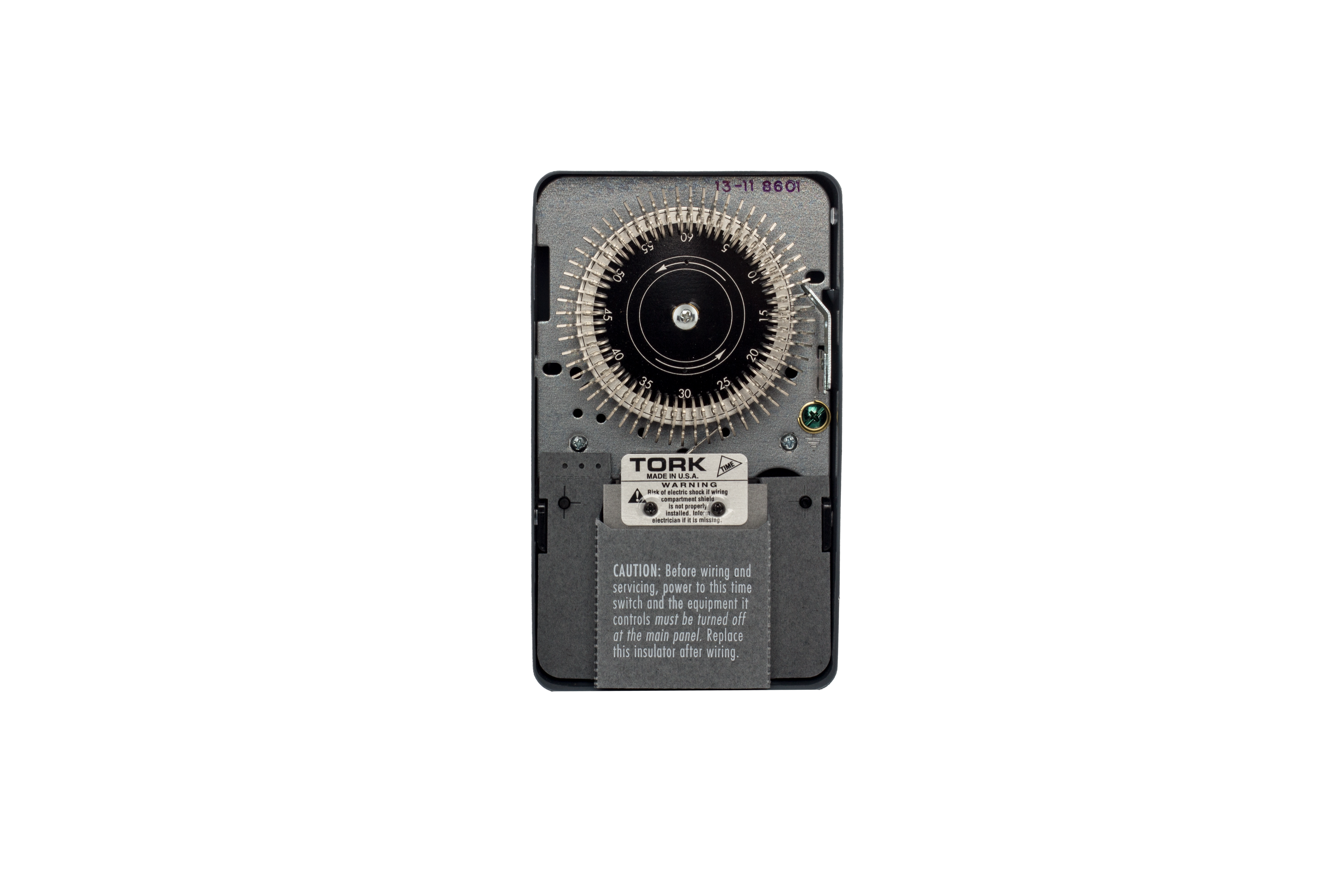

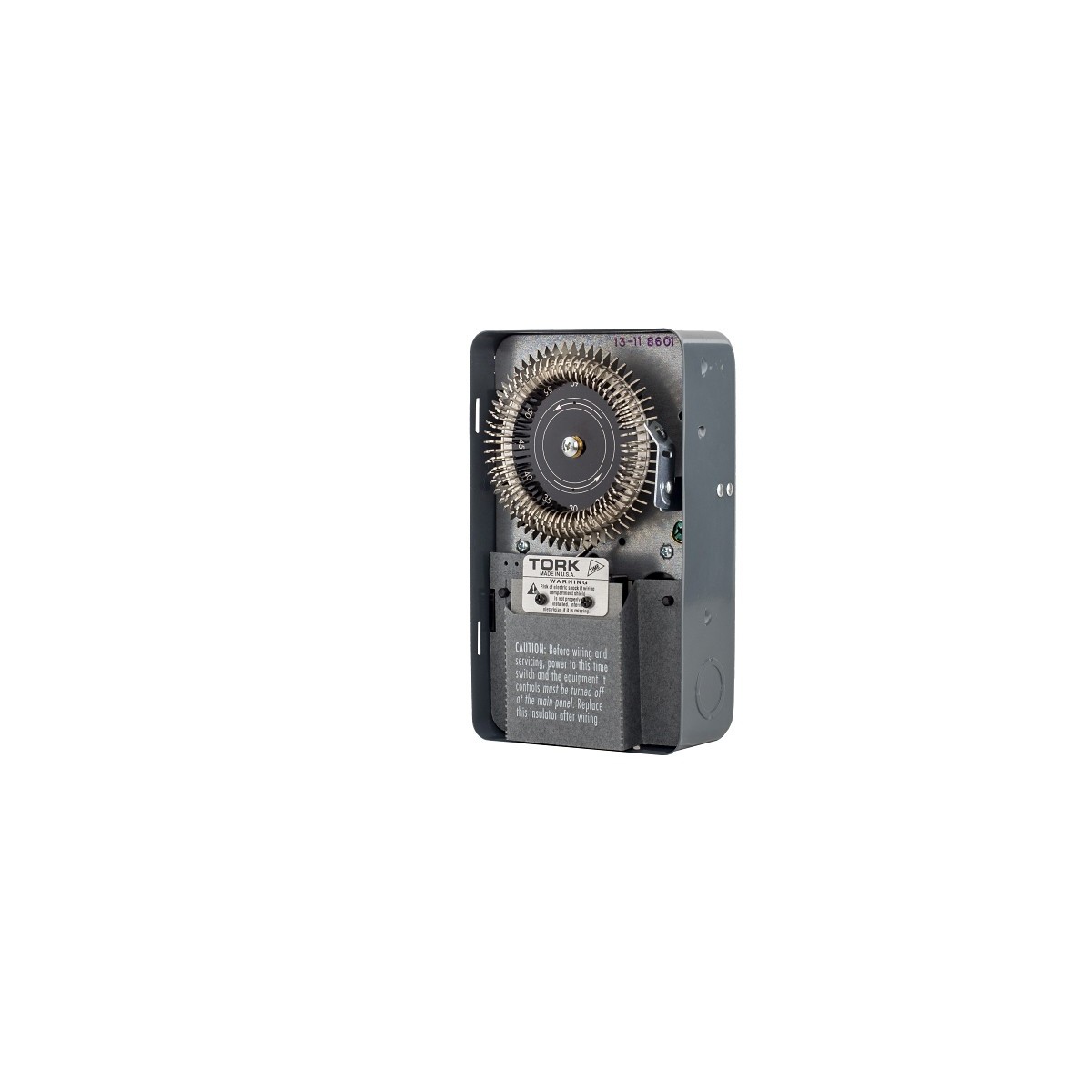

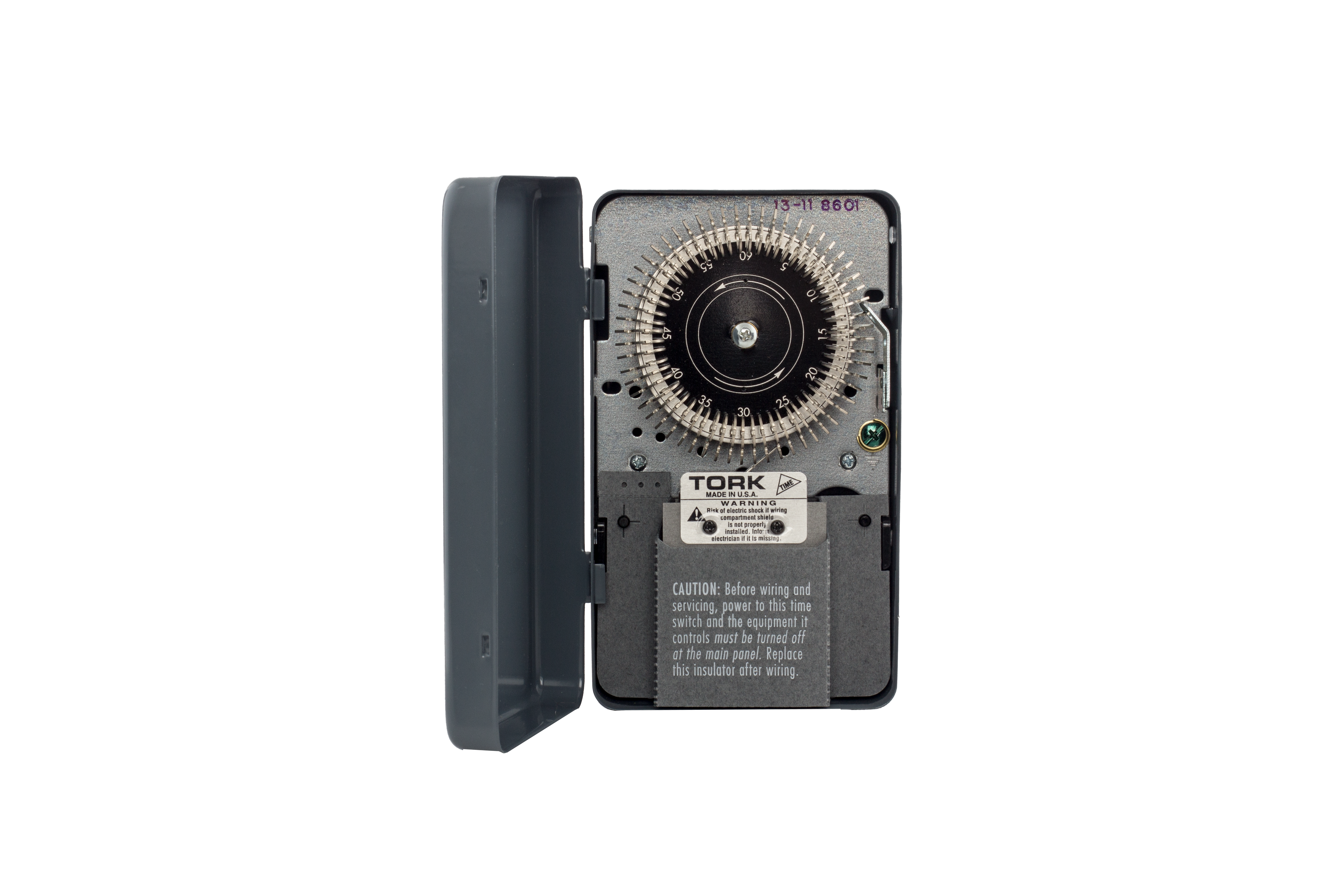

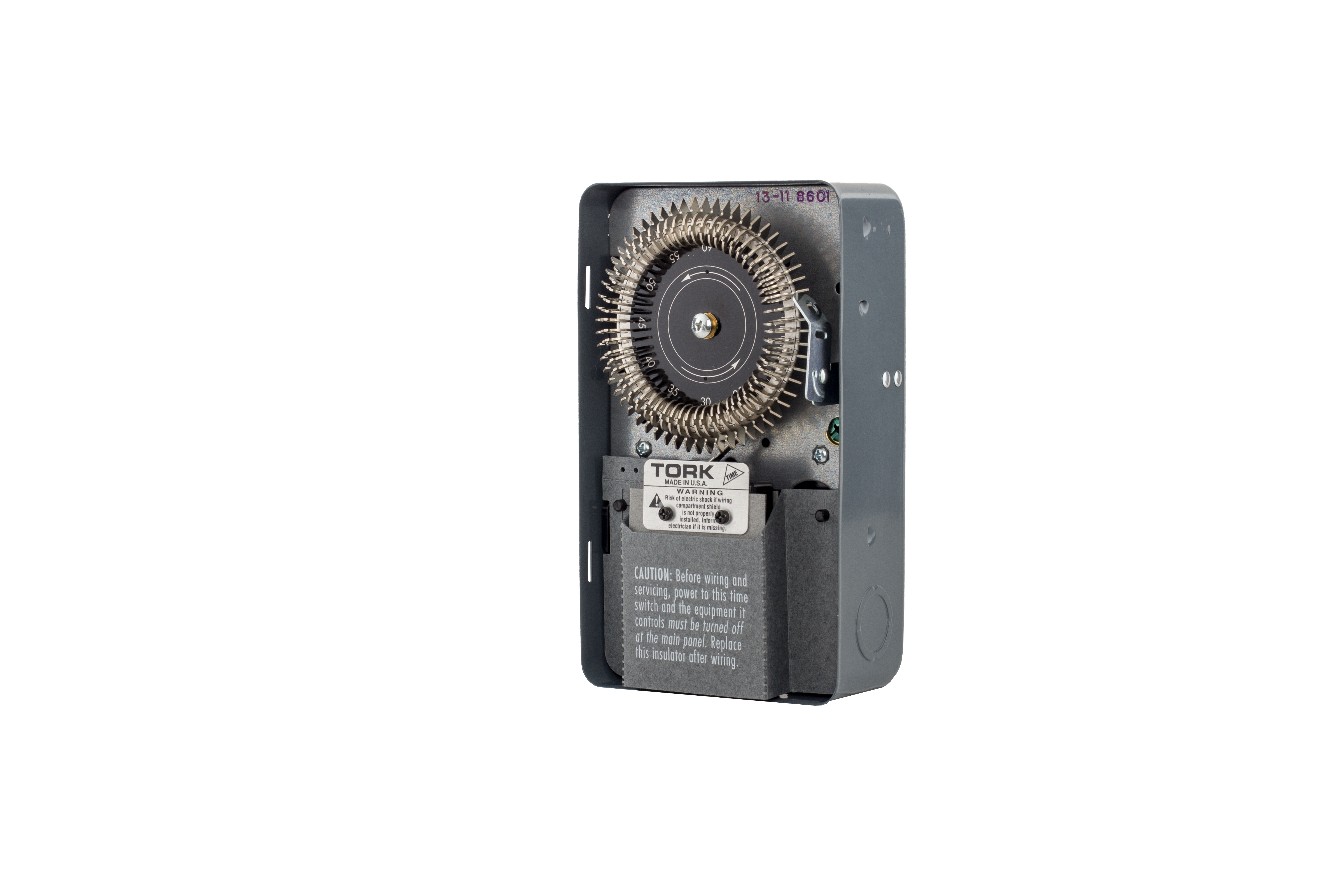

TORK 8601 60-Minute Repeating Timer 20A 120V, SPDT, Indoor, Metal, NEMA 1

Mechanical Time Switches

#8601

Use TORK’s 60-minute repeating timer to set anywhere from 1 to 30 ON/OFF operations per hour for automating duty cycles, ventilation fans, pumps, irrigation systems, process controls, laboratory experiments and more.

• Easy to Program: To set ON/OFF operations, simply tilt the dial’s captive tabs outward for the OFF position, or in toward the center of the dial when you want the power to be ON
• 60-Minute Dial: The TORK 8601 features 60 captive tabs, permitting 1-minute switching changes for anywhere from 1 to 30 ON/OFF operations within an hour
• Duty Cycling: 1 minute minimum ON/OFF settings allow for flexible duty cycling that is adjustable and can be set to 2, 3, 4, 5, 10, 12, 15, 20, 30 or 60 minute cycles
• Industrial Applications: Use 60-minute time switches to conveniently control ventilation fans, water pumps, irrigation systems, process controls, laboratory experiments and more
• Professional Performance: The TORK 8601 is cULus-listed for an input of 20 Amps at 120 Volts, comes with SPDT output contacts and has a terminal range of #8 to #14 AWG
