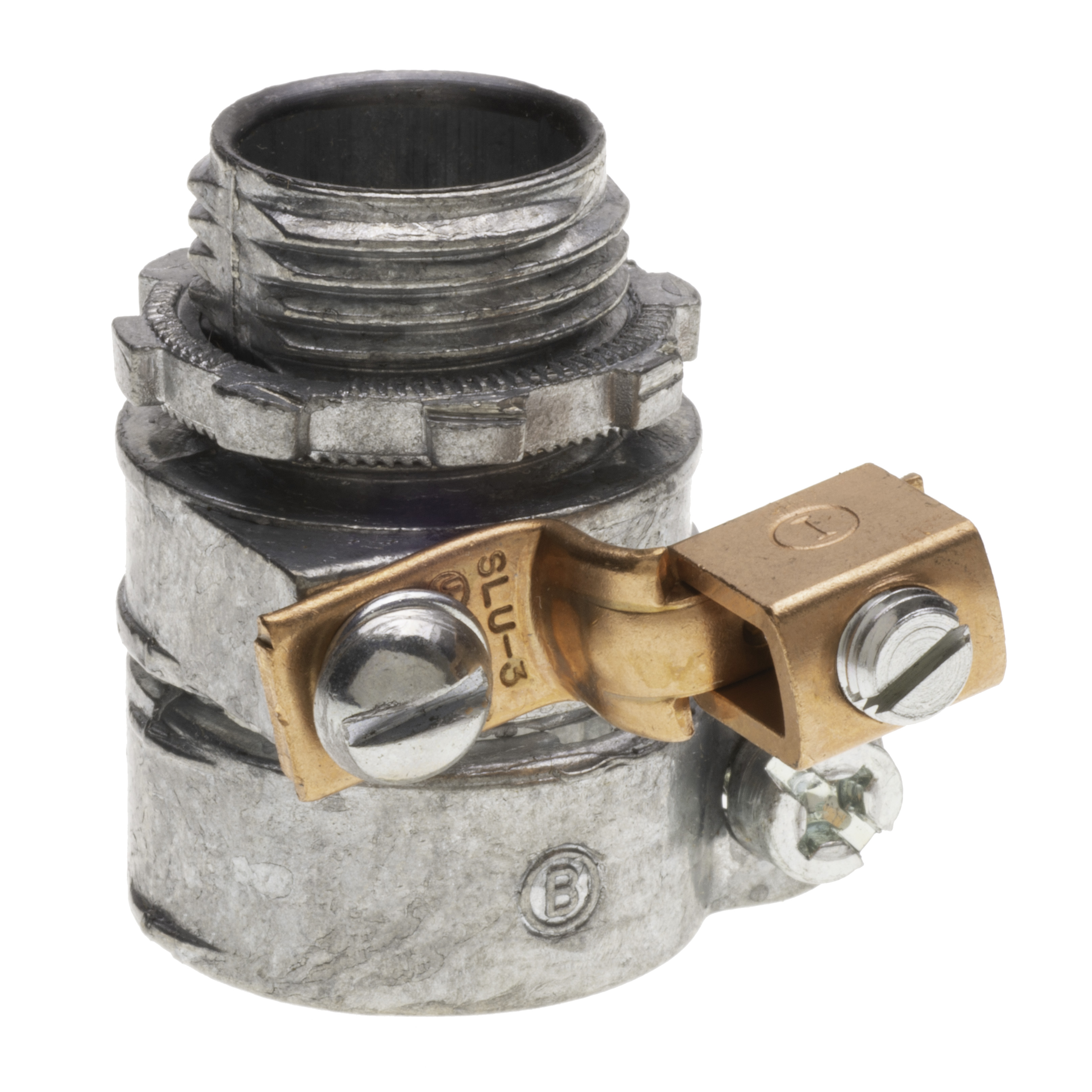

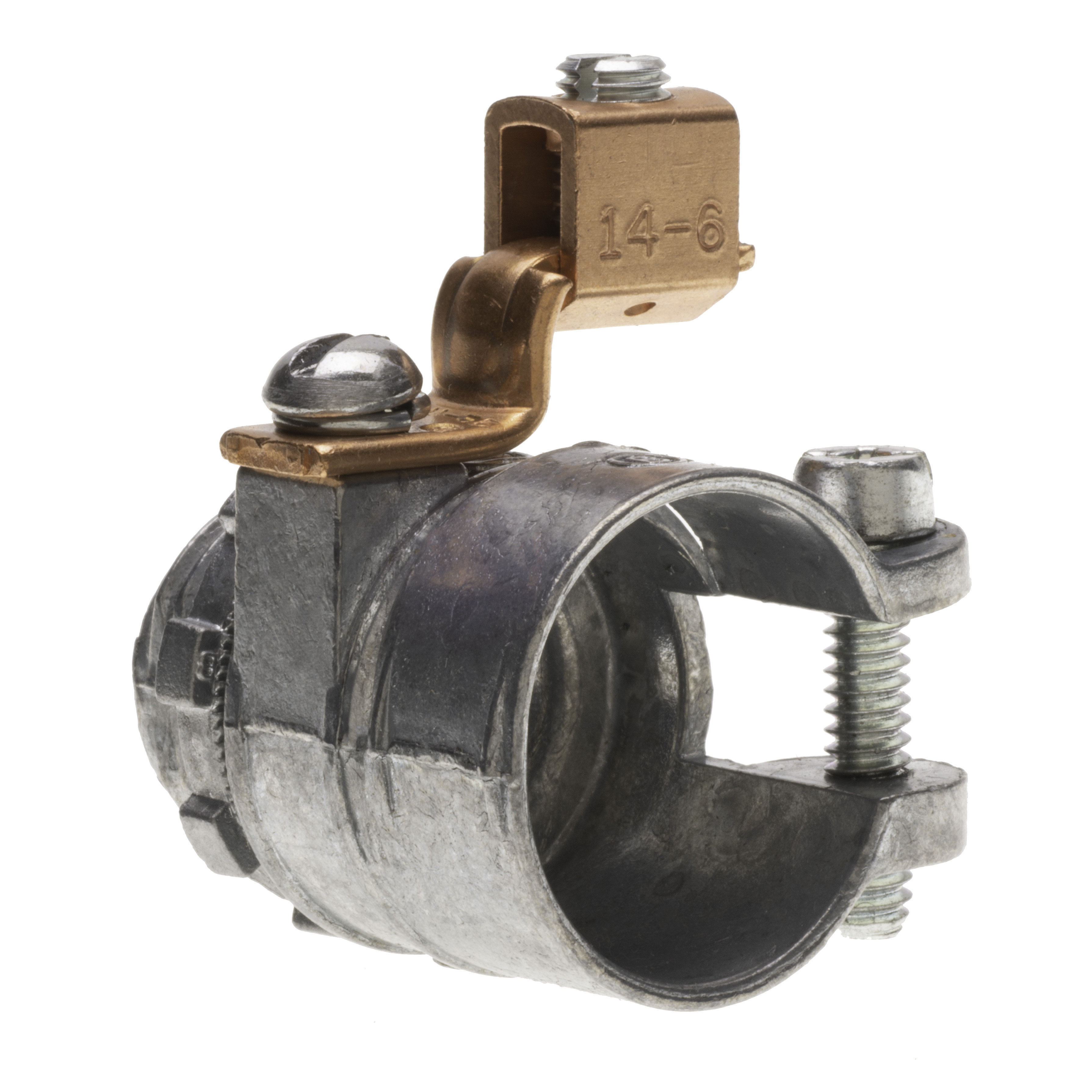

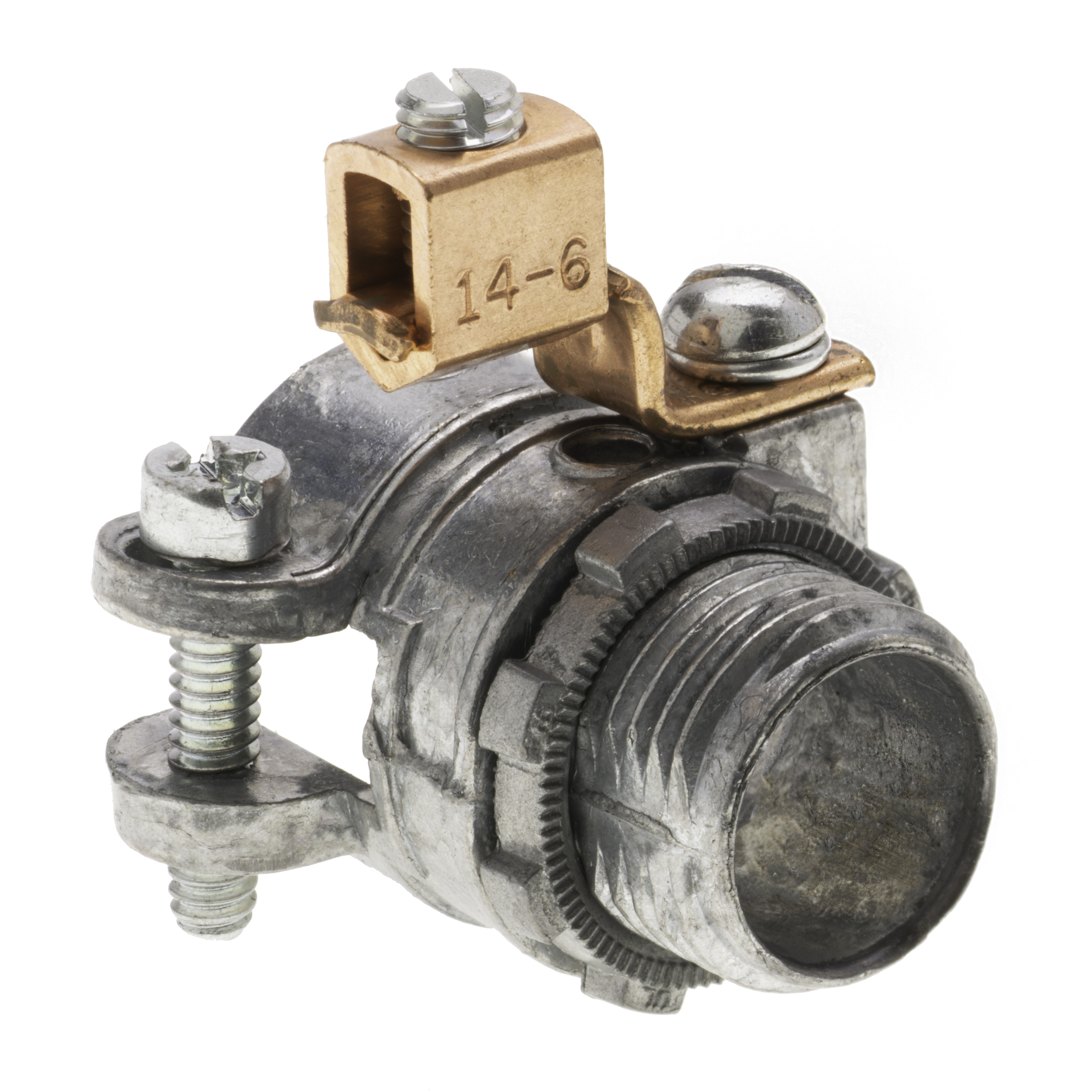

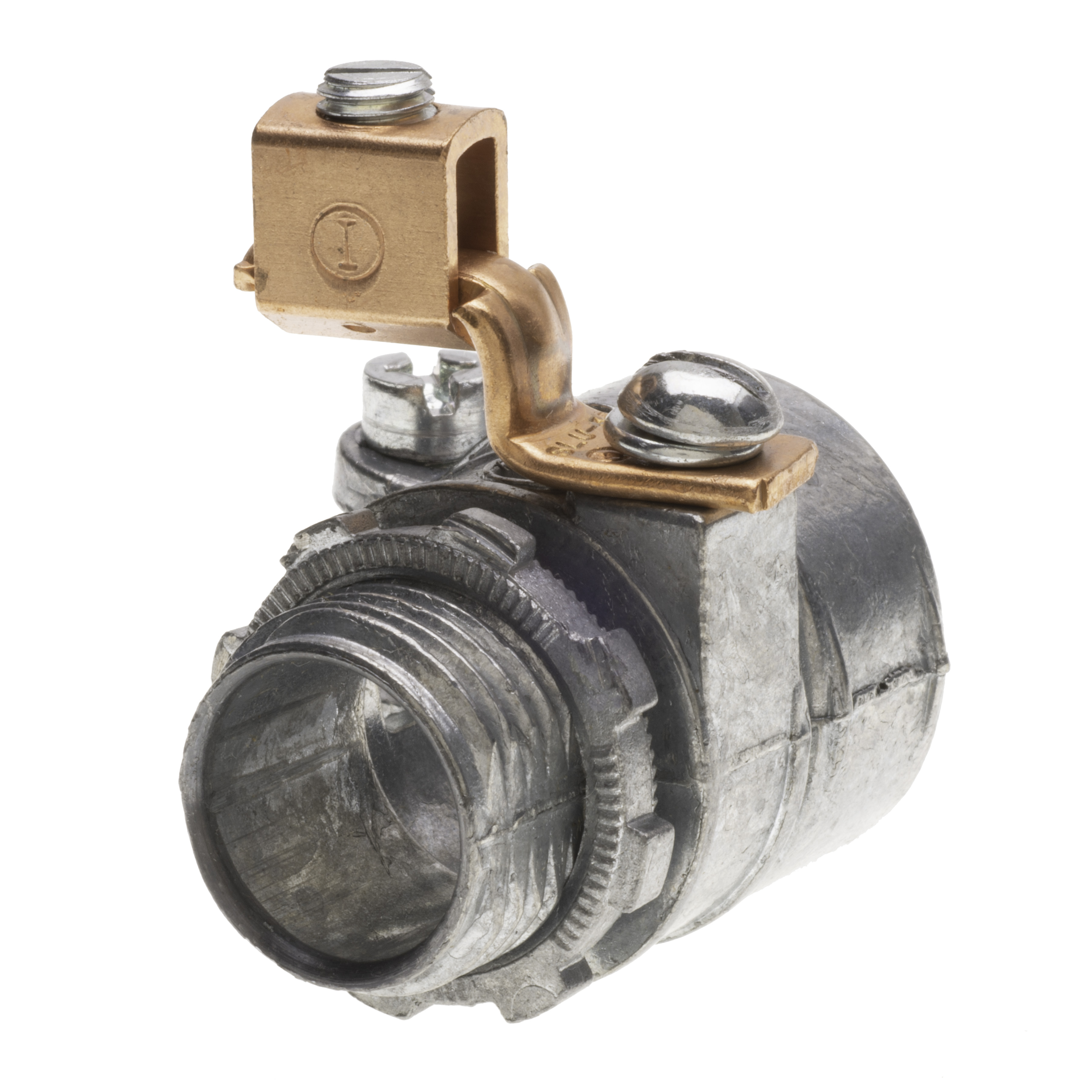

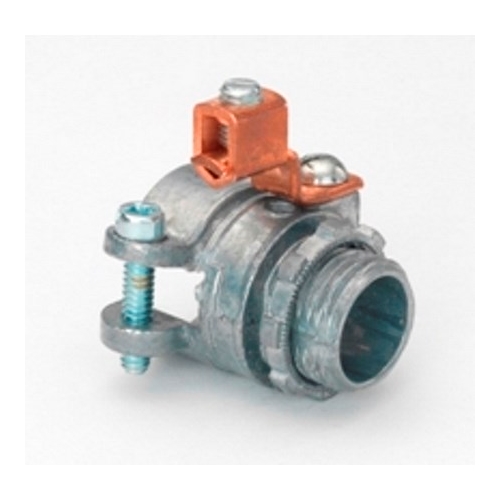

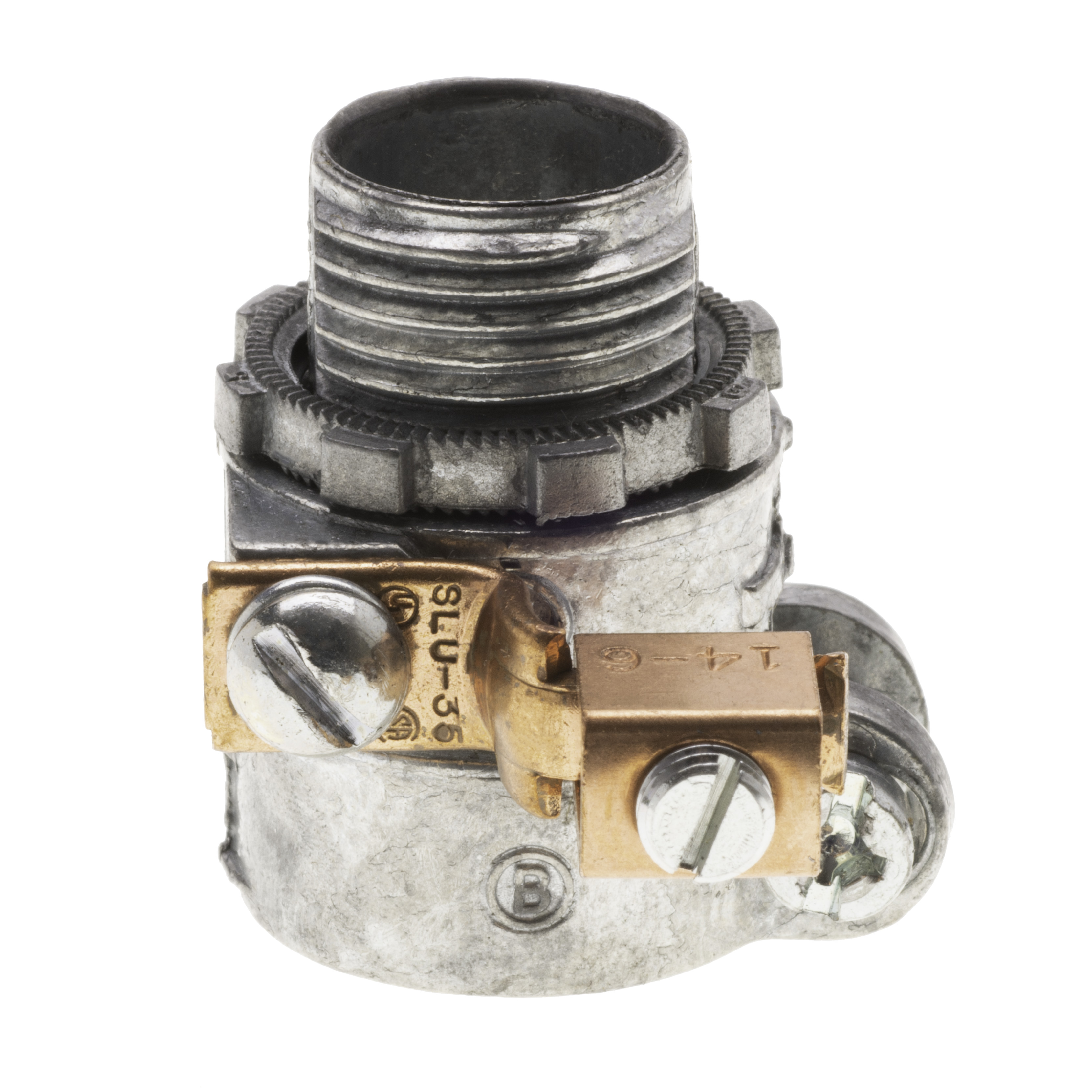

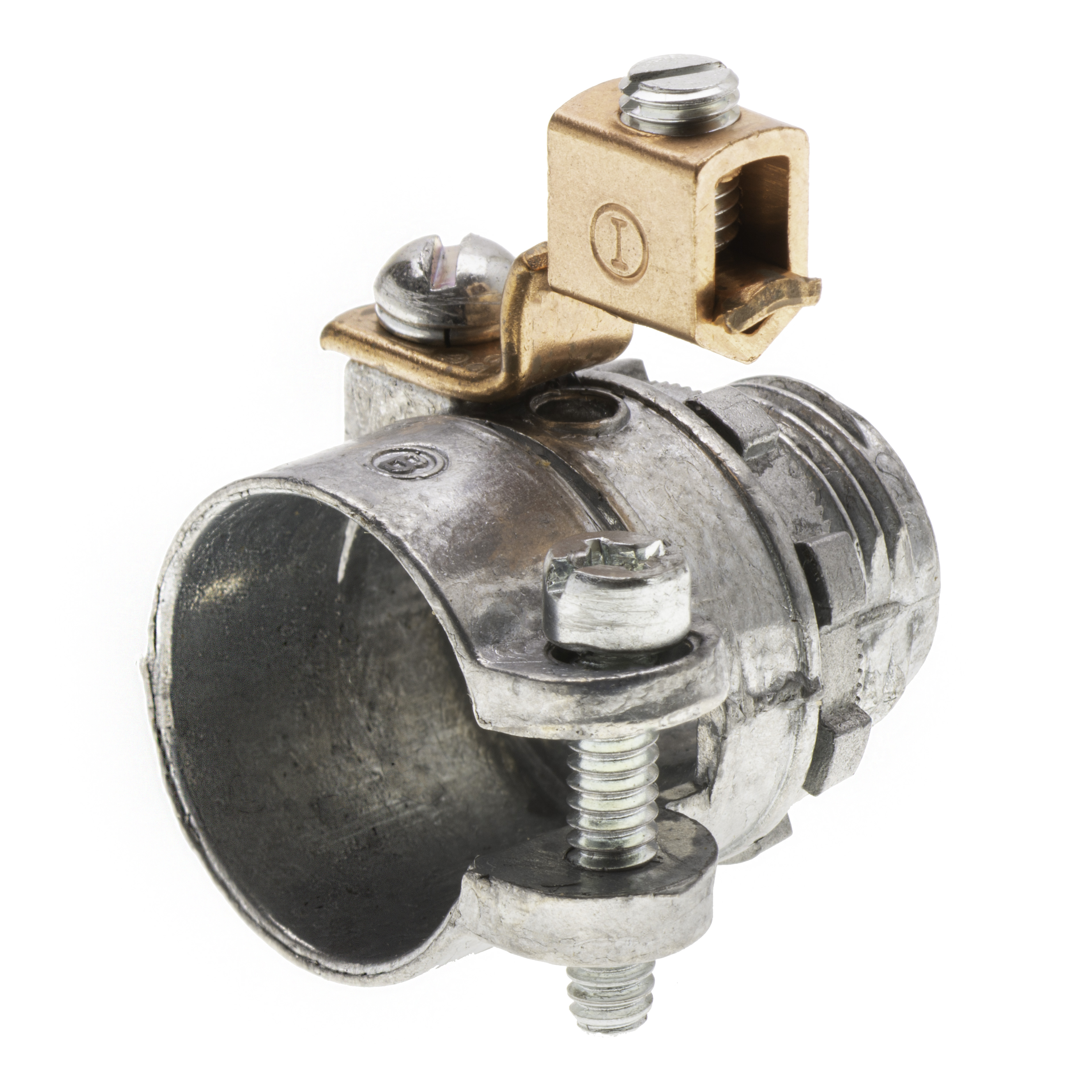

Squeeze Connector with Grounding Lug 1/2″, Die Cast Zinc
Flexible Metal Squeeze Connectors
#407-DC2G
Use Bridgeport’s squeeze connector with grounding lug to connect and bond flexible metal conduit (FMC) or AC/HCF cable to an electrical box or enclosure.
- Copper Ground Lug: Bridgeport’s 407-DC2G features a copper ground lug with a conductor range of 14 to 6 AWG
- Quick and Easy: To secure, simply insert flexible metal conduit or AC/HCF cable into the squeeze connector and tighten down a single flex screw
- Sizing: Use to join 1/2" FMC/AC/HCF to 1/2" box knockout
- Zinc Body: Die cast zinc squeeze connectors have a precise fit and finish with excellent corrosion resistance when used in harsh environments
- Safety Compliance: All Bridgeport squeeze connectors are cULus listed and RoHS compliant
Product Information
| Material | Zinc Die Cast |
|---|---|
| Finish | Ball burnished for enhanced corrosion protection and shine |
| Pack Qty | 200 |
| GTIN | 00781747174079 |
| UPC | 781747174079 |
| EAN | 0781747174079 |
| UNSPSC | 39121419 |
| Origin Country | United States |
| Ul Standard | UL-514B |
| Ul File No | E9391 |

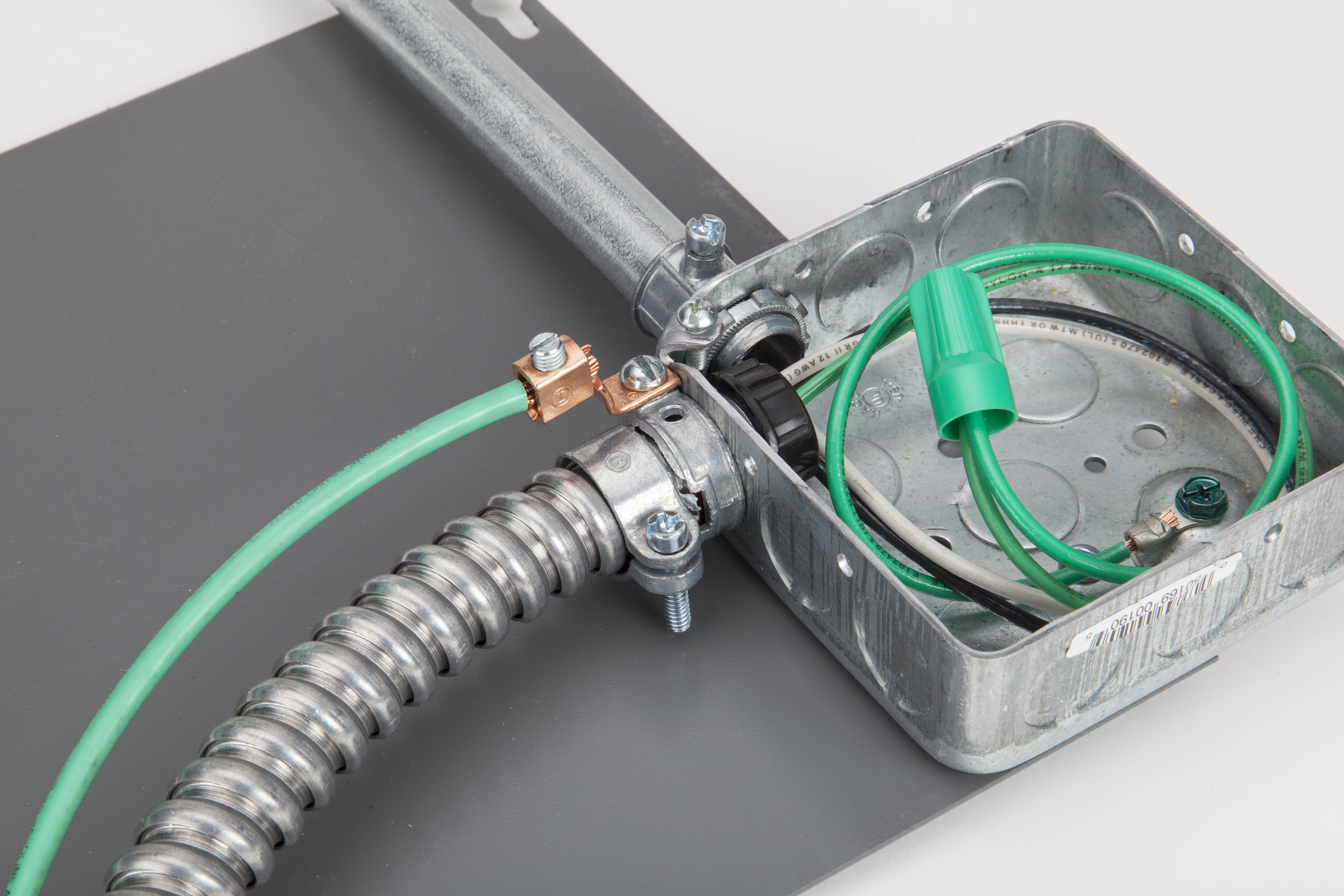

| Application | Used to connect and bond flexible metal conduit to box or enclosure. External lug is for inspection or redundancy of equipment bond. .86 to .92 AC/HCF Cables |
Resources
Documents
- BPT_407-DC2G_ProDraw.pdf Download
