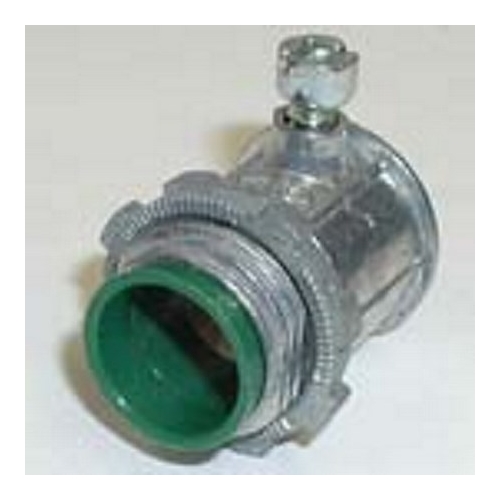

Set Screw EMT Connector 3/4″, Insulated, Die Cast Zinc
#231-DCI2
Use Bridgeport set screw EMT connectors to connect electrical metallic tubing to an electrical box or enclosure for a concrete-tight seal at the point of connection. An insulated throat protects inner wiring up to a temperature of 105°C.
- Insulated Connector: An insulated throat offers superior protection against cable abrasion and is rated up to 105℃
- Concrete-Tight: Using a set-screw design and fitted with a locknut, set screw EMT connectors provide a concrete-tight seal at the point of connection
- Set Screw: EMT is quickly secured in place using a single tri-drive slot/Phillips/Robertson head set screw
- Zinc Body: Die cast zinc connectors feature a precise fit and finish for trouble-free performance, ease of assembly and excellent corrosion resistance
- Professional Performance: Bridgeport set screw EMT connectors are UL Listed under File No. E24001
Product Information
| Material | Zinc Die Cast |
|---|---|
| Pack Qty | 250 |
| GTIN | 00781747162311 |
| UPC | 781747162311 |
| EAN | 0781747162311 |
| UNSPSC | 39121434 |
| Origin Country | United States |
| Ul Standard | UL-514B |
| Ul File No | E24001 |
| Application | Set screw connector used to join EMT to box or enclosure. Insulated Throat 105 DegreeC |
Resources
Documents
- BPT_231-DCI2_ProDraw.pdf Download
