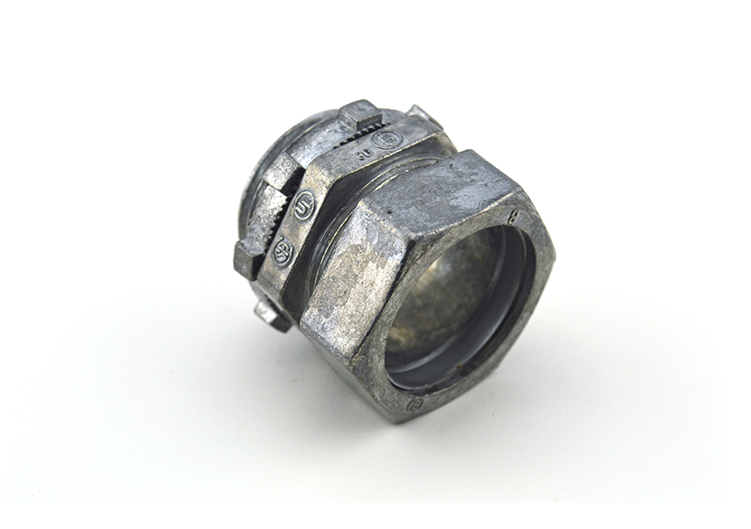

Screw-on EMT Compression Connector 1″, Die Cast Zinc

#252-DC2

Use Bridgeport screw-on EMT compression connectors to connect electrical metallic tubing to an electrical box or enclosure. Compression type EMT connectors are quick to install, UL Listed concrete-tight and CSA Listed concrete-tight/raintight.

  • Fast Connections: EMT compression connectors offer quick and reliable connections between EMT and a box knockout – just insert the EMT, tighten the ring and you’re done
  • Zinc Body: Die cast zinc connectors feature a precise fit and finish for trouble-free performance, ease of assembly and excellent corrosion resistance in harsh environments
  • Tighter Seals: Zinc EMT compression connectors are UL Listed concrete-tight without the use of tape. They are also CSA Listed concrete-tight and raintight
  • Installation Flexibility: Zinc EMT compression connectors are suitable for use with aluminum and steel EMT. Sizes 2-1/2" to 4" may also be used with rigid conduit
  • Professional Performance: Zinc EMT compression connectors are UL Listed under File No. E24001 and meet the stringent bonding and grounding requirements of UL 514B

Product Information

Material Zinc Die Cast
Finish Ball burnished, Mirror smooth
Pack Qty 15
GTIN 00781747152527
UPC 781747152527
EAN 0781747152527
UNSPSC 39121434
Origin Country US
