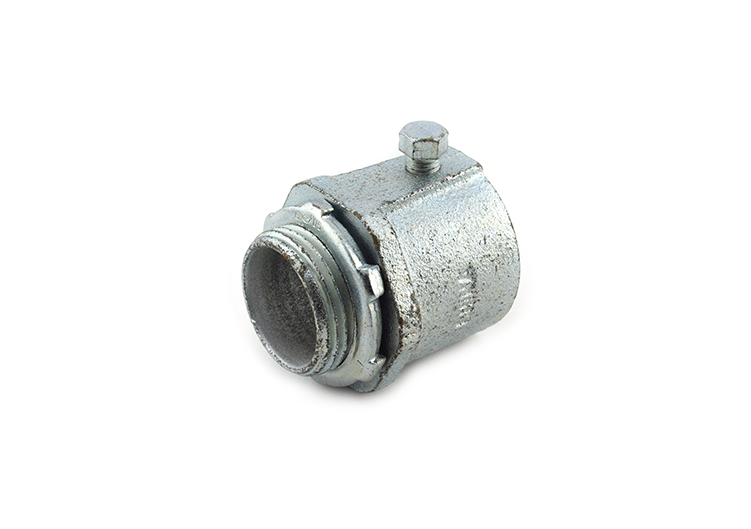

Rigid Or IMC To Enclosure Set Screw Connector 1″, Iron
#3502
The Bridgeport 1″ Malleable Iron Rigid or IMC To Enclosure Set Screw Connector joins unthreaded rigid or IMC conduit to a box or enclosure. The seal is concrete tight. The connection is secured via a set screw.
- Concrete Tight: The connector is perfect for applications where concrete aggregate could abrade conductor insulation or effectively reduce the area inside the raceway
- Malleable Iron Body: The malleable iron body is ideal for this application due to its excellent tensile strength
- Secure Set Screw Connection: Operators are able to secure the rigid or IMC connection via the set screw
Product Information
| Material | Malleable Iron |
|---|---|
| Finish | Zinc Plated |
| Pack Qty | 250 |
| GTIN | 00781747035028 |
| UPC | 781747035028 |
| EAN | 0781747035028 |
| UNSPSC | 39121311 |
| Origin Country | CN |
| Ul Standard | UL-514B |
| Ul File No | E9391 |
| Application | Rigid set screw type connector used to join Rigid or IMC conduit to a box or enclosure. |
Resources
Documents
- BPT_3502_ProDraw.pdf Download
