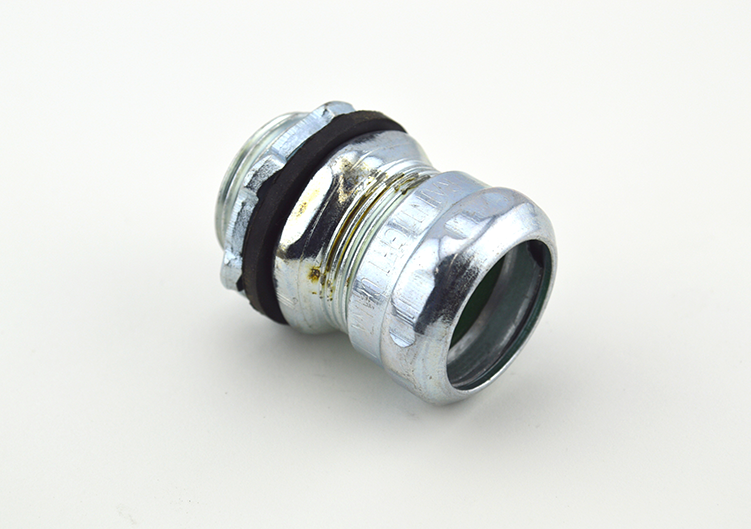

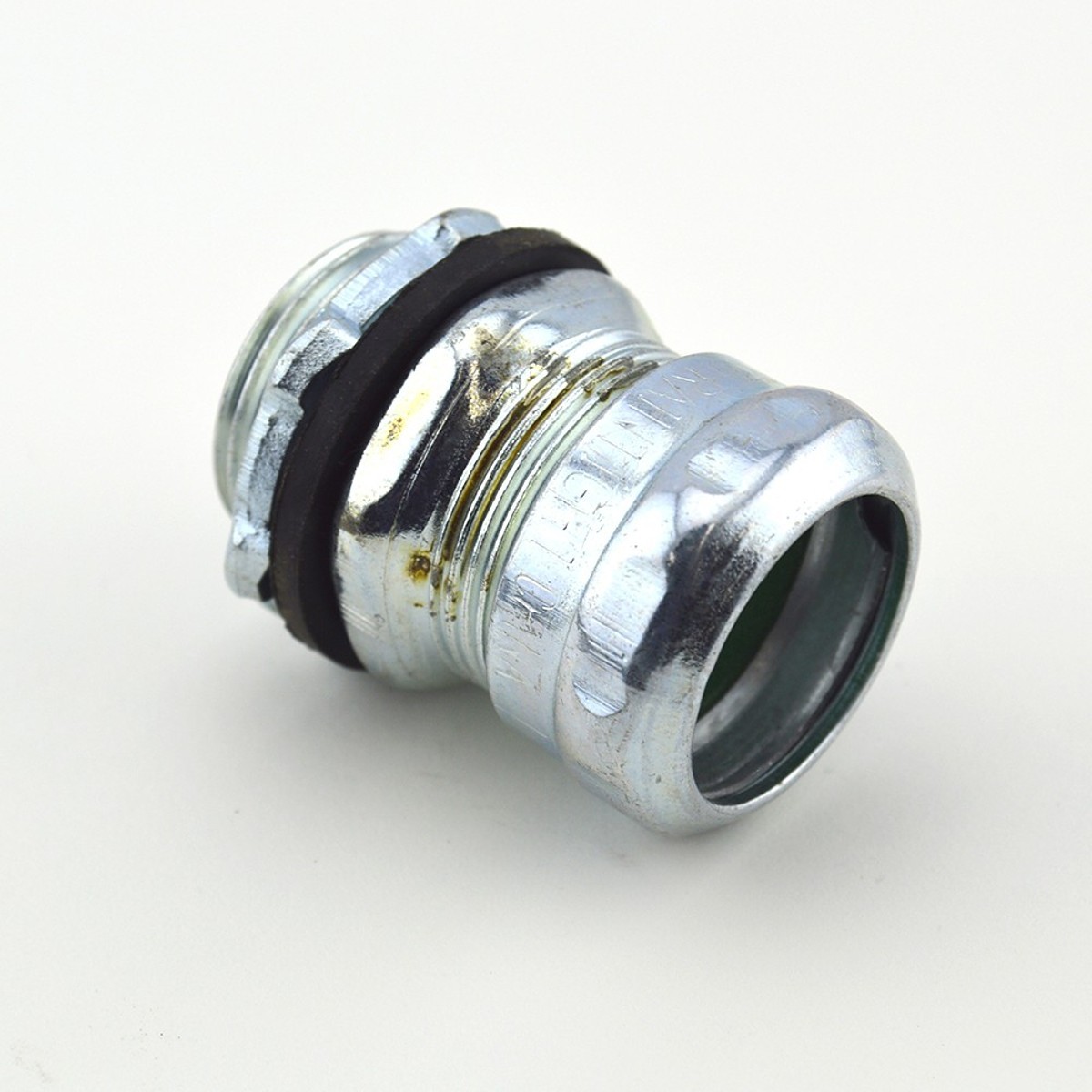

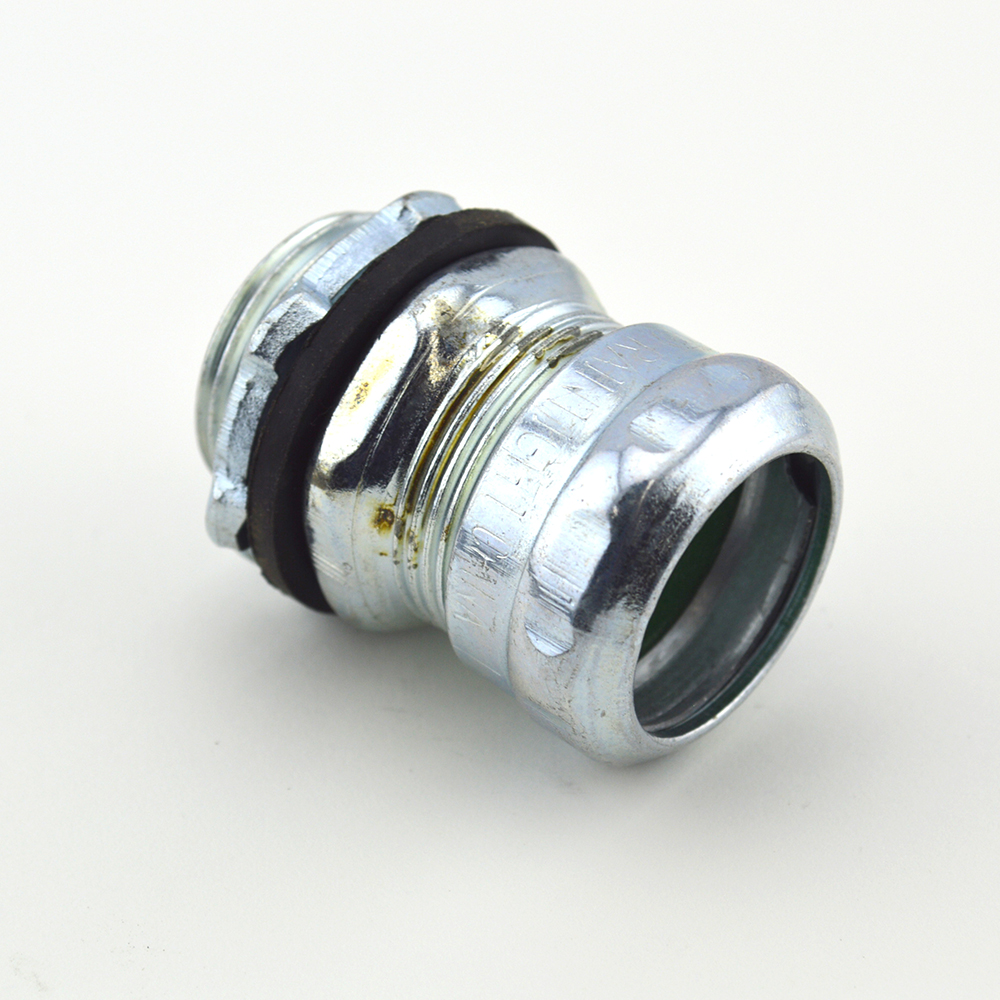

Raintight Screw-on EMT Compression Connector 3/4″, Steel

#251-SRT

Use Bridgeport raintight screw-on compression connectors to create a raintight seal between EMT and an electrical box or enclosure. Patented design comes with an internal sealing ring, knockout gasket and NPSM threads.

  • Keeps Water Out: Bridgeport’s patented SRT EMT compression connectors feature an internal sealing ring, BUNA-N knockout gasket and NPSM threads for a raintight seal
  • Strong and Durable: Steel EMT compression connectors have a strong steel body with zinc plating for additional durability and corrosion resistance in harsh environments
  • No Separate Pieces: Compression connectors are fitting with everything you need to get the job done – no more needing to buy and stock separate pieces of hardware
  • Professional Performance: Bridgeport steel raintight EMT compression connectors are UL Listed under File No. E24001 and are NEMA TYPE 2, 3, 3R and 4
  • Made in the USA: When you buy Bridgeport, you buy from an American manufacturing company

Product Information

Material Steel
Finish Zinc electro-plate
Pack Qty 250
GTIN 00781747202512
UPC 781747202512
EAN 0781747202512
UNSPSC 39121434
Origin Country CN
Ul Standard UL-514B
Ul File No E24001
Application Used to join EMT to box or enclosure. Raintight. Concrete-Tight

Resources

Documents

  • BPT_Raintight Comp_EMT_ProdBro_Digital.pdf Download
  • BPT_251-SRT_ProDraw.pdf Download
