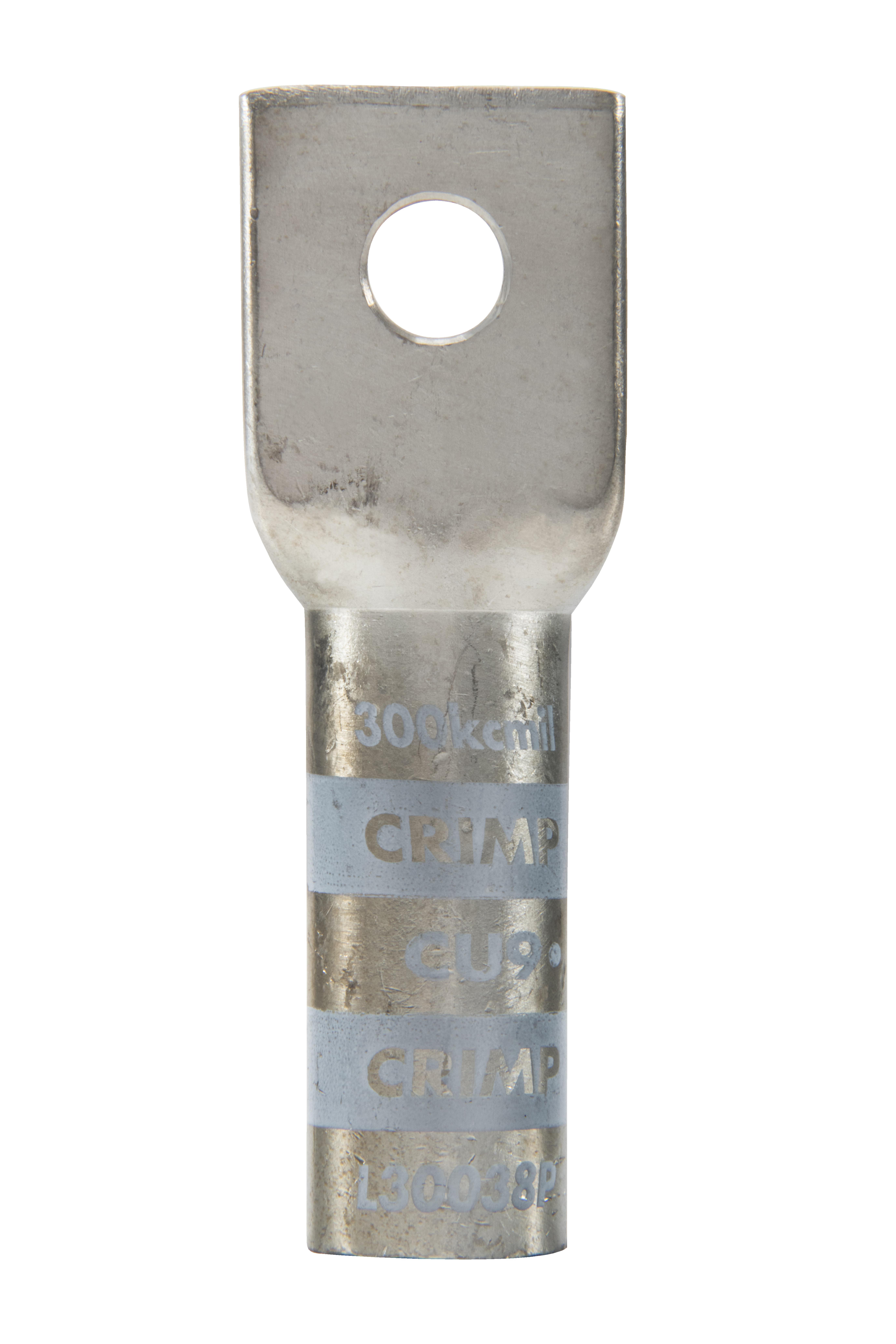

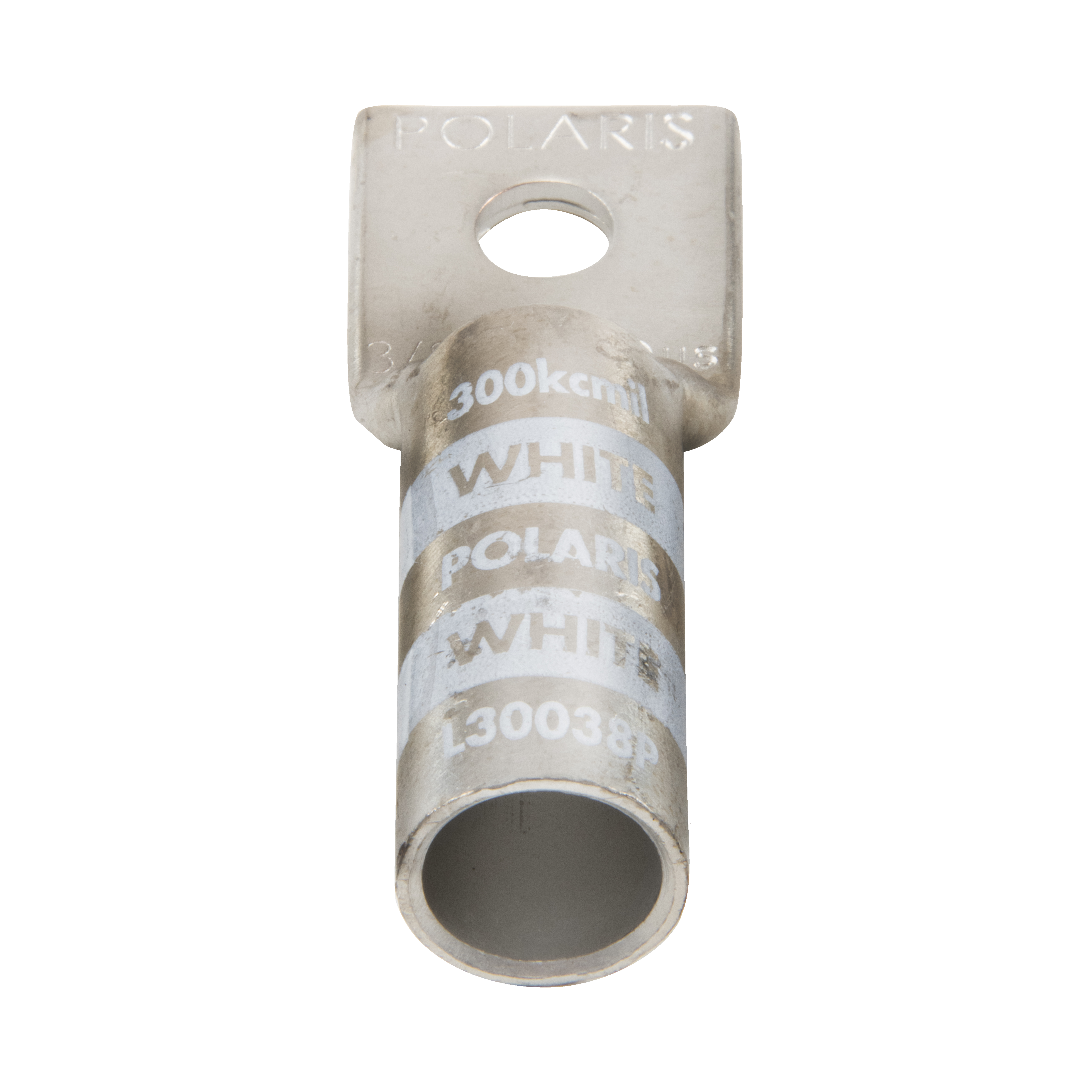

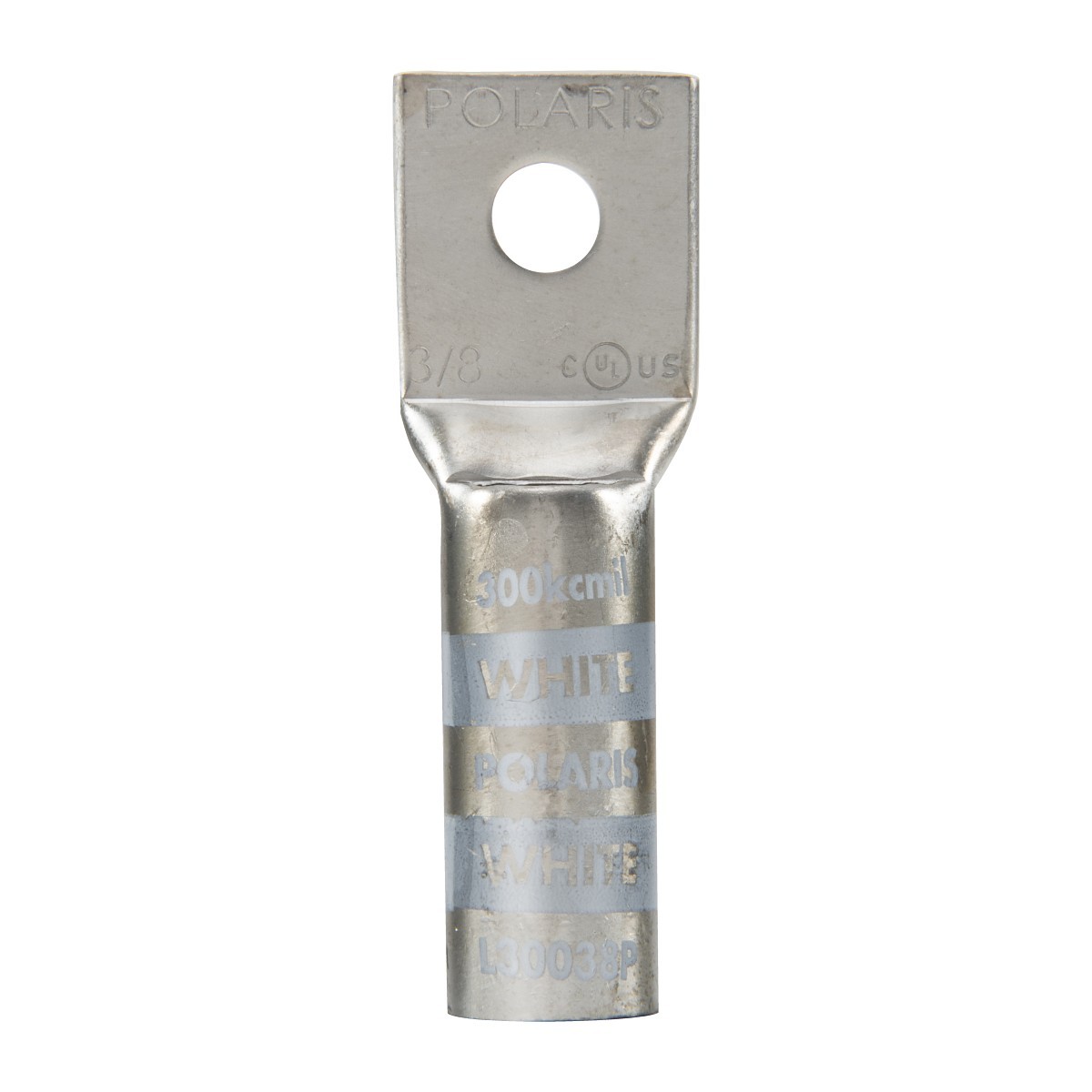

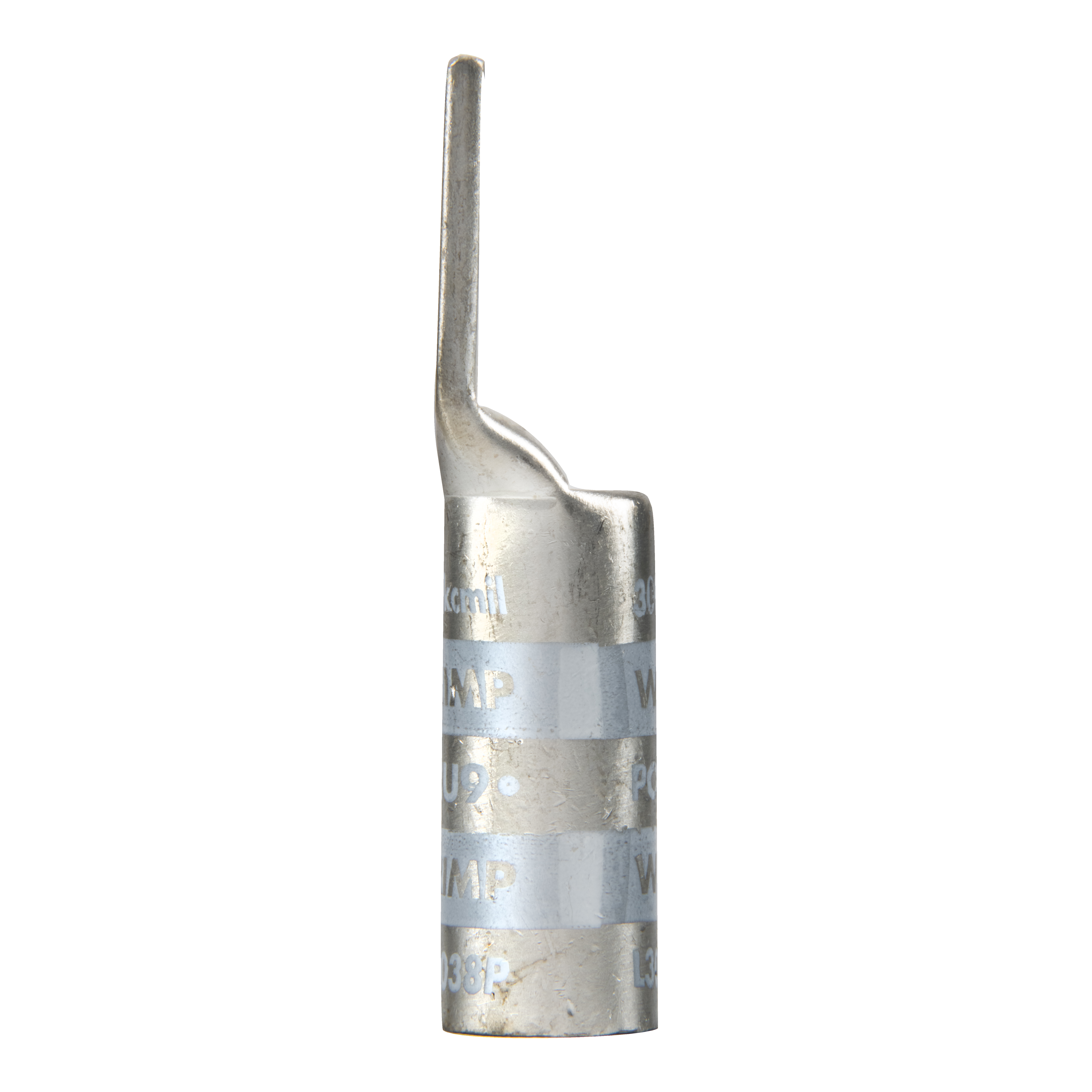

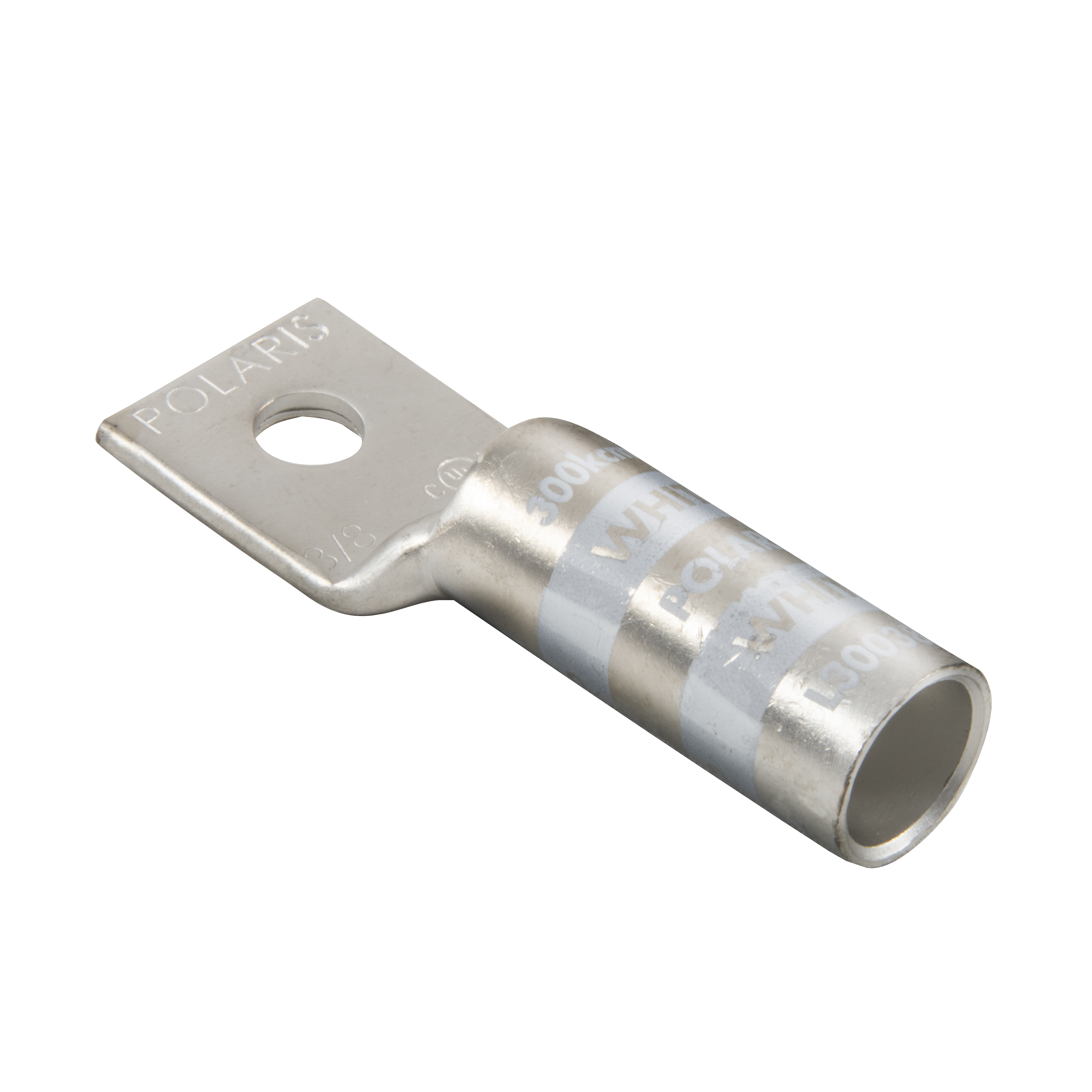

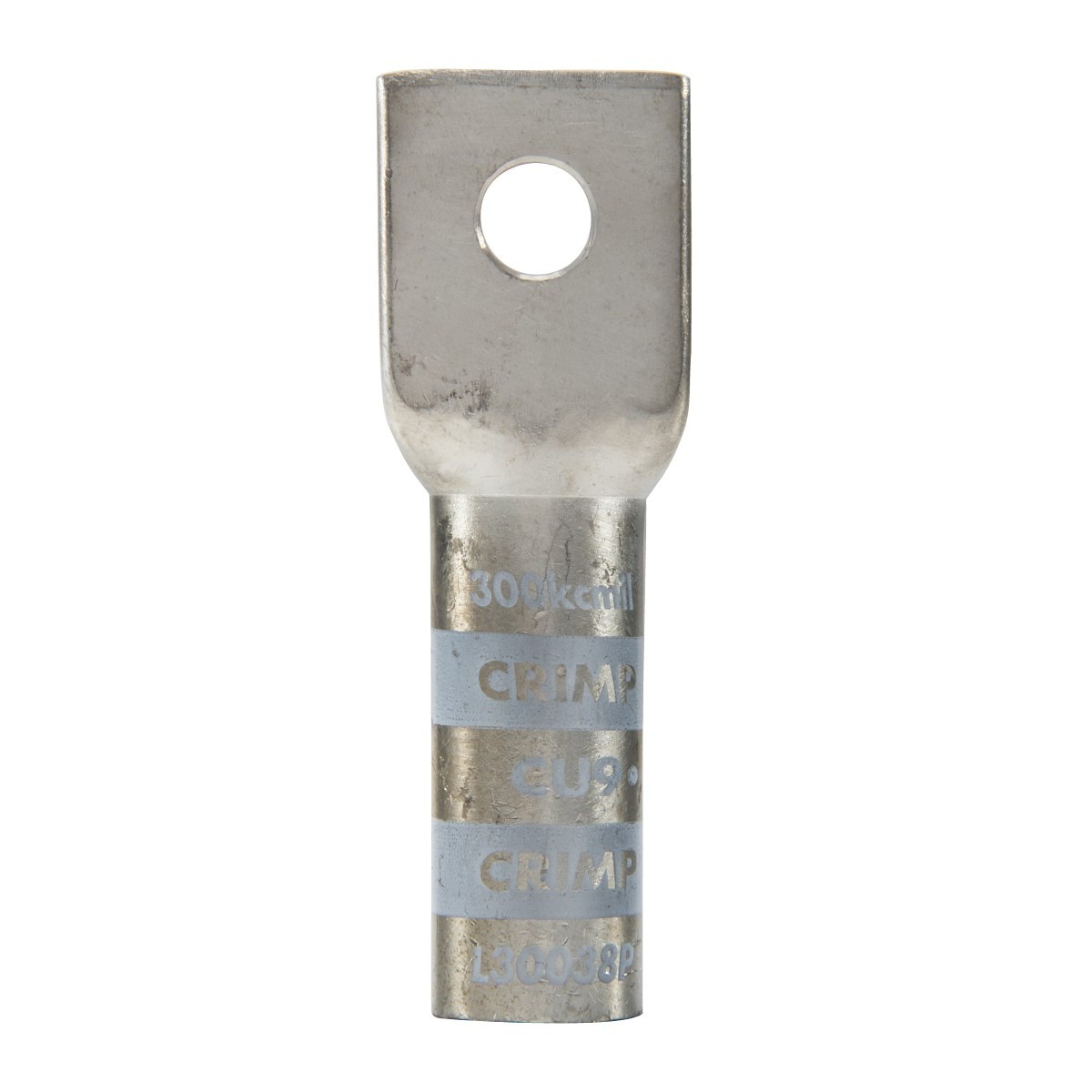

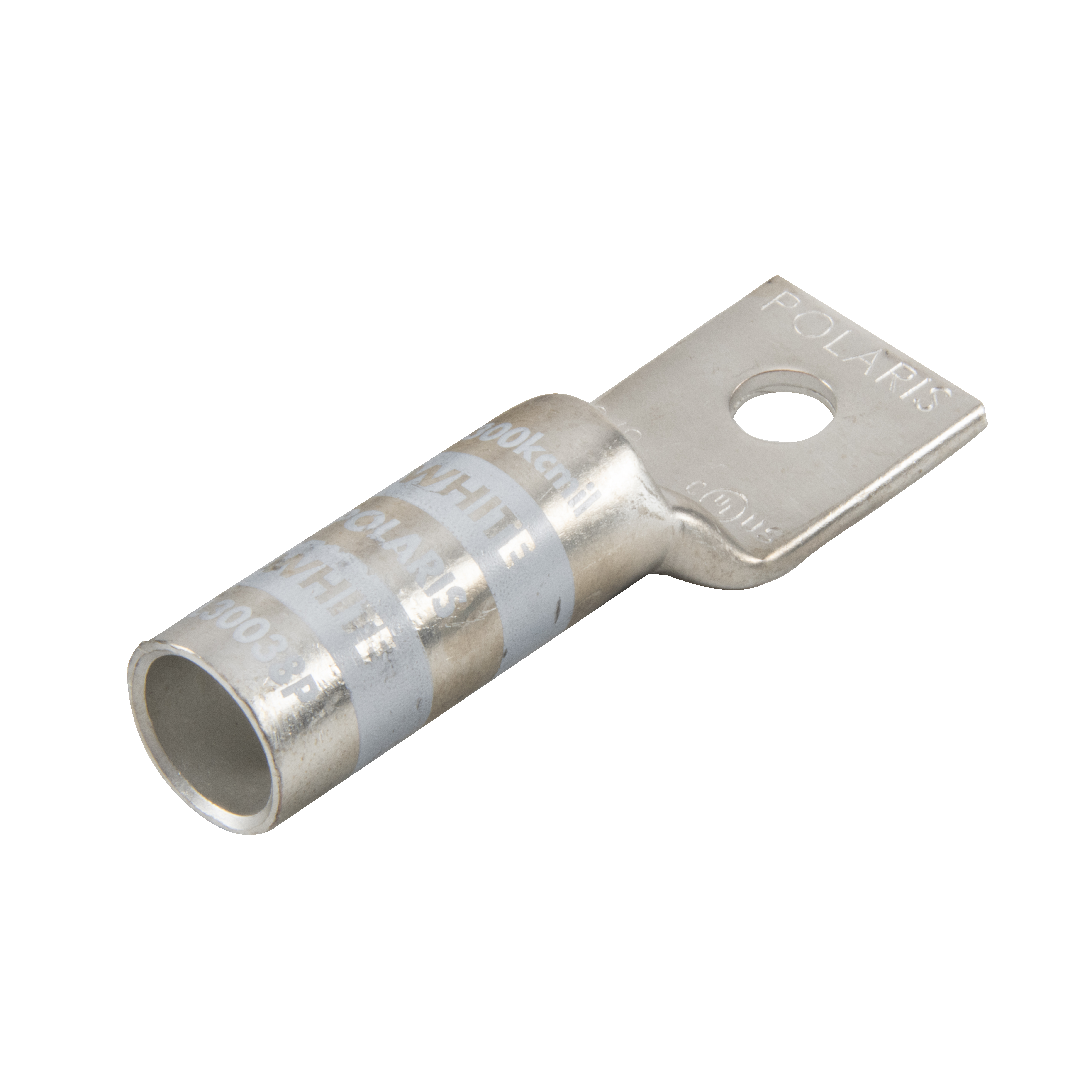

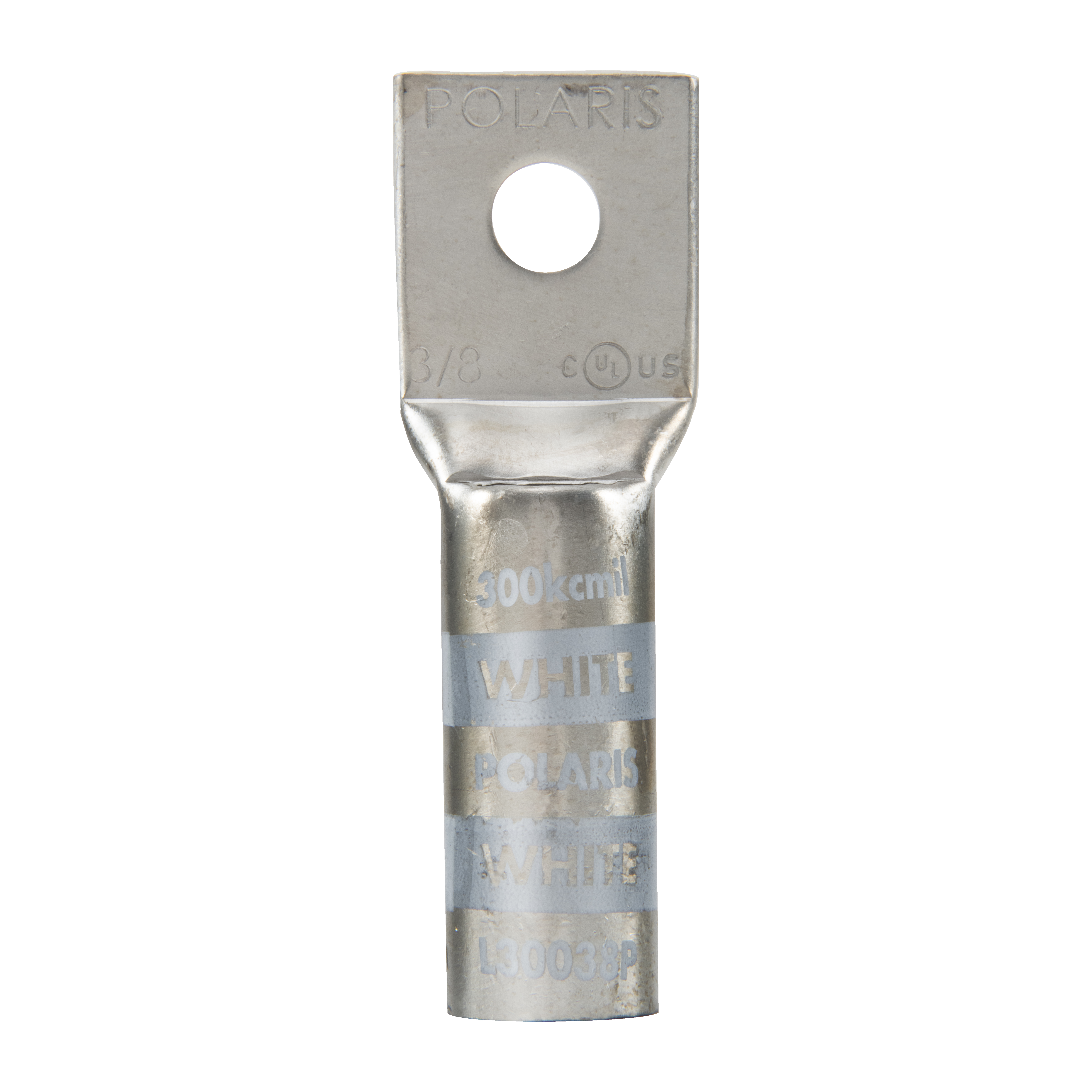

Polaris L30038P 300 MCM Cu Compression Lug, 3/8 IN 1 Hole, Inspection Window

Name: Polaris L30038P 300 MCM Cu Compression Lug, 3/8 IN 1 Hole, Inspection Window
Brand: Polaris
SKU: L30038P

Compression Connectors

#L30038P

Provides reliable termination for copper code and flex conductors in switchgear, panelboards, and power distribution equipment. Inspection window allows visual confirmation of conductor insertion before crimping.

High conductivity copper tubing and corrosive resistant tin-plated finish
Marked with die index and color coded
Flex rated , see product sheet for details
For applications greater than 2000V, install to cable manufacturer voltage stress relief instructions.
Inspection Window allows easy inspection of the termination

Product Information

Die Color Code	White
Assortment	Copper Compression Terminations
Material	Copper
Finish	Tin-Plated
Mounting-bolt-size-in	3/8
Barrel Length	1.9700
Tang Length	1.25
Tang-thickness-in	0.15
Voltage Rating	35kV
Conductor Type	Copper
Expanded Wire Range	300 MCM – 2/0 AWG
Wire Cable Class	Class B,Class C,Class G,Class H,Class I,Class K,Class M,Class DLO
Conductor Cu Size Range	300 MCM (Code), 250 MCM (Flex)
GTIN	0066238103035
Prop 65 Flag	Yes
UPC	662381030351
