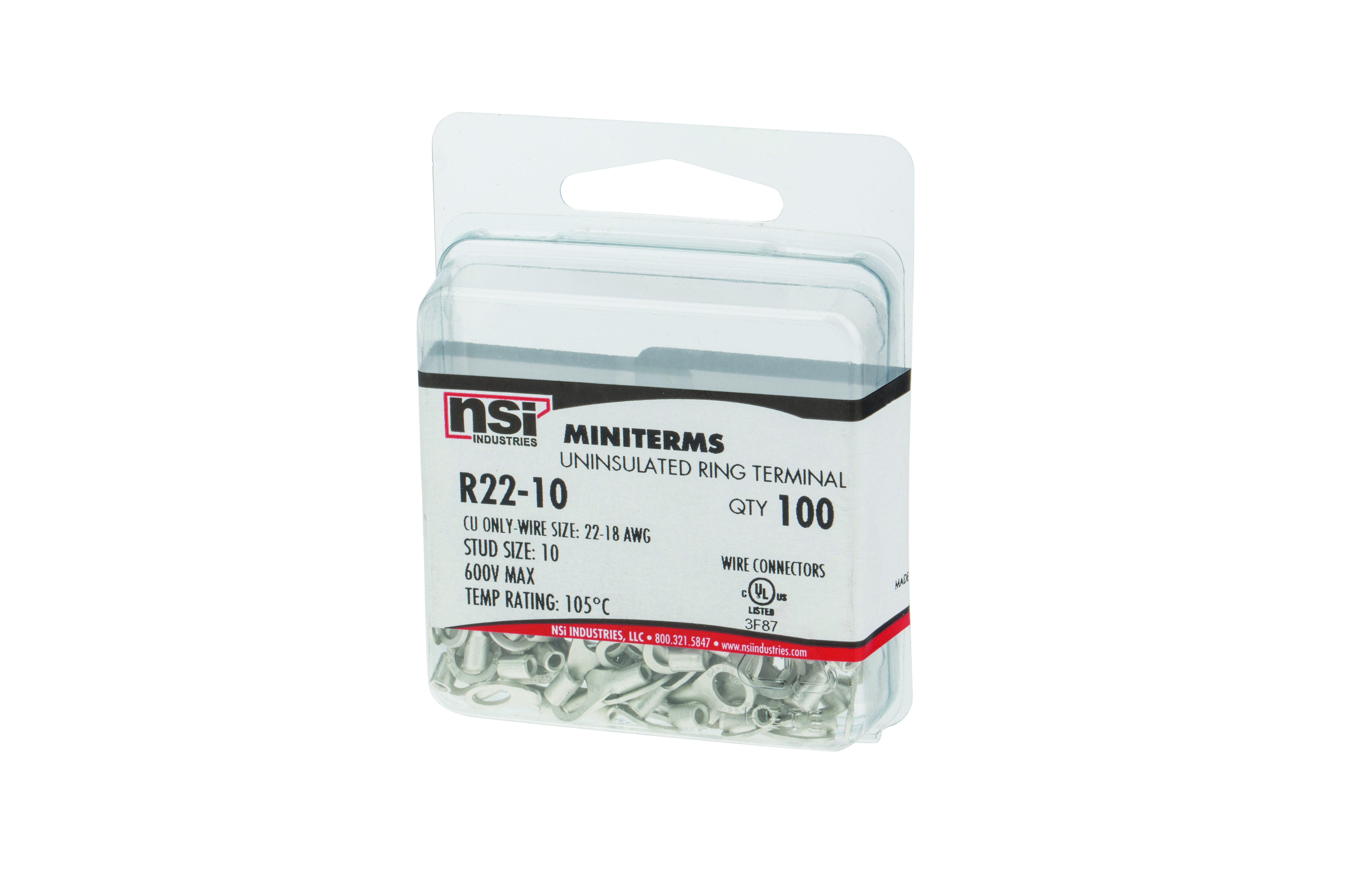

Non-Insulated Ring Terminal for #10 Stud and 22-18 AWG
#R22-10
Tin-plated Copper Bare Ring Terminal for wire termination in applications with #10 Stud and 22-18 AWG
- Un-Insulated: Electro tin plated copper
- Uninsulated Ring Terminals are a safe and reliable connection, because it cannot be disconnected unless the screw is completely removed.
- Typically used on #10 studs
- Brazed Seam Type
- 1 Terminal
Product Information
| Voltage Rating | 600 V |
|---|---|
| Material | Copper |
| Finish | Tin-plated |
| Pack Qty | 100 |
| GTIN | 662381072023 |
| UPC | 662381072023 |
| EAN | 662381072023 |
| UNSPSC | 39121432 |
| Origin Country | US |
| Certifications | cULus |
| Stud Terminal Size | #10 |
| Temp Rating | 105C |
| Wire Range | 22-18 AWG |
| Application | Wire Termination |
| Insulation Type | Un-insulated |
Resources
Documents
- NSI_Non-Insulated Ring Terminals_WRT_ProDraw_DIGITAL.pdf Download
