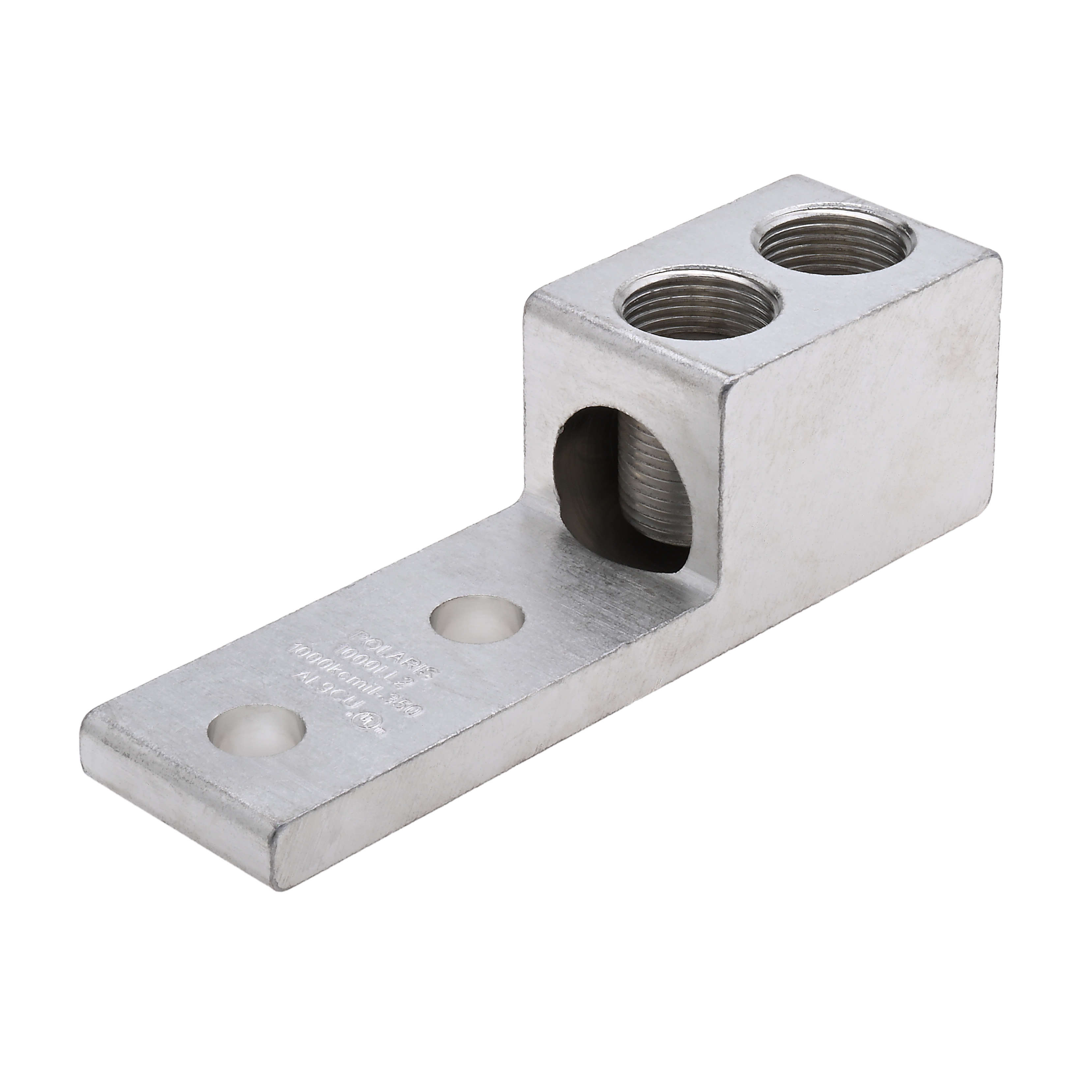

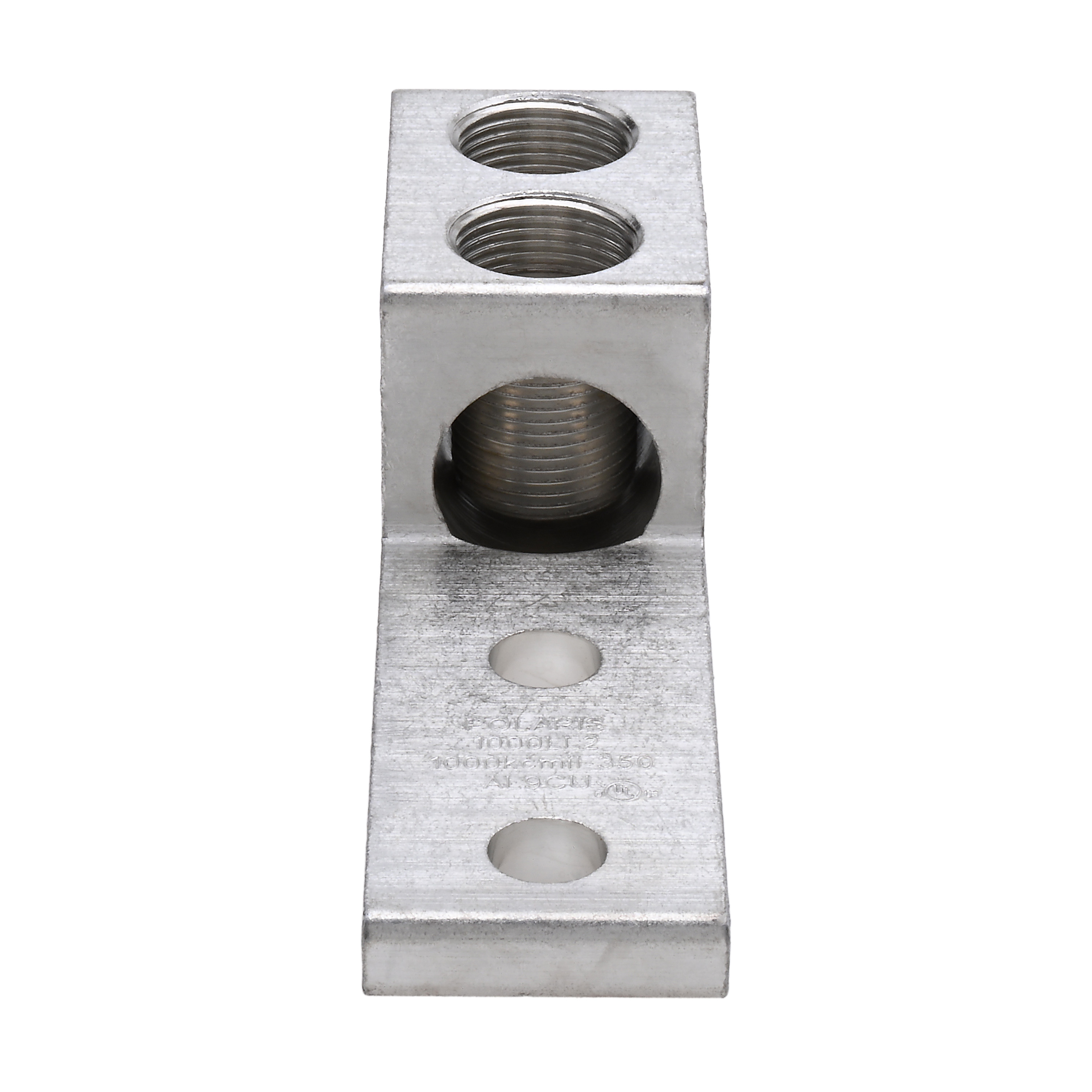

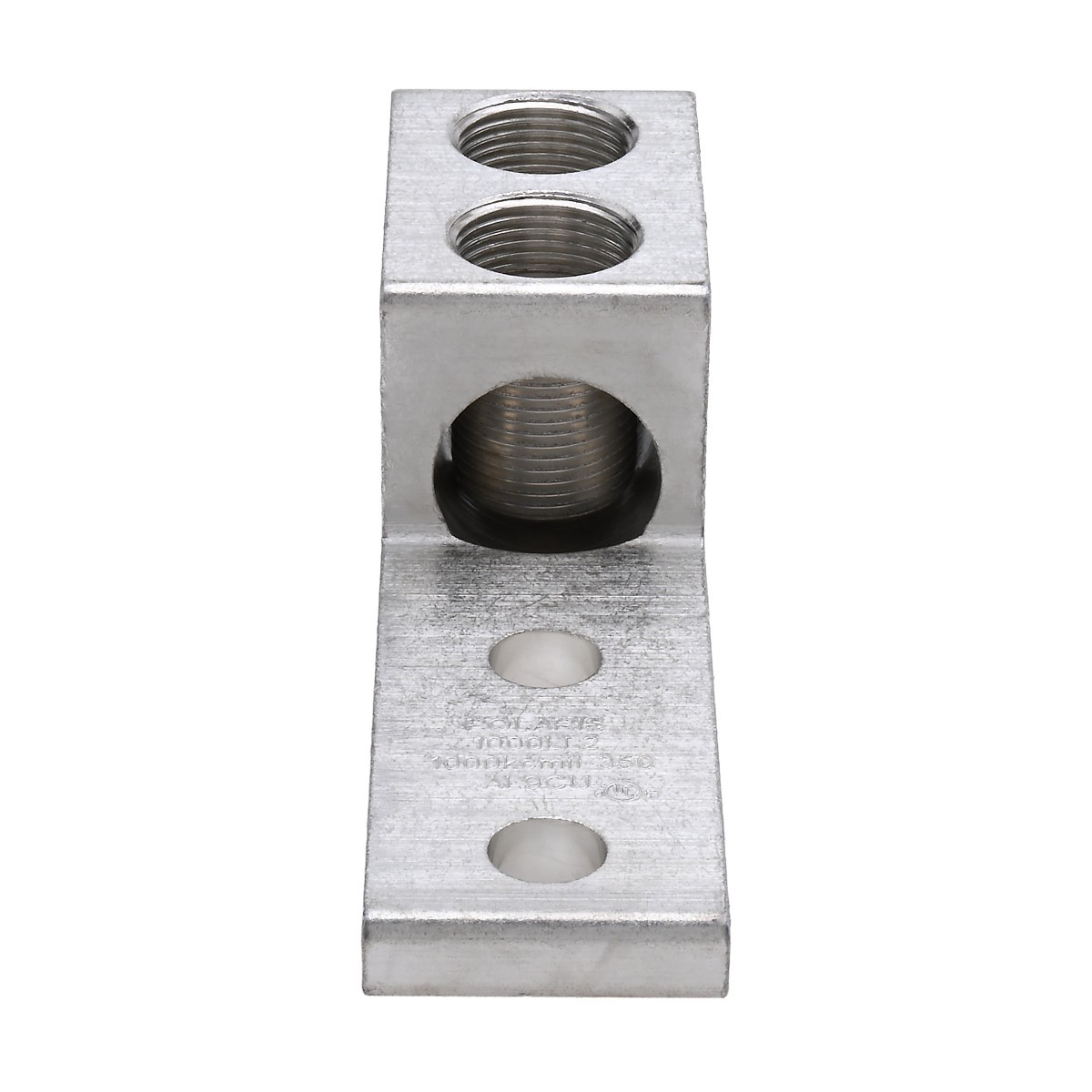

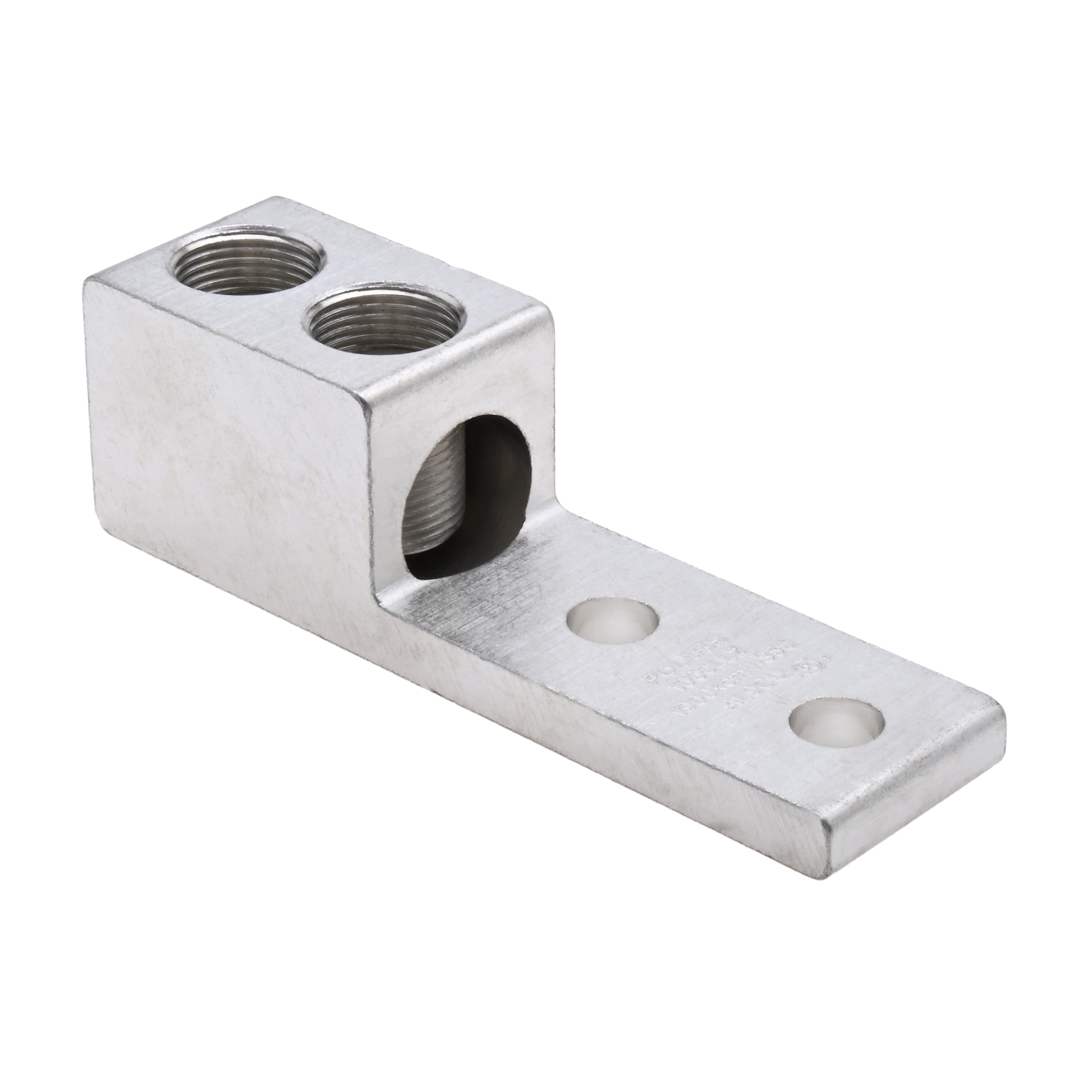

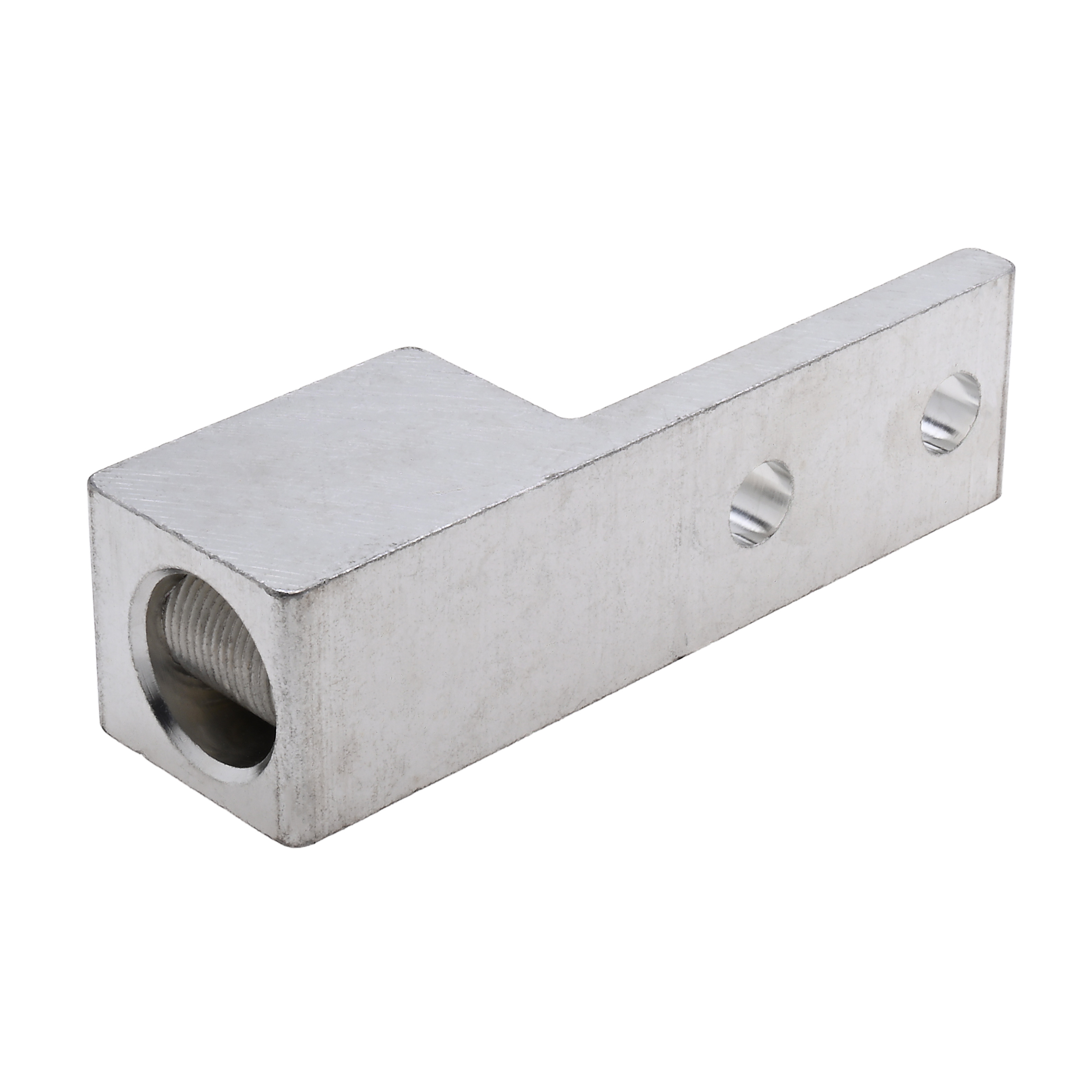

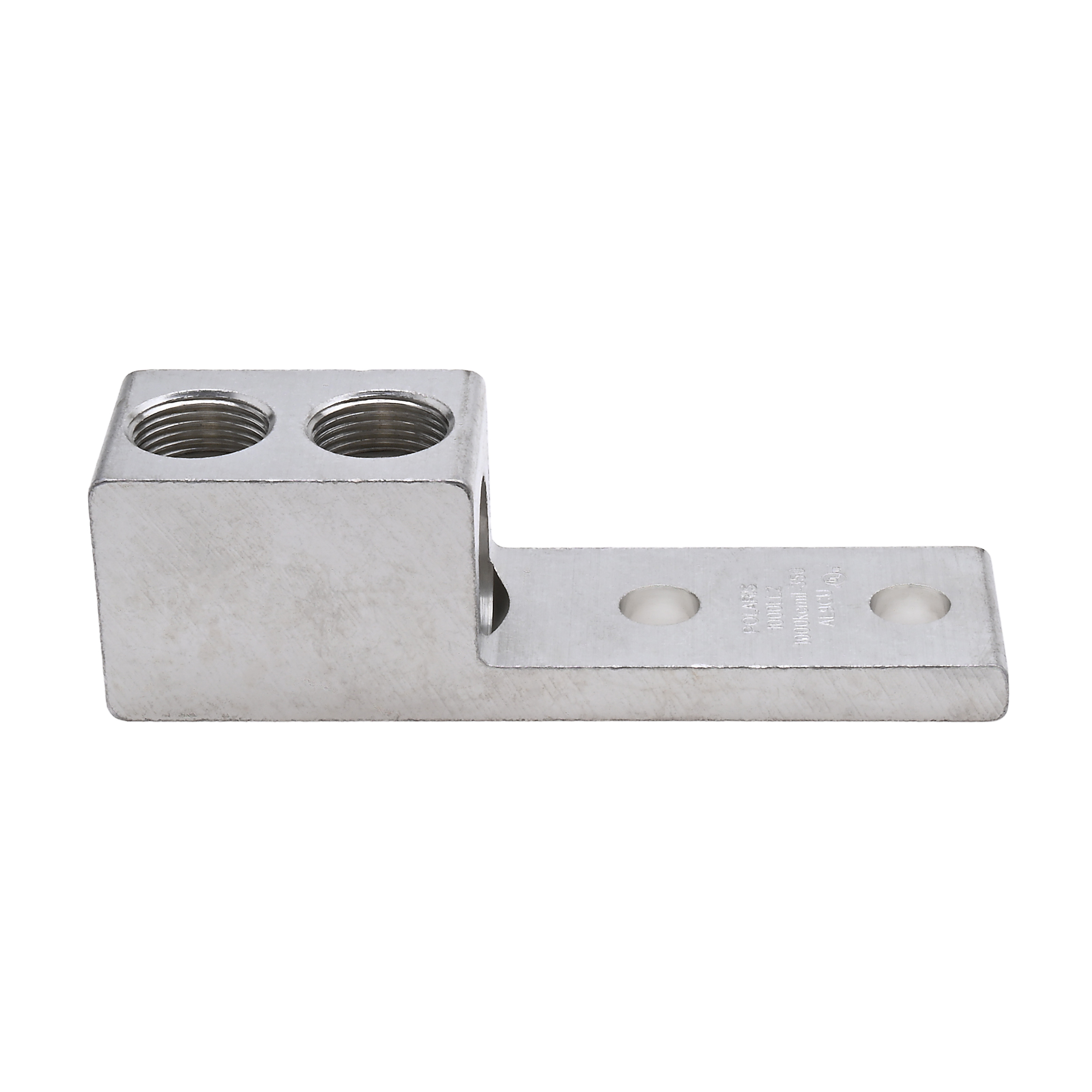

Nema Panel Lug 1000-500 2 Mount


Nema Panel Lug Al/Cu 1000-500 2 Mt

  • Large size set-screw connectors with multiple mounting, NEMA spaced holes for a secure, turn-prevent connection
  • Made of 6061T-6 aluminum alloy
  • Tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • All hole spacing is NEMA standard of 1.758 inch

Product Information

Voltage Rating 600 V
Material 6061T-6 Aluminum Alloy
Finish Tin Plated
Pack Qty 4
GTIN 662381001719
UPC 662381001719
EAN 662381001719
UNSPSC 39121466
Origin Country US
Certifications cULus, UL Listed
Ul Standard UL 486A-486B
Ul File No E155027
Conductor Type Copper, Aluminum
Hex Wrench Size 9/16
Wire Range 1000 MCM – 500 MCM
Assortment Aluminum Mechanical Terminations
Application Terminate



  • NSI_600-1000LL2-SERIES_MCH_ProDraw_DIGITAL.PDF Download
