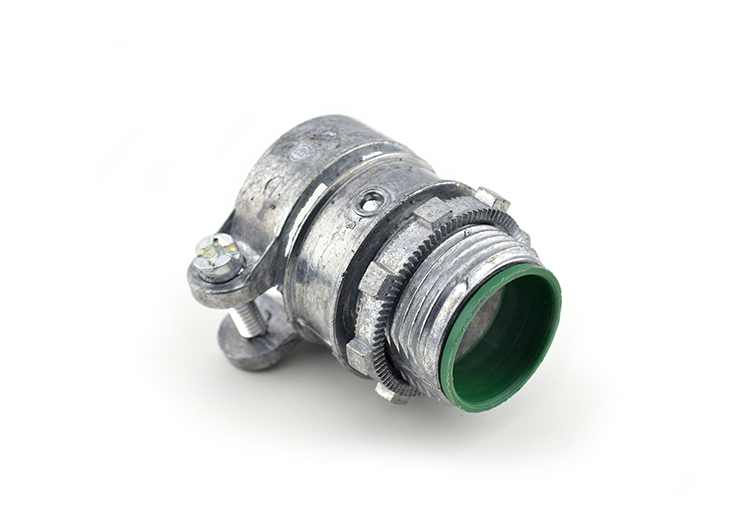

Insulated Squeeze Connector 1″, Die Cast Zinc
Flexible Metal Squeeze Connectors
#410-DCI2
Use Bridgeport insulated flexible metal squeeze connectors to connect flexible metal conduit (FMC) or armored cable to an electrical box or enclosure. An insulated throat protects inner wiring from abrasion and is rated up to 105°C.
- Insulated Throat: Insulated throat protects inner wiring up to 105°C
- Quick and Easy: To secure, simply insert flexible metal conduit or armored cable into the squeeze connector and tighten down a single flex screw
- Sizing: For securing 1" flexible metal conduit or armored cable to an electrical box or enclosure through a 1" knockout
- Tri-Drive Screw: Furnished with a tri-drive screw
- Safety Compliance: Bridgeport squeeze connectors are cULus listed and RoHS compliant
Product Information
| Material | Zinc Die Cast |
|---|---|
| Pack Qty | 100 |
| GTIN | 00781747164100 |
| UPC | 781747164100 |
| EAN | 0781747164100 |
| UNSPSC | 39121419 |
| Origin Country | United States |
| Ul Standard | UL-514B |
| Ul File No | E9391 |
| Application | Used to connect steel flexible metal conduit or XRW FMC to box or enclosure. Insulator rated 105 degree C. |
Resources
Documents
- BPT_410-DCI2_ProDraw.pdf Download
