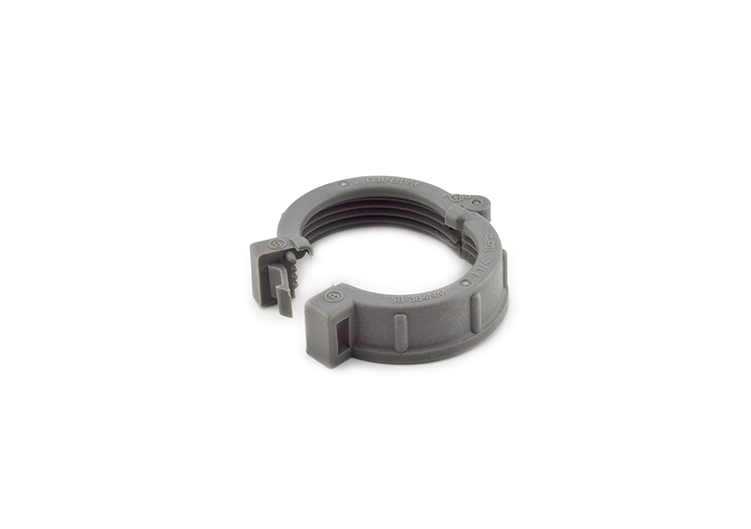

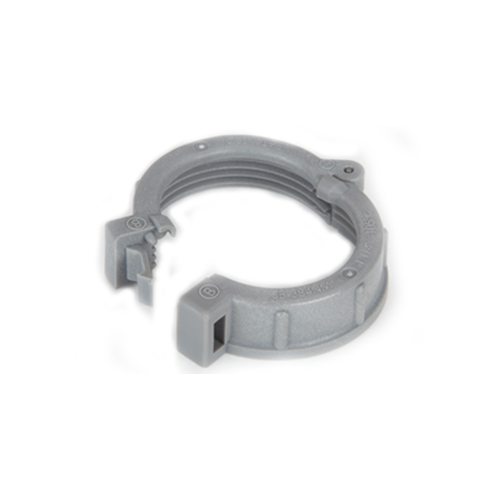

Insulated Split Bushing, 1-1/4″, Plastic for Conductor Protection


Use the Bridgeport 1-1/4″ Mighty-Rite Insulated Nonmetallic Split Bushing to protect conductors passing through conduit and to terminate rigid and IMC Conduits or rigid and EMT connectors to a box or enclosure before or after pulling conductors.

  • Nylon Plastic Body: The strong, lightweight gray nylon plastic body provides excellent abrasion and wear resistance
  • Heat Rating: The bushing is temperature rated to 105°C for use in industrial environments
  • Might-Rite® Patented Design: The innovative Might-Rite split design allows for easy positioning, saving time and money on expensive rework
  • Professional Performance: All Bridgeport fittings meet OSHA-recognized, NRTL-listed electrical standards and meet the stringent bonding and grounding requirements of 514B cULus

Product Information

Material Nylon
Finish Plain
Color Gray
Pack Qty 200
GTIN 00781747403841
UPC 781747403841
EAN 0781747403841
UNSPSC 39121312
Origin Country CN
Certifications PROP65
Ul Standard UL-514B
Ul File No E9391
Application Used in situations where an insulated bushing is needed to protect conductors already passing through threaded Rigid / IMC conduit or EMT and Rigid Connectors. Rated 105 Degree C. cULus listed.
