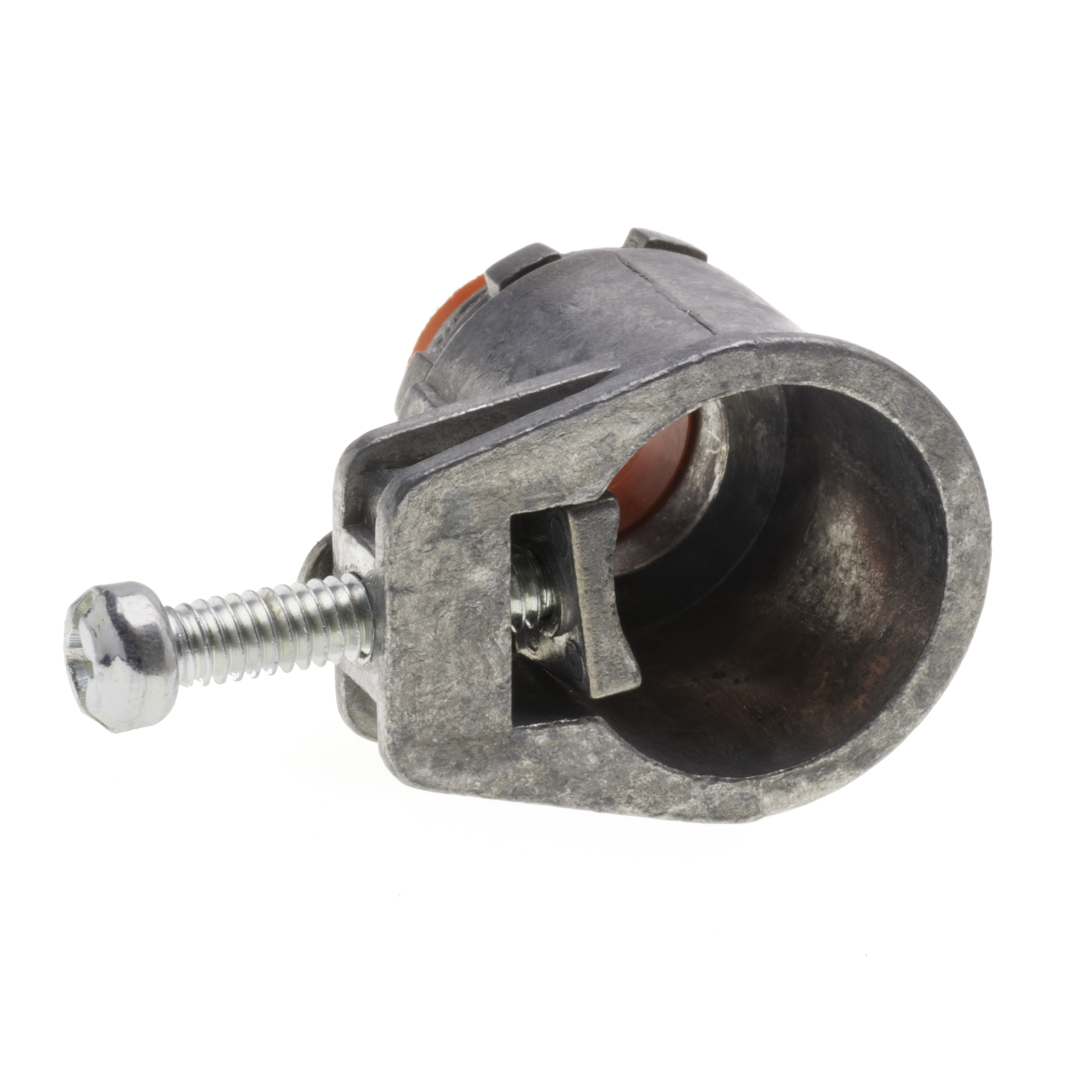

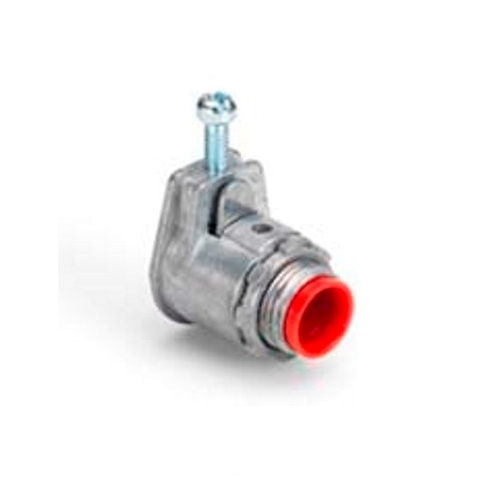

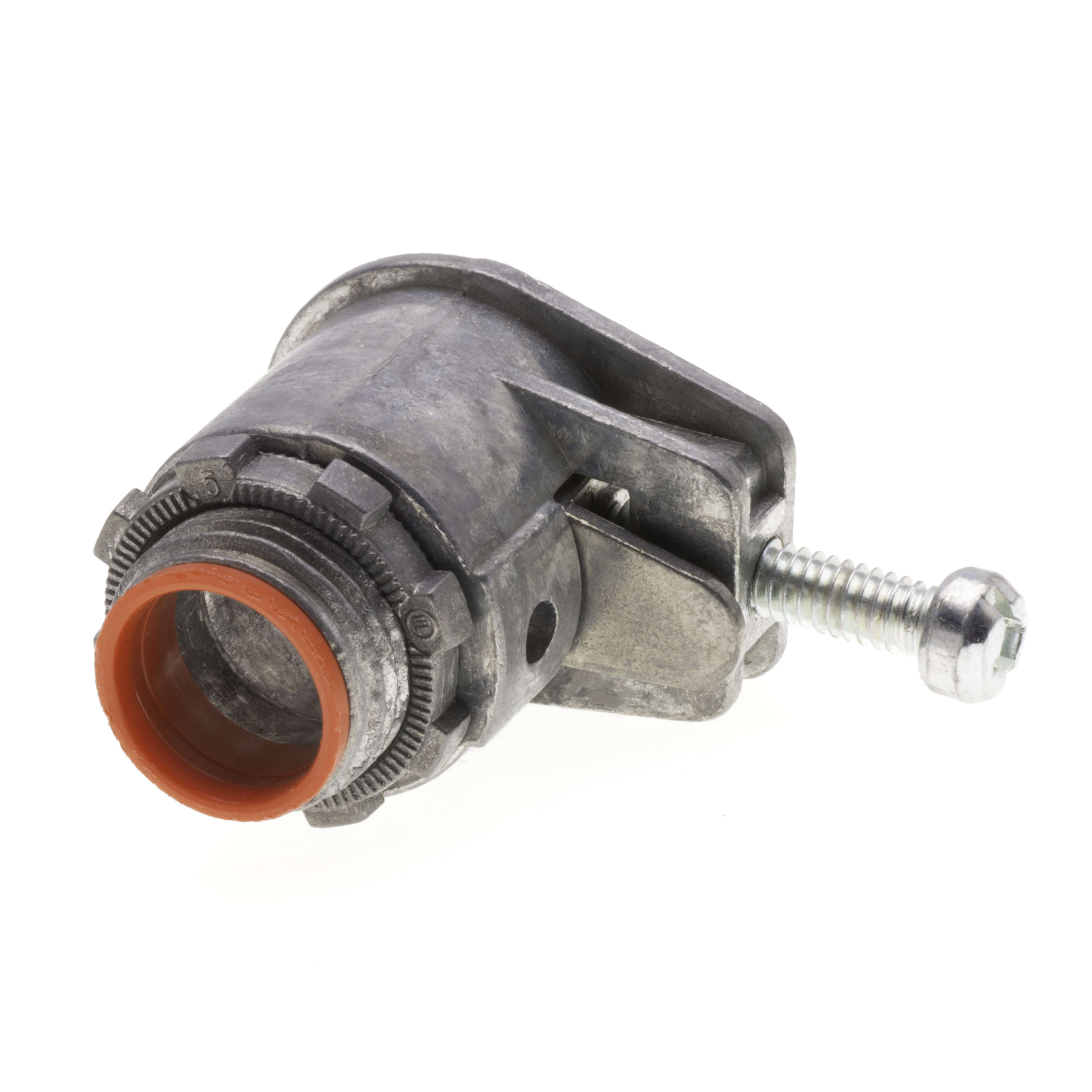

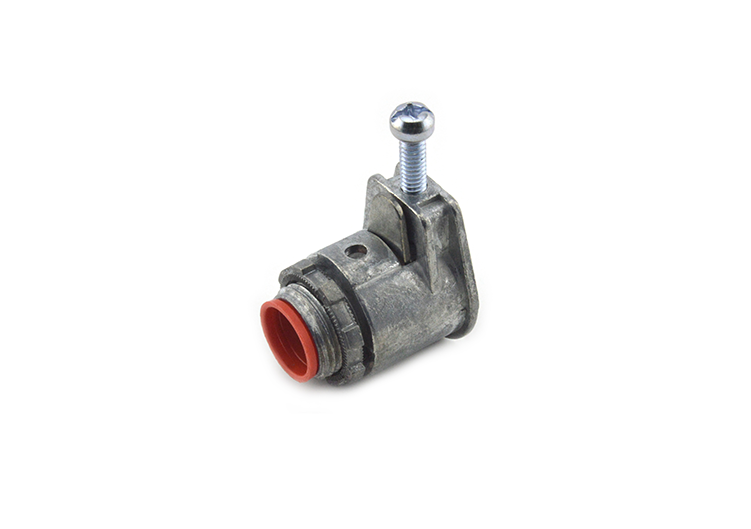

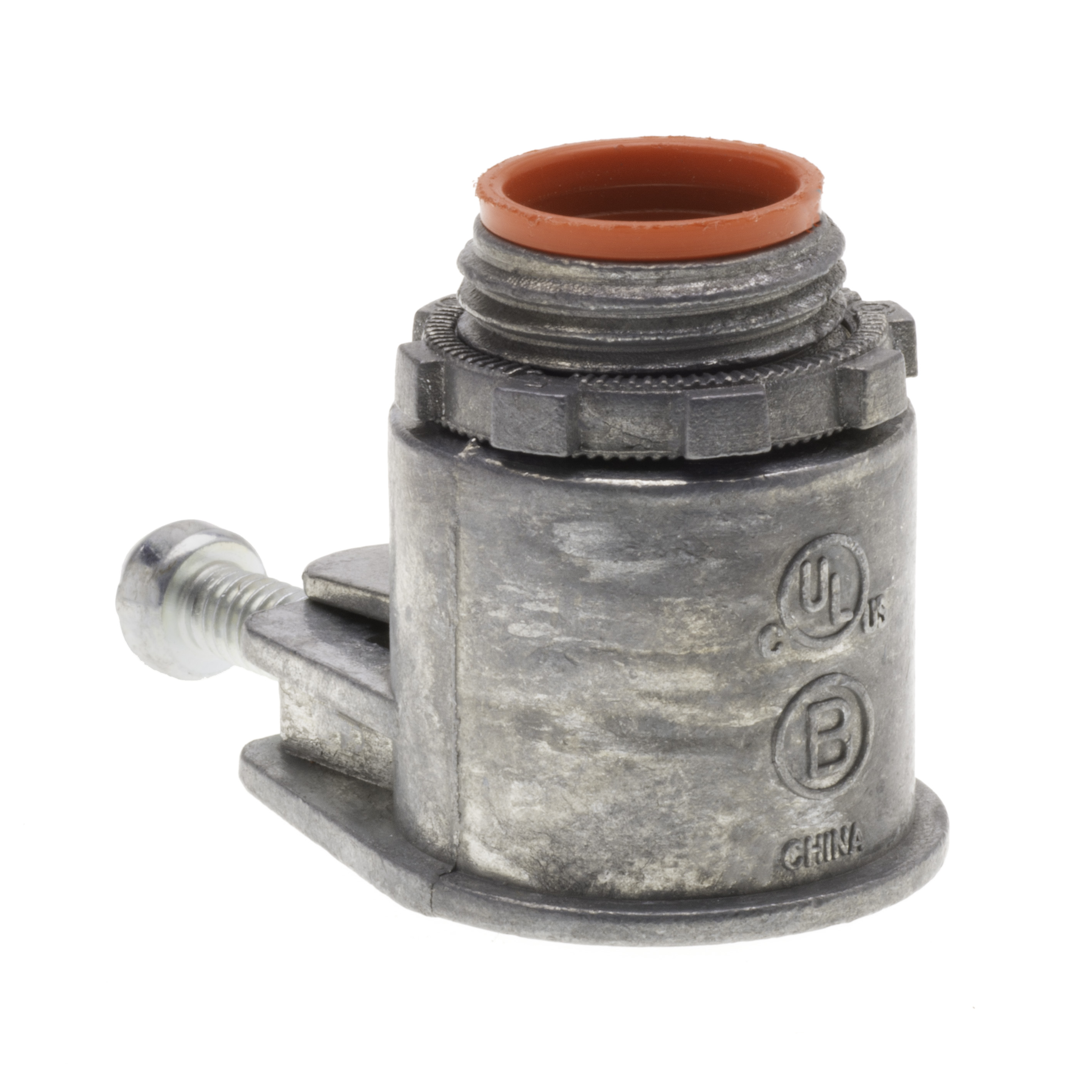

Insulated Single Screw Saddle Strap ACG90 Connector 1/2″, Zinc

#BL-17I

Use Bridgeport single screw saddle strap connectors to secure ACG90, AC, MC, FMC or MCI-A cable to an electrical box or enclosure. This connector’s single screw design makes securing the cable to the box knockout quick and easy.

  • Insulated Connector: Insulated throat offers superior protection against cable abrasion and is rated up to a temperature of 105℃ to prevent costly damage to wires
  • Quick Installation: The single screw design allows for a quicker installation than two-screw strap type fittings when securing cable into the connector
  • Zinc Body: Corrosion resistant die cast zinc connectors feature a precise fit and finish for a trouble-free performance, ease of assembly and excellent corrosion resistance
  • Locknut: Reversible, double-serrated locknut design and die cast zinc precision ensures an easy spin-on connection and eliminates cross-threading
  • Professional Performance: All Bridgeport fittings are NRTL listed and meet the stringent bonding and grounding requirements of UL-514B

Product Information

Material Zinc Die Cast
Pack Qty 200
GTIN 00781747165671
UPC 781747165671
EAN 0781747165671
UNSPSC 39121419
Origin Country CN
Ul Standard UL-514B
Ul File No E9391
Application Recommended cable types used to connect corrugated or interlocked MC, AC or FMC cable to box or enclosure. Insulated Throat – 105 DegreeC. 8/3 AC90, 8/3 OR 6/3 MCI-A

Resources

Documents

  • BPT_BL-17I_ProDraw.pdf Download
  • BPT_MCPRODUCTS_CCF_PRODBRO_Digital.pdf Download
