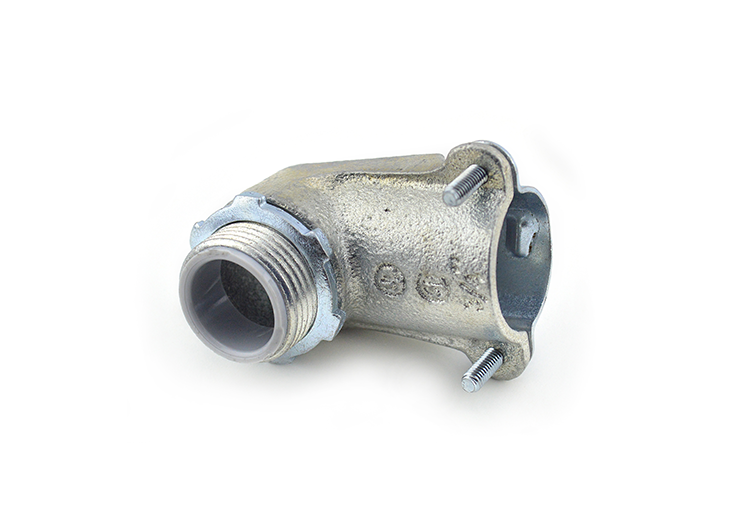

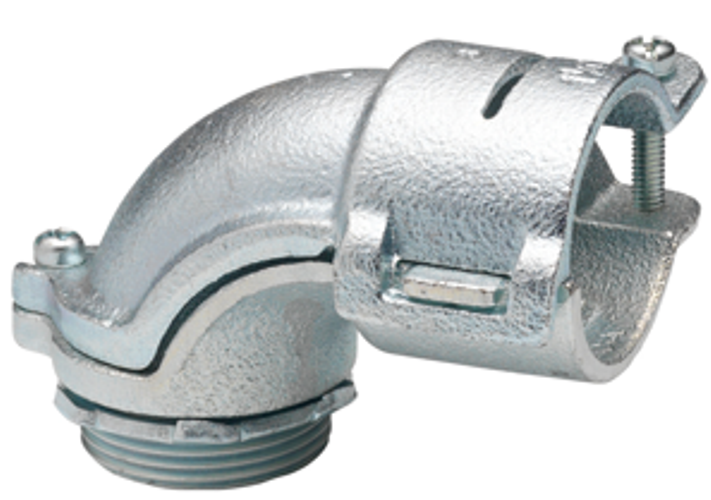

Insulated 90-Degree Connector 3/4″, Malleable Iron
#806-I
Use Bridgeport 90-degree connectors to join flexible metal conduit to an electrical box or enclosure at a 90-degree angle. An insulated throat protects inner wiring up to a temperature of 105°C.
- Insulated Throat: Insulated throat protects inner wiring up to 105°C
- Sizing: For use with flex trade size 3/4" FMC when installing through a 3/4" knockout
- 90-Degree Connections: This connector allows you to connect flexible metal conduit to an electrical box or enclosure at a 90-degree angle
- Malleable Iron: Heavy-duty malleable iron has the strength, rigidity, ability to flex without breaking, fracture toughness and impact resistance for use in tough environments
- Safety Compliance: All Bridgeport squeeze connectors are UL listed and RoHS compliant
Product Information
| Material | Malleable Iron |
|---|---|
| Finish | Zinc electro-plate |
| Pack Qty | 50 |
| GTIN | 00781747108067 |
| UPC | 781747108067 |
| EAN | 0781747108067 |
| UNSPSC | 39121419 |
| Ul Standard | UL-514B |
| Ul File No | E9391 |
| Application | 90 Degrees fitting with cover for connecting flexible metal conduit to box or enclosure. Plastic insulator rated 105 degree C. |
Resources
Documents
- BPT_806-I_ProDraw.pdf Download
