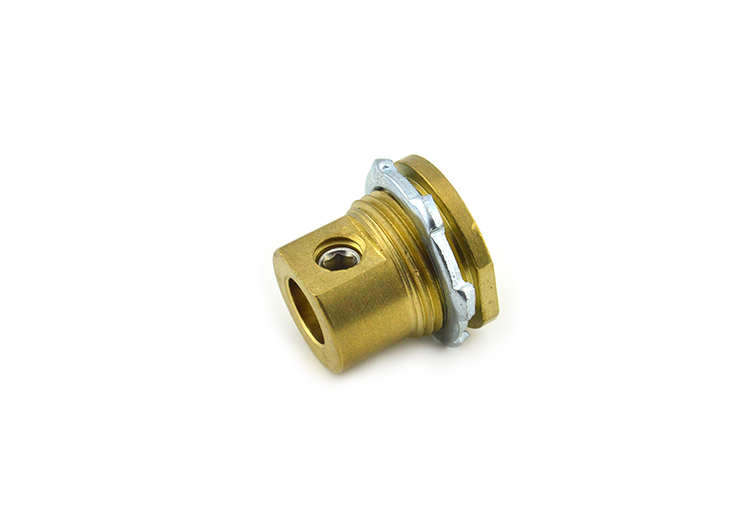

Enclosure Grounding Connectors and Couplings, 3/4″, Brass
#MC-075
Use the Bridgeport Mighty-Bond 3/4″ Brass Enclosure Grounding Connectors and Couplings with a zinc die cast locknut and stainless steel set screws to secure one continuous length of grounding conductors to an enclosure through a 3/4″ knockout.
- Brass Construction: The highly versatile malleable brass is durable, tolerates high temperatures and resists corrosion
- Mighty-Bond®: The patented Mighty-Bond precision-machined brass body with stainless steel set screws is low-cost and easy to install
- Professional Performance: All Bridgeport fittings meet OSHA-recognized NRTL-listed electrical standards and the stringent bonding and grounding requirements of 514B or 467 cULus
- Conductor Range: Copper conductors: #4 to #2 AWG Solid, #4 to 3/0 AWG Stranded; Aluminum conductors: #2 to #3/0 AWG Stranded.
Product Information
| Finish | Plain |
|---|---|
| Pack Qty | 100 |
| GTIN | 00781747023513 |
| UPC | 781747023513 |
| EAN | 0781747023513 |
| UNSPSC | 39121613 |
| Origin Country | CN |
| Certifications | PROP65 https://www.p65warnings.ca.gov/ |
| Ul Standard | UL-467 |
| Ul File No | E20412 |
Resources
Documents
- BPT_MC-075_ProDraw.pdf Download
