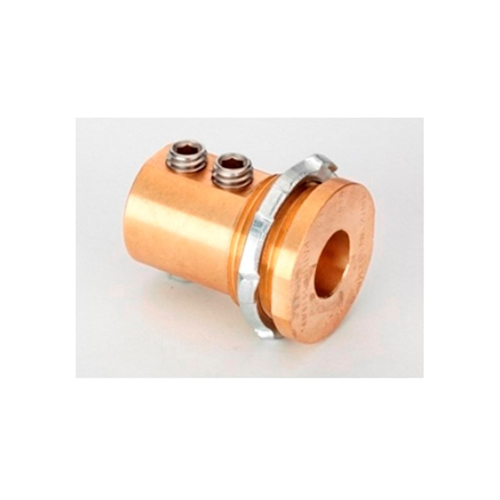

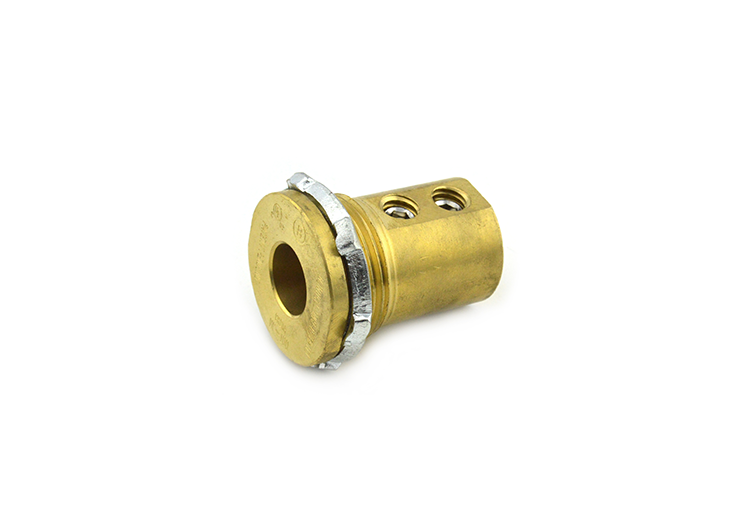

Enclosure Grounding Connectors and Couplings, 1″, Brass
#MC-100
Use the Bridgeport Mighty-Bond 1″ Brass Enclosure Grounding Connectors and Couplings with a zinc die cast locknut and stainless steel set screws to secure one continuous length of grounding conductors to an enclosure through a 1″ knockout.
- Brass Construction: The highly versatile malleable brass is durable, tolerates high temperatures and resists corrosion
- Mighty-Bond®: The patented Mighty-Bond precision-machined brass body with stainless steel set screws is low-cost and easy to install
- Professional Performance: All Bridgeport fittings meet OSHA-recognized NRTL-listed electrical standards and the stringent bonding and grounding requirements of 514B or 467 cULus
- Conductor Range: Copper conductors: #1/0 to 250 MCM Stranded; Aluminum conductors: 3/0 to 4/0 AWG Compact Stranded.
Product Information
| Material | Brass |
|---|---|
| Pack Qty | 40 |
| GTIN | 00781747023520 |
| UPC | 781747023520 |
| EAN | 0781747023520 |
| UNSPSC | 3912163 |
| Origin Country | CN |
| Certifications | PROP65 https://www.p65warnings.ca.gov/ |
| Ul Standard | UL-467 |
| Ul File No | E20412 |
Resources
Documents
- BPT_MC-100_ProDraw.pdf Download
