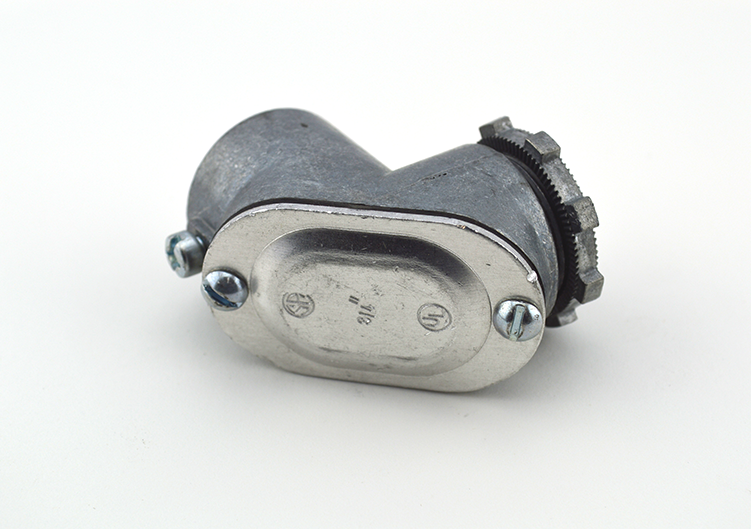

EMT Pull Elbow Connector 3/4″, Zinc, With Removable Cover

#52-DC2

Bridgeport 3/4″ EMT Pull Elbows ensure a high-quality connection between a section of EMT and the electrical junction box or enclosure. The pull elbow comes with a removable cover that facilitates wire pulling and any system changes.

  • Removable Aluminum Cover: Bridgeport pull elbows feature a removable aluminum cover to facilitate wire pulling and ensure easy access for maintenance or future system changes
  • Zinc Die Cast Body: The zinc die cast body is naturally resistant to corrosion for long-term use in any environment
  • Zinc-Plated Steel Set Screws: The set screws ensure that the EMT conduit can be securely fastened once in place

Product Information

Material Zinc Die Cast
Finish Ball burnished, mirror smooth, Cover: Zinc electro-plate
Pack Qty 50
GTIN 00781747150523
UPC 781747150523
EAN 0781747150523
UNSPSC 39131717
Certifications PROP65 https://www.p65warnings.ca.gov/
Ul Standard UL-514B
Ul File No E9391
Application Used to connect EMT to box or enclosure. Removable steel cover and neoprene gasket to facilitate wire pulling.
