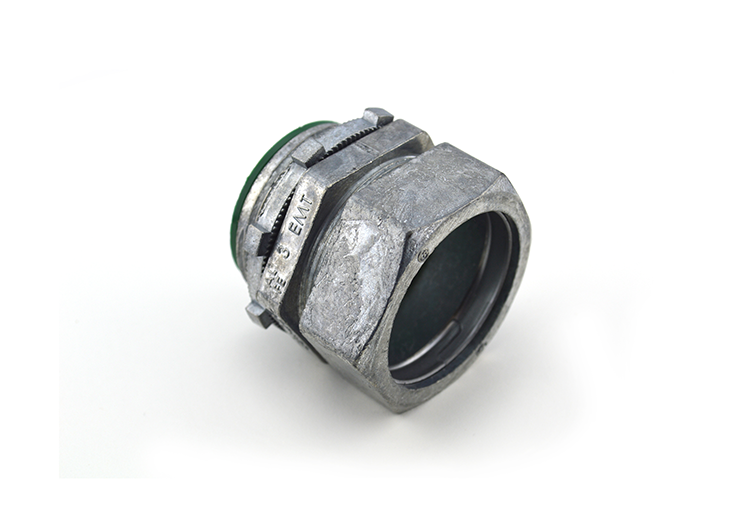

EMT Compression Connector 1-1/2″, Insulated Throat, Die Cast Zinc

#254-DCI2

Use Bridgeport screw-on insulated EMT compression connectors to join electrical metallic tubing to an electrical box or enclosure for a concrete-tight seal. An insulated throat protects inner wiring from abrasion and is rated up to 105°C.

  • Insulated Connector: An insulated throat offers superior protection against cable abrasion and is rated up to a temperature of 105℃
  • Zinc Body: Die cast zinc connectors feature a precise fit and finish for trouble-free performance, ease of assembly and excellent corrosion resistance in harsh environments
  • Tighter Seals: Zinc EMT compression connectors are UL Listed concrete-tight without the use of tape. They are also CSA Listed concrete-tight and raintight
  • Installation Flexibility: Zinc EMT compression connectors are suitable for use with aluminum and steel EMT. Sizes 2-1/2" to 4" may also be used with rigid conduit
  • Professional Performance: Zinc EMT compression connectors are UL Listed under File No. E24001 and meet the stringent bonding and grounding requirements of UL 514B

Product Information

Material Zinc Die Cast
Finish Ball burnished, Mirror smooth
GTIN 00781747162540
UPC 781747162540
EAN 0781747162540
UNSPSC 39121434
Origin Country US

Resources
