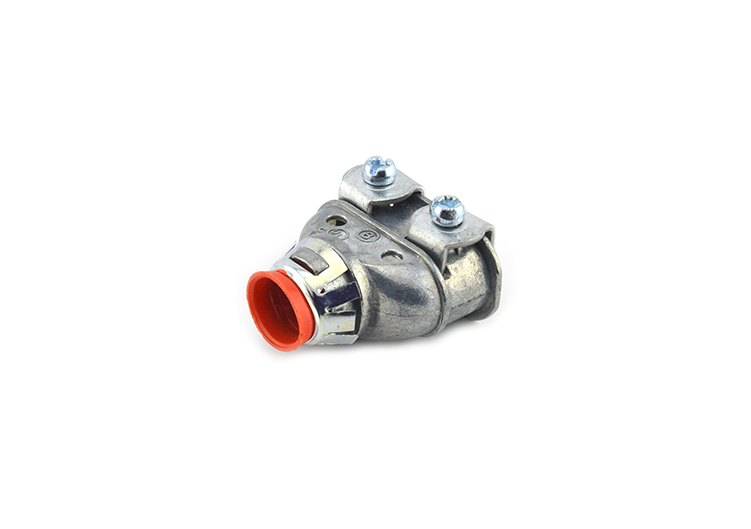

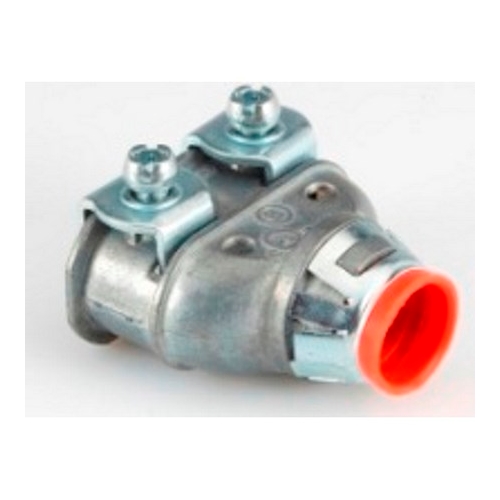

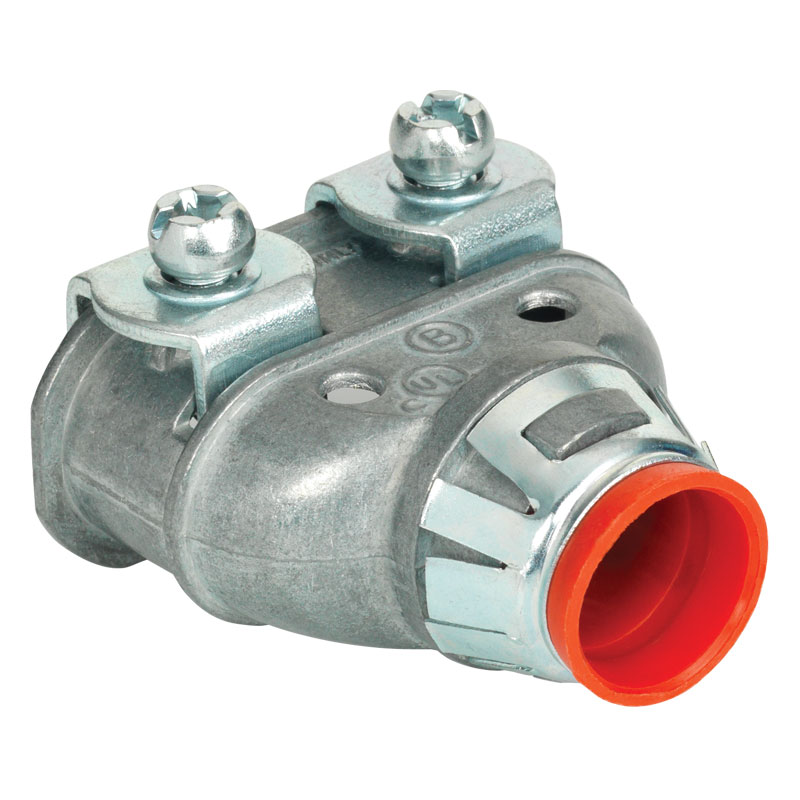

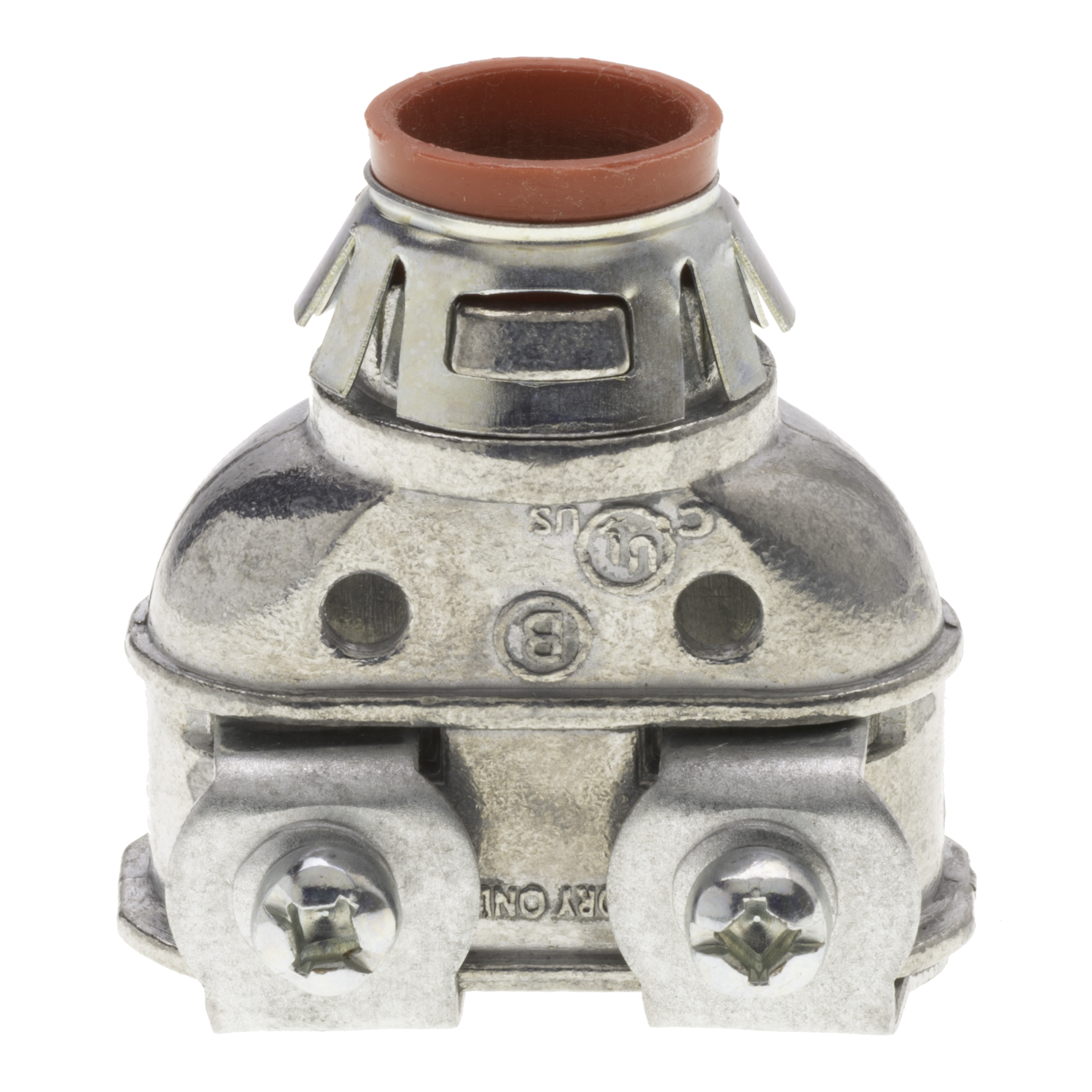

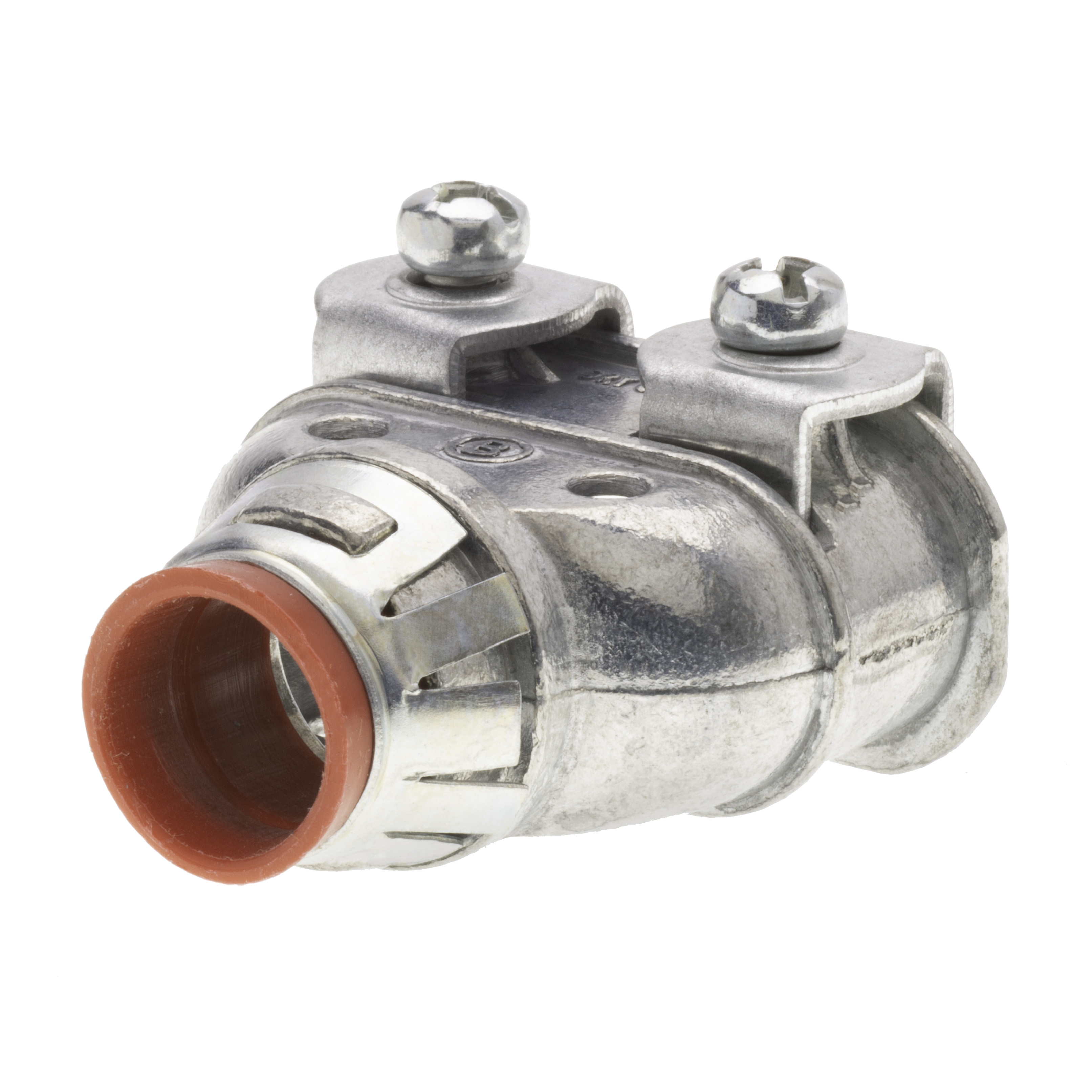

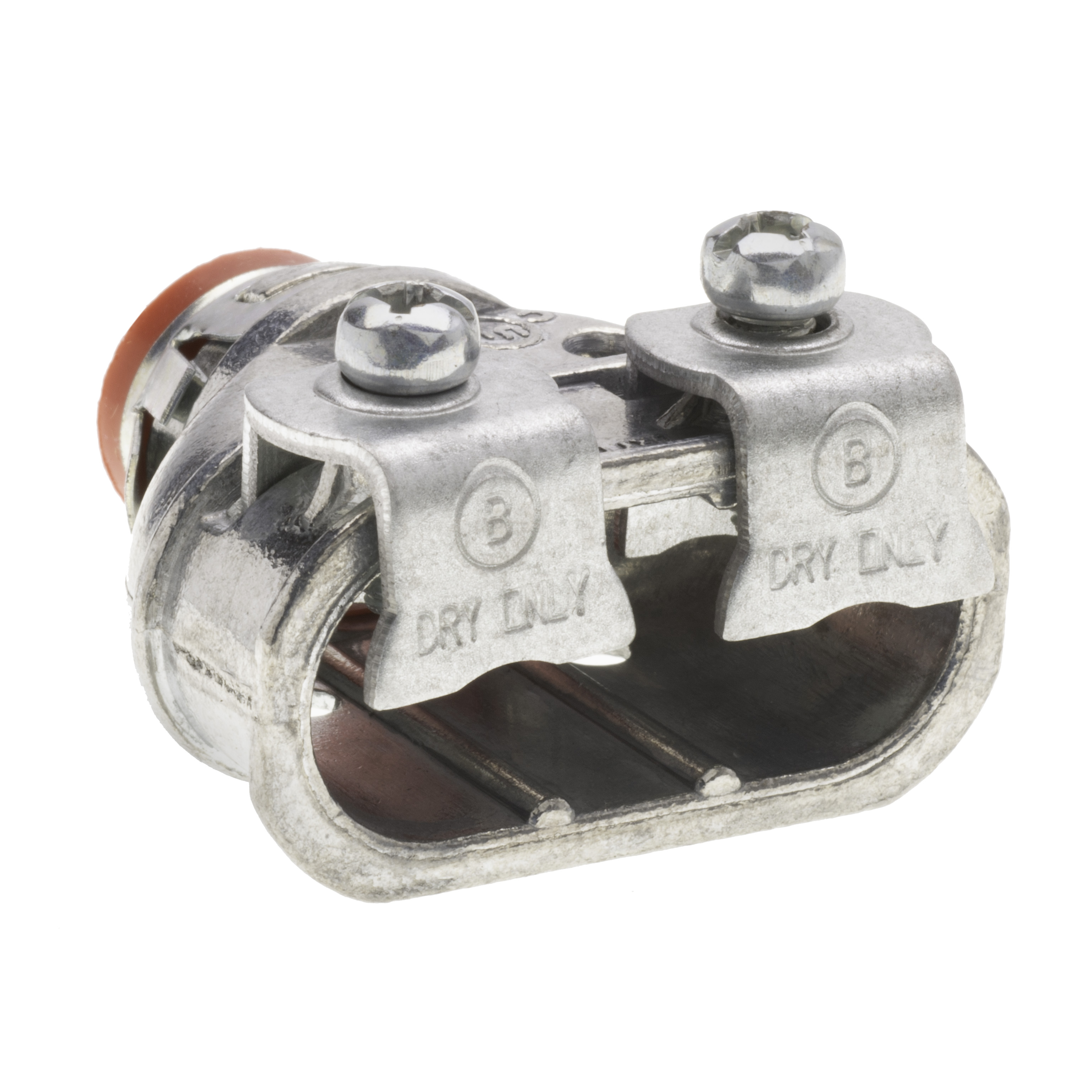

E-Z Lock® “U” Shaped Strap Duplex AC/MC Connector 3/8″, Zinc

#SG3838ASP

Use Bridgeport “U” shaped strap connectors to connect AC/MC cable or FMC to an electrical box or enclosure. The duplex design allows for two lengths of cable to be connected to a single knockout and the snap-in front requires no tools to install.

  • Quality and Speed: Bridgeport push-in connectors are specially designed to promote quality workmanship on every job and install faster than traditional designs
  • Snap-In Front: Making secure connections is easier than ever with the snap-in design of E-Z Lock®, featuring dual locking tabs to snap instantly into the knockout
  • Duplex Design: Supporting two cables in a single knockout saves you time during installation and money on hardware and labor
  • Insulated Connector: Insulated throat offers superior protection against cable abrasion and is rated up to a temperature of 105℃ to prevent costly damage to wires
  • Zinc Body: Corrosion resistant die cast zinc connectors feature a precise fit and finish for a trouble-free performance, ease of assembly and excellent corrosion resistance

Product Information

Material Zinc Die Cast Body with Steel Saddle Clamps and Insulated Throat
Finish Ball Burnish
Pack Qty 200
GTIN 00781747086914
UPC 781747086914
EAN 0781747086914
UNSPSC 39121438
Origin Country CN
Ul Standard UL-514B
Ul File No E20534

Resources

Documents

  • BPT_MCPRODUCTS_CCF_PRODBRO_Digital.pdf Download
  • BPT_SG3838ASP_ProDraw.pdf Download
