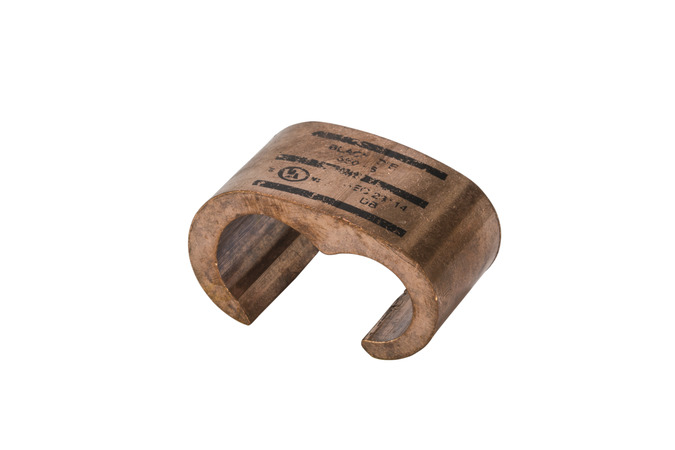

Copper C Tap 500-250 Main

#CTH-115

C Tap Copper 500-250 Main

  • These taps ensure positive, all-around compression with low resistance and high pull-out values
  • Made of high conductivity copper, they satisfy the requirements of NEC250 for connecting to the grounding electrode system
  • Rated for 600V applications

Product Information

Voltage Rating 600V
Material Copper
Pack Qty 6
GTIN 662381000000
UPC 662381000000
EAN 6.62381E+11
UNSPSC 39121448
Origin Country MX
Certifications cULus, UL Listed
Ul Standard UL 486A, UL 467
Wire Cable Class Class B, Class C
Conductor Type Copper
Assortment Copper Compression Taps
Application Tap
Die Color Code Yellow

Resources

Documents

  • POL_CTAP-CTH 111-117 SERIES_CMP_ProDraw_DIGITAL.pdf Download
