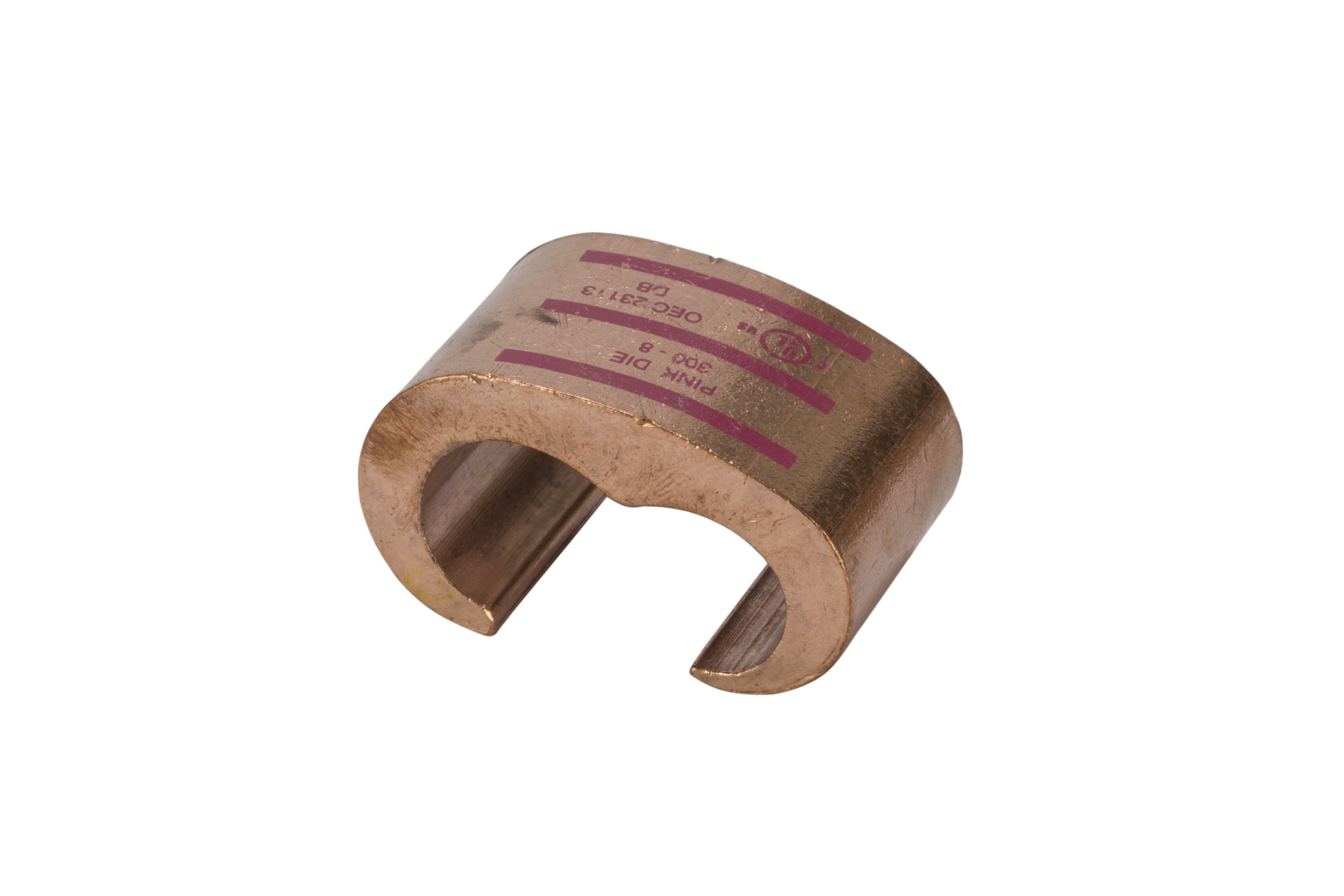

Copper C-Tap 300-2/0 Main
#CTH-113
Copper C-Tap for applications from 300-2/0 main wire size
- These taps ensure positive, all-around compression with low resistance and high pull-out values
- Made of high conductivity copper, they satisfy the requirements of NEC250 for connecting to the grounding electrode system
- Rated for 600V applications
- Rated for CLASS B OR C BUILDING WIRE CU CABLE ONLY.
- Rated for 600V applications
Product Information
| Voltage Rating | 600V |
|---|---|
| Material | Copper |
| Pack Qty | 12 |
| GTIN | 662381000000 |
| UPC | 662381000000 |
| EAN | 6.62381E+11 |
| UNSPSC | 39121448 |
| Origin Country | MX |
| Certifications | cULus, UL Listed, PROP65 https://www.p65warnings.ca.gov/ |
| Ul Standard | UL 486A, UL 467 |
| Wire Cable Class | Class B, Class C |
| Conductor Type | Copper |
| Tap Wire Size | 8 AWG |
| Wire Range | 300 MCM-8 AWG |
| Assortment | Copper Compression Taps |
| Die Color Code | Pink |
Resources
Documents
- POL_CTAP-CTH 111-117 SERIES_CMP_ProDraw_DIGITAL.pdf Download
