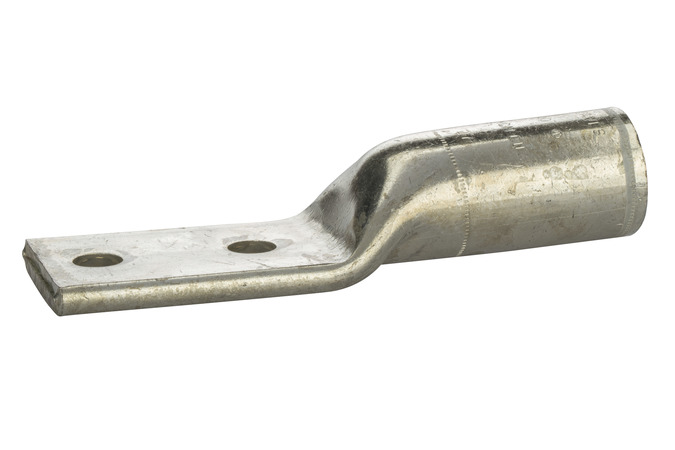

AL/CU CMP Lug 1/0 AWG 1/2 Bolt Size
#AL1/0-48
CMP Lug Al/Cu 1/0 AWG 1/2 Bolt Size
Product Information
| Voltage Rating | 35kV |
|---|---|
| Material | Aluminum |
| Finish | Tin Plated |
| GTIN | 662381030054 |
| UPC | 662381030054 |
| EAN | 662381030054 |
| UNSPSC | 39121409 |
| Origin Country | IN |
| Certifications | cULus |
| Ul Standard | UL486A/B |
| Huskie Tools | EP510C |
| Tb Die | 15530 |
| Tb Tools | TBM-15, TBM-14M, 13100A |
| Burndy Tools | Y-35, T750, PAT750 |
| Ilsco Tools | ILC-12, ILC-12H, ILC-15 |
| Greenlee Tools | EK, RK HK1240 Series |
| Nsi Tools | N1240, N12ID |
| Barrel Inside Diameter | 0.39 |
| Barrel Outside Diameter | 0.63 |
| Ul File No | E155027 |
| Wire Cable Class | Class B, Class C |
| Al Conductor Max Amp | 230 |
| Cu Conductor Max Amp | 290 |
| Conductor Cu Size Range | 250 MCM-6 AWG |
| Conductor Al Size Range | 250 MCM-6 AWG |
| Conductor Type | Copper, Aluminum |
| Tang Thickness | 0.24 |
| Tang Length | 0.93 |
| Temp Rating | 90C, AL9CU |
| Mounting Hole Pos | 0.5 |
| Hole Count | 1 |
| Conductors Count | 3 |
| Wire Range | 1/0 AWG |
| Assortment | Aluminum Compression Terminations |
| Application | Terminate |
| Expanded Wire Range | 1/0 AWG – 6 AWG |
| Die Color Code | Tan |
| Mounting Hole Diameter | 0.52 |
| Max Torque | 360 |
| Barrel Length | 1.2 |
