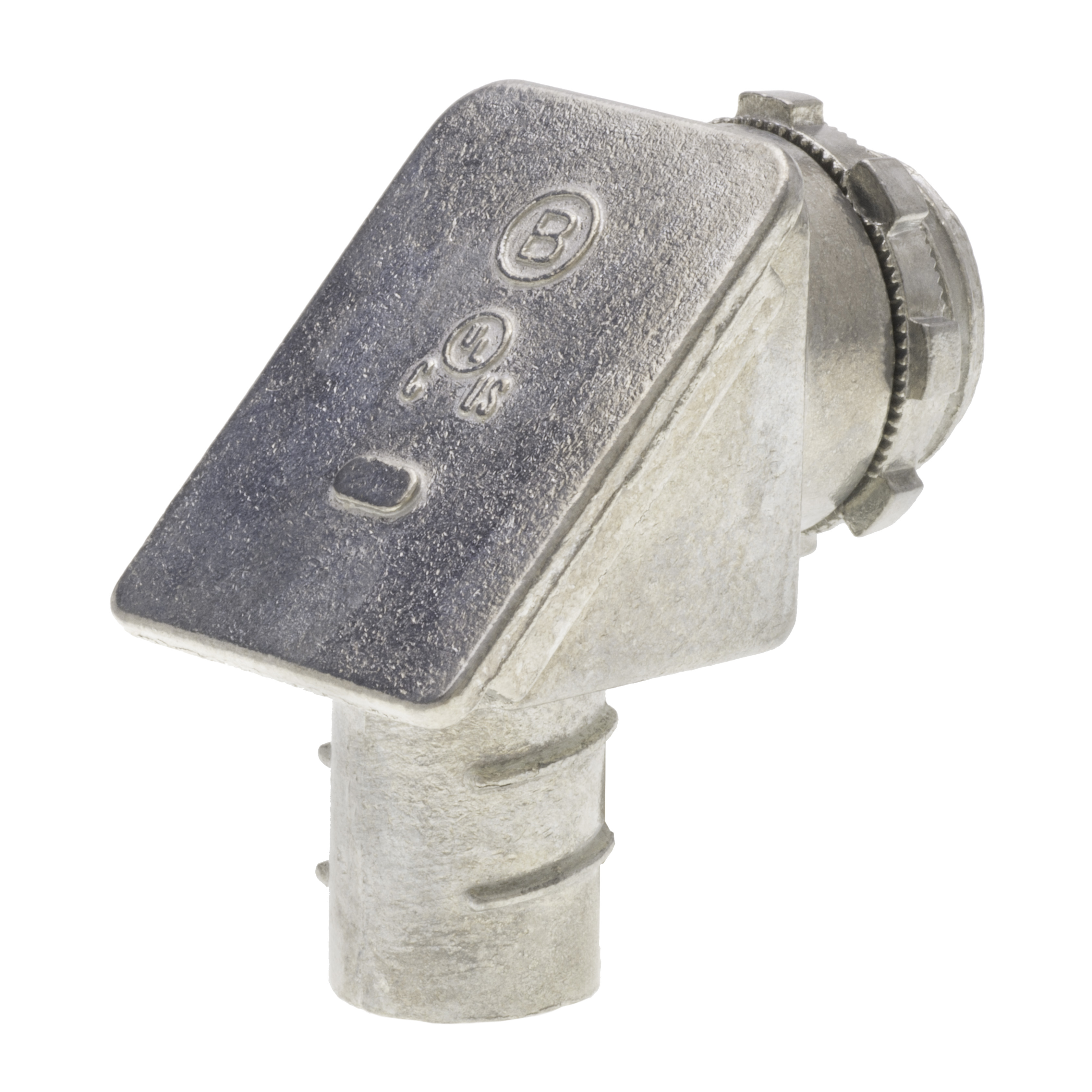

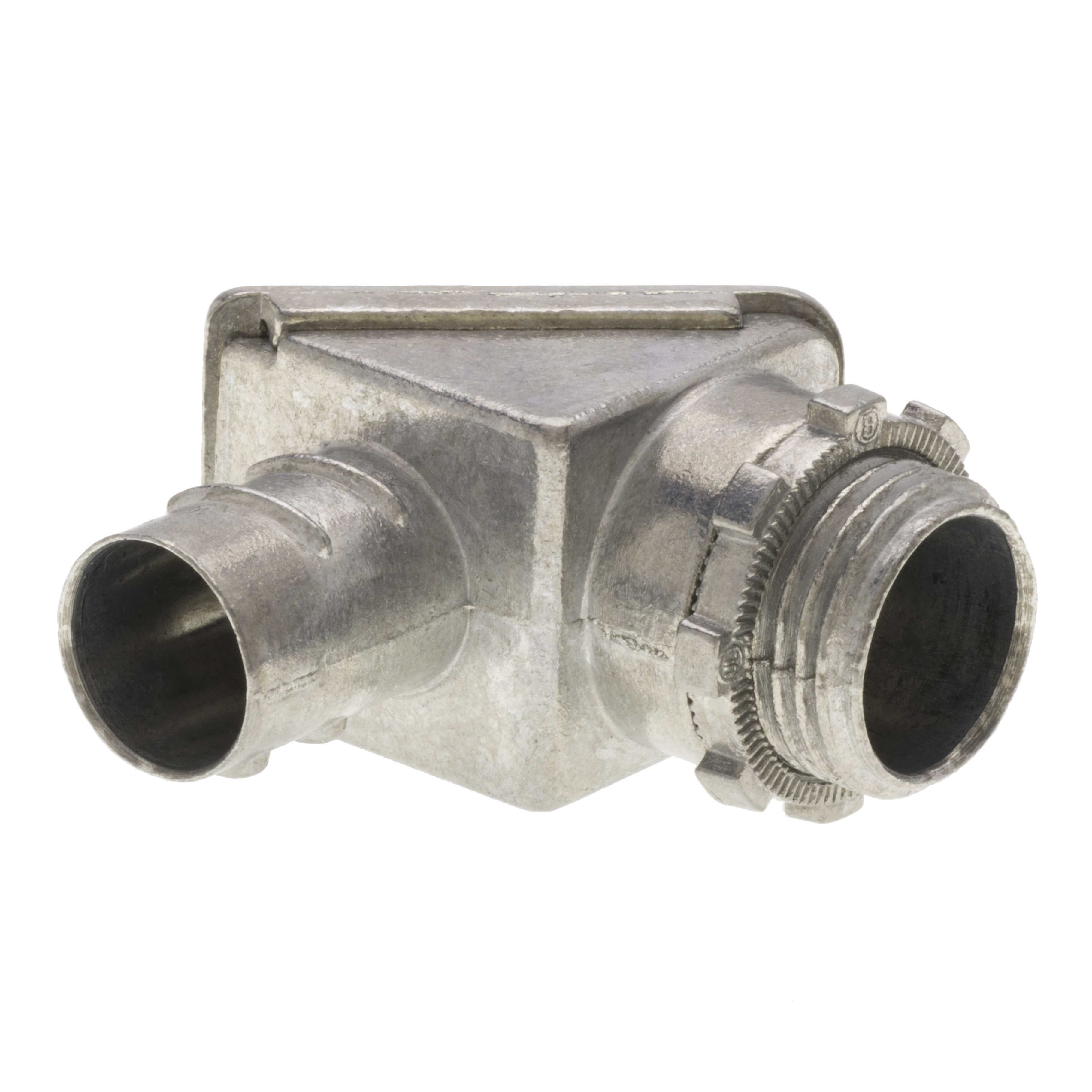

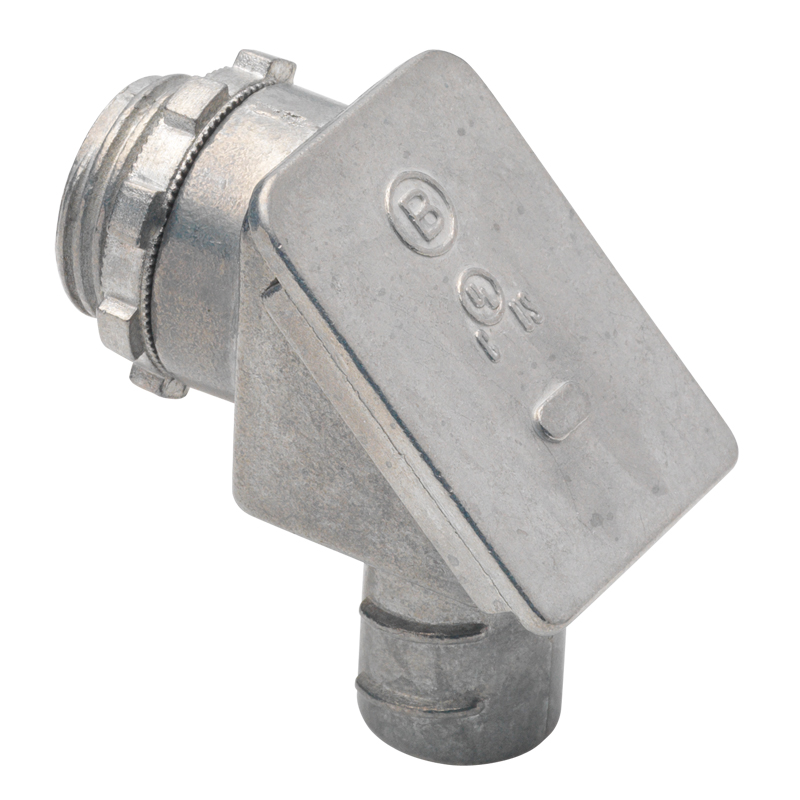

90-Degree Screw-In Connector 1/2″
#91-DC2
Use Bridgeport 90-degree connectors to join flexible metal conduit to an electrical box or enclosure at a 90-degree angle. 91-DC2, 92-DC2 and 93-DC2 are fitted with sliding covers to facilitate wire pulling and inspection.
- Sliding Cover: Sliding cover allows for easy wire pulling and inspection
- Sizing: For connecting flex trade size 1/2" flexible metal conduit to a 1/2" knockout
- 90-Degree Connections: This connector allows you to connect flexible metal conduit to an electrical box or enclosure at a 90-degree angle
- Zinc Body: Die cast zinc connectors feature a precise fit and finish with excellent corrosion resistance when used in harsh environments
- Safety Compliance: Bridgeport 90-degree connectors are UL listed and RoHS compliant
Product Information
| Material | Zinc Die Cast |
|---|---|
| Pack Qty | 250 |
| GTIN | 00781747150912 |
| UPC | 781747150912 |
| EAN | 0781747150912 |
| UNSPSC | 39131717 |
| Ul Standard | UL-514B |
| Ul File No | E9391 |
| Application | Used to connect flexible metal conduit to box or enclosure. |
Resources
Documents
- BPT_91-DC2_ProDraw.pdf Download
