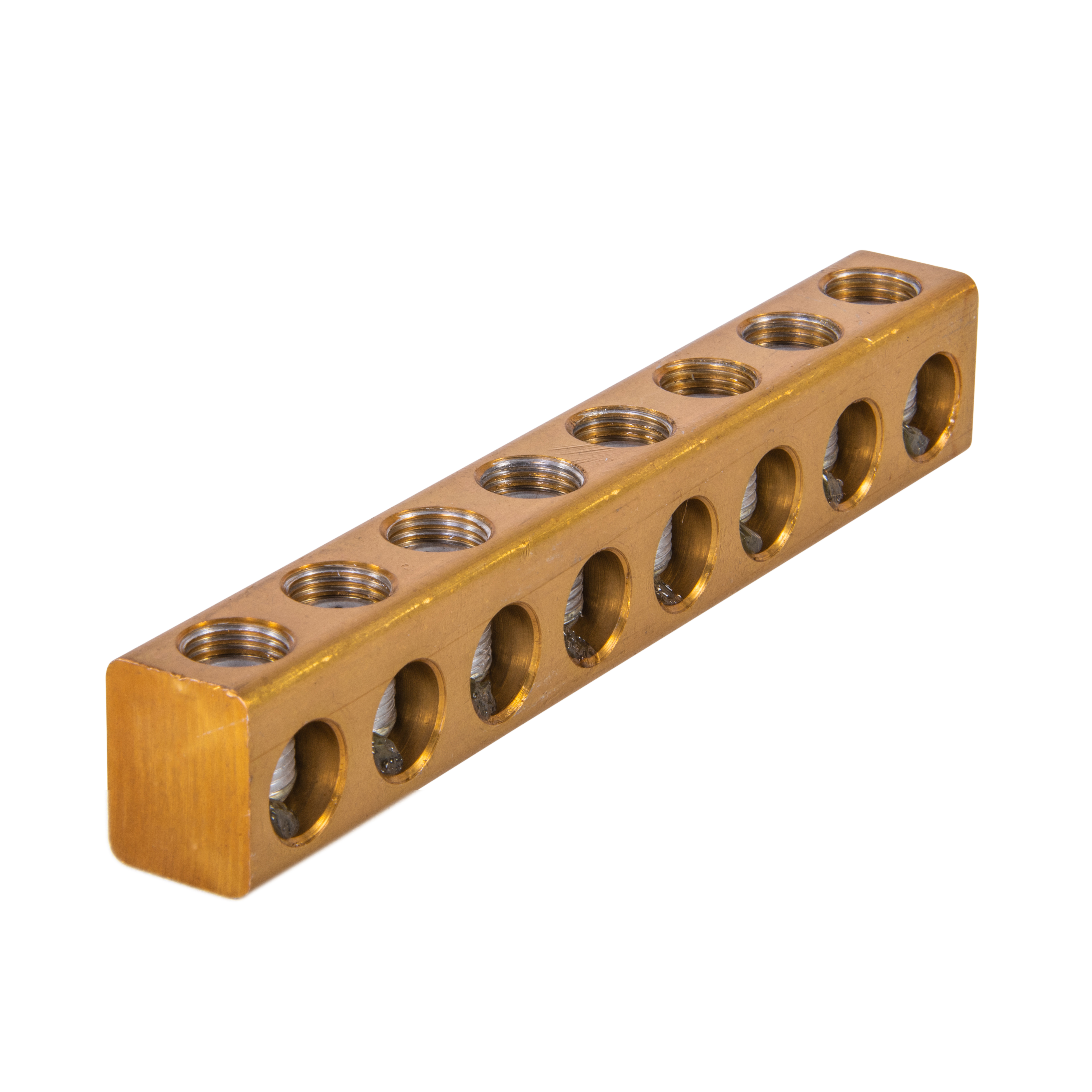

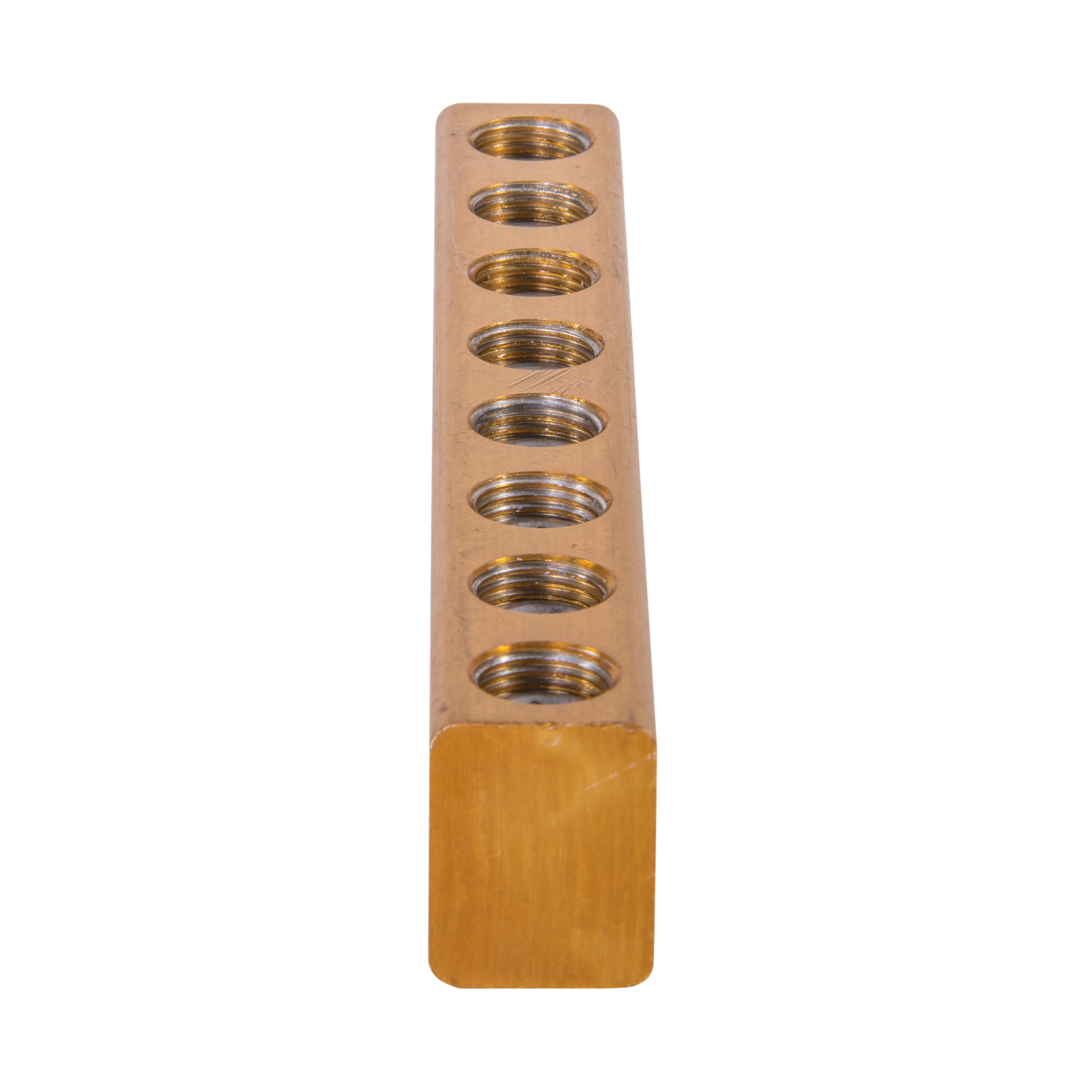

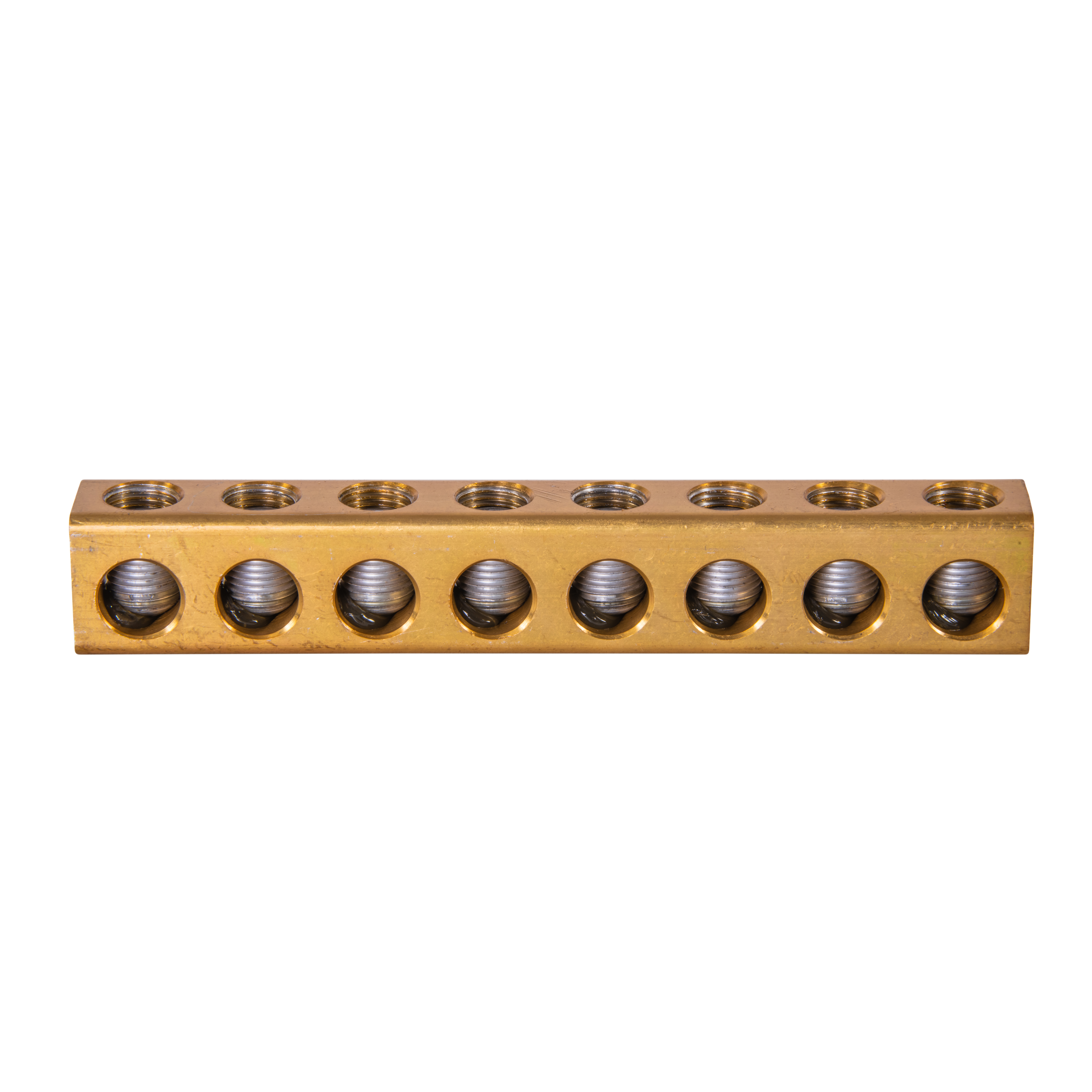

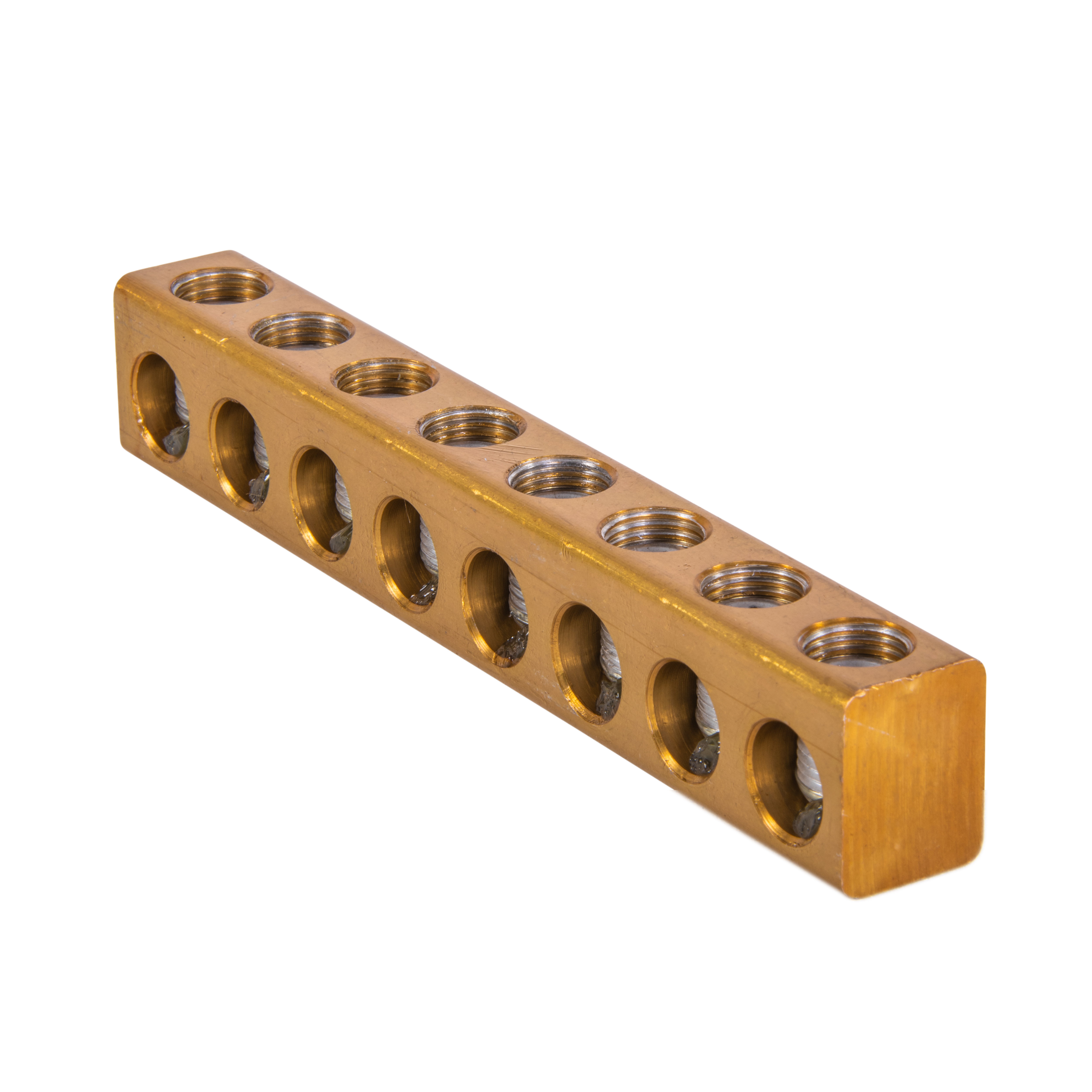

8-Port Uninsulated Multi-Tap Connector, 1/0 – 14 AWG


Polaris Uninsulated Multi-Tap Connectors form secure connections between multiple conductors with an efficient aluminum body plated for corrosion resistance. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Uninsulated Simplicity: Form secure connections between 8 conductors quickly using the pass-through entry ports sized for wires between 1/0 and 14 AWG
  • Functional Design: Rounded corners and a plated aluminum body make Polaris connectors comfortable to grip and durable for harsh environments
  • Tightens Fast: Each entry port features a hex-keyed set screw that can be easily tightened to provide a secure grip on the inserted conductor
  • Extreme Voltage: Choose uninsulated connectors for high-voltage connections, with a heavy-duty maximum voltage rating of 2000V
  • Best Connections: Aluminum alloy pass-through ports provide low-contact resistance to guarantee a strong connection

Product Information

Voltage Rating 2000 V
Material Aluminum
Finish Chromated
GTIN 662381901064
UPC 662381901064
EAN 662381901064
UNSPSC 39121409
Origin Country US
Certifications cULus
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C
Al Conductor Max Amp 135
Cu Conductor Max Amp 170
Conductor Cu Size Range 1/0 AWG – 14 AWG
Conductor Al Size Range 1/0 AWG – 12 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 8
Hex Wrench Size 3/16
Assortment Aluminum Mechanical Splices & Taps
Application Splice, Tap
Max Torque 180
