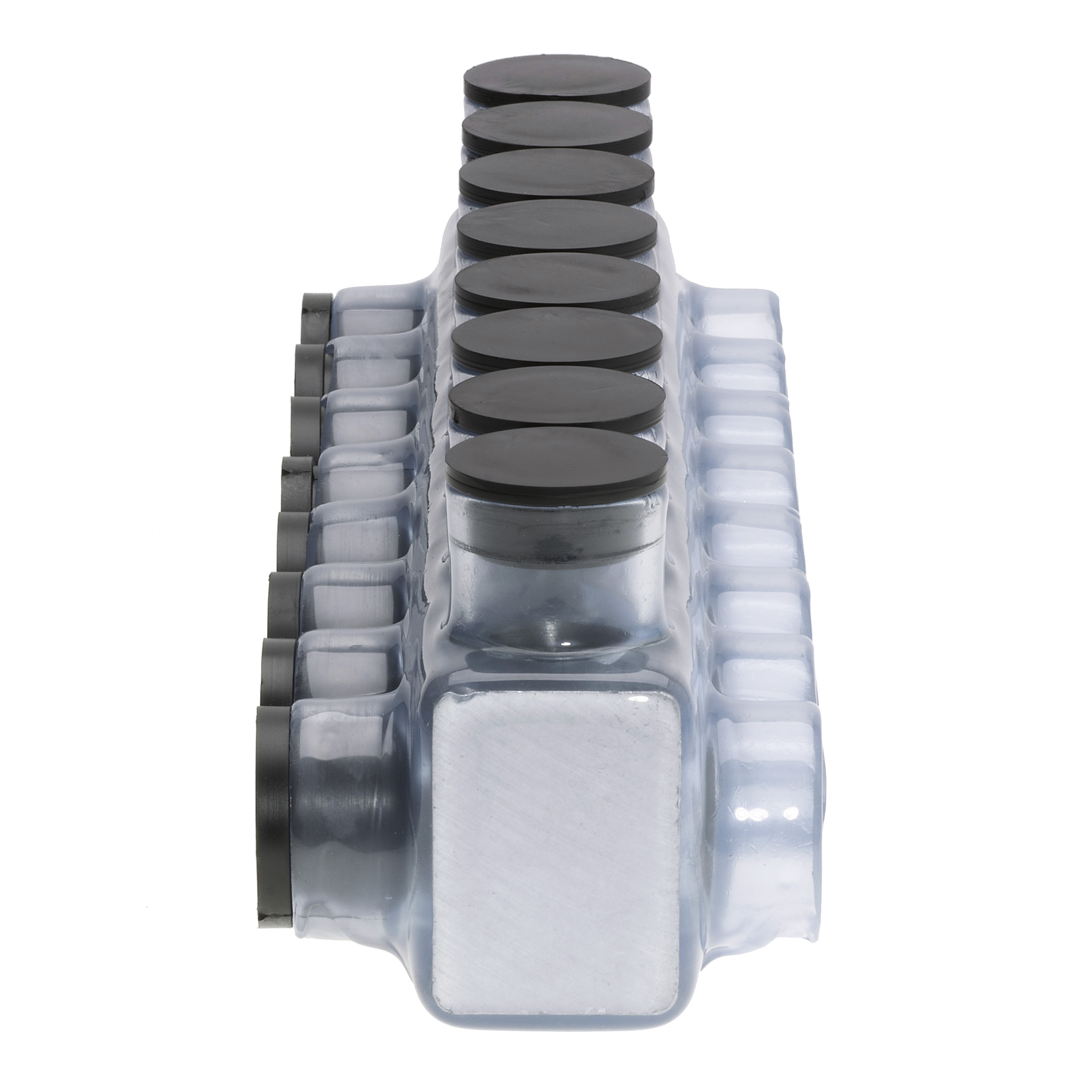

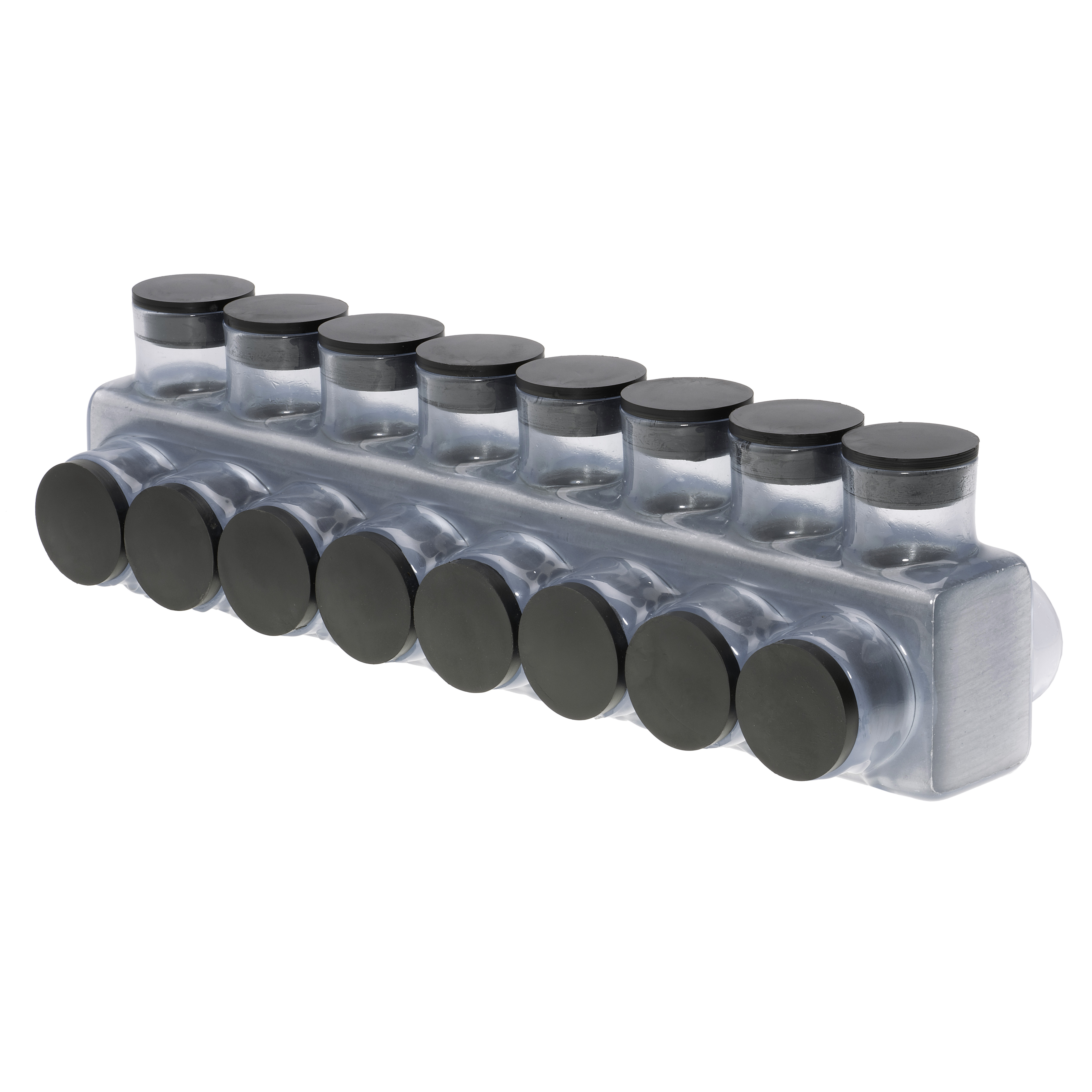

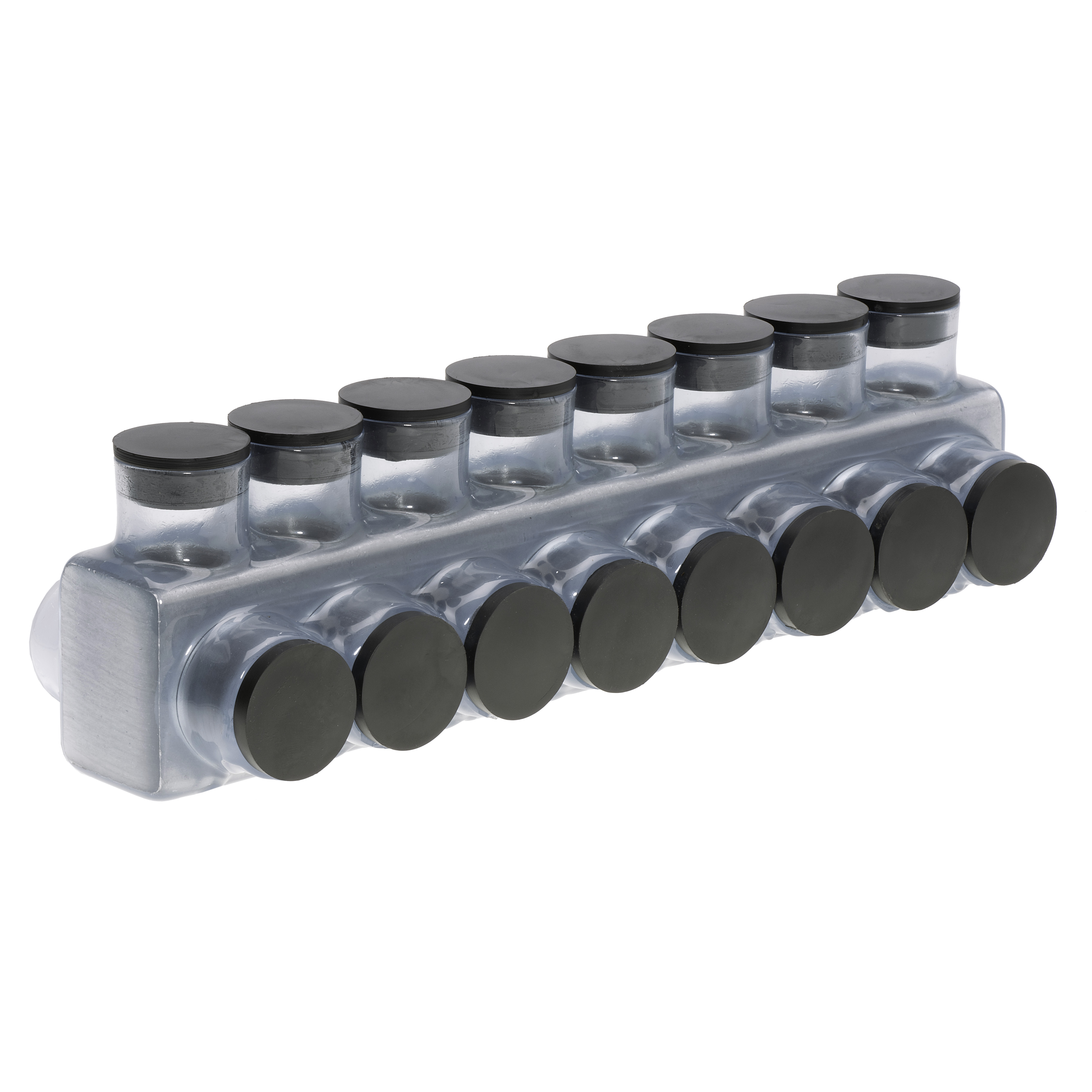

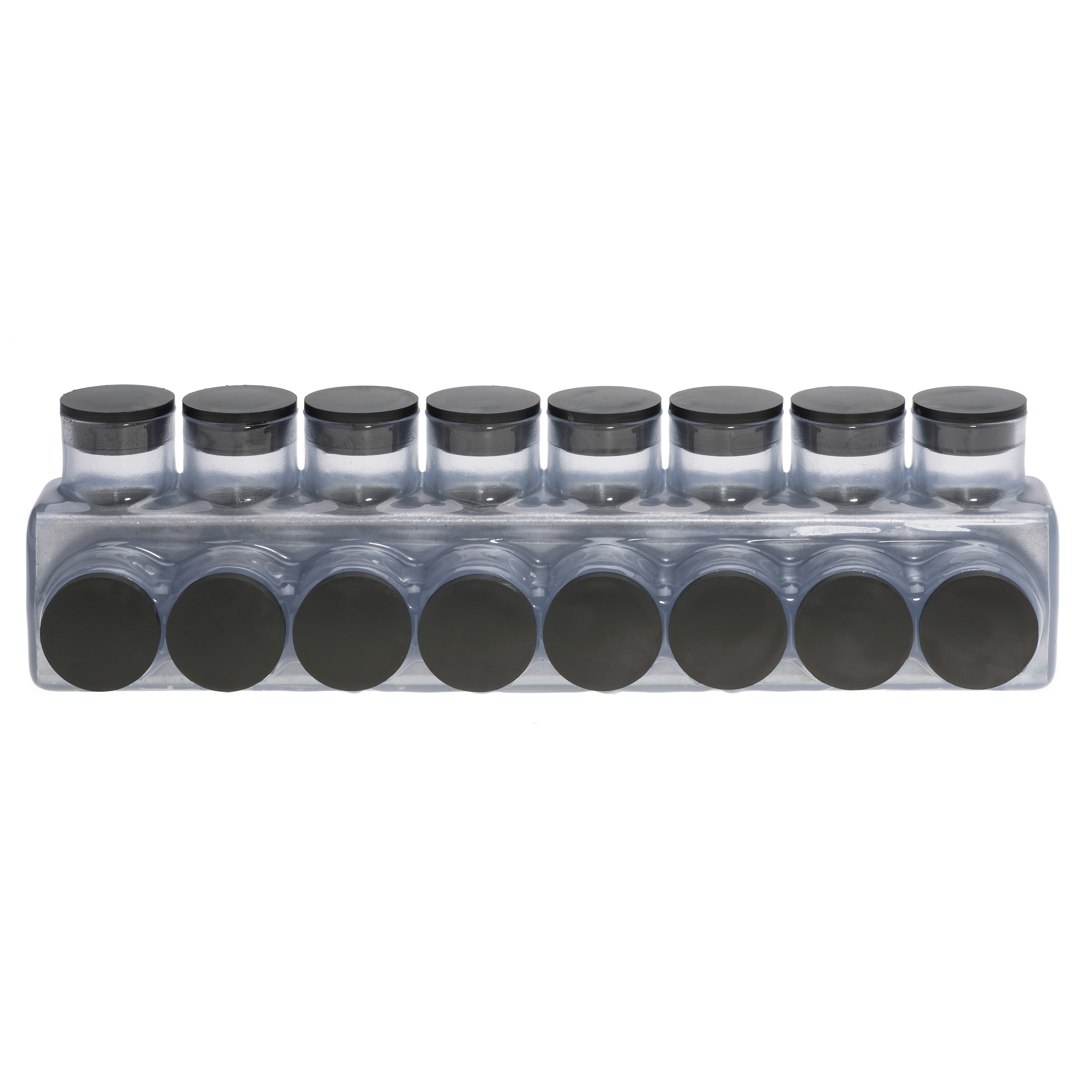

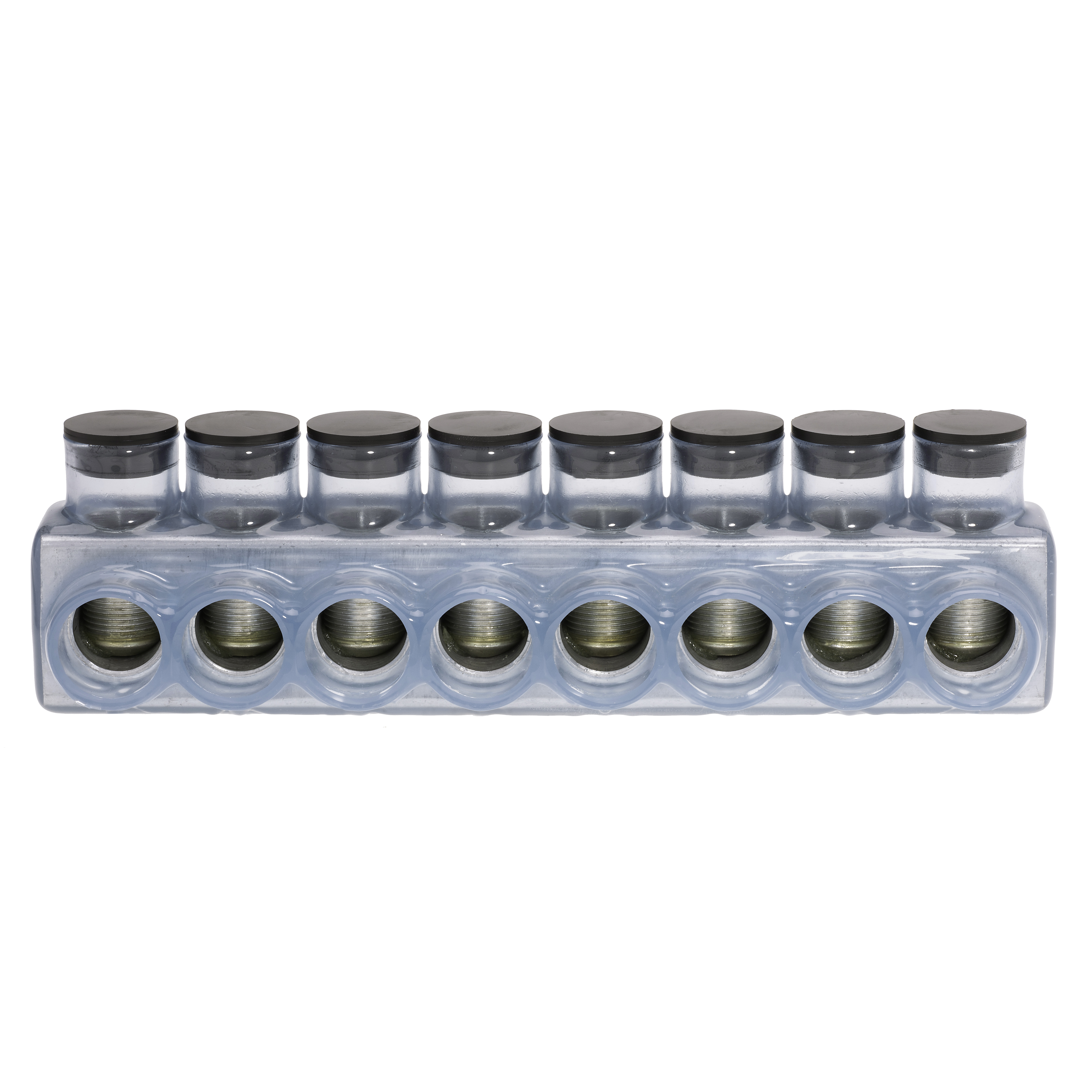

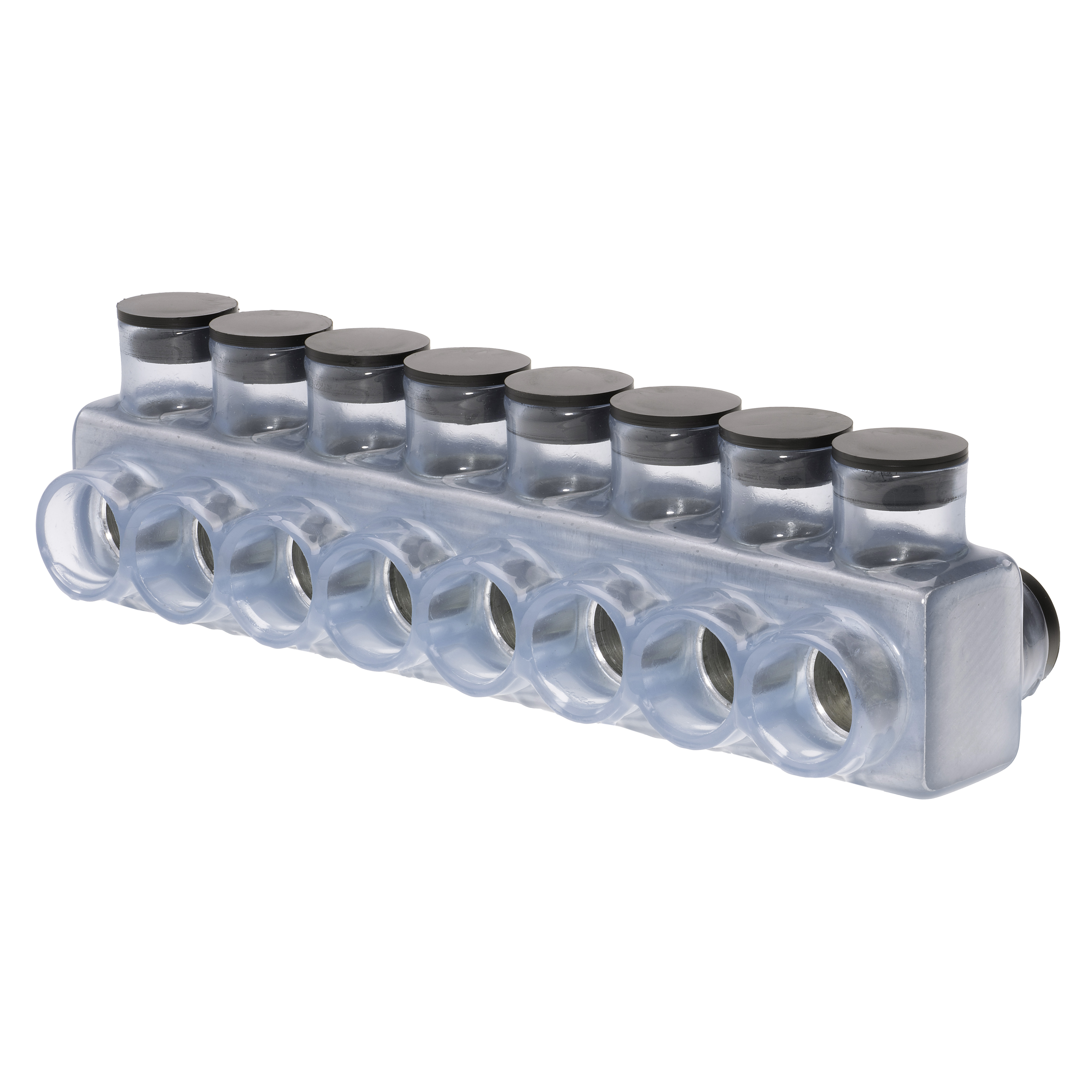

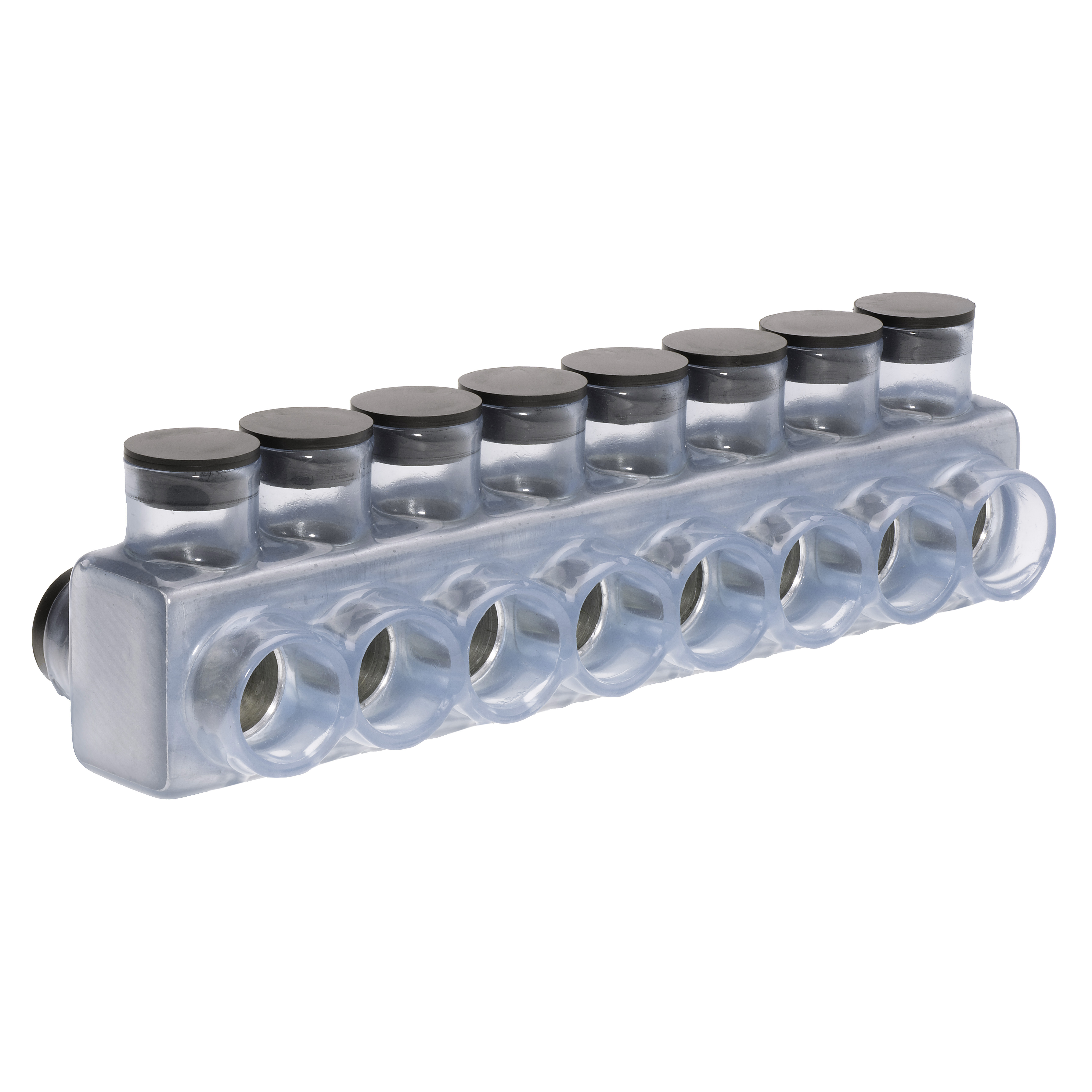

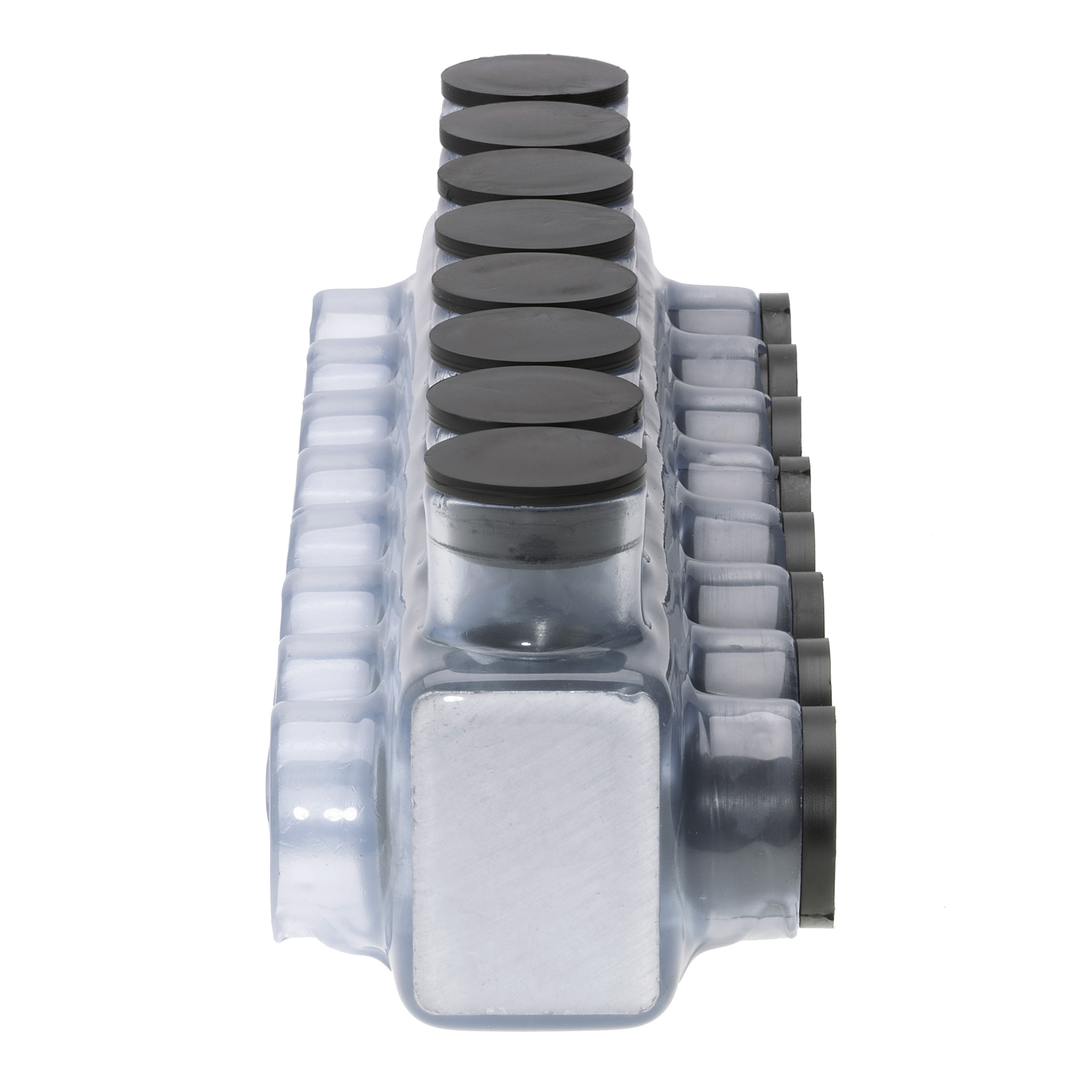

8-Port Clear Multi-Tap Pre-Insulated Connector, 600 MCM – 6 AWG

#IPLD600-8C

Polaris Vision Tap Multi-Tap Connectors form secure connections between multiple conductors with a transparent rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Clear Exterior: Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection
  • Dual-Sided Wire Entry: Form secure connections between 8 conductors quickly using the double-side entry ports sized for wires between 600 MCM and 6 AWG
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Pre-filled Oxide Inhibitor: All 8 dual-sided entry (DSE) ports are covered with plugs and pre-filled with an oxide inhibitor gel to prevent corrosion
  • Parallel Rated: This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Clear
Pack Qty 2
Origin Country US
Certifications cULus
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C
Al Conductor Max Amp 1620
Cu Conductor Max Amp 2070
Conductor Cu Size Range 600 MCM-6 AWG
Conductor Al Size Range 600 MCM-6 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 8
Hex Wrench Size 5/16
Env Temp Cold Temperature rated to -45C
Assortment Clear Coated Pre-Insulated Connectors
Application Splice, Tap
Max Torque 550
