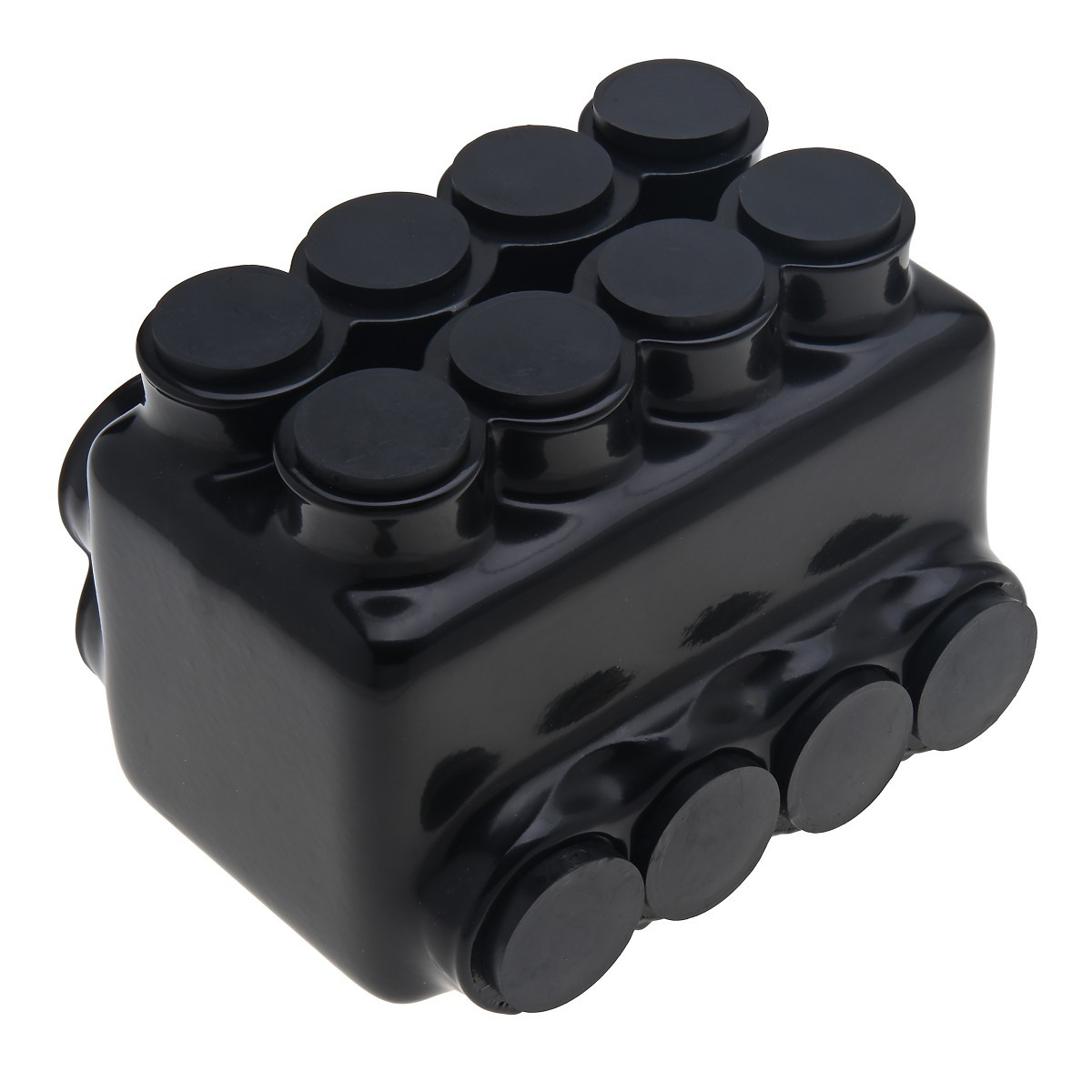

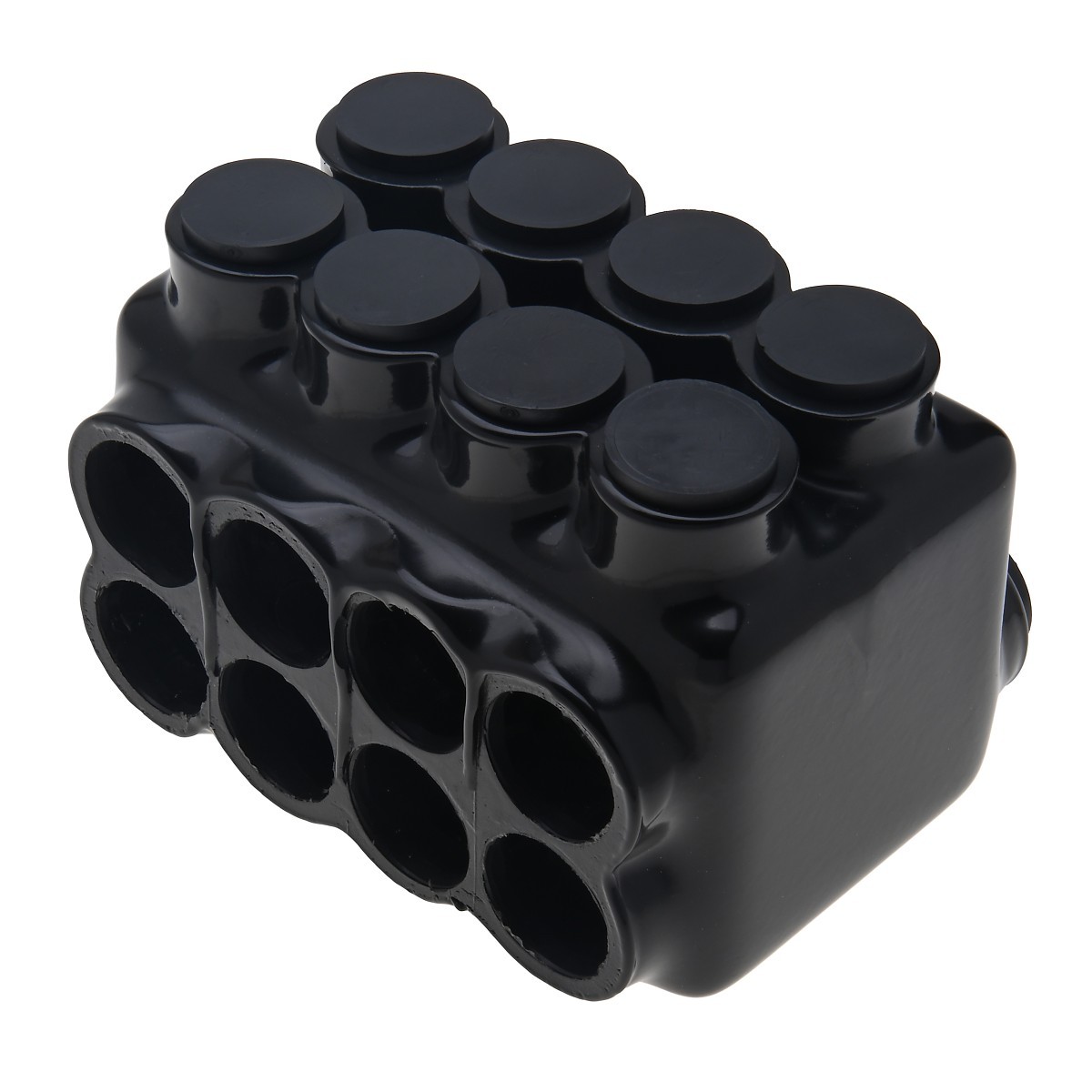

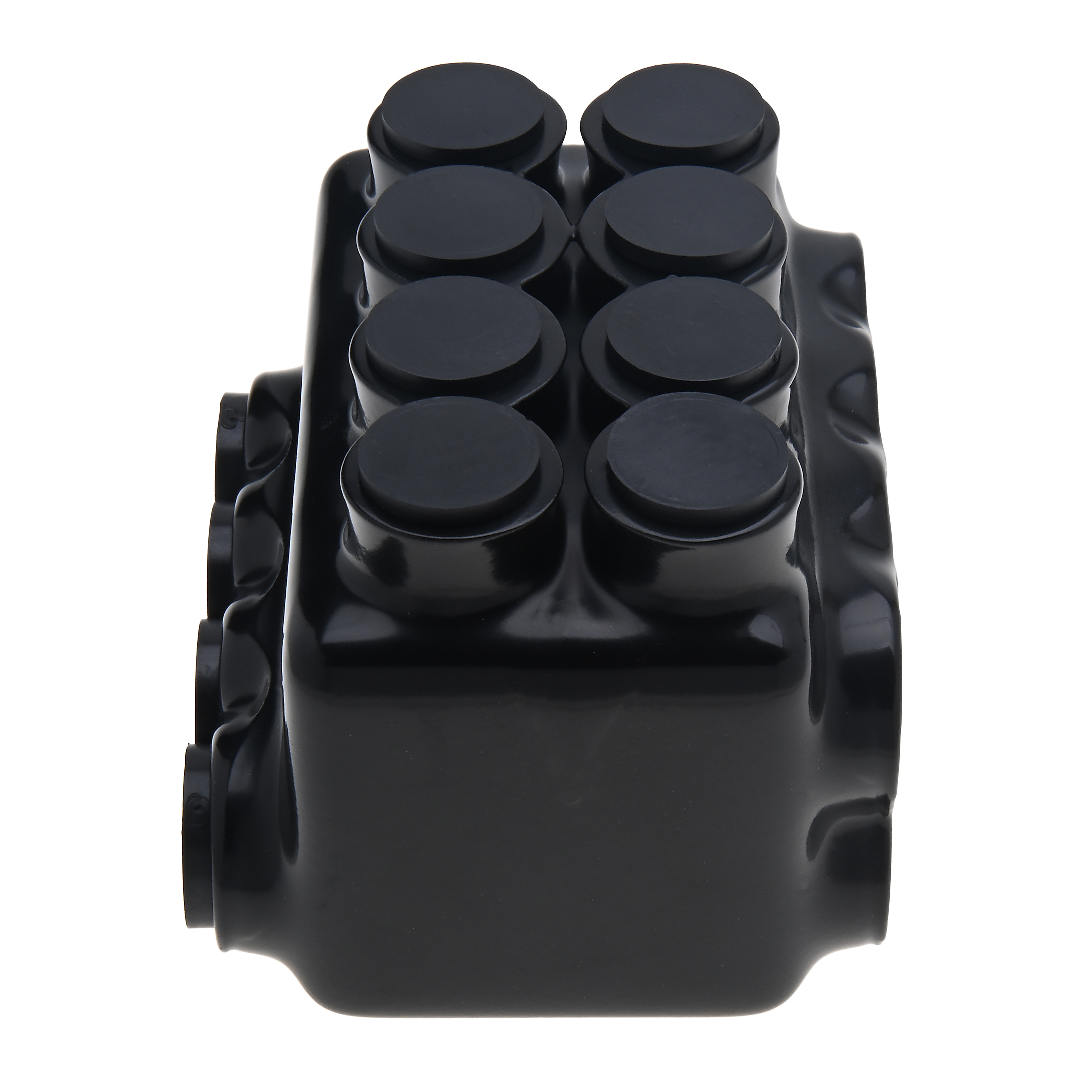

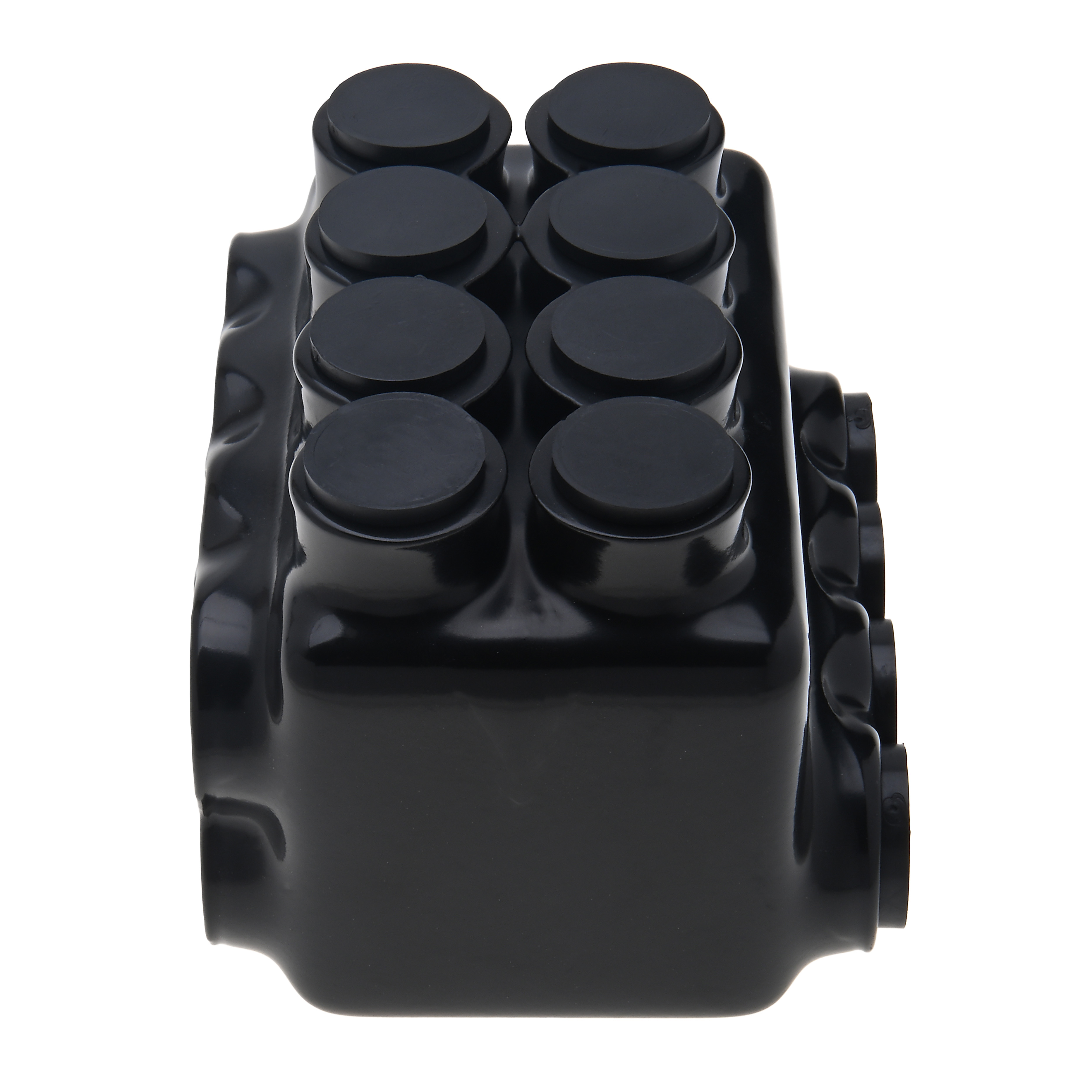

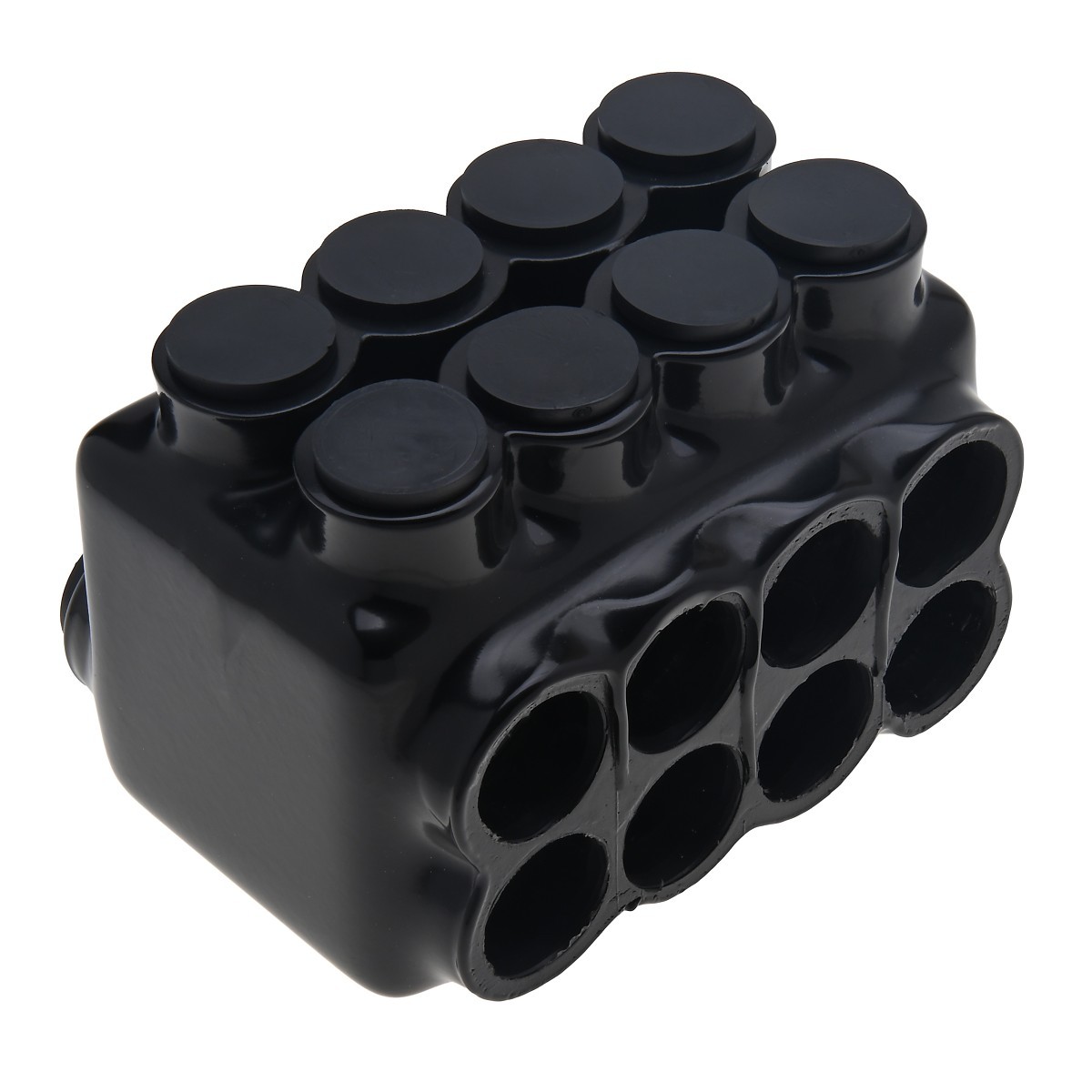

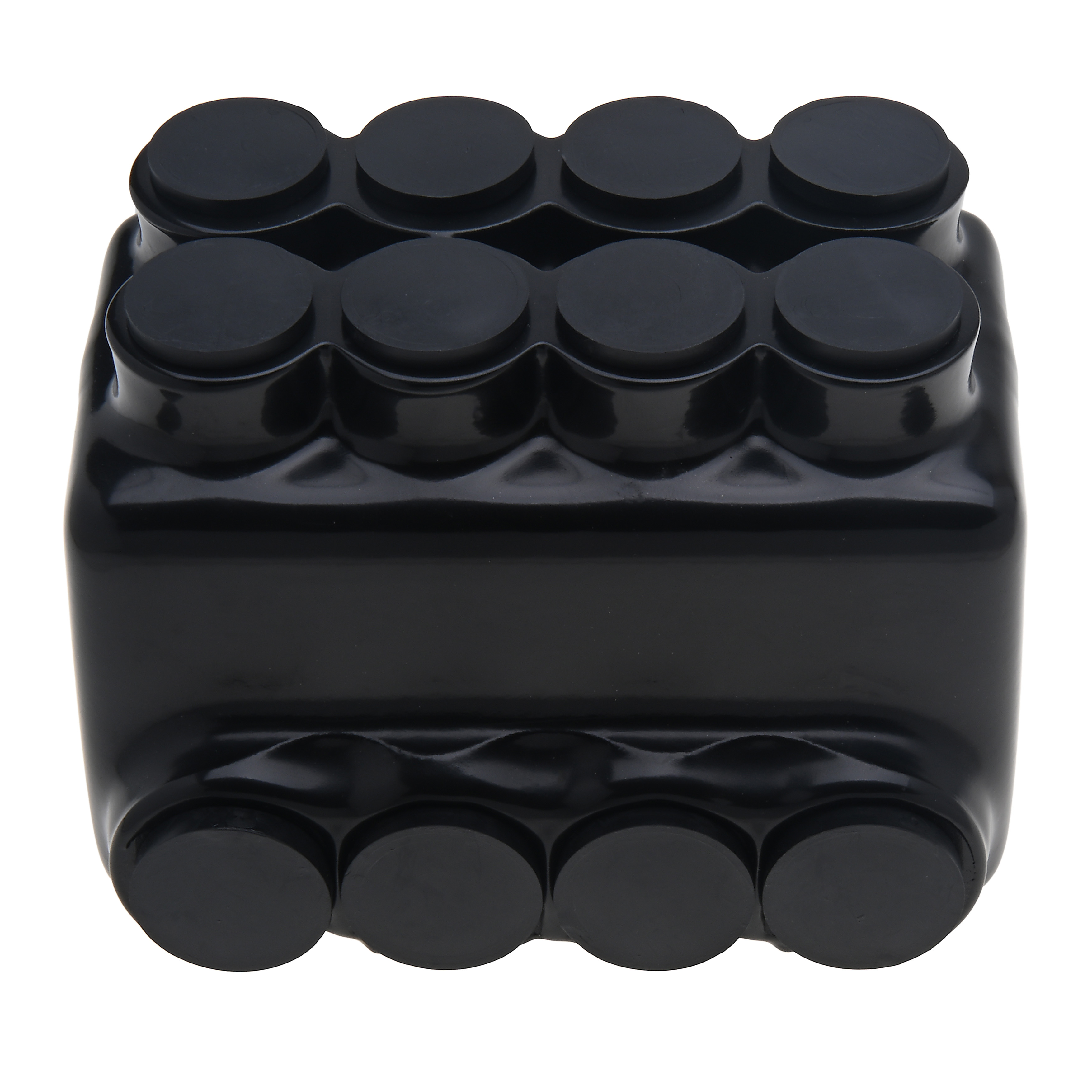

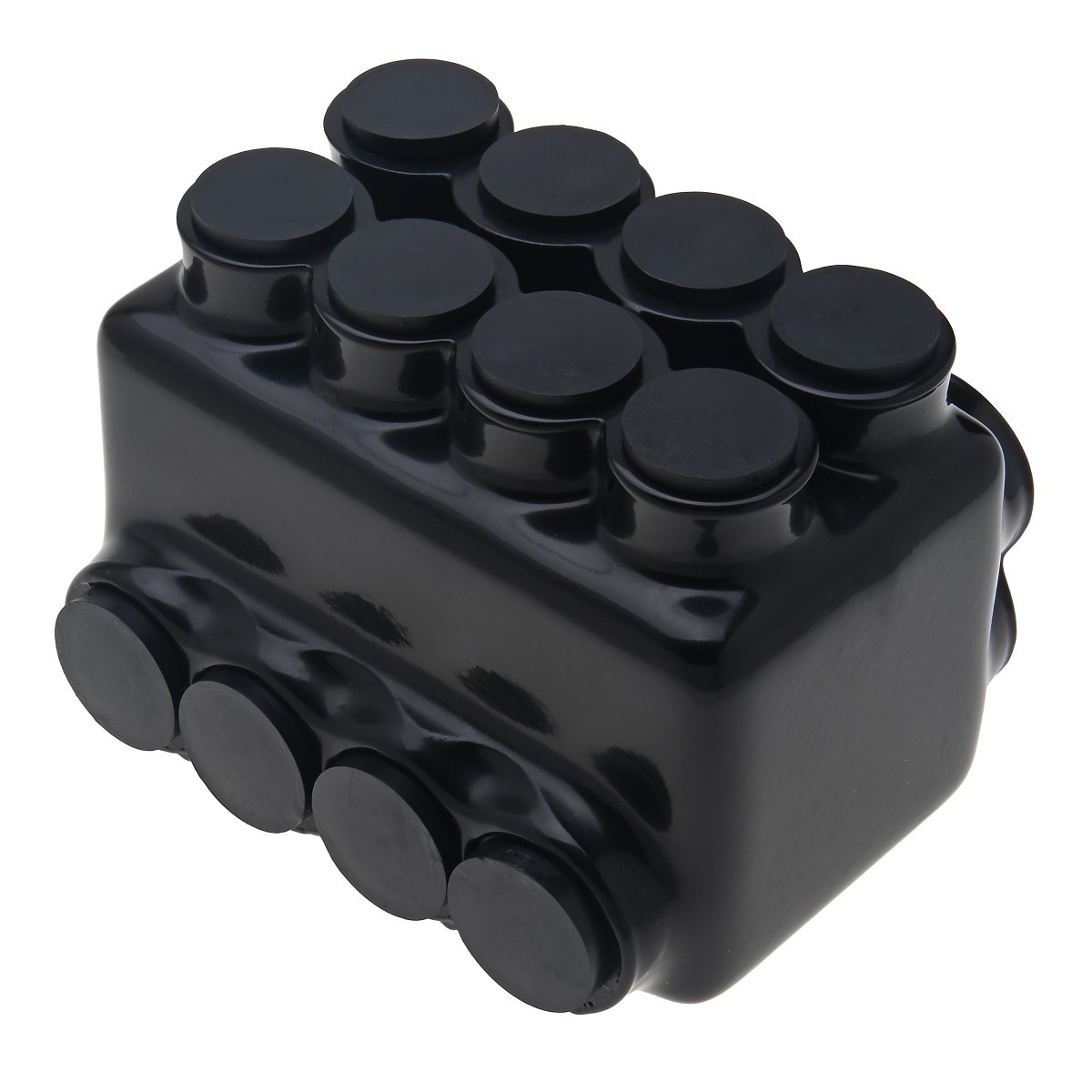

8-Port Black Stacked Pre-Insulated Connector, 600 MCM – 6 AWG

#IPLDS600-8

Polaris Black Stacked Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Dual-Sided Wire Entry: Form secure connections between 8 conductors quickly using the double-side entry ports sized for wires between 600 MCM - 6 AWG
  • Stacked Connector: Stacked wires holes on one side of the connector excel at splicing large wires in tight-fitting spaces like panels or wireways.
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Pre-filled Oxide Inhibitor: All 8 dual-sided entry (DSE) ports come with secure plugs and pre-filled with an oxide inhibitor gel to prevent corrosion or debris
  • Parallel Rated: This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black
Pack Qty 1
GTIN 662381369291
UPC 662381369291
EAN 662381369291
UNSPSC 39121409
Certifications cULus
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C
Al Conductor Max Amp 1262 (based on 8 ports) ++ See Note
Cu Conductor Max Amp 1612 (based on 8 ports) ++ See Note
Conductor Cu Size Range 600 MCM-6 AWG
Conductor Al Size Range 600 MCM-6 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 8
Hex Wrench Size 5/16
Env Temp Cold Temperature rated to -45C
Assortment Black UV Coated Pre-Insulated Connectors
Max Torque 450
