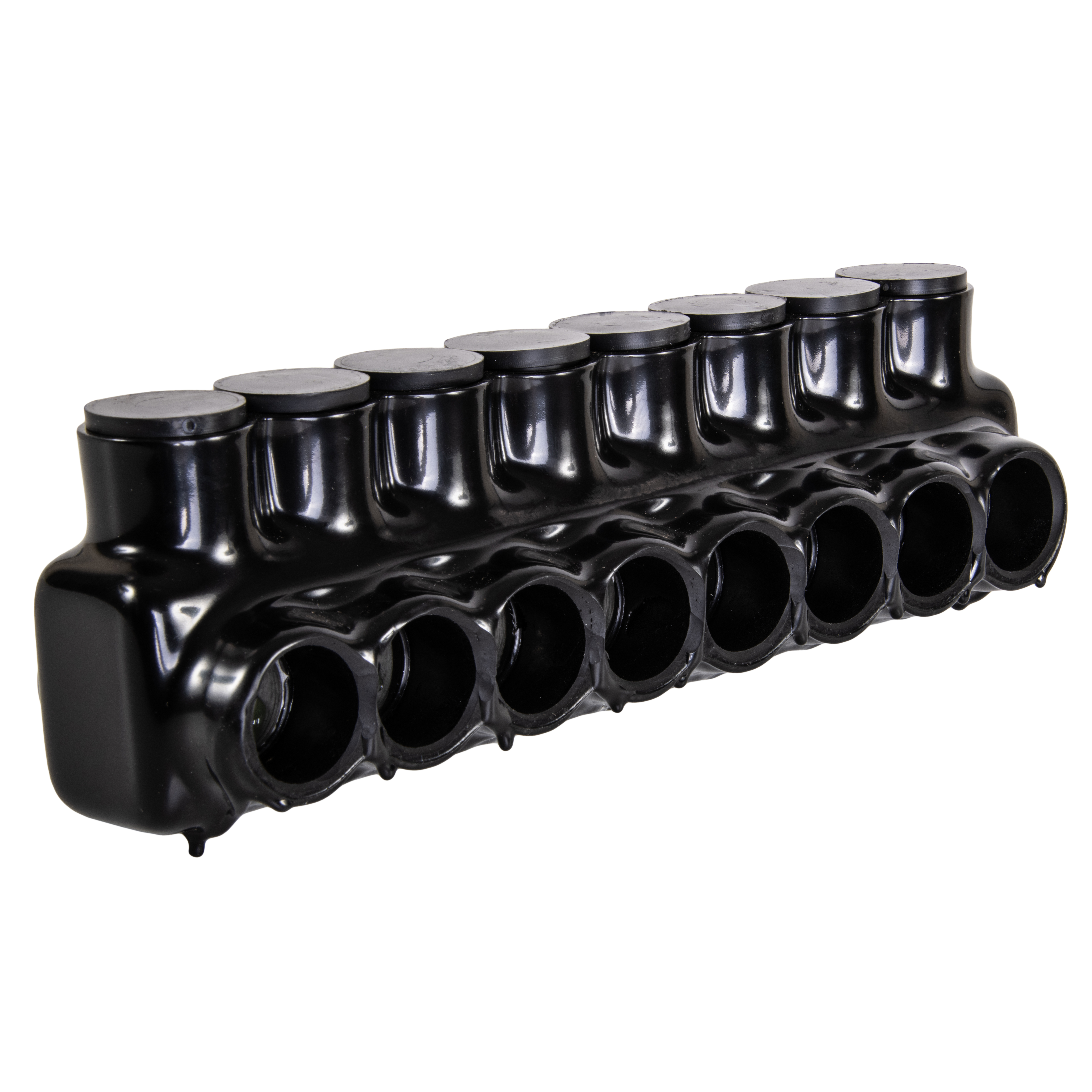

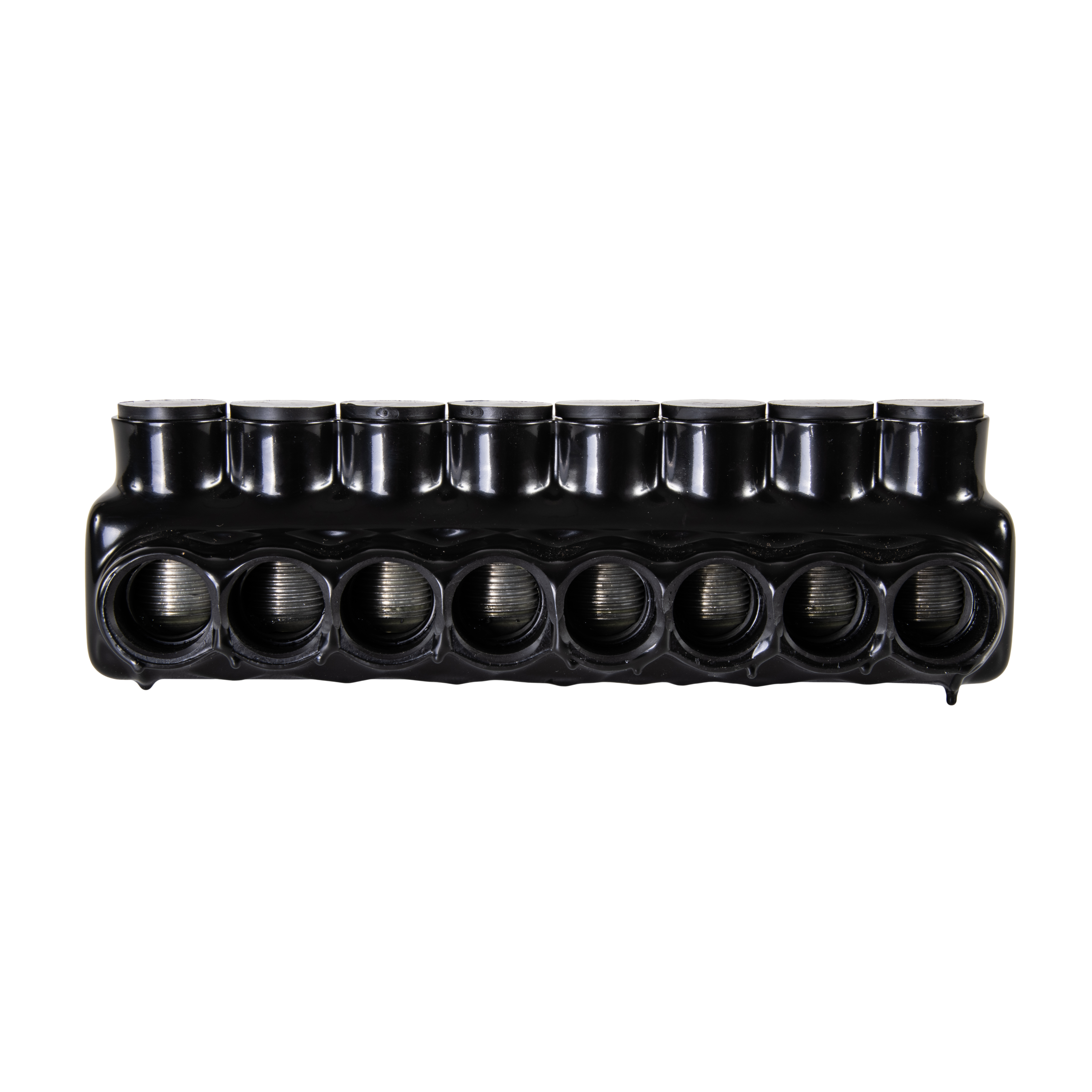

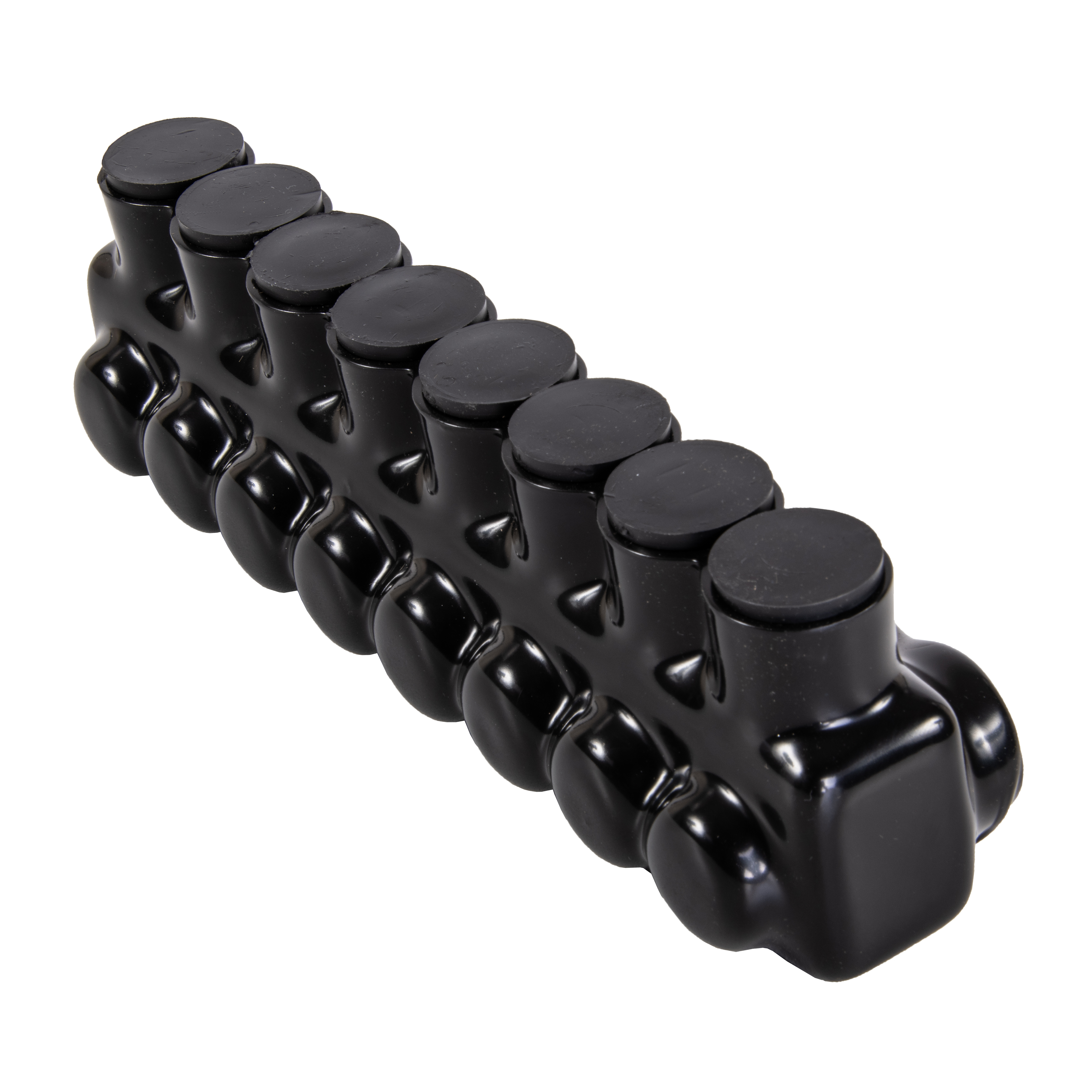

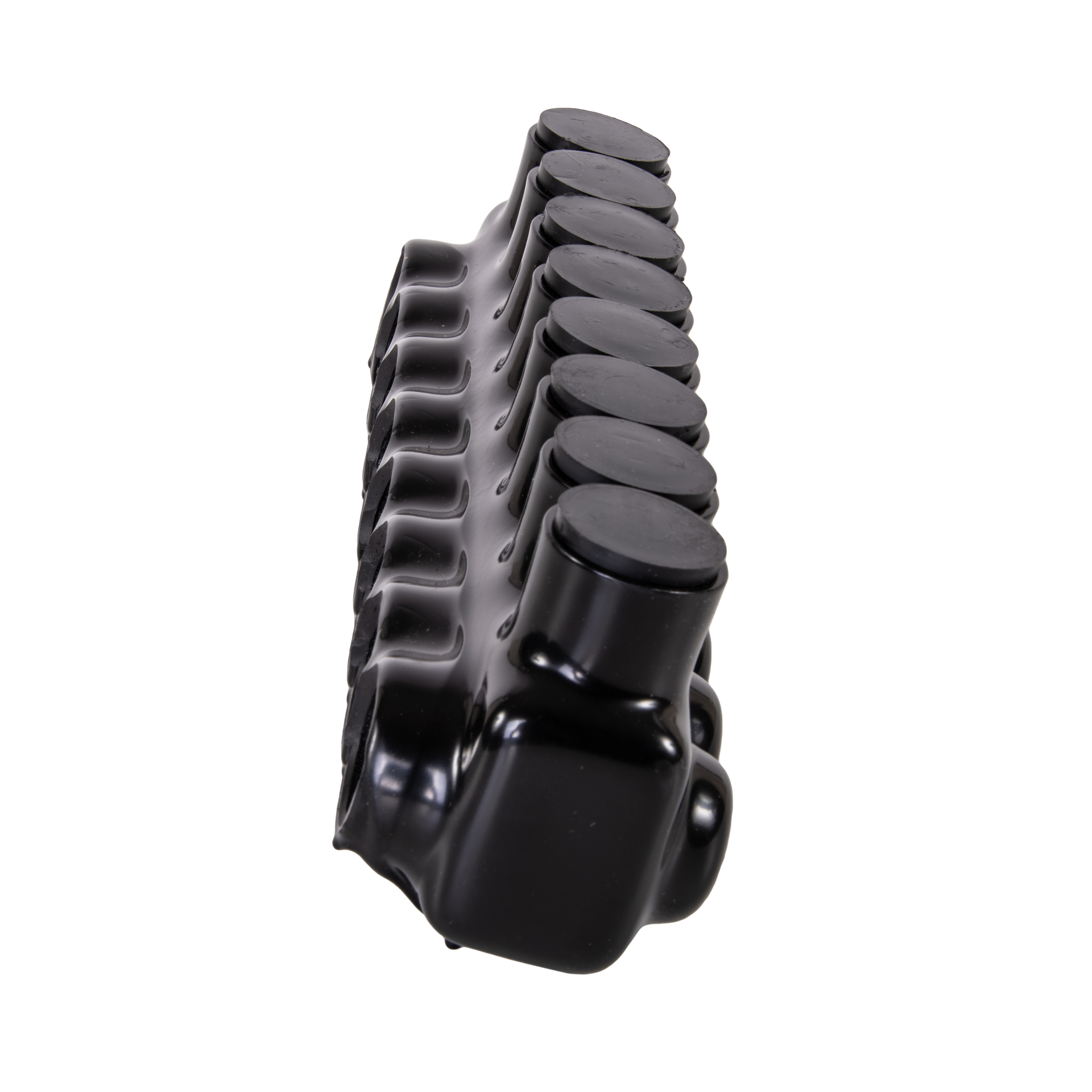

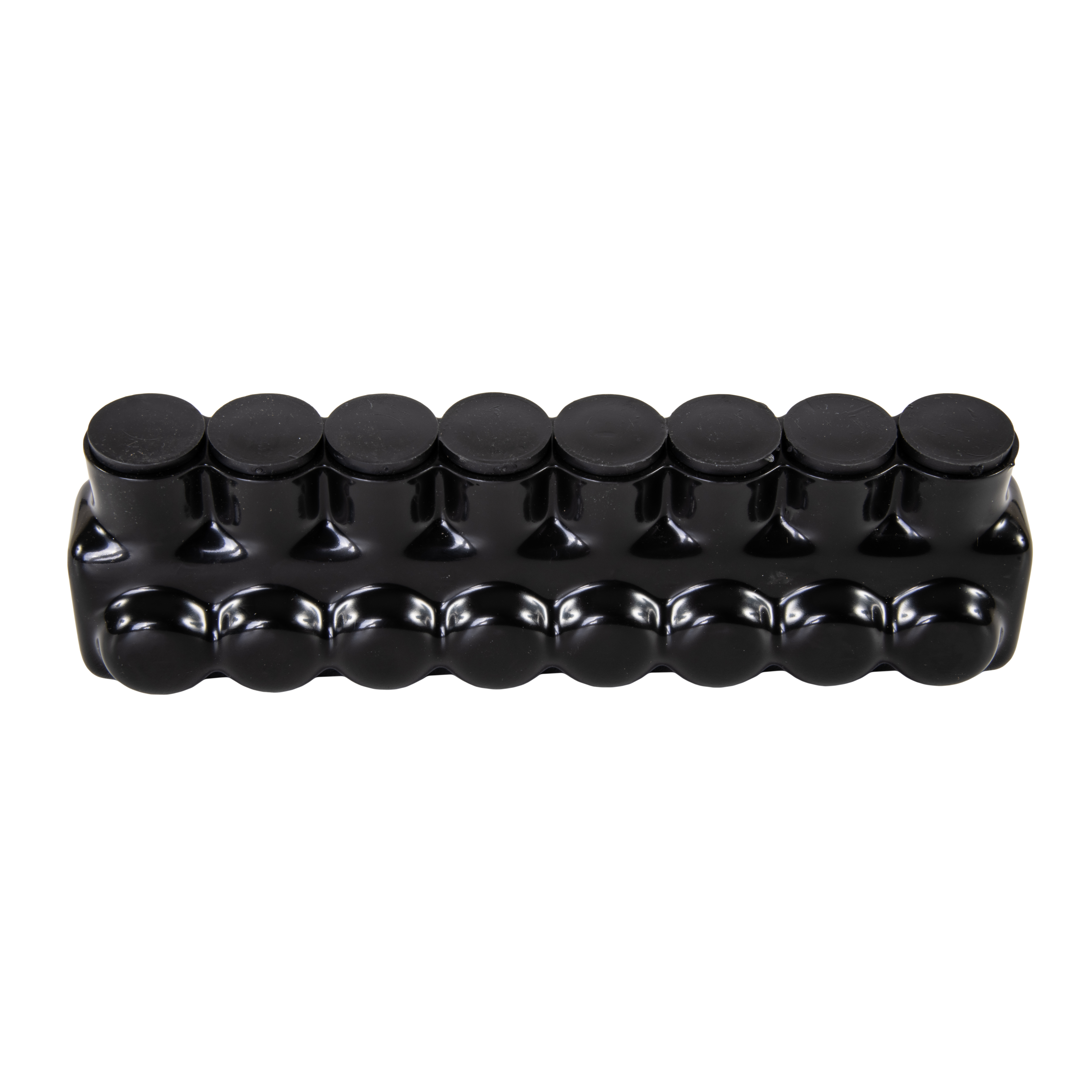

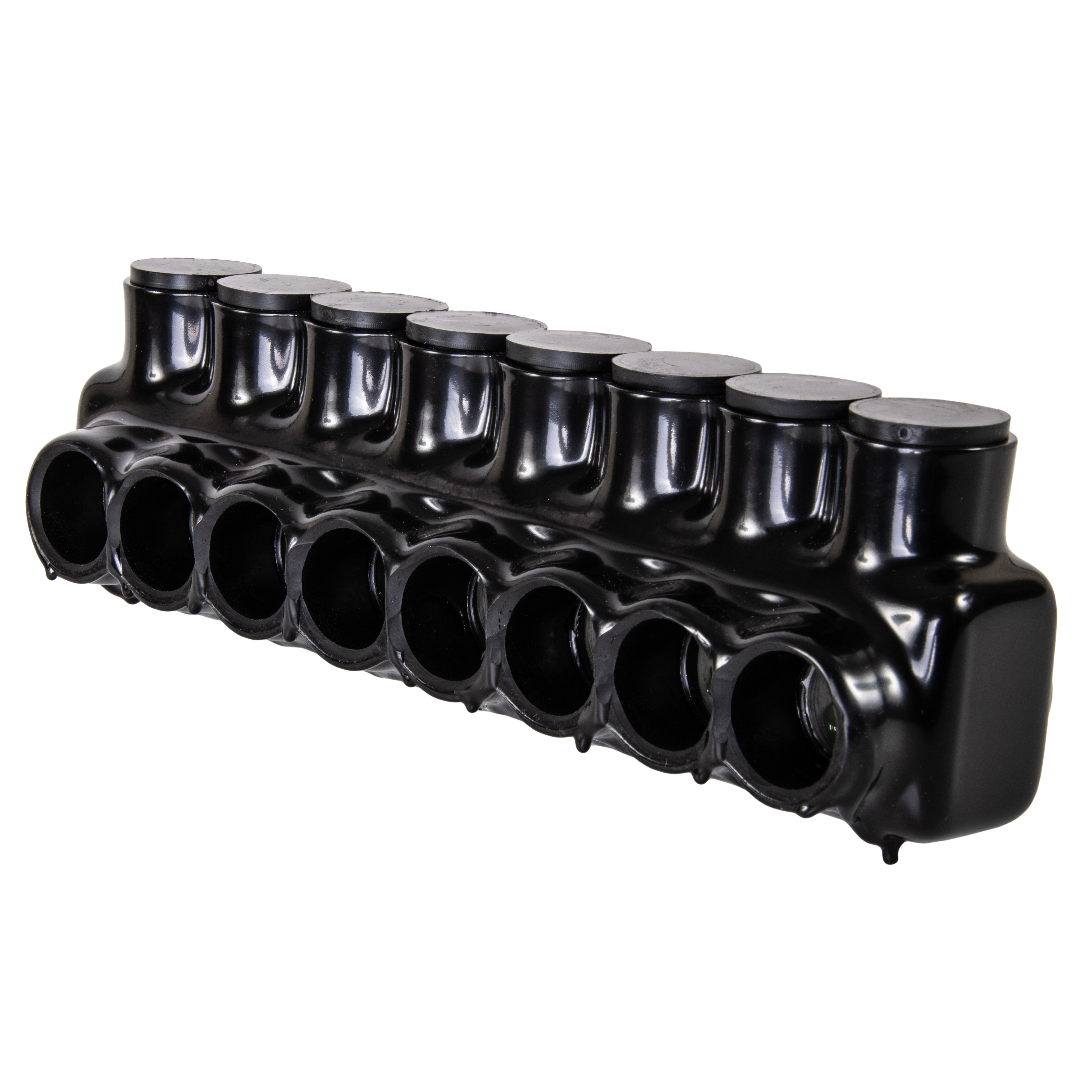

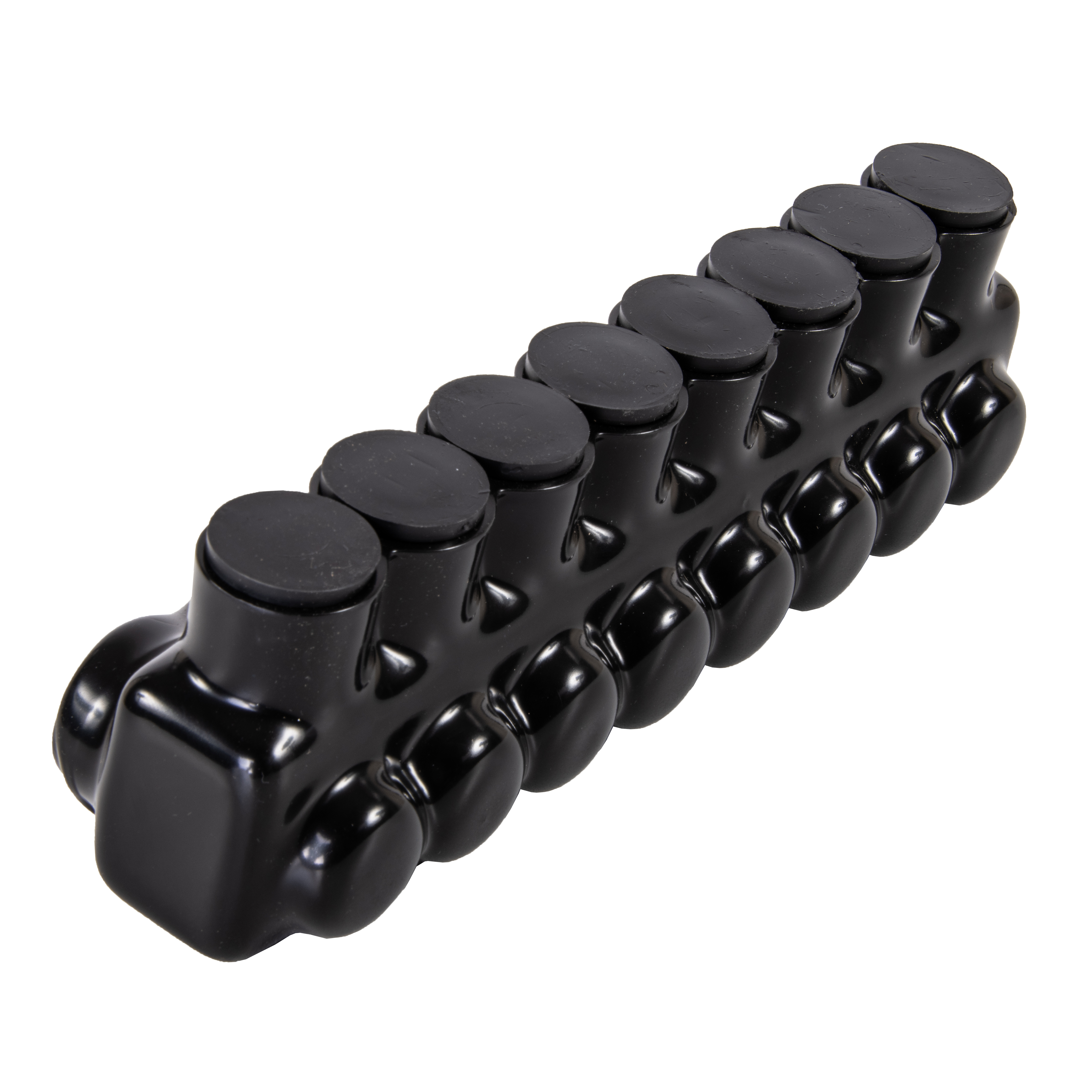

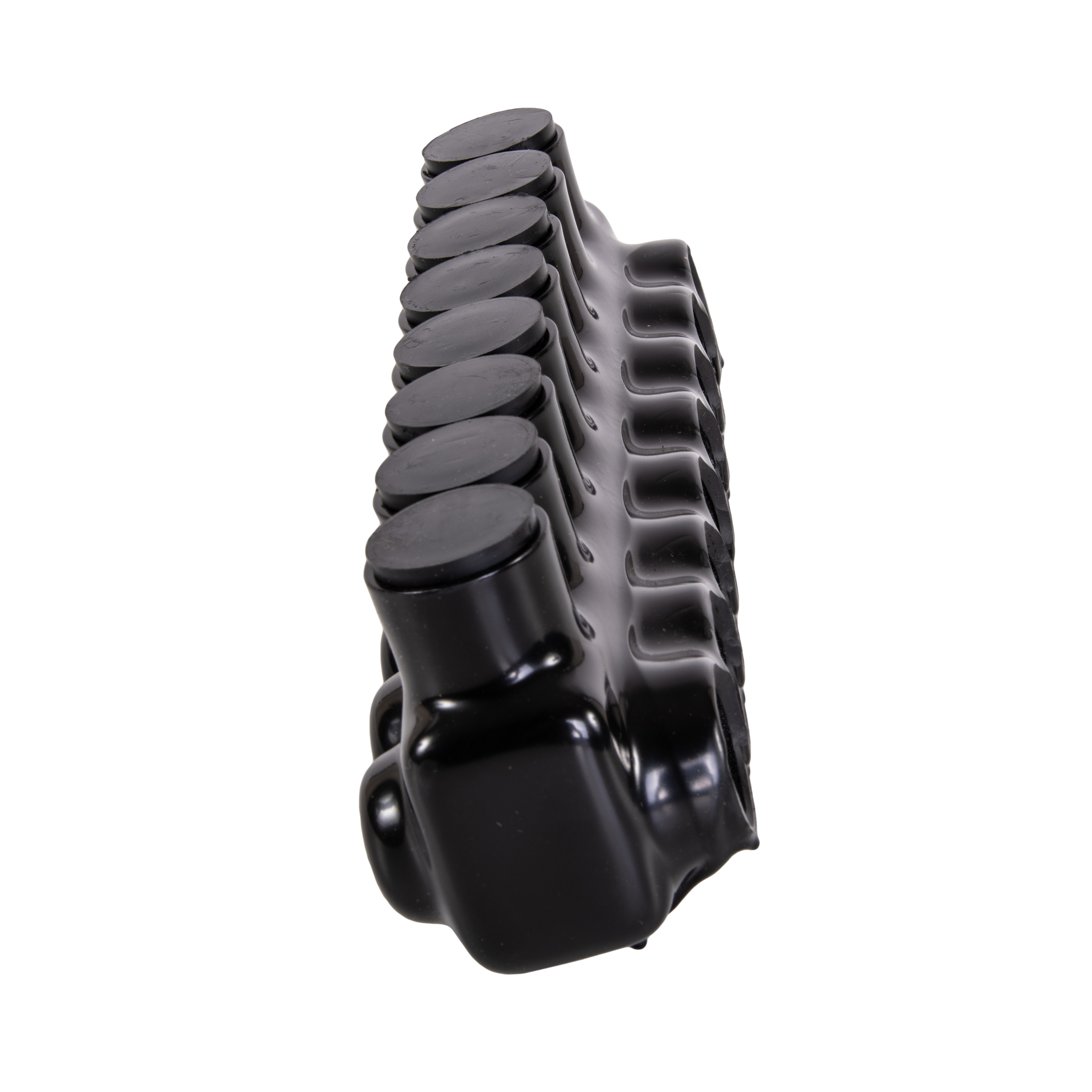

8-Port Black Multi-Tap Pre-Insulated Connector, 500 MCM – 4 AWG

#IPL500-8

Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • One-Side Wire Entry: Form secure connections between 8 conductors quickly using the single-side entry ports sized for wires between 500 MCM and 4 AWG
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
  • Pre-filled Oxide Inhibitor: All 8 single-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Parallel Rated: This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black
Pack Qty 2
GTIN 662381915061
UPC 662381915061
EAN 662381915061
UNSPSC 39121409
Origin Country US
Certifications cULus
Ul Standard UL 486A/B
Wire Cable Class Class B, Class C
Al Conductor Max Amp 1262
Cu Conductor Max Amp 1612
Conductor Cu Size Range 500 MCM-4 AWG
Conductor Al Size Range 500 MCM-4 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 8
Hex Wrench Size 5
Env Temp Cold Temperature rated to -45C
Assortment Black UV Coated Pre-Insulated Connectors
Application Splice, Tap
Max Torque 450
