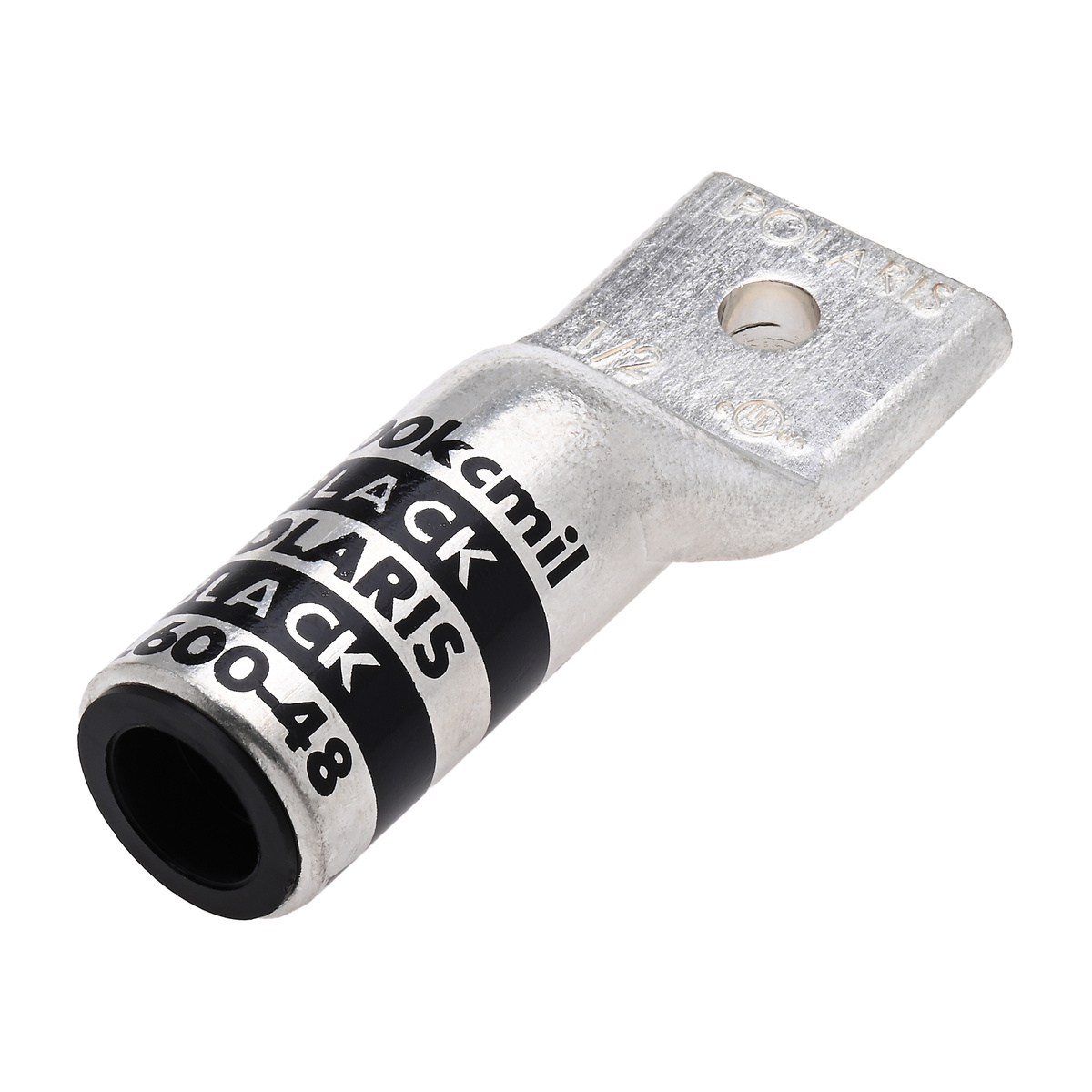

600 MCM 1/2” 1-Hole Aluminum Long Lug – Black

#AL600-48

Terminate with confidence using Polaris lugs in a wide range of applications, including power distribution, grounding and data transmission. Each connector is clearly color-coded and can be affixed with any standard crimp tool.

  • High conductivity aluminum tubing and corrosive resistant tin-plated finish
  • Die cast color-coded identification
  • Dual rated for both copper and aluminum conductors
  • Flex rated for use with K, H, G, I, M and DLO cable
  • UL/cULus listed and rated for B/C class wire

Product Information

Voltage Rating 600V
Material Aluminum
Finish Tin Plated
GTIN 662381030184
UPC 662381030184
EAN 662381030184
UNSPSC 39121405
Origin Country IN
Certifications cULus, UL Listed
Ul Standard UL 486A-486B
Barrel Inside Diameter 0.92
Barrel Outside Diameter 1.44
Ul File No E155027
Wire Cable Class Class B, Class C
Conductor Type Copper, Aluminum
Tang Thickness 0.51
Tang Length 1.87
Temp Rating 90C, AL9CU
Mounting Hole Pos 0.75
Hole Count 1
Wire Range 600 MCM
Assortment Aluminum Compression Terminations
Expanded Wire Range 600 MCM – 250 MCM
Die Color Code Black
Mounting Bolt Size 1/2
Barrel Length 2.6

Resources

Documents

  • POL_AL600-48_CMP_ProDraw_DIGITAL.pdf Download
  • POL_Compression_CMP_CatBro_DIGITAL.pdf Download
  • POL_TERMLUGS_CMP_ProdXRef_DIGITAL.pdf Download
  • POL_ALCompression_CMP_ProdInstall_DIGITAL.pdf Download
  • POL_TERMLUGS_CMP_ProdSheet_DIGITAL.pdf Download
