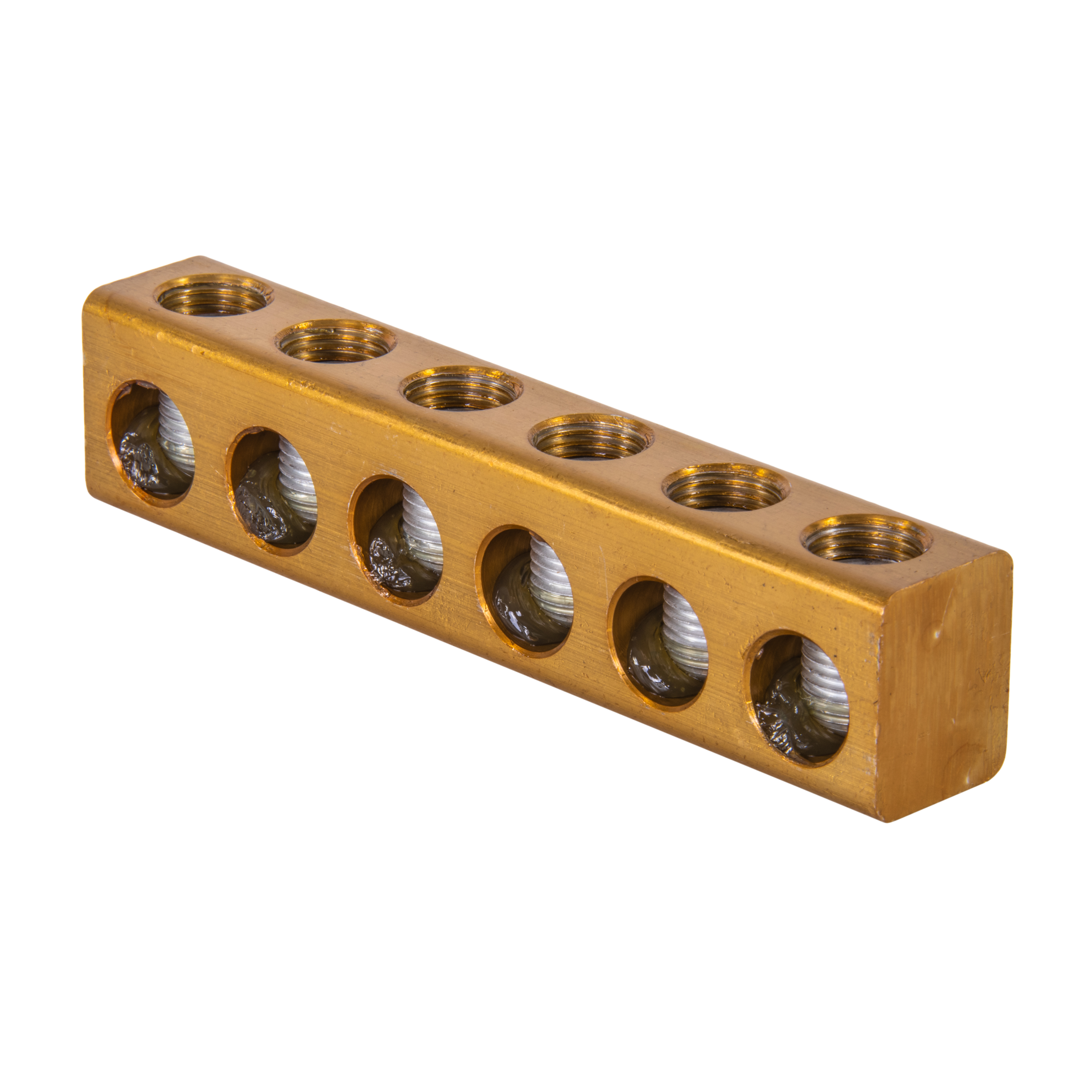

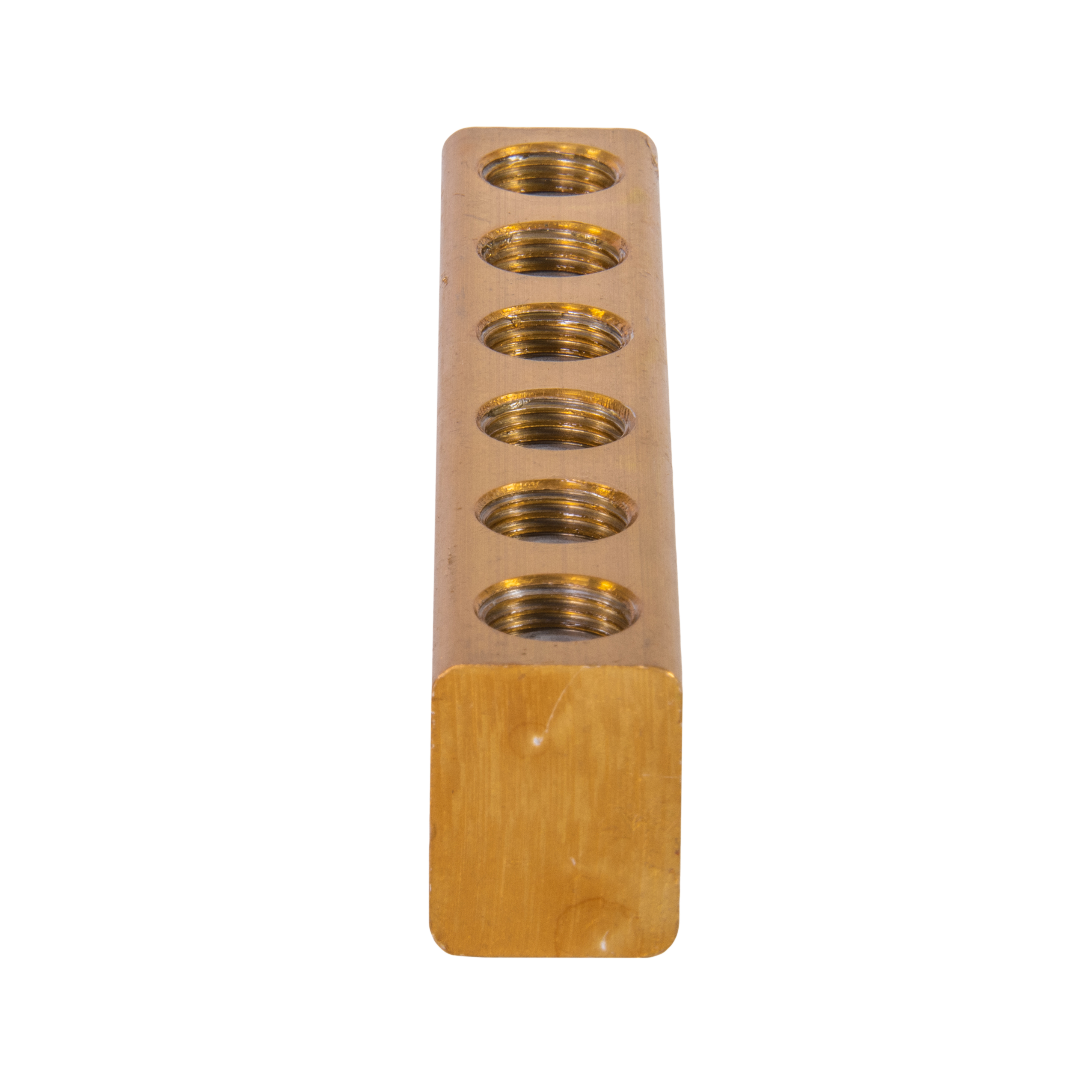

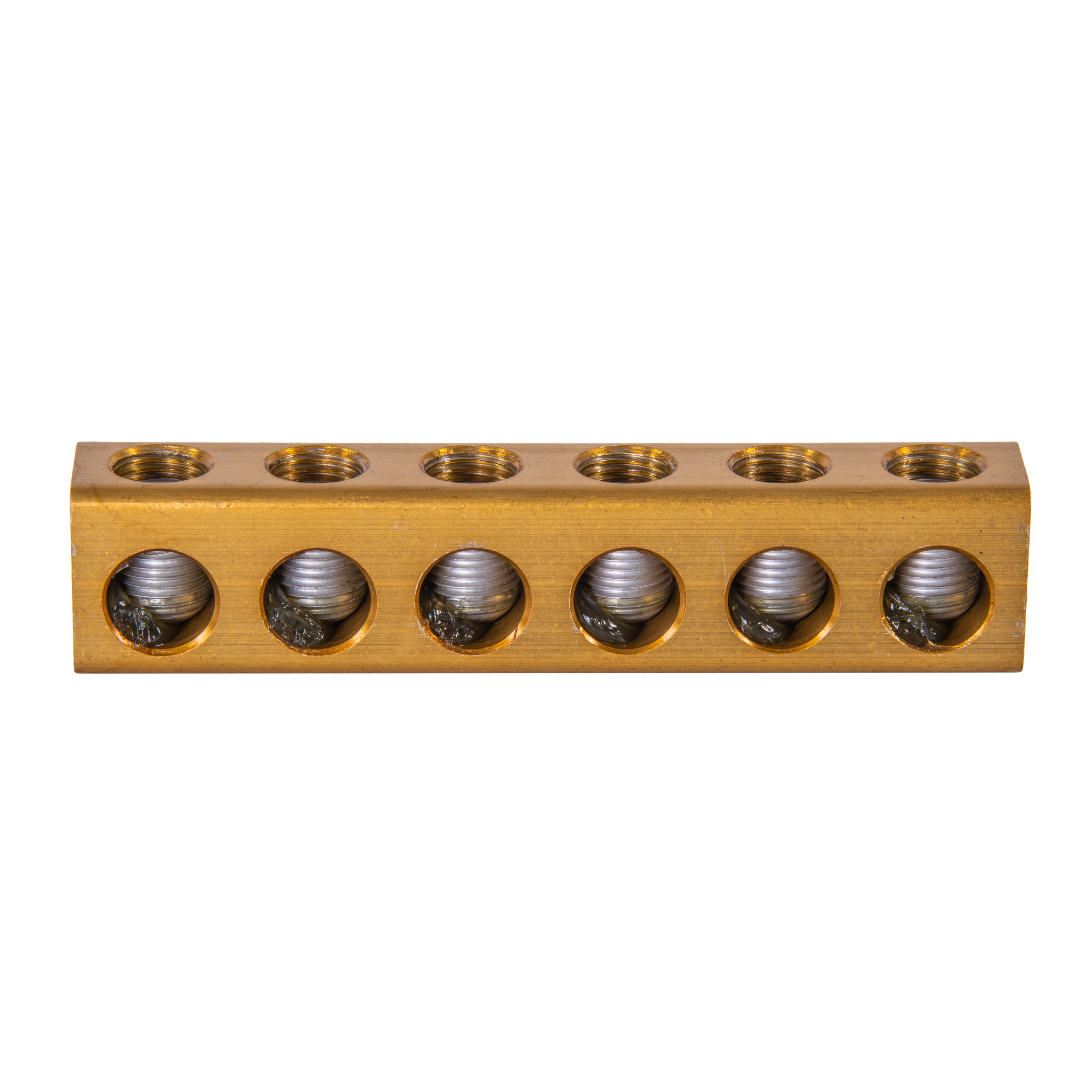

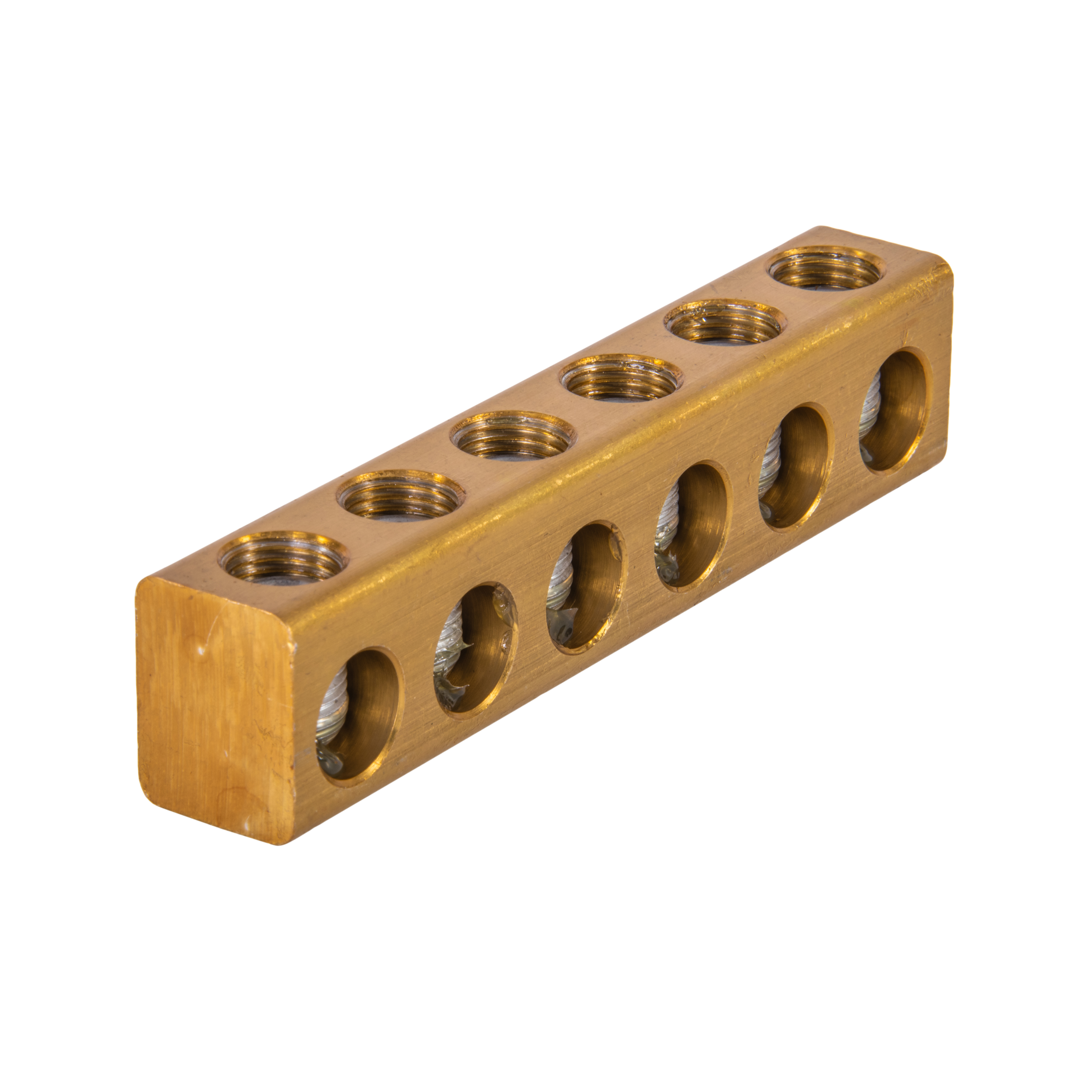

6-Port Uninsulated Multi-Tap Connector, 3/0 – 6 AWG

#PL3/0-6

Polaris Uninsulated Multi-Tap Connectors form secure connections between multiple conductors with an efficient aluminum body plated for corrosion resistance. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Uninsulated Simplicity: Form secure connections between 6 conductors quickly using the pass-through entry ports sized for wires between 3/0 and 6 AWG
  • Functional Design: Rounded corners and a plated aluminum body make Polaris connectors comfortable to grip and durable for harsh environments
  • Tightens Fast: Each entry port features a hex-keyed set screw that can be easily tightened to provide a secure grip on the inserted conductor
  • Extreme Voltage: Choose uninsulated connectors for high-voltage connections, with a heavy-duty maximum voltage rating of 2000V
  • Best Connections: Aluminum alloy pass-through ports provide low-contact resistance to guarantee a strong connection

Product Information

Voltage Rating 2000 V
Material Aluminum
Finish Chromated
GTIN 662381902047
UPC 662381902047
EAN 662381902047
UNSPSC 39121409
Origin Country US
Certifications cULus
Ul Standard UL 486A/B
Wire Cable Class Class B, Class C
Al Conductor Max Amp 175
Cu Conductor Max Amp 225
Conductor Cu Size Range 3/0-6 AWG
Conductor Al Size Range 3/0-6 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 6
Hex Wrench Size 1
Assortment Aluminum Mechanical Splices & Taps
Application Splice, Tap
Max Torque 250
