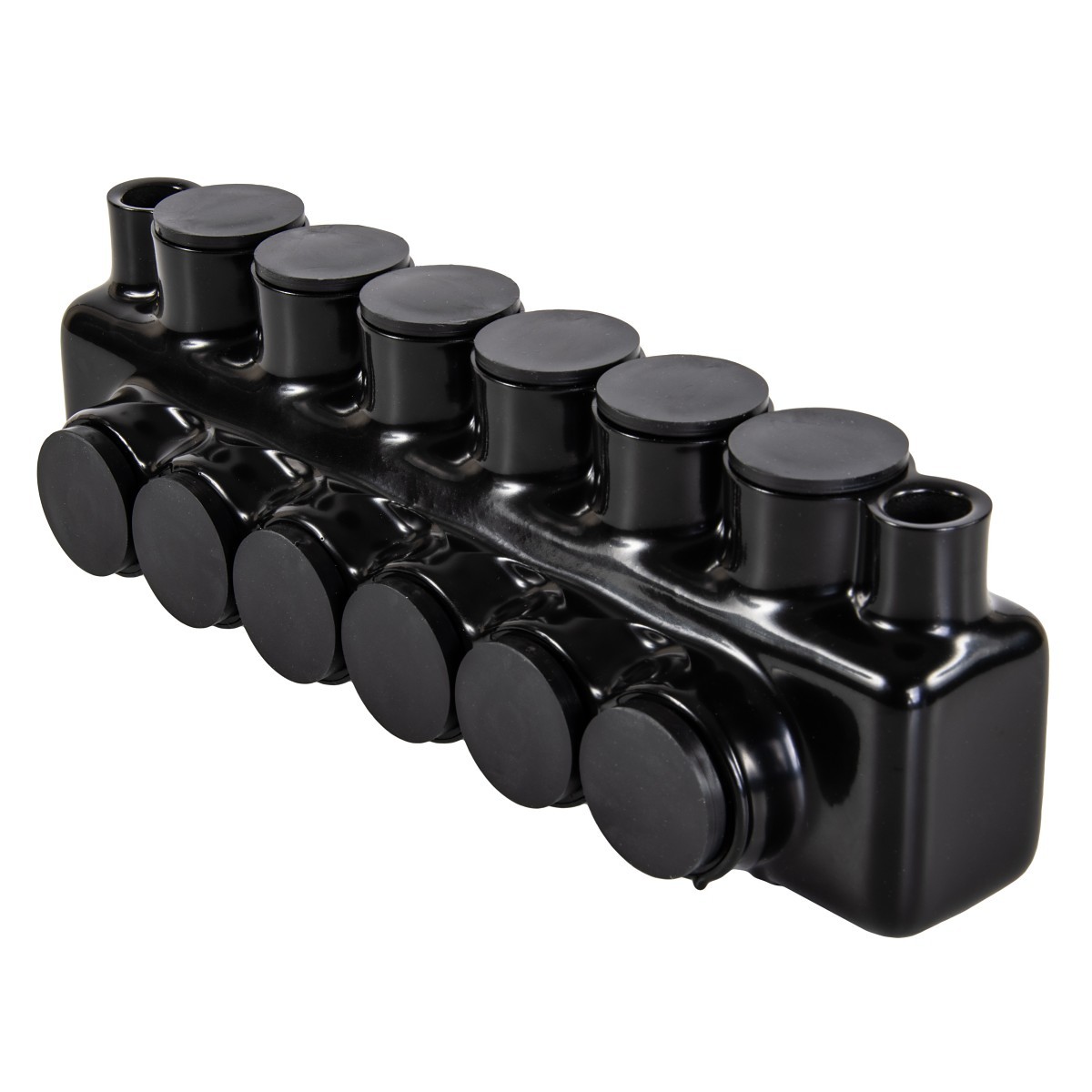

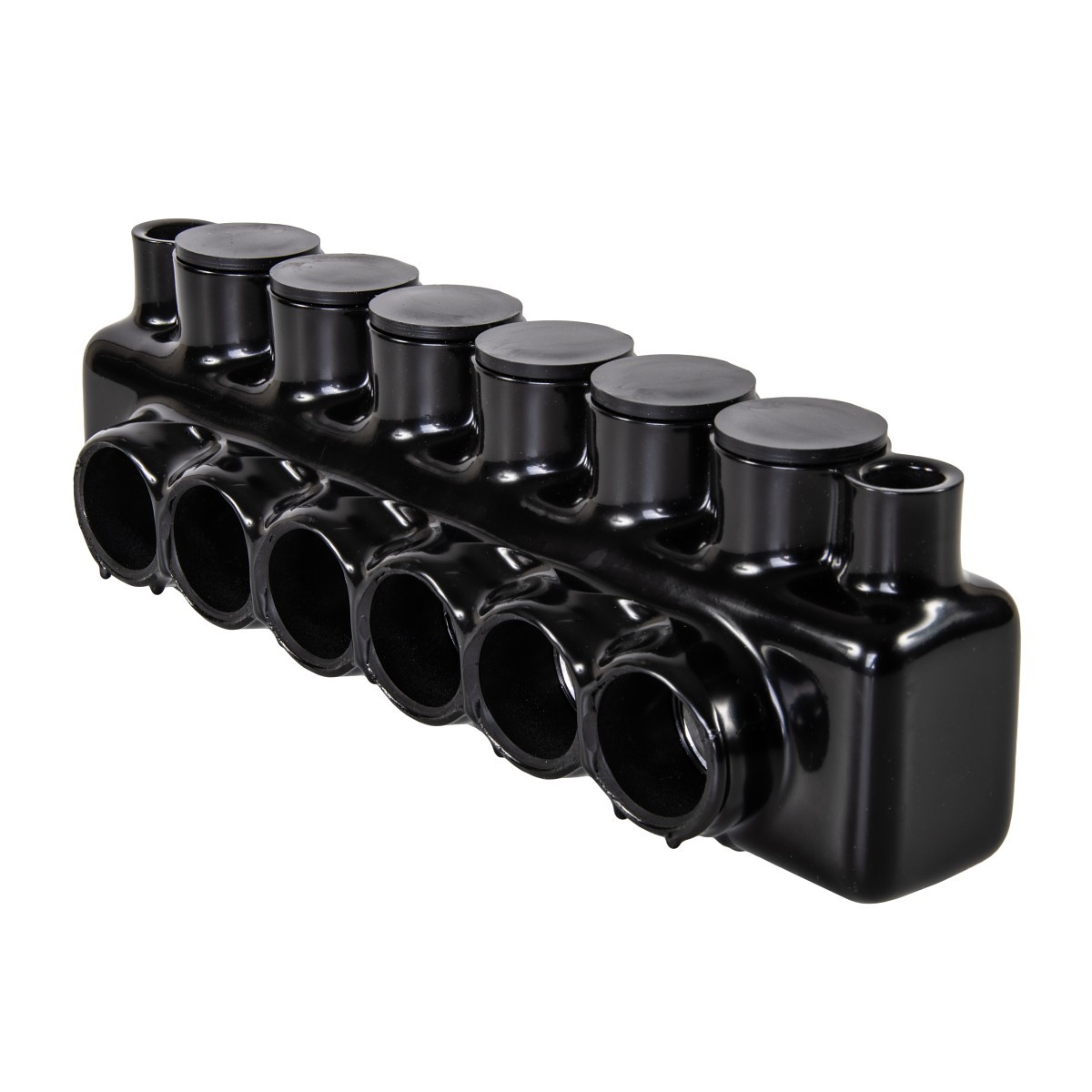

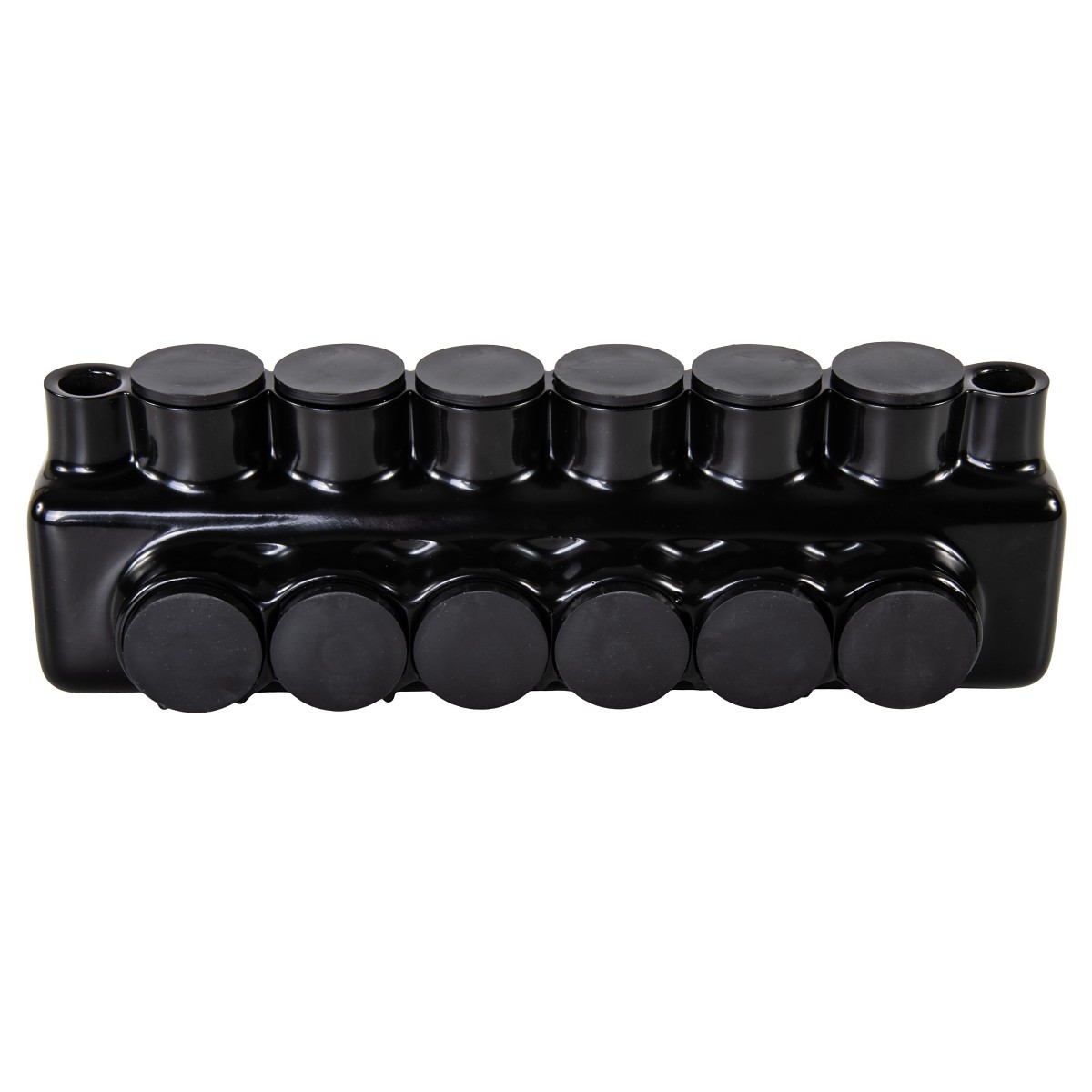

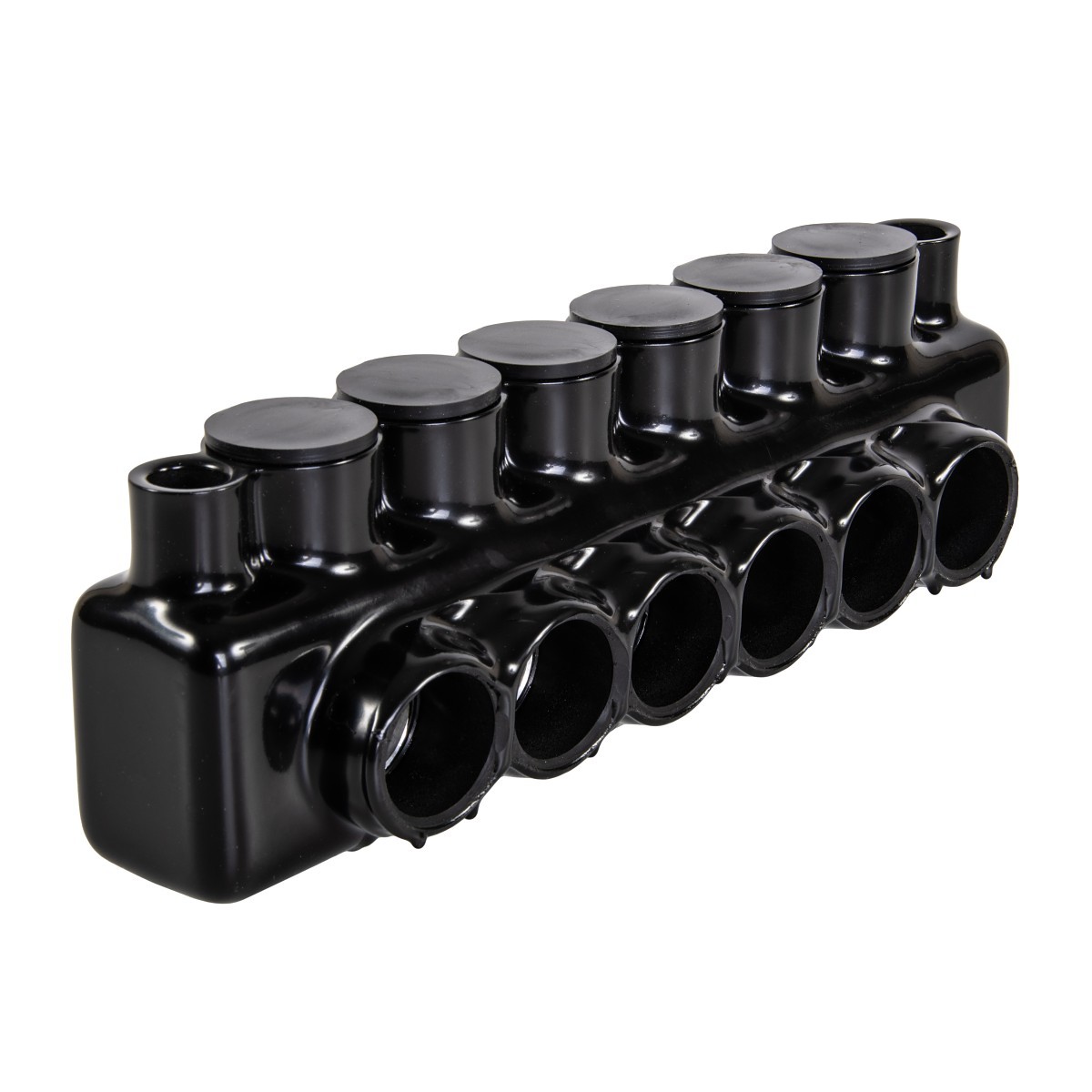

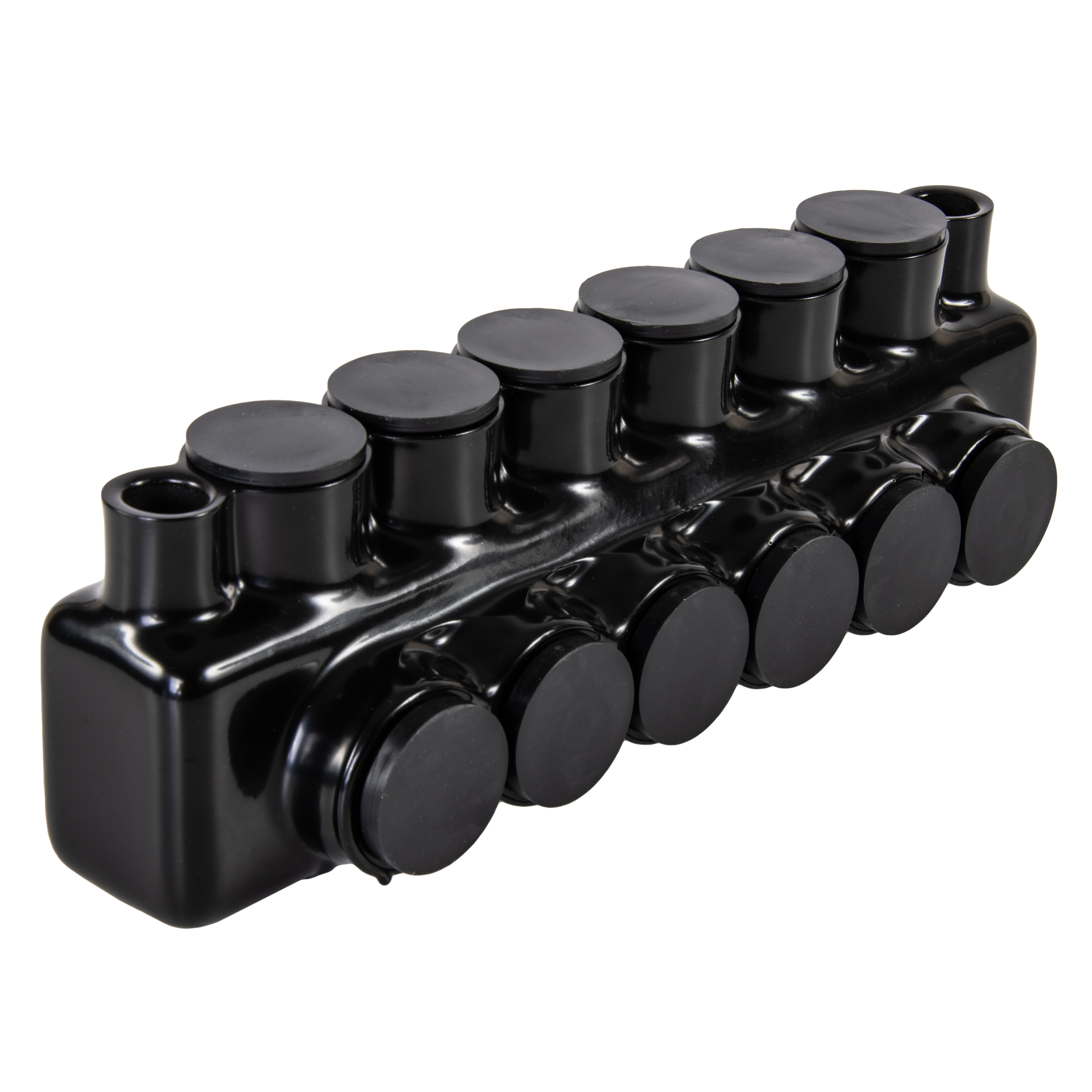

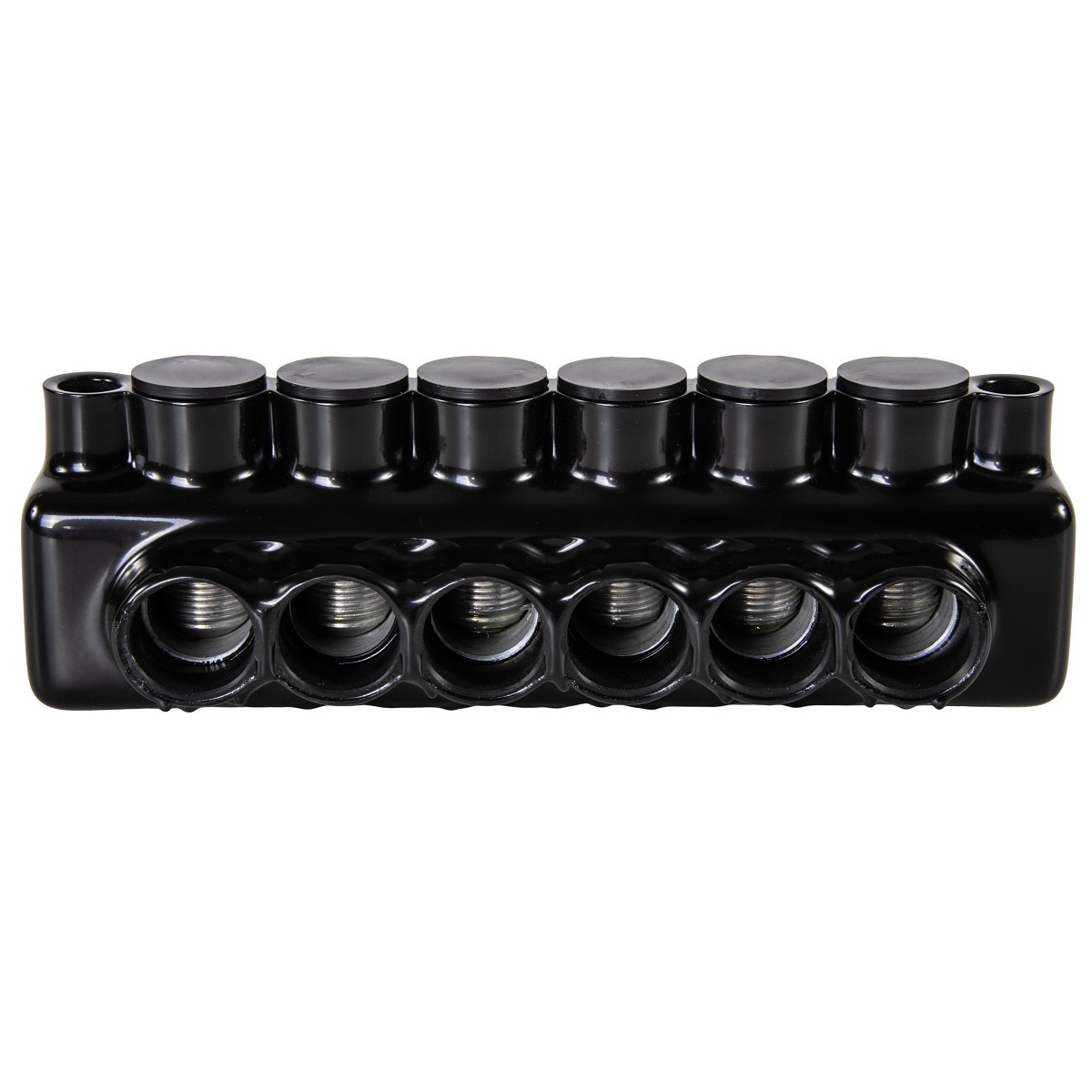

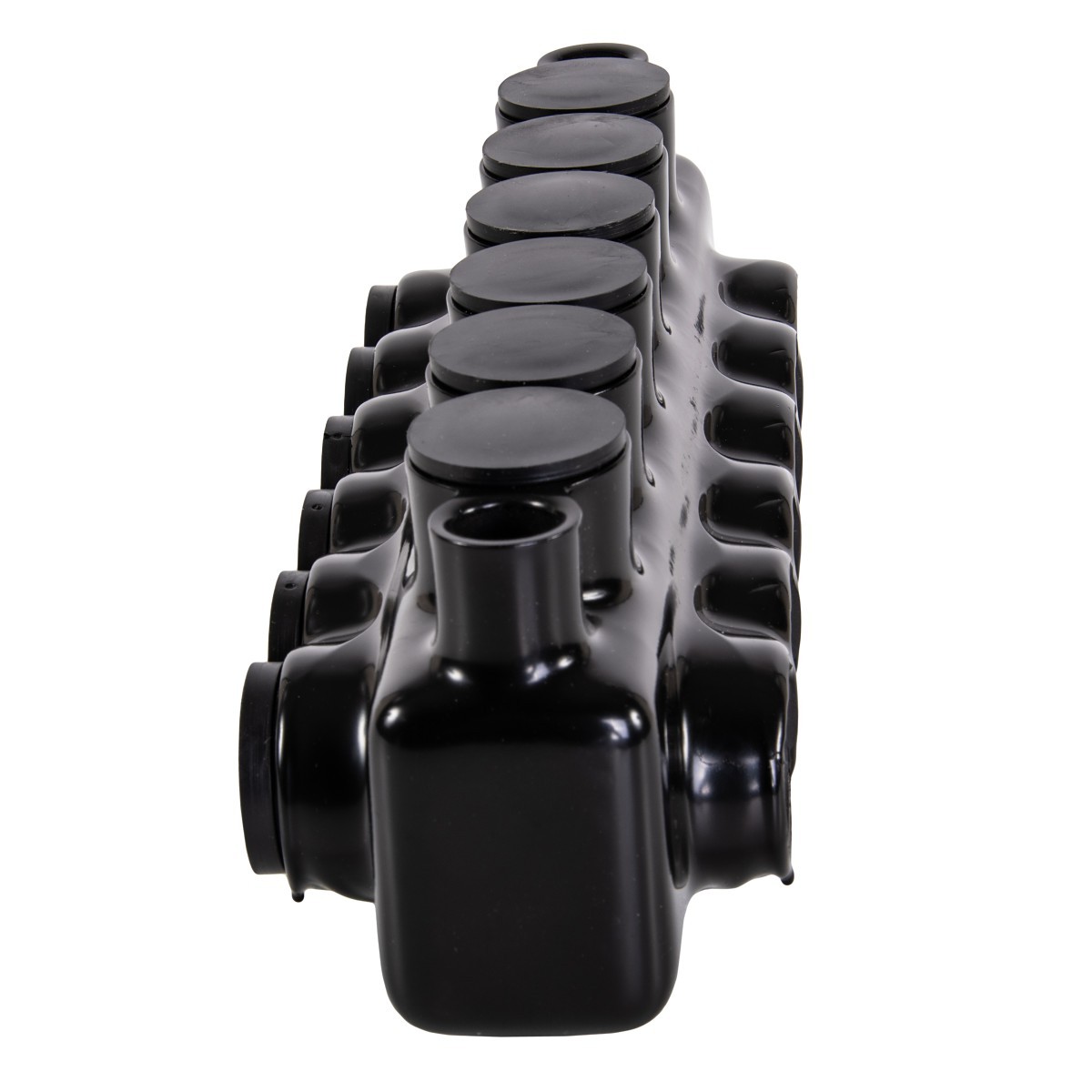

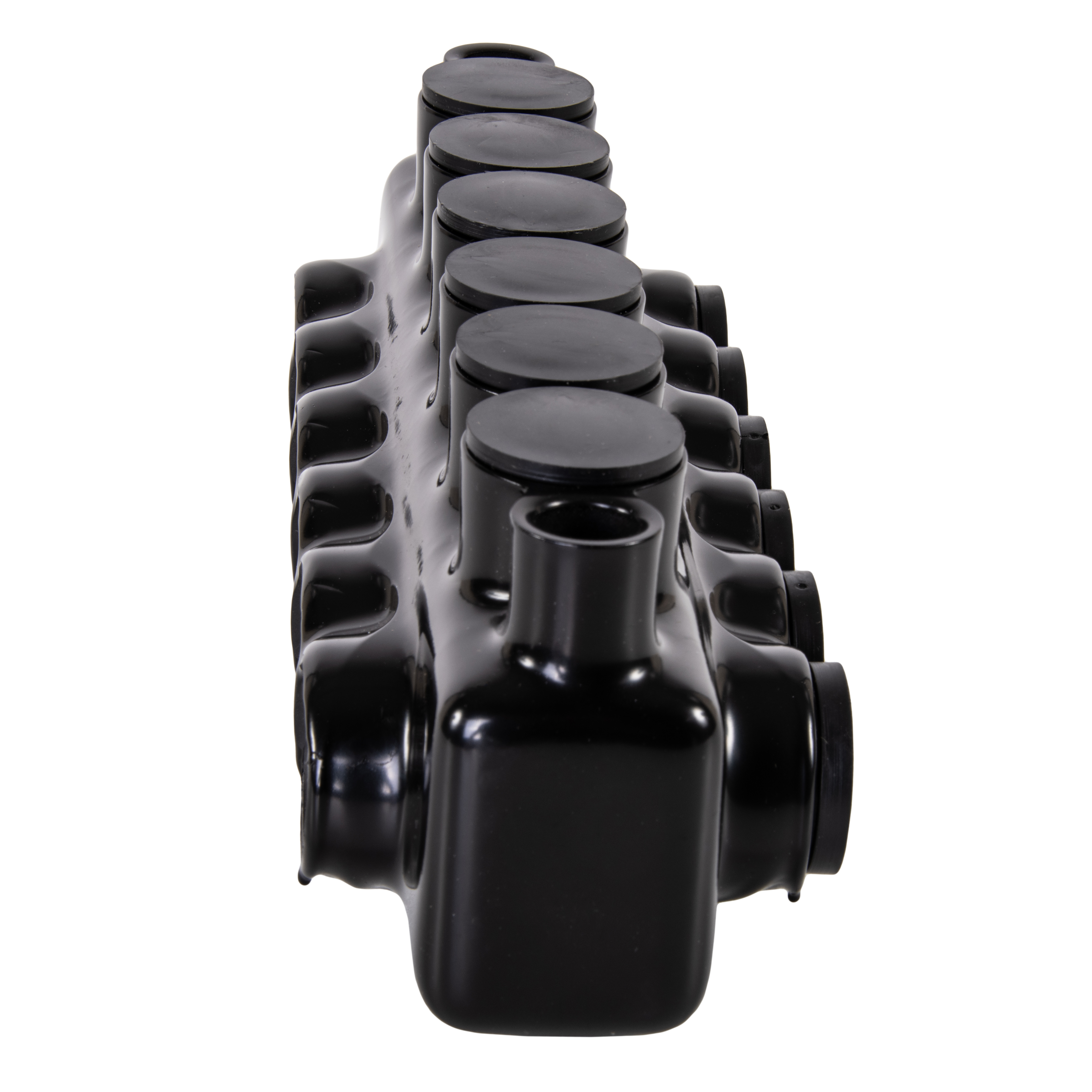

6-Port Black Mountable Pre-Insulated Connector, 750 MCM – 1/0 AWG

#IPLMD750-6

Polaris Black Multi-Tap Mountable Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Dual-Side Wire Entry: Form secure connections between 6 conductors quickly using the double-side entry ports sized for wires between 750 MCM - 1/0 AWG. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
  • Mounting Holes: Installation is simple with mounting holes on either side of the connector to attach directly to panels or troughs using 1/4" bolts
  • Ergonomic Design: The plastisol insulation features rounded corners for a comfortable grip and is UV, abrasion and chemical-resistant for durable performance
  • Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
  • Pre-filled Oxide Inhibitor: All 6 dual-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black
Pack Qty 1
GTIN 662381946041
UPC 662381946041
EAN 662381946041
UNSPSC 39121409
Origin Country US
Certifications cULus, 9d71e7f821454f7b84f0a15642ea01d2
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C
Al Conductor Max Amp 1395
Cu Conductor Max Amp 1767
Conductor Cu Size Range 750 MCM – 1/0 AWG
Conductor Al Size Range 750 MCM – 1/0 AWG
Conductor Type Copper, Aluminum
Temp Rating 75C, AL7CU
Conductors Count 6
Hex Wrench Size 3/8
Env Temp Cold Temperature rated to -45C
Assortment Black UV Coated Pre-Insulated Connectors
Max Torque 550
